Description

Edelbrock 79895 - Cylinder Head SBC E-Cnc 185 64cc Straight Plug for Hydraulic Roller Cam Complete

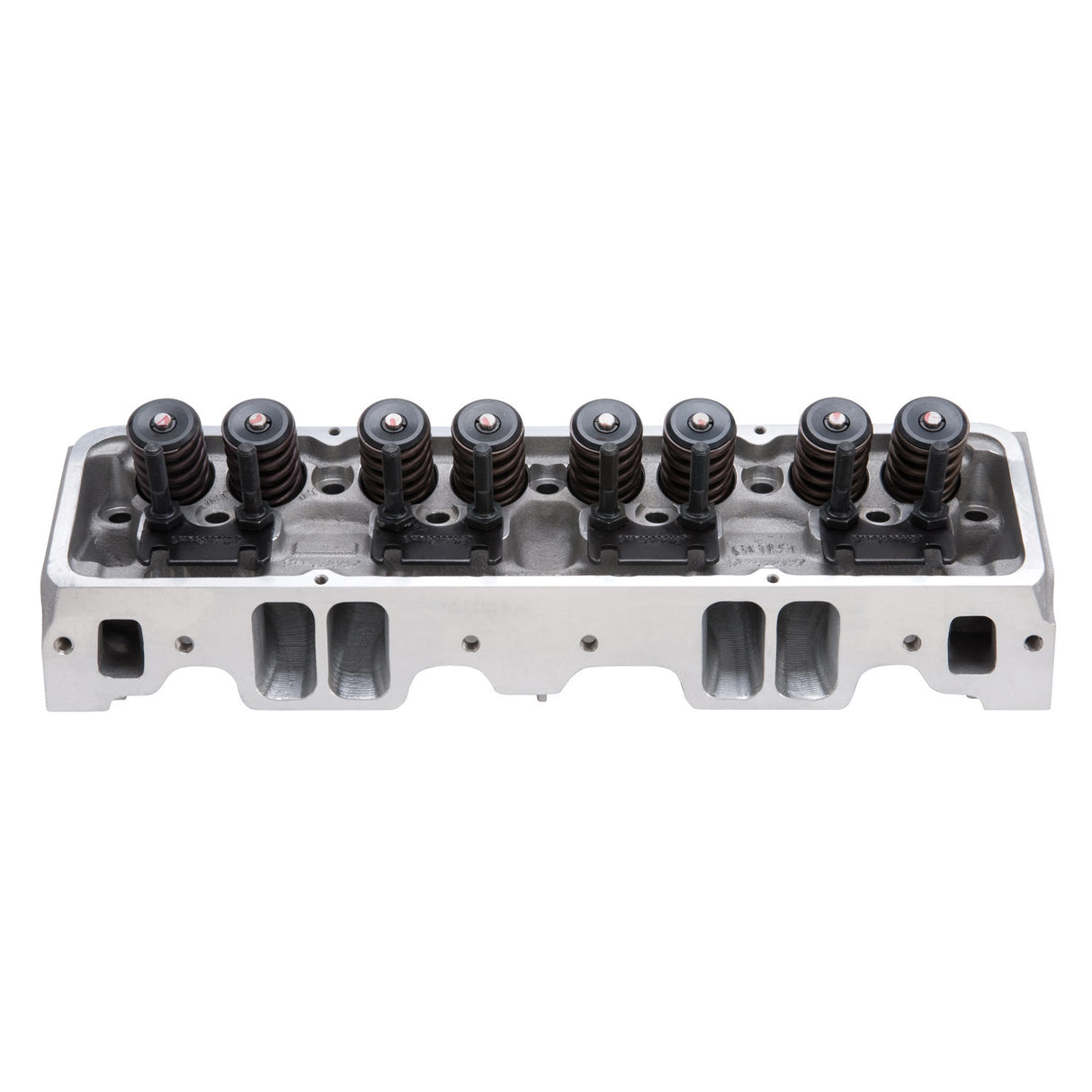

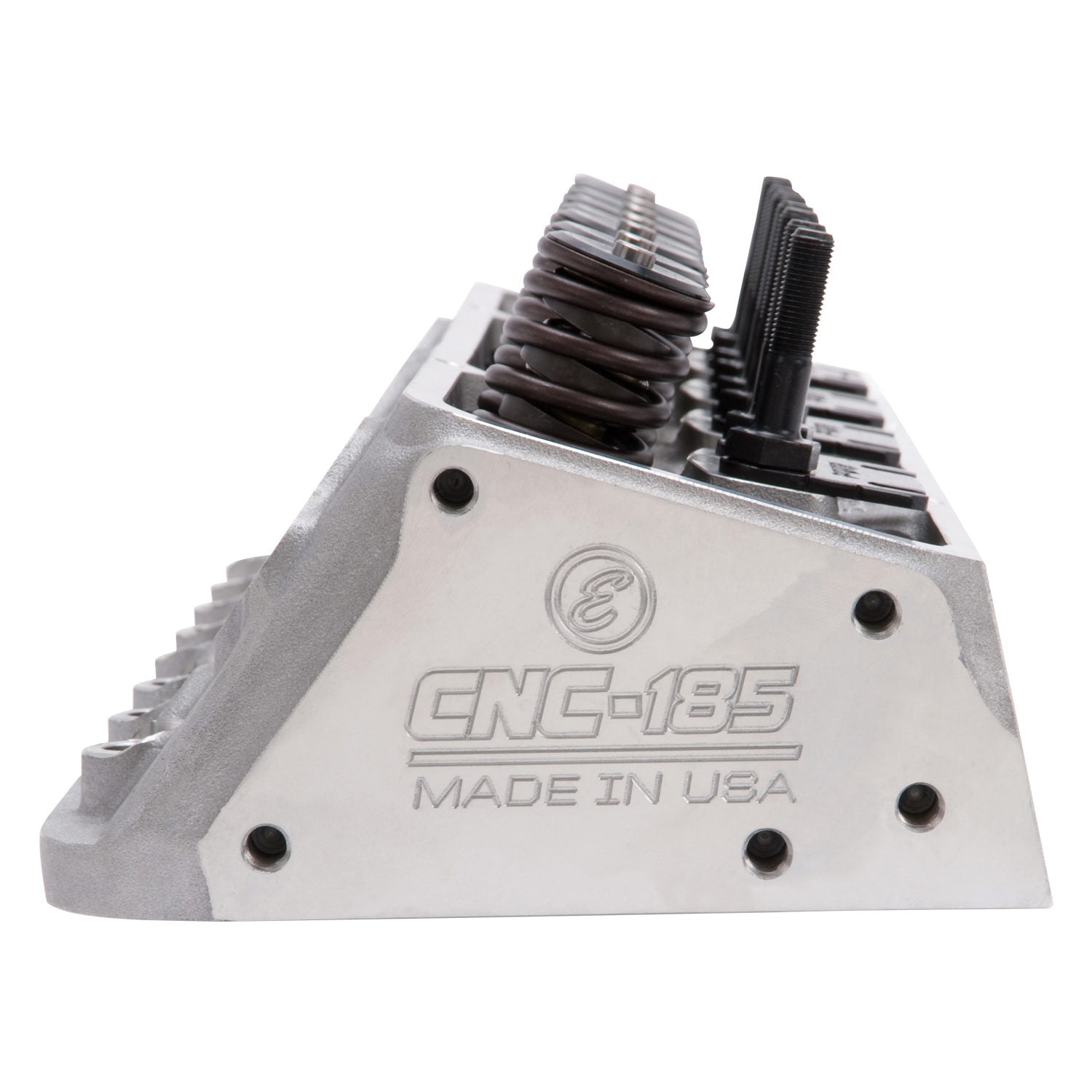

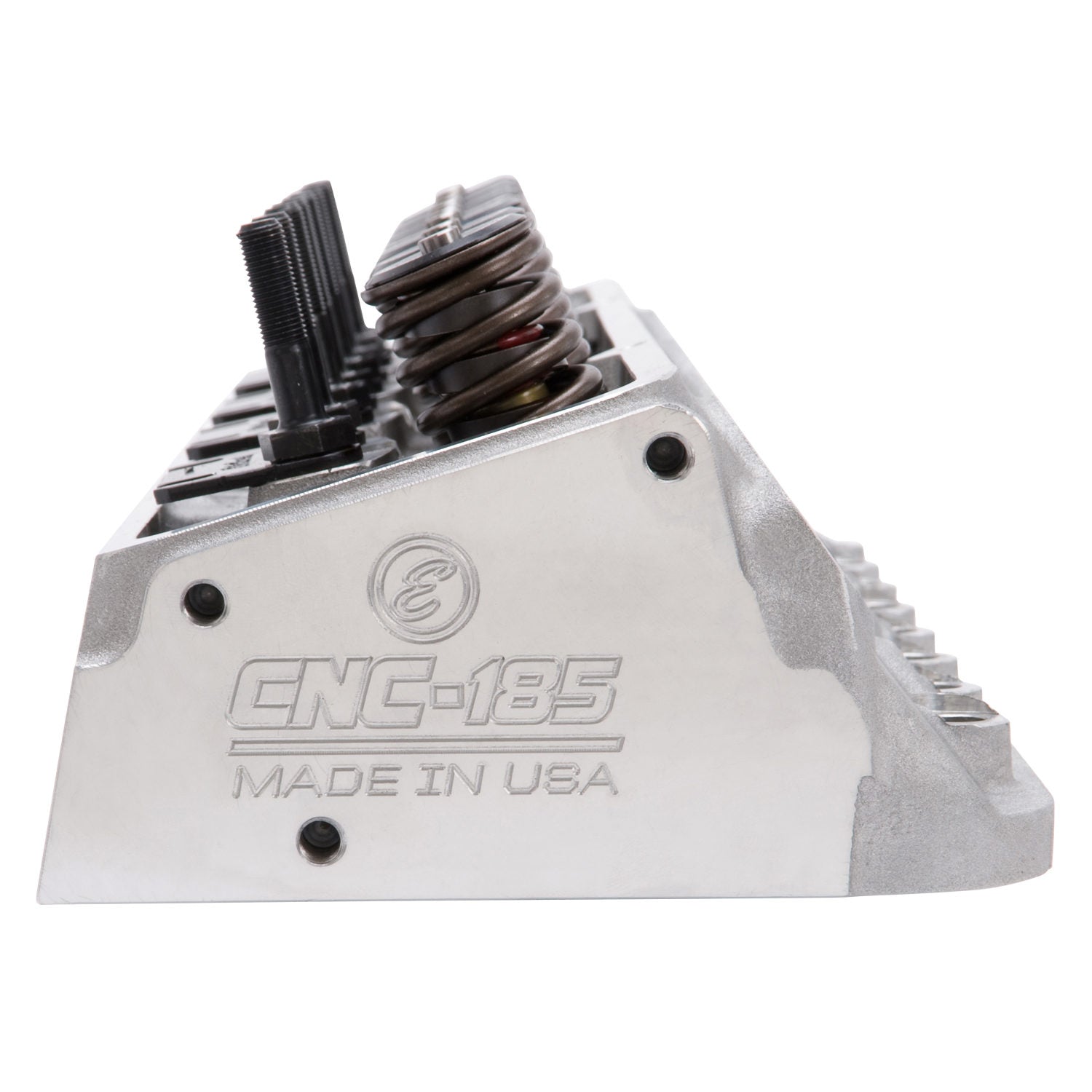

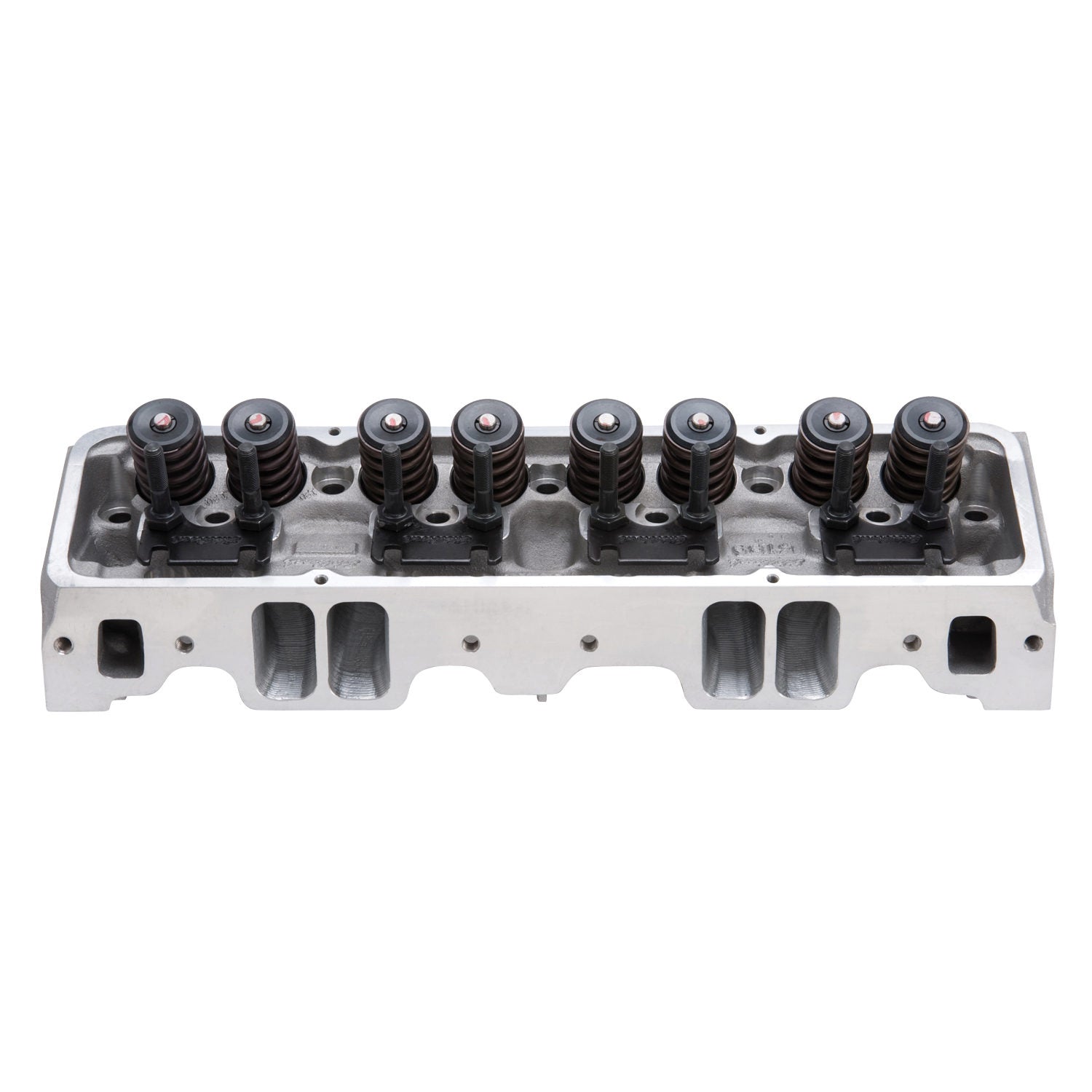

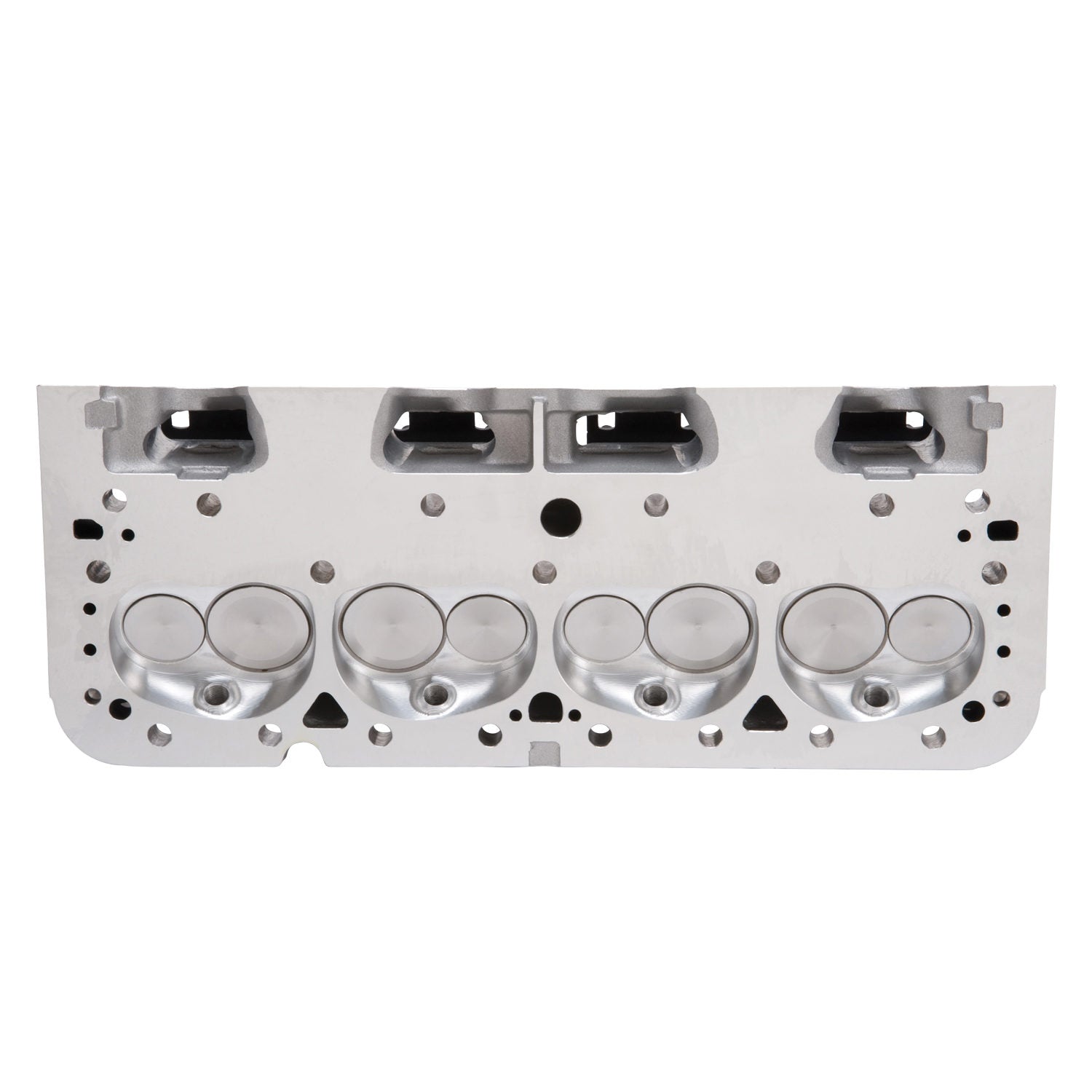

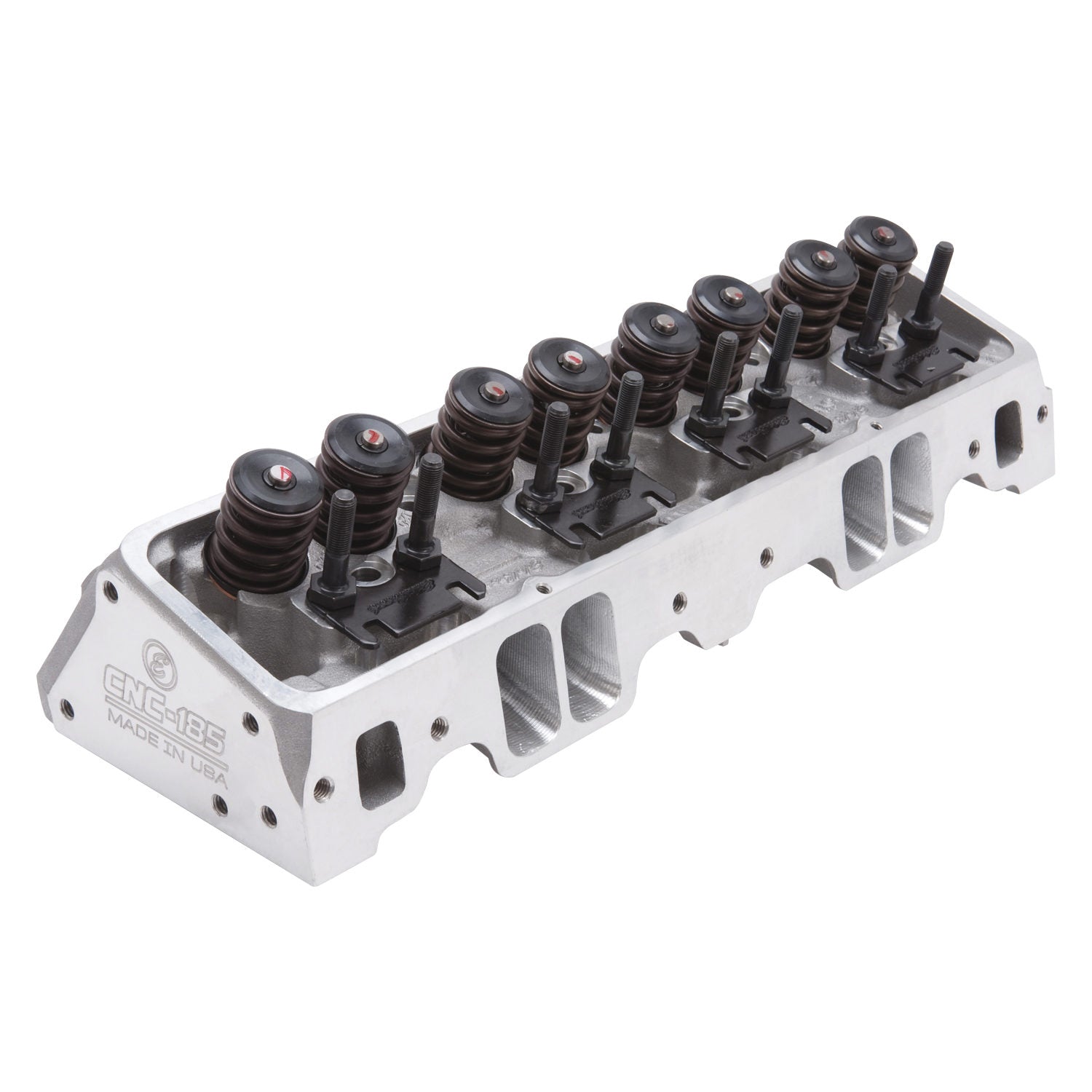

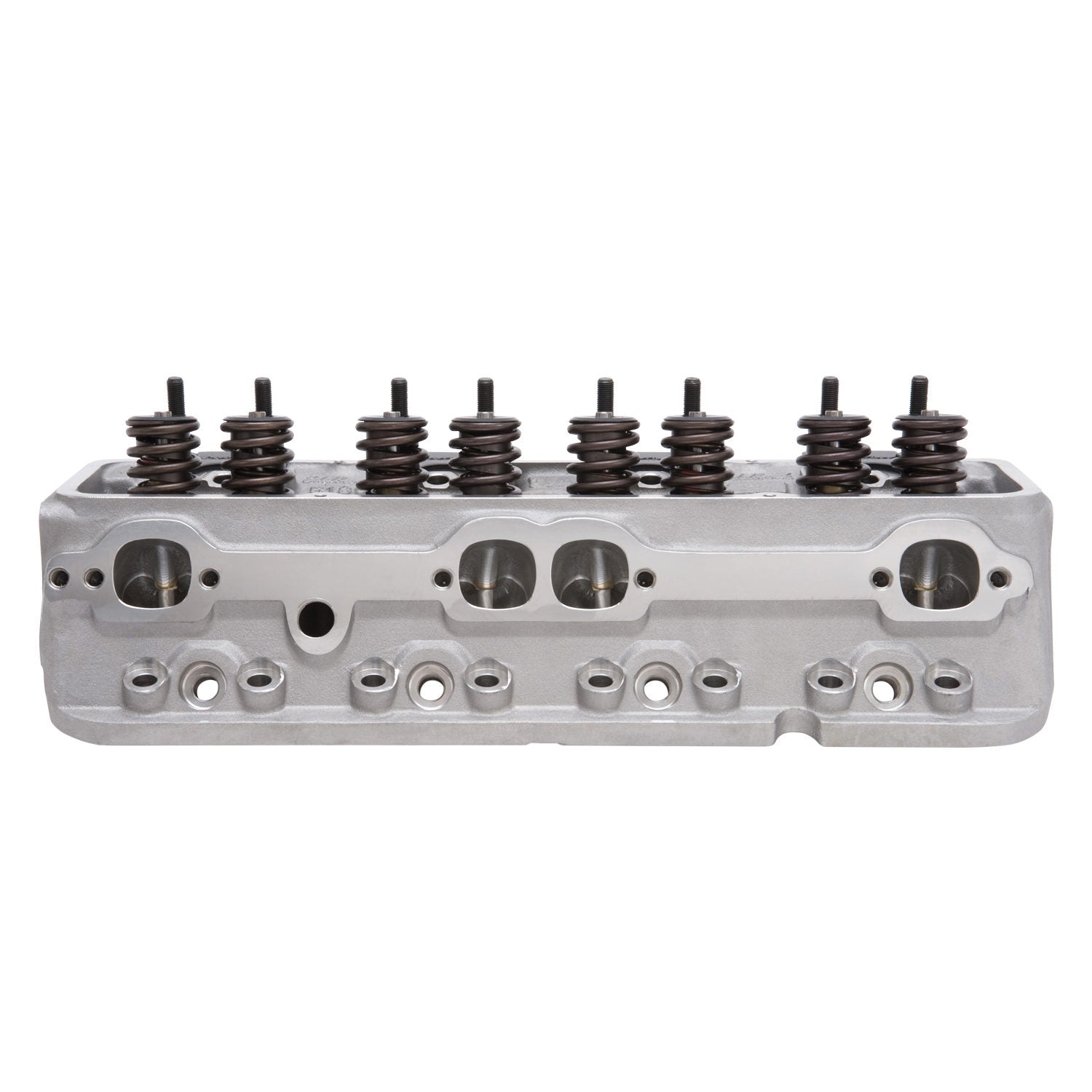

E-CNC Small-Block Chevy 64cc Cylinder Head Hydraulic Roller Camshaft

The Edelbrock part #79895 Small Block Chevy E-CNC cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over the Performer RPM Cylinder Head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications

  • CNC Ported To Achieve Optimal Air Flow
  • For Maximum Horsepower And Torque
  • For High Performance Street/Light Duty Racing
  • Maintains Stock 23 Degree Valve Angle
  • Accepts 1986 And Earlier Intake Manifold Designs
  • Made In U.S.A.
Intake Runner Volume: 185
Head Casting Number: 31-5189
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Series: E-CNC
Family: E-CNC
Horsepower: 400-500
Seat Material: Ductile Iron
Construction Type: Complete
Guide Material: Manganese Bronze
Push Rod Diameter: (Suggested) 0.3125
Rocker Arm Stud Diameter: 0.375
Seat Angle: Exhaust 45 deg/Intake 45
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Center Bore Inside Diameter: Straight
Exhaust Valve Diameter: 1.60
EGR Port: No
Valve Stem Diameter: 0.3410
Intake Valve Diameter: 2.02
Valve Angle: 23
Camshaft Type: Hydraulic Roller
Deck Thickness: 0.5625
CNC Ported: No
Exhaust Runner Volume: 75
Quantity: Sold Individually
Retainer Included: Yes
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.575
Exhaust Port Location: Standard
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
