Edelbrock 79555 - Cylinder Head BBC E-Cnc 355 Rectangle Port 119cc Chamber

Edelbrock  |  SKU: EDEL-79555
Sale price $2,87095 Regular price $3,15804

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

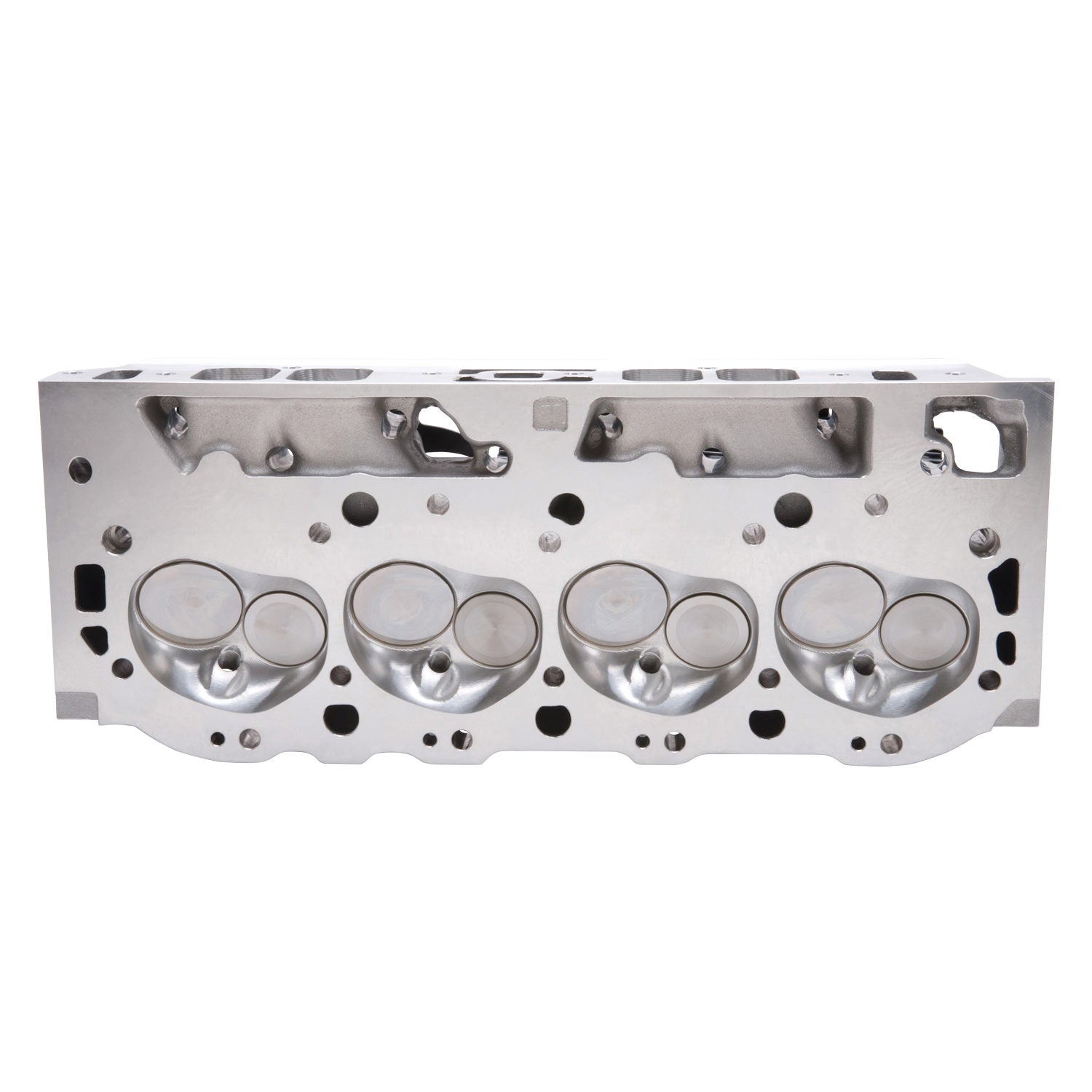

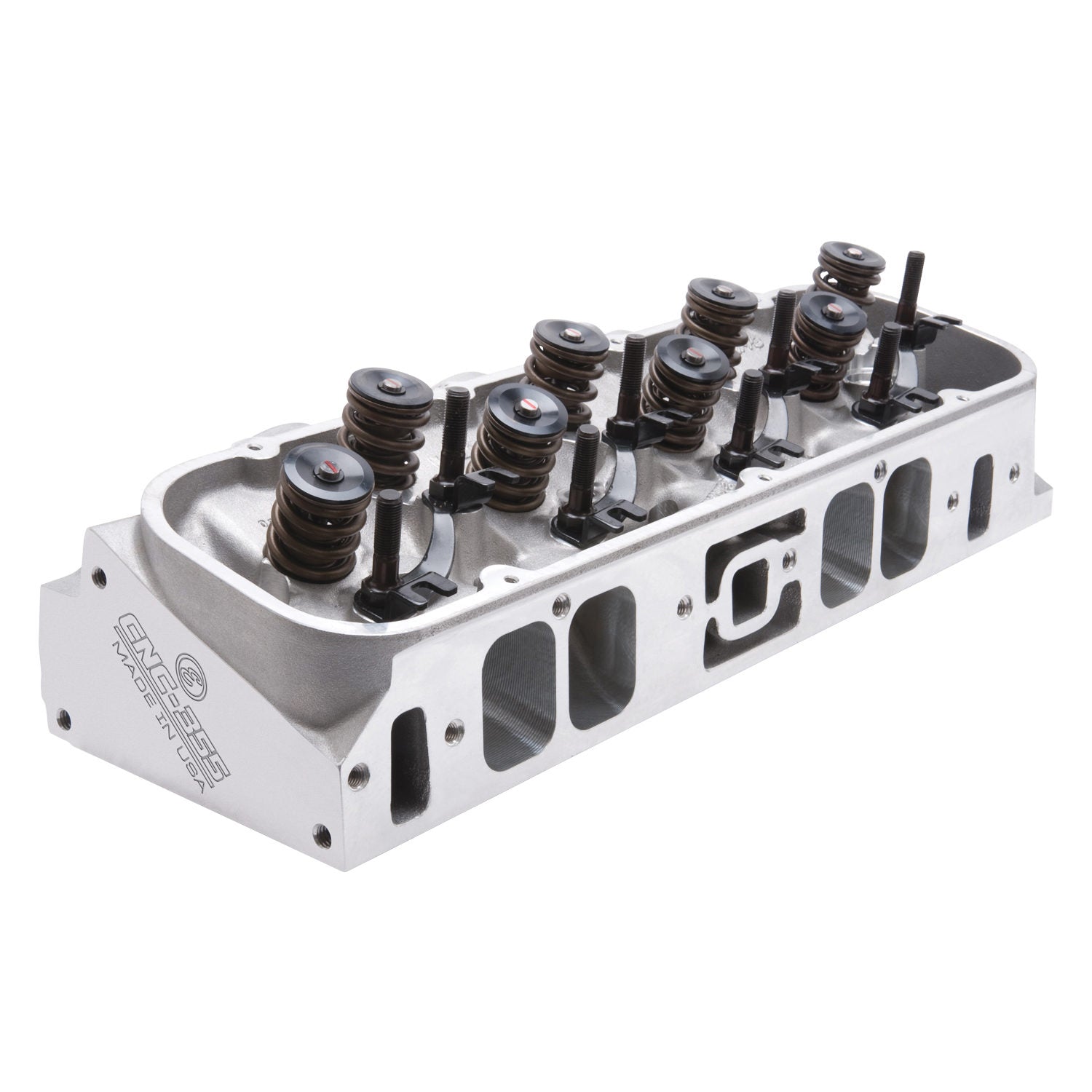

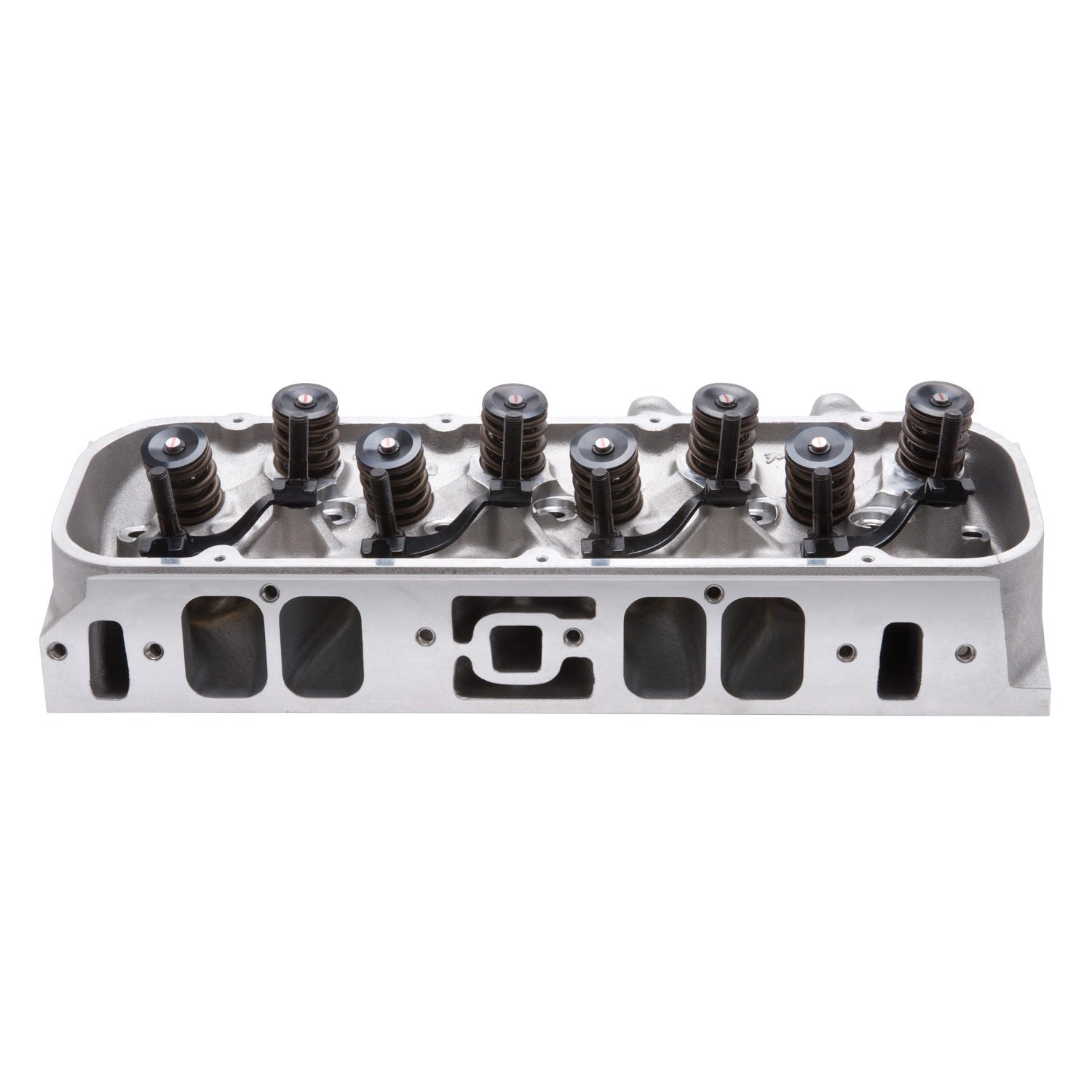

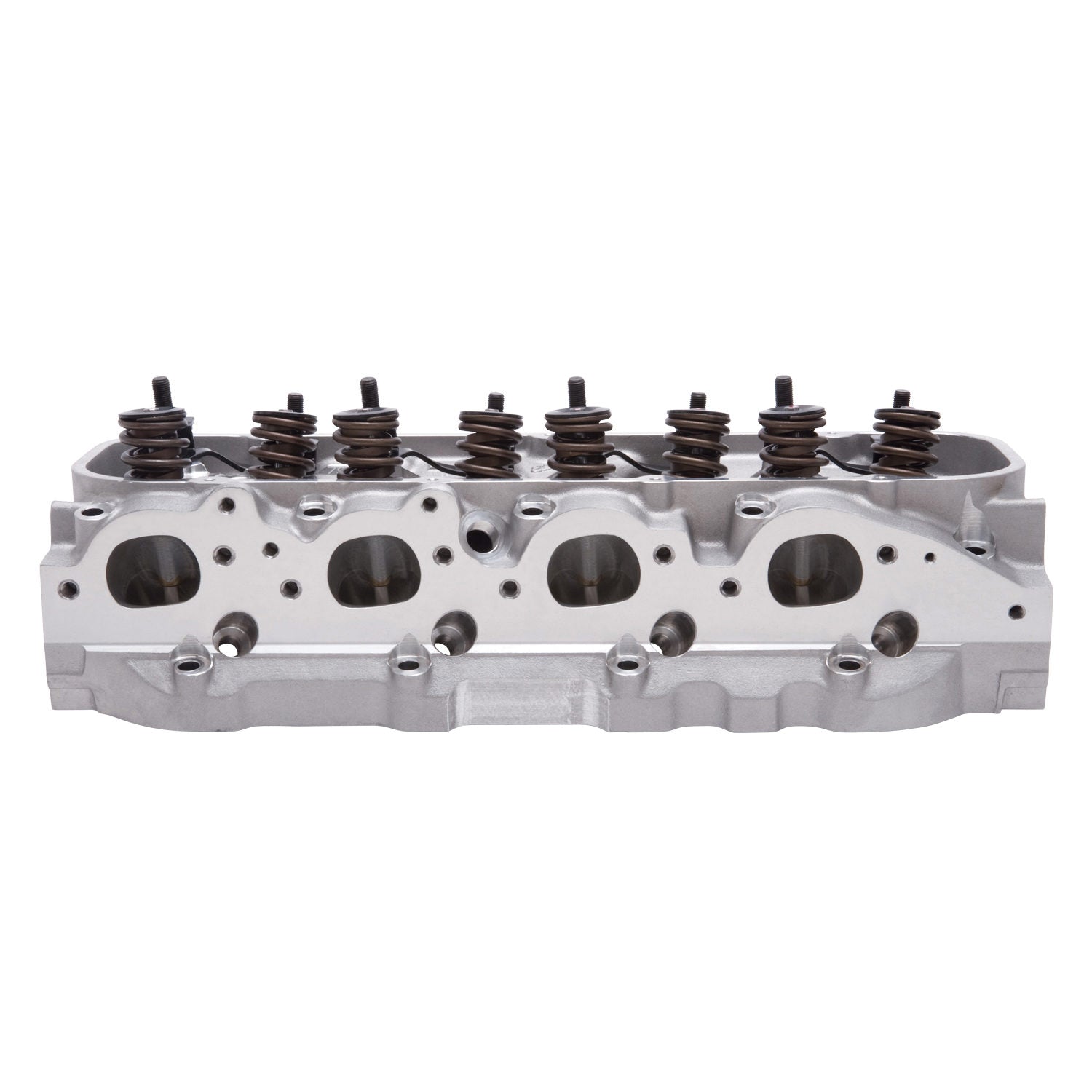

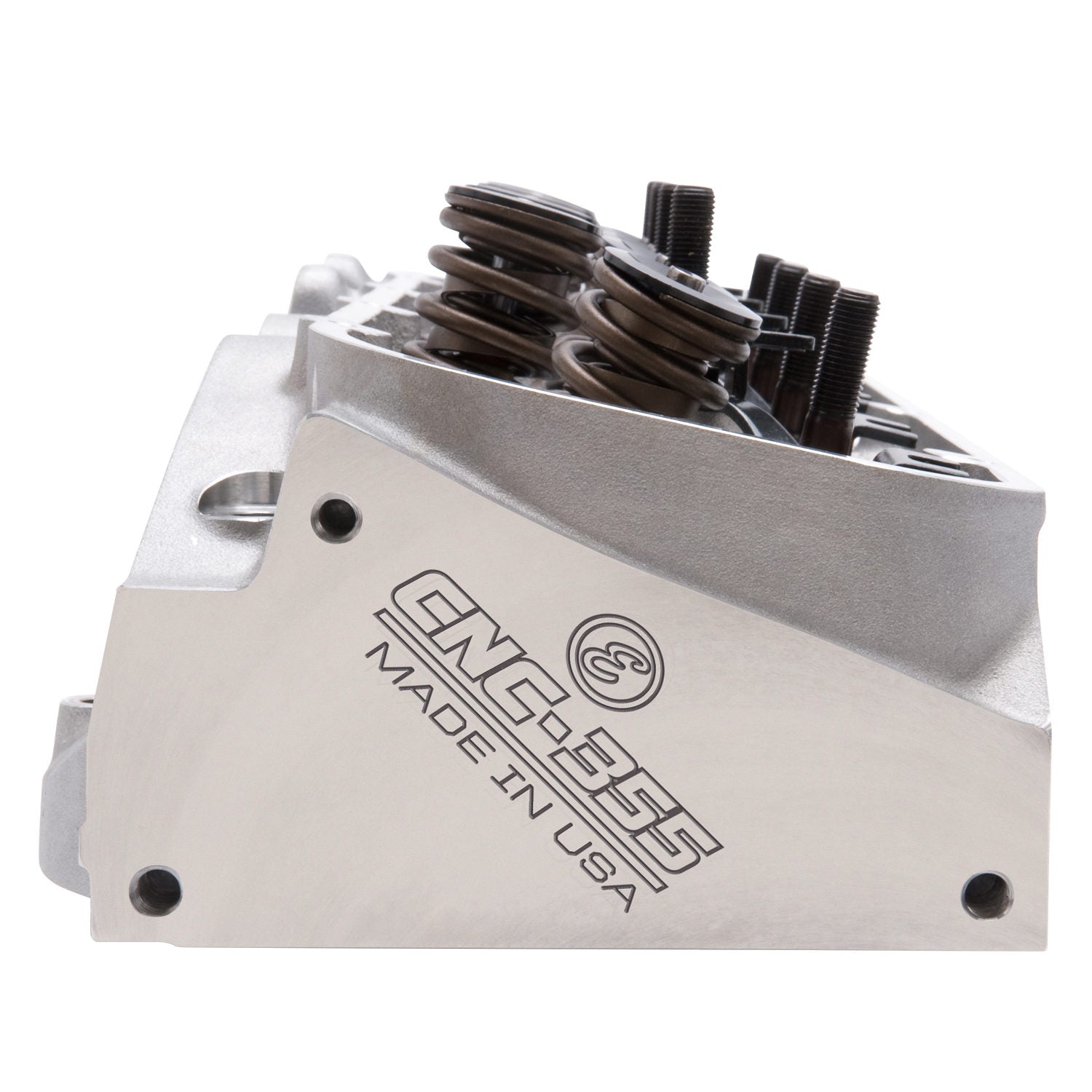

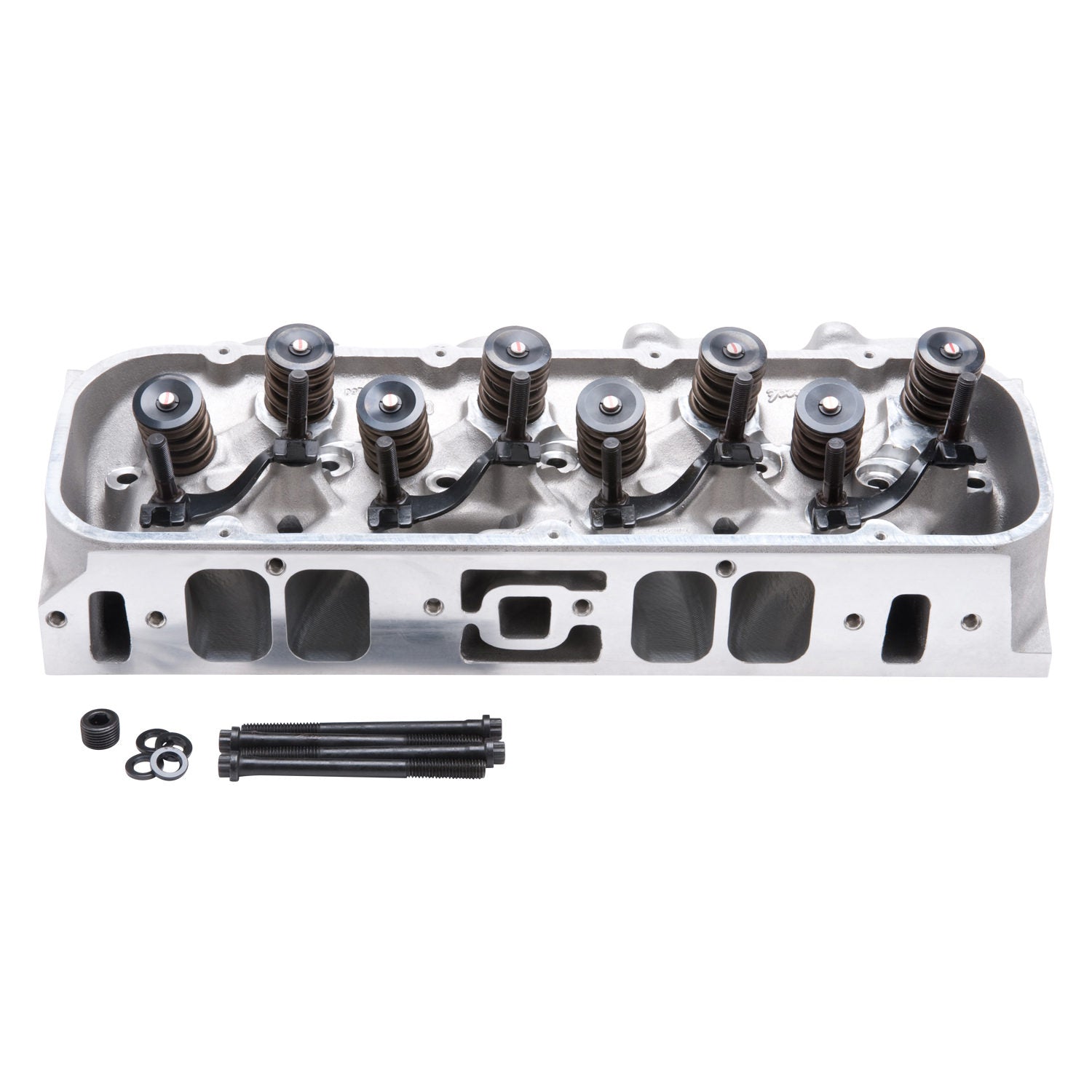

Edelbrock 79555 - Cylinder Head BBC E-Cnc 355 Rectangle Port 119cc Chamber

Cylinder Head; BBC; E-CNC; 355; Rectangle Port; 119cc Chamber; For Hydraulic Rol

The Edelbrock part #79559 Big Block Chevy E-CNC 355 cylinder head is the ultimate in performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift and maintain the stock exhaust port location.E-CNC 355 FOR B/B CHEVY (RECTANGLE PORT) FEATURES:- This cylinder head delivers maximum horsepower and torque in high Performance's street and light duty racing applications- Full CNC porting of the combustion chambers, intake & exhaust runners; improving air-flow & overall performance potential- This head has a 24.5deg x 4.4deg intake valve angle, 15.5deg x 4.2deg exhaust valve angle and exhaust ports that have been raised 0.125" but are still in the stock location- Spark plug angles have been modified to produce a smooth flame front for increased fuel efficiency & maximum power- combustion chamber size of 118cc- Equipped with valve springs for use in hydraulic roller applications

  • CNC Ported To Achieve Optimal Air Flow
  • For Maximum Horsepower And Torque
  • High-Quality Valve Springs
  • Modified To Increase Fuel Efficiency
  • Made In U.S.A.
Valve Spring Diameter: 1.55
Valve Angle: Exhaust 15.5 X 4.2 deg/Intake 24.5 x 4.4
Seat Angle: Exhaust 45 deg/Intake 45
Flange Type: Rectangle Intake
Guide Material: Manganese Bronze
Valve Stem Diameter: 0.3438
Horsepower: 550-750
Valve Spring Maximum Lift: 0.700
Camshaft Type: Hydraulic Roller
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 354
Head Casting Number: 31-5145
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 10.2
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 118
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Push Rod Diameter: (Suggested) 0.375
Exhaust Port Location: +0.200
Deck Thickness: 0.625
Intake Valve Diameter: 2.300
Exhaust Valve Diameter: 1.88
Construction Type: Complete
Rocker Arm Stud Diameter: 0.4375
Quantity: Sold Individually
Retainer Included: Yes
Intake Runner Volume: 354-334
EGR Port: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Family: E-CNC
Seat Material: Ductile Iron
CNC Ported: Yes
Exhaust Runner Volume: 129
Series: E-CNC
