Description

Edelbrock 77419 - BBC Victor Head ( Bare 77409)

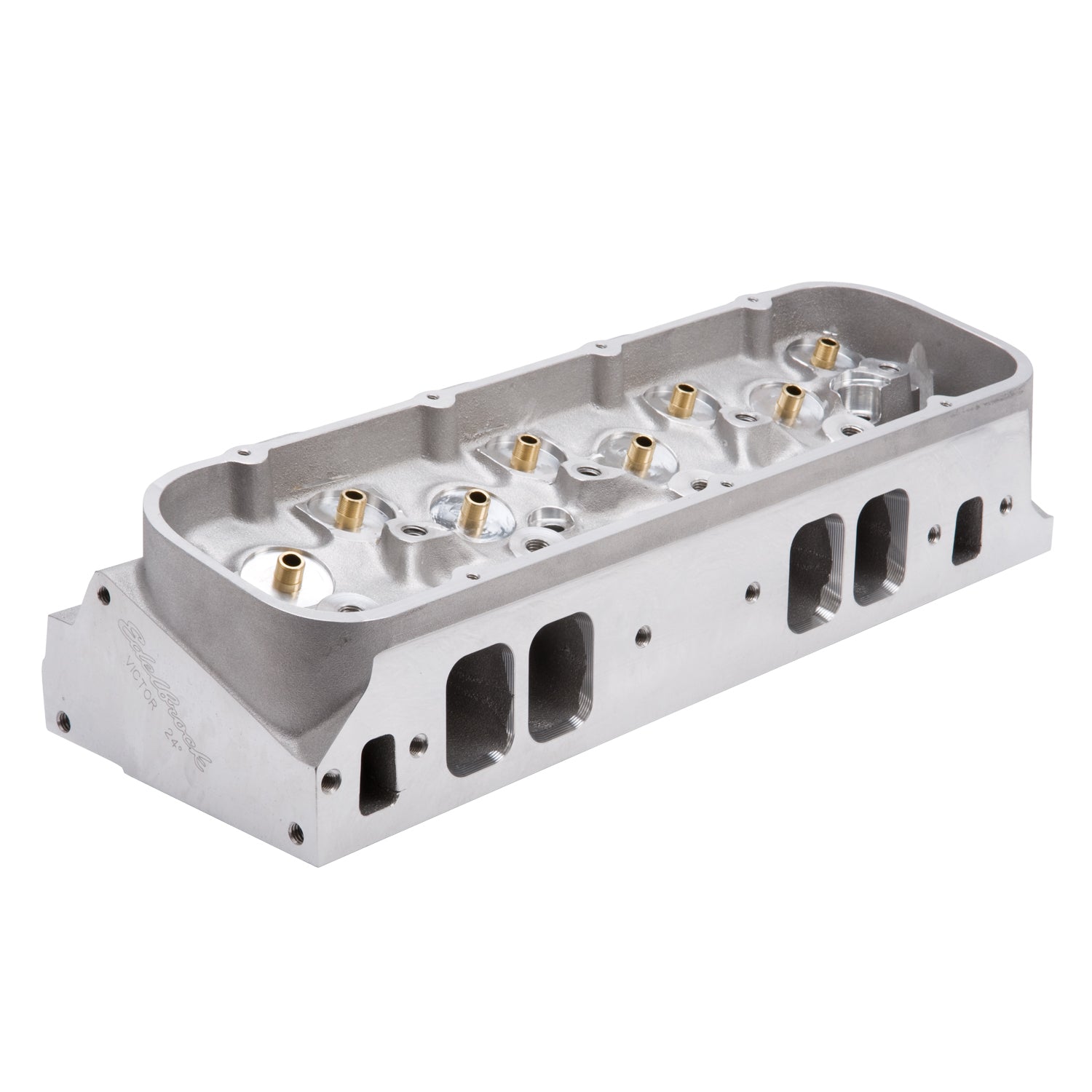

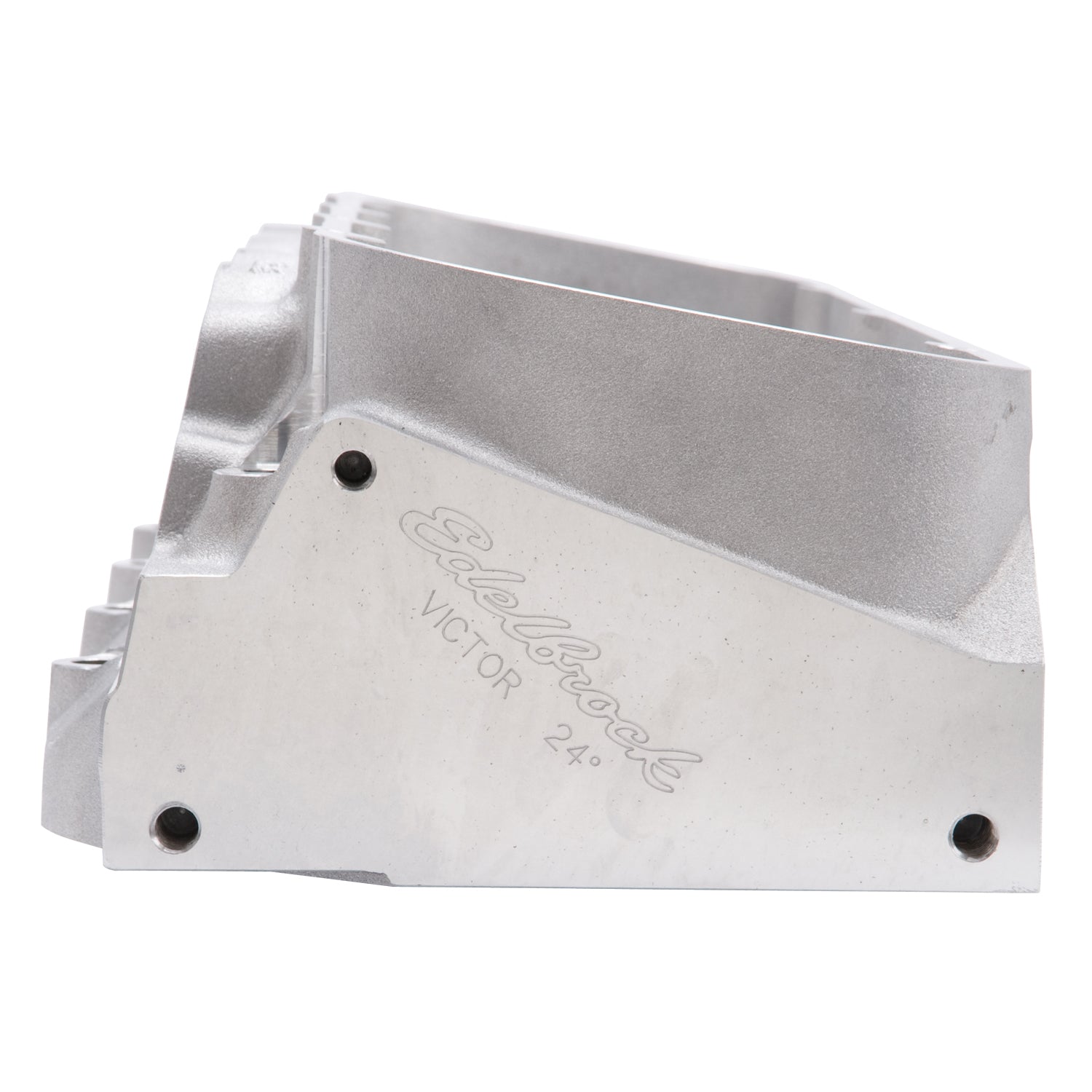

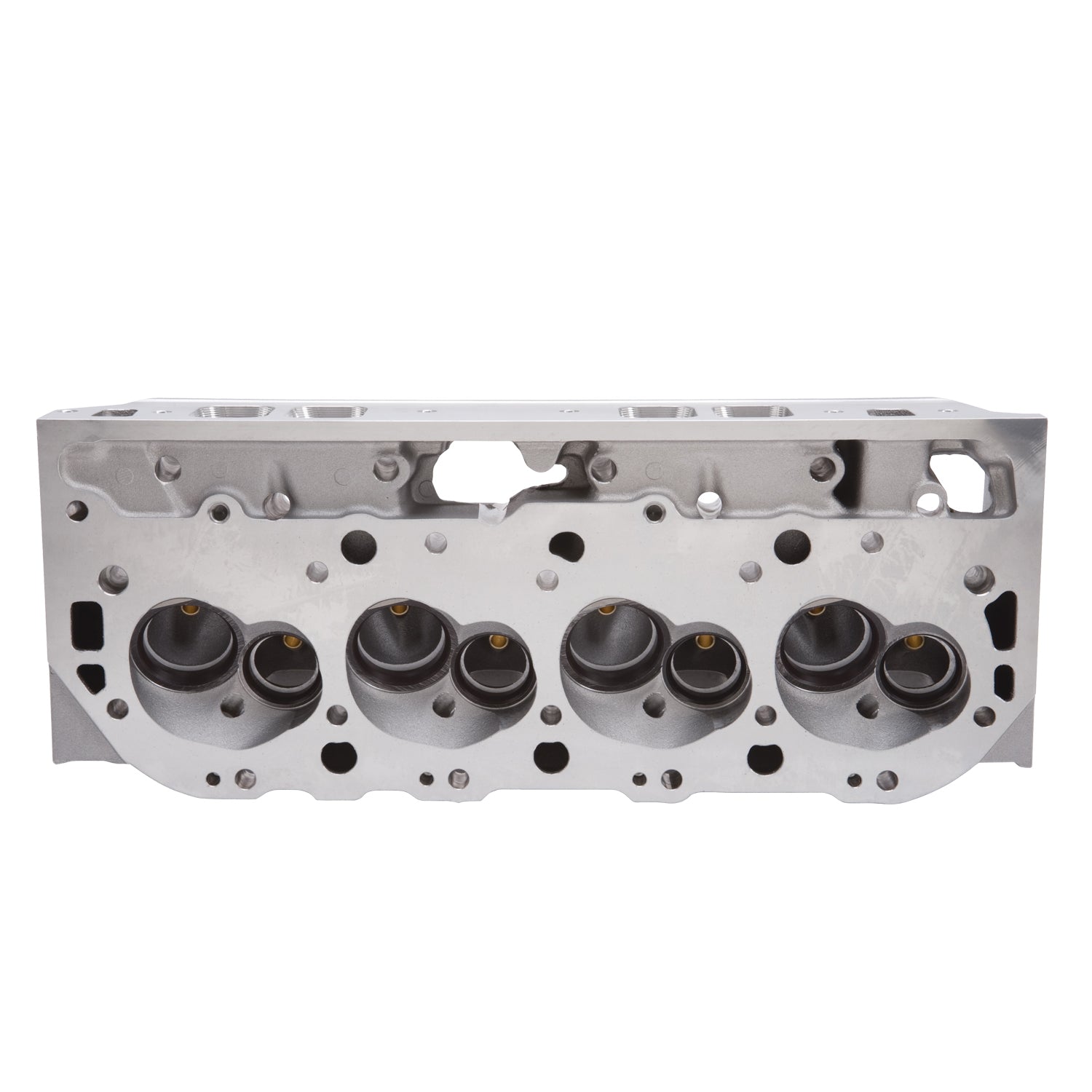

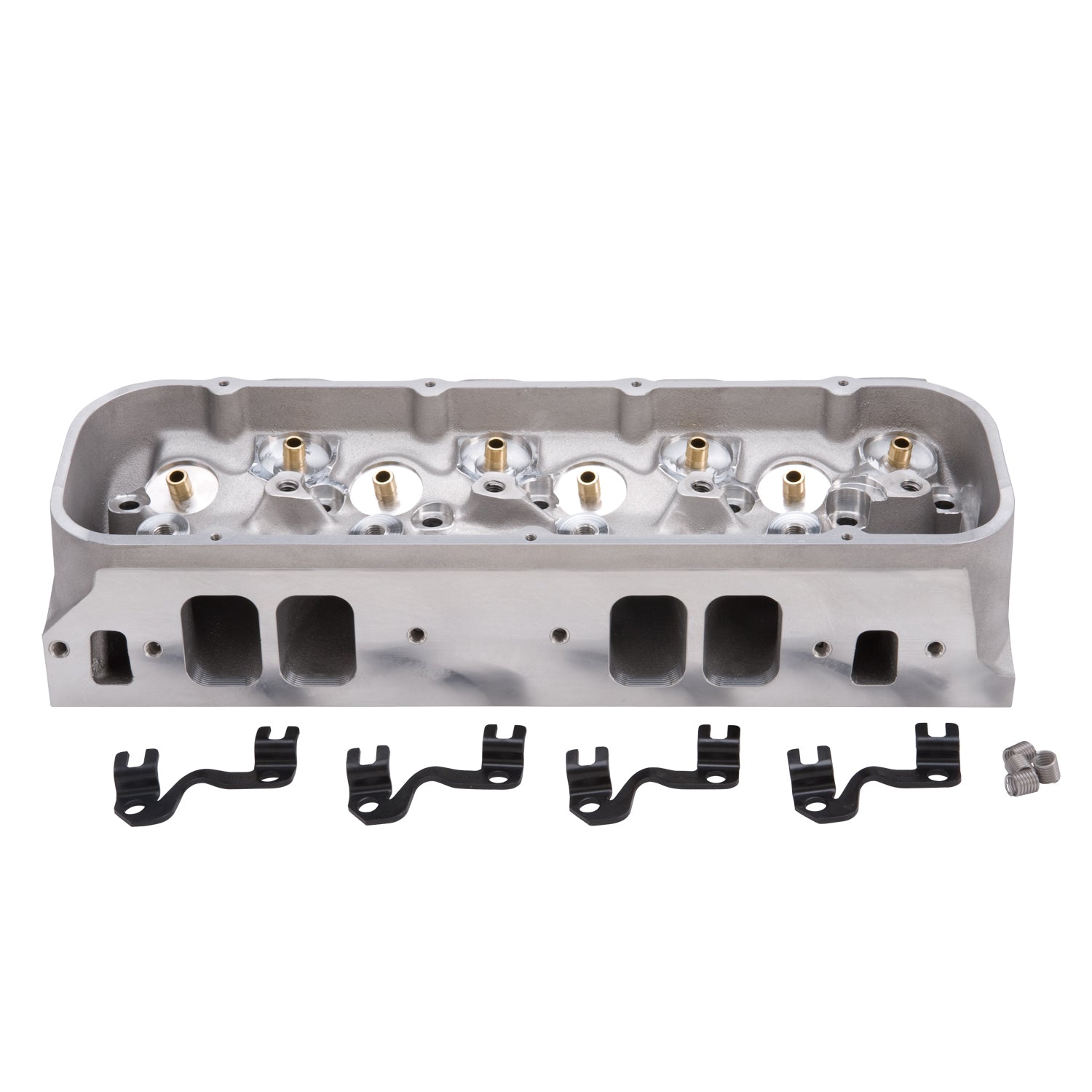

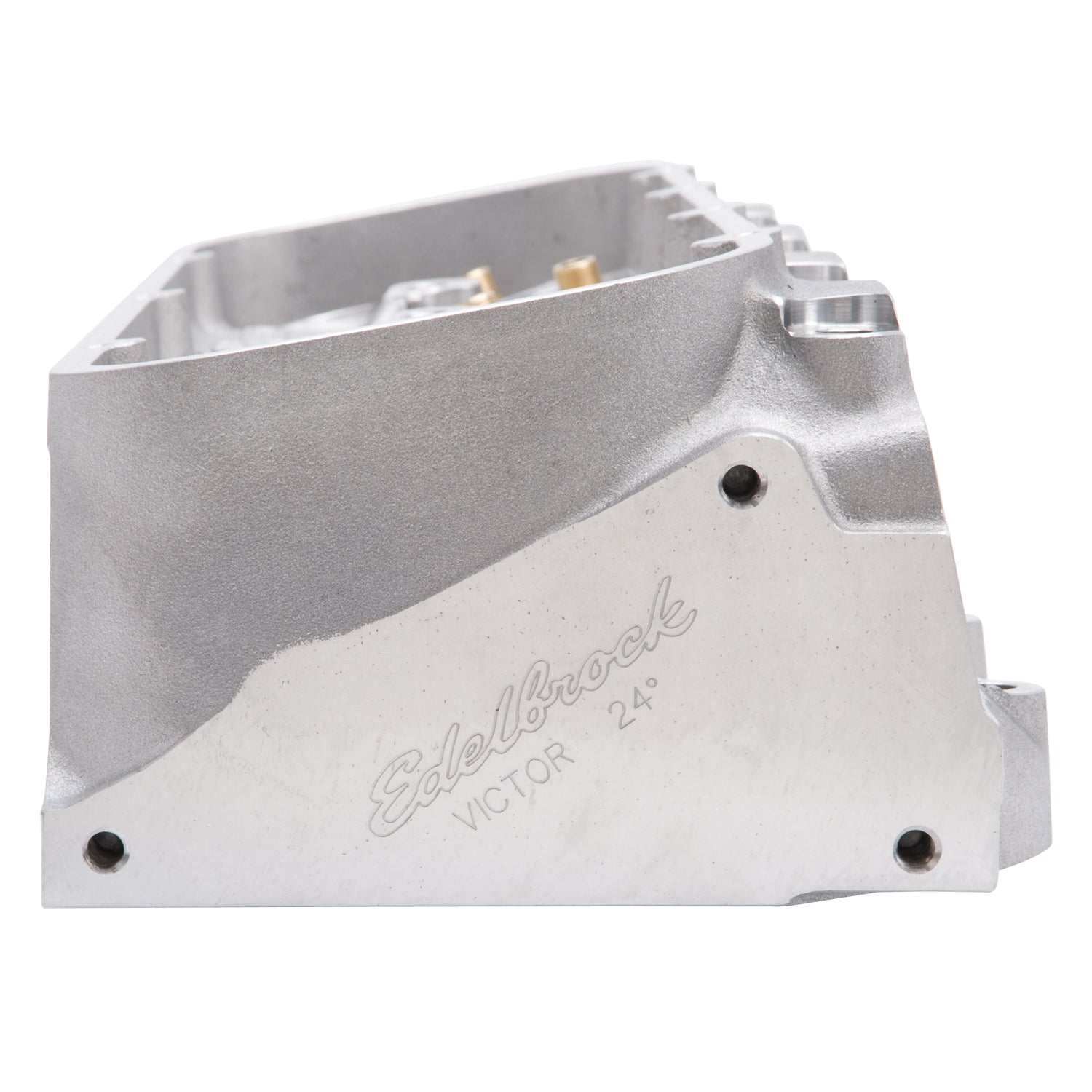

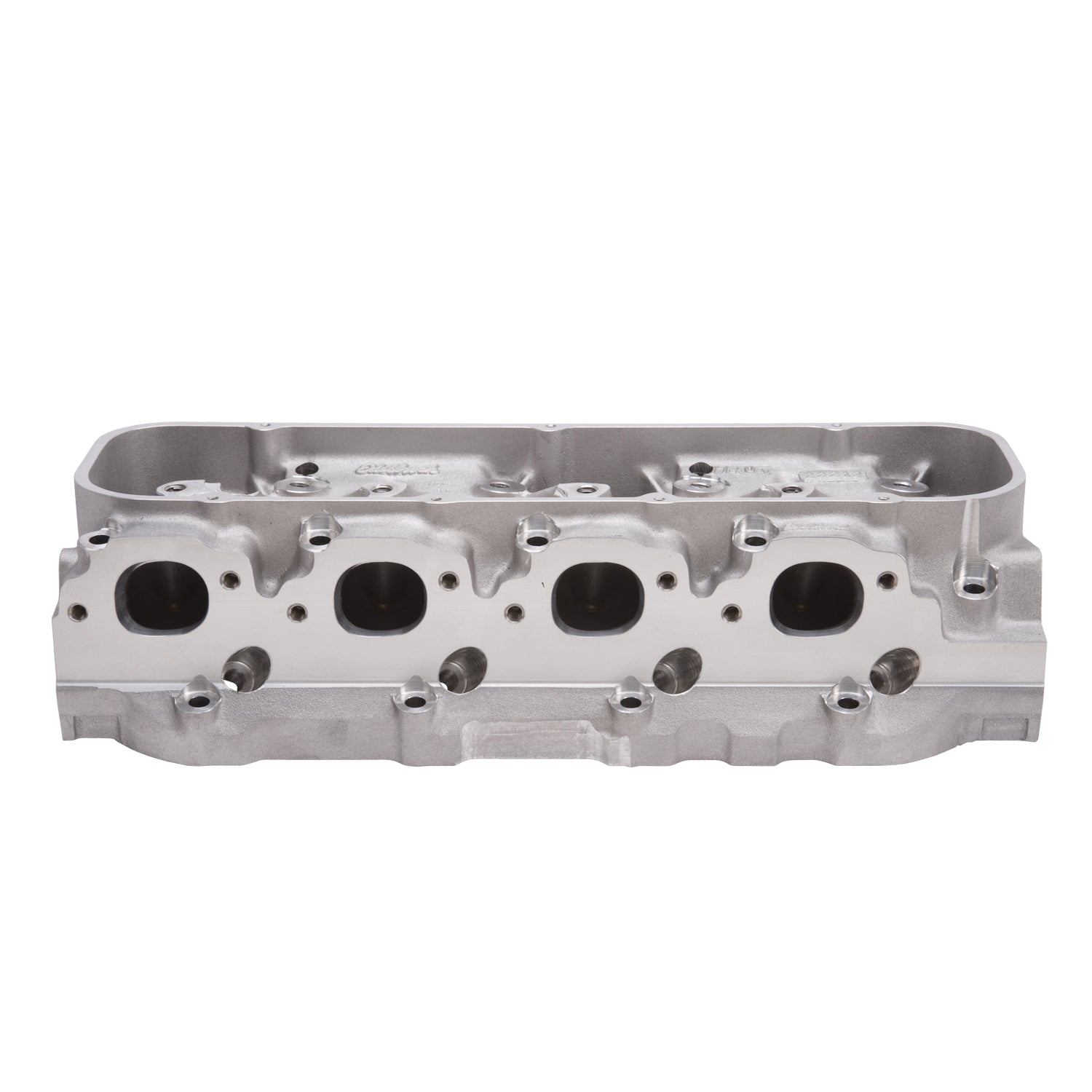

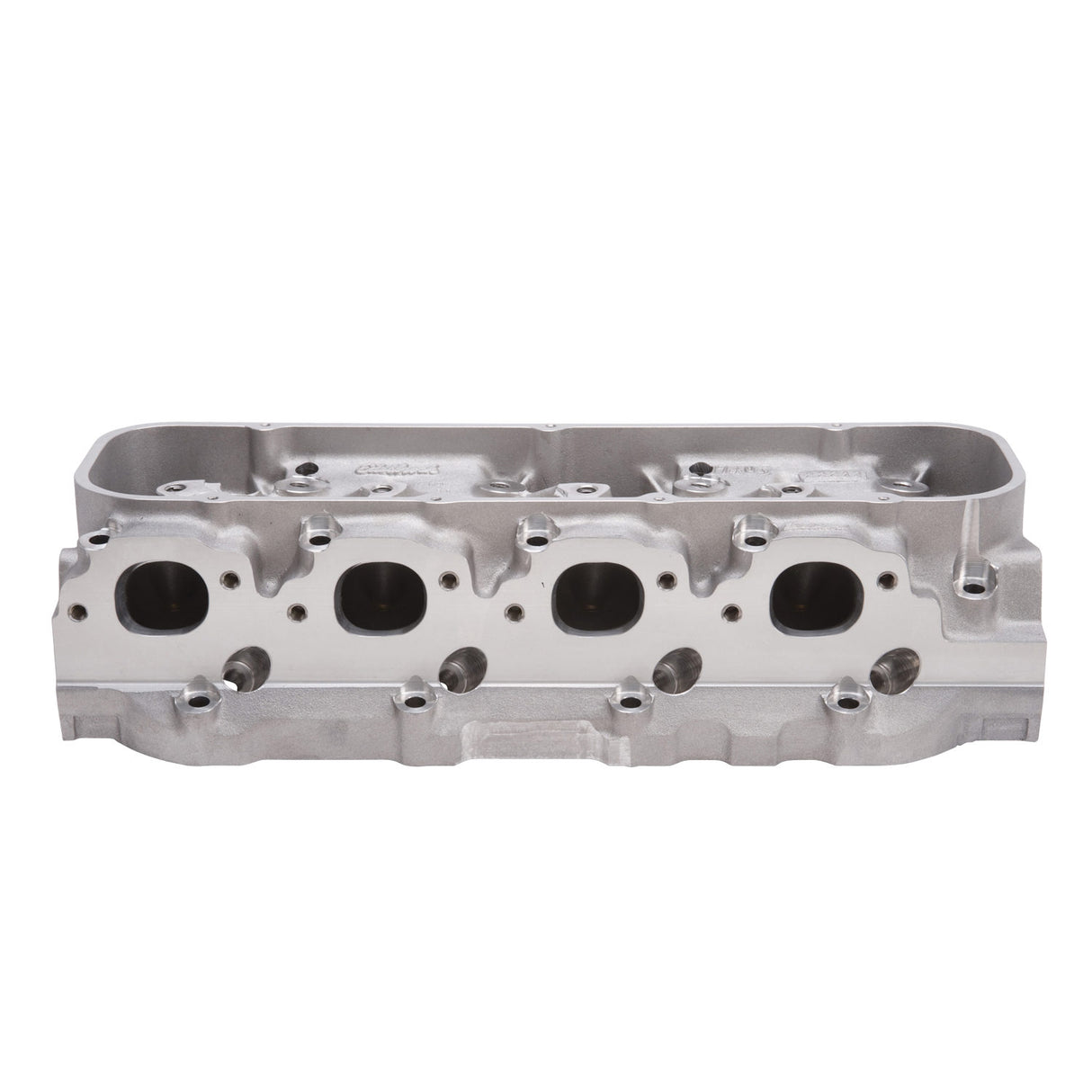

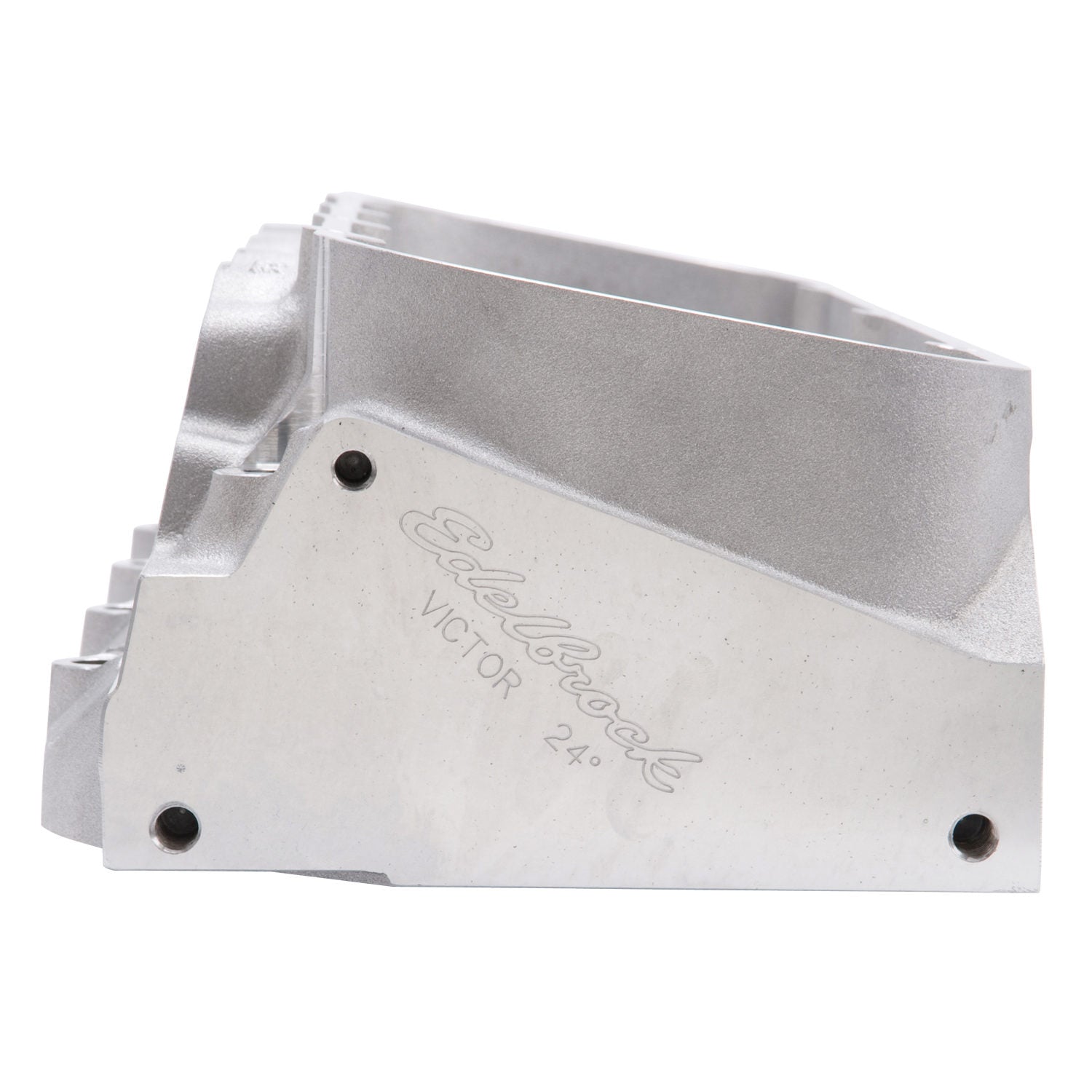

Victor Big-Block Chevy Cylinder Head Bare

Edelbrock #77419 Victor 24 Degree is a bare cylinder head designed for Big Block Chevy 396-502 V8 engines. The Victor 24 Deg features a rolled over deck, altered valve locations and partially CNC'd chambers for cost effective performance.

The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".

Best Standard Port Location Head Available
Rolled Over Deck; Altered Valve Locations
Partially CNC Chambers And Exhaust Throats

EGR Port: No

Construction Type: Bare

Deck Thickness: 0.5625

CNC Ported: No

Quantity: Sold Individually

Horsepower: 650-800

Retainer Included: No

Valve Angle: 24

Family: Victor

Seat Material: Ductile Iron

Seat Angle: Exhaust 45 deg/Intake 45

Flange Type: Rectangle Intake

Exhaust Port Location: +.500

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Series: Victor

Guide Plates Included: No

Exhaust Runner Volume: 128

Guide Material: Manganese Bronze

Mounting Hardware Included: No

Valve Springs Included: No

Valve Spring Retainers Included: No

Valve Seals Included: No

Valve Locks Included: No

Valve Cover Gasket Included: No

Rocker Arms Included: No

Rocker Arm Studs/Bolts Included: No

Assembled: No

Material: Aluminum

Intake Runner Volume: 340

Head Casting Number: 31-7740

Guide Plate Material: Chromoly Steel

Grade Type: Performance

Deck Height: 10.2

Cylinder Head Gasket Included: No

Combustion Chamber Volume: 119

Valves Included: No

Guide Plate Material: Hardened Steel
