Edelbrock 77319 - Ford Glidden Victor II Racing Head (Bare) Un-Hipped Version

Edelbrock  |  SKU: EDEL-77319
Sale price $1,42699 Regular price $1,56969

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

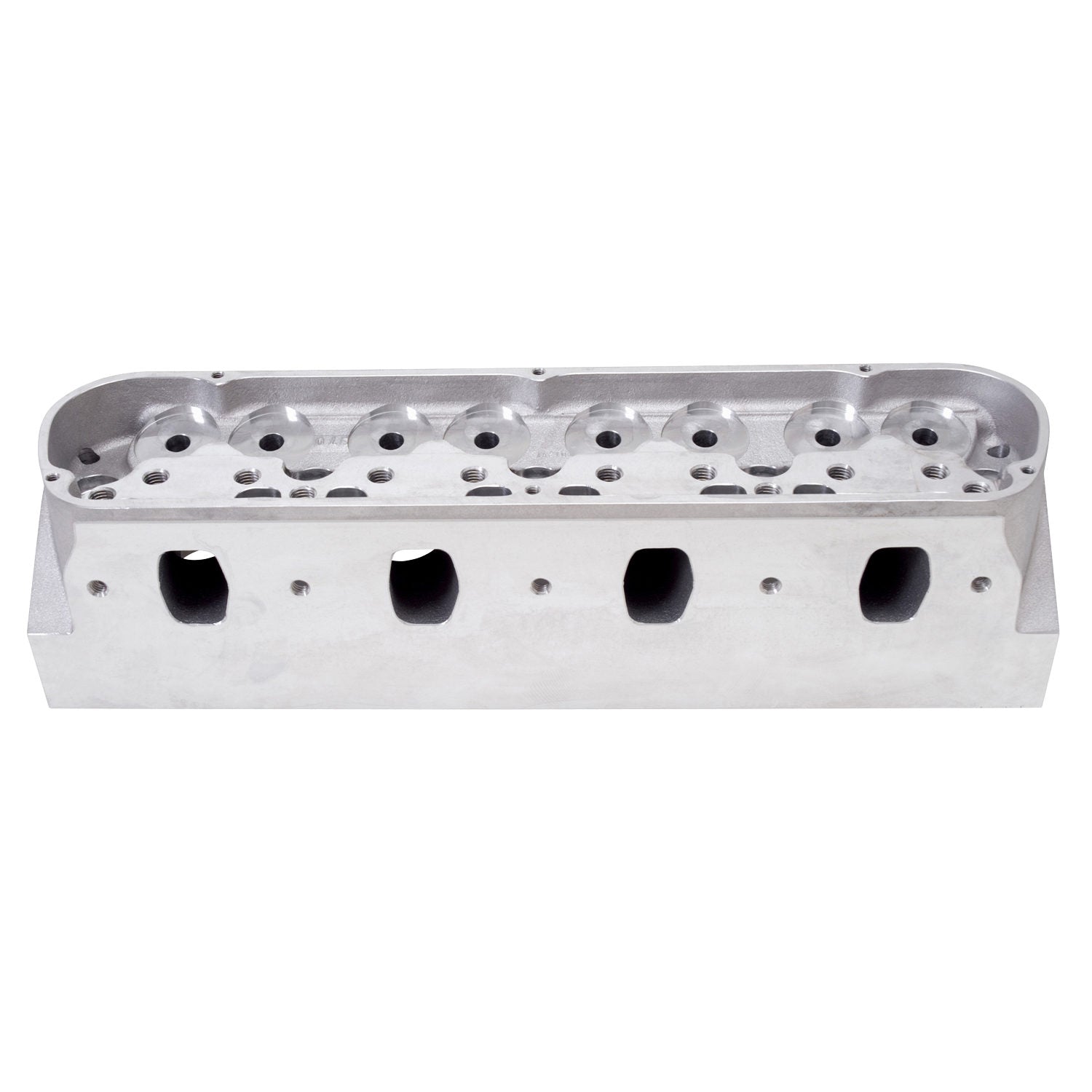

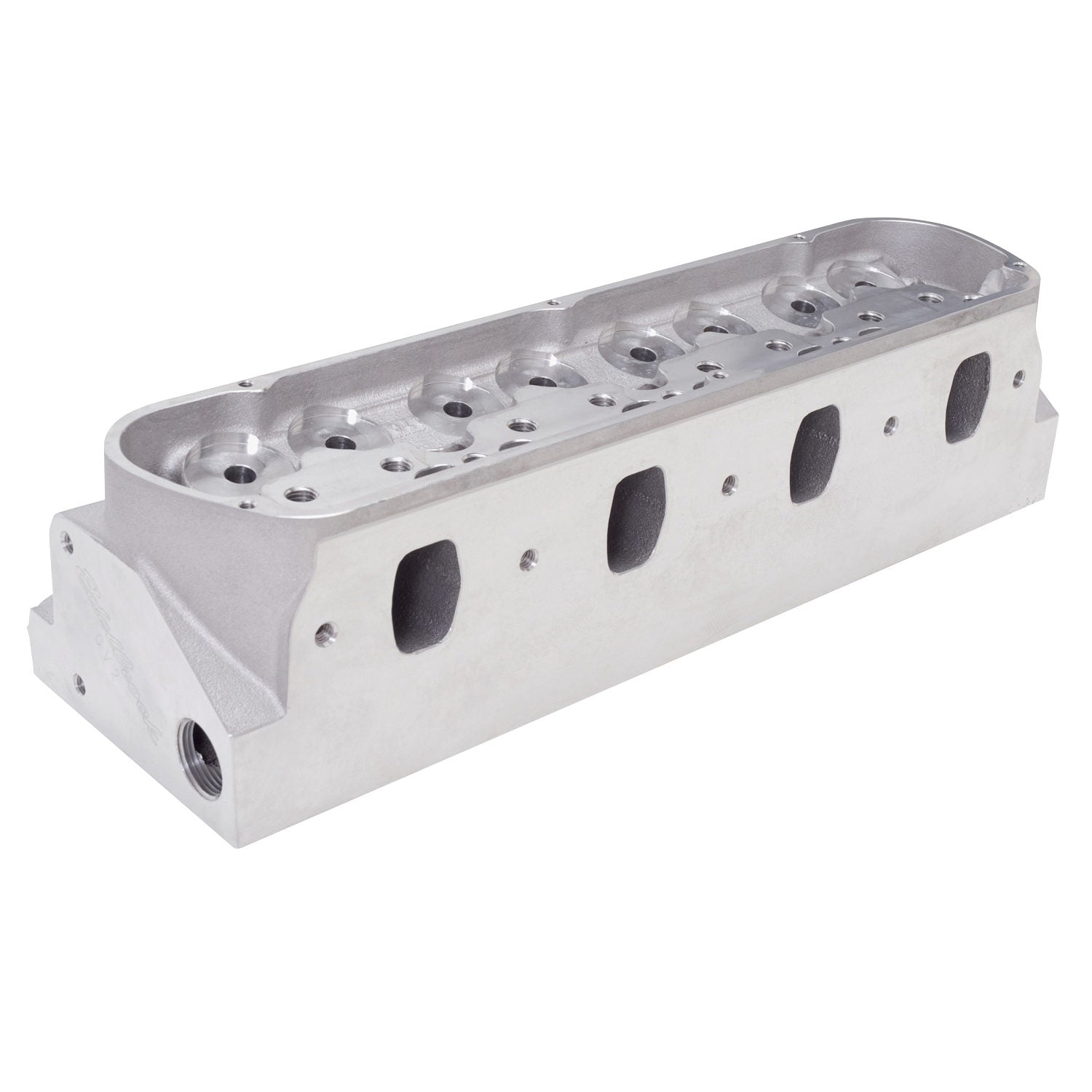

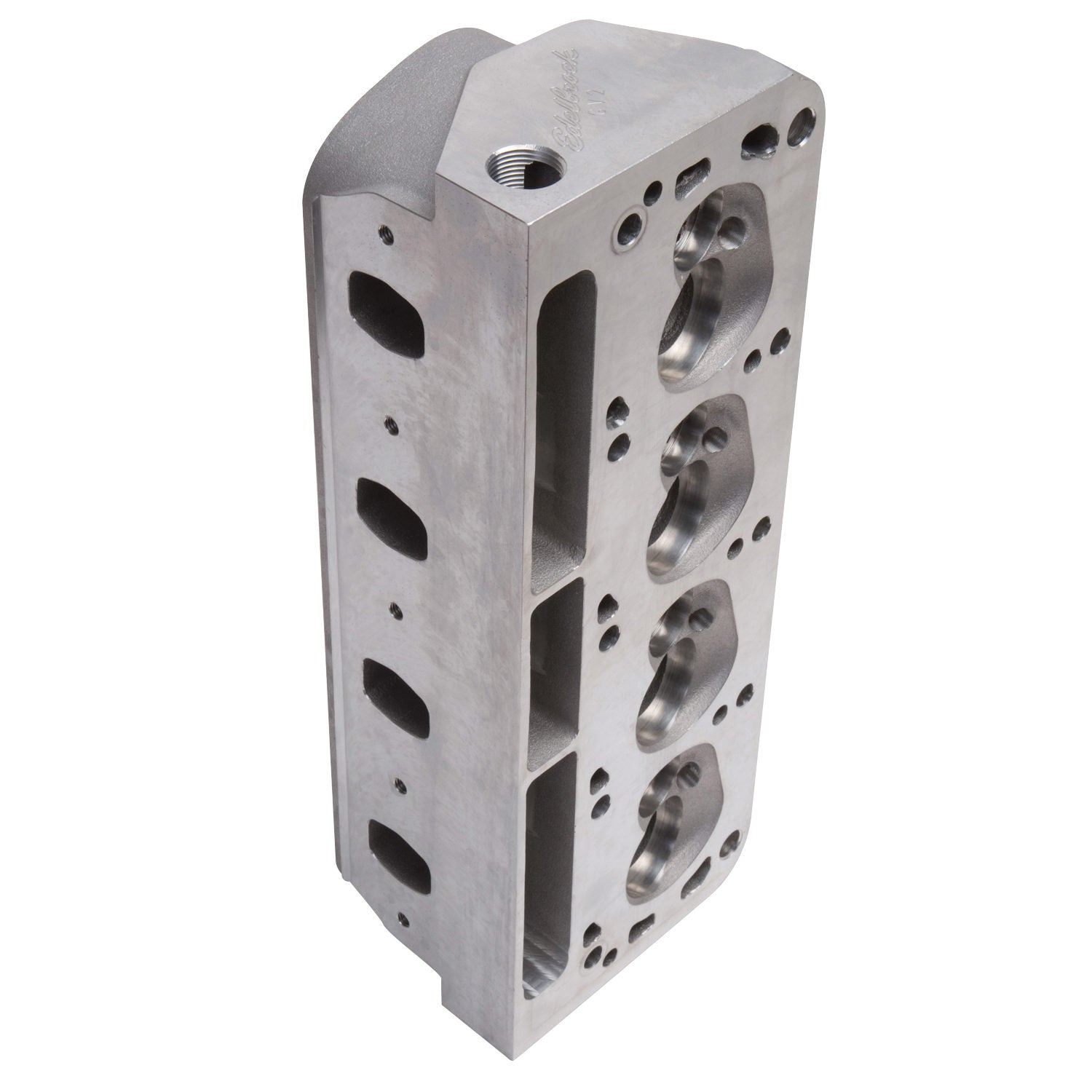

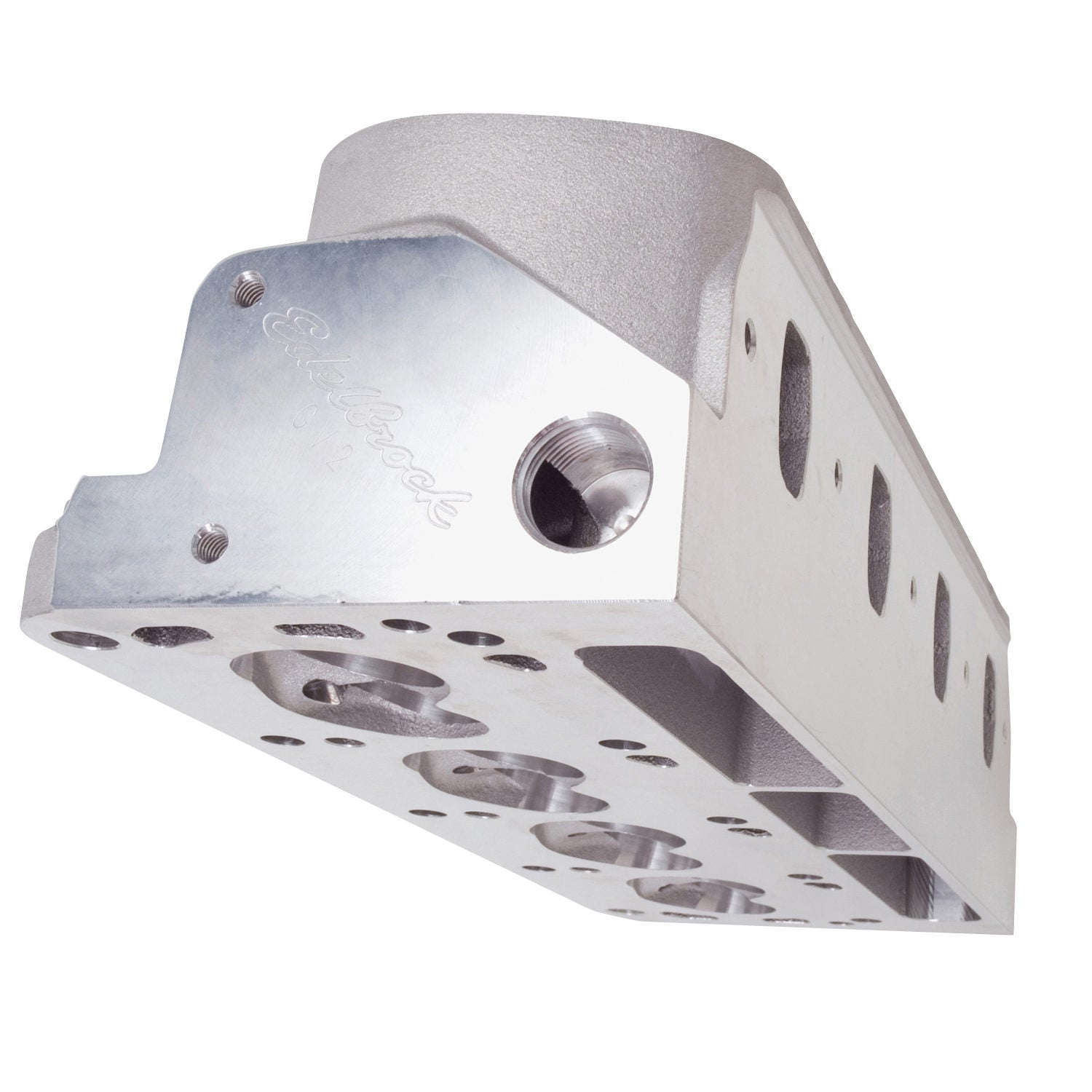

Edelbrock 77319 - Ford Glidden Victor II Racing Head (Bare) Un-Hipped Version

Victor- Glidden 2 Small-Block Ford Cylinder Head Bare

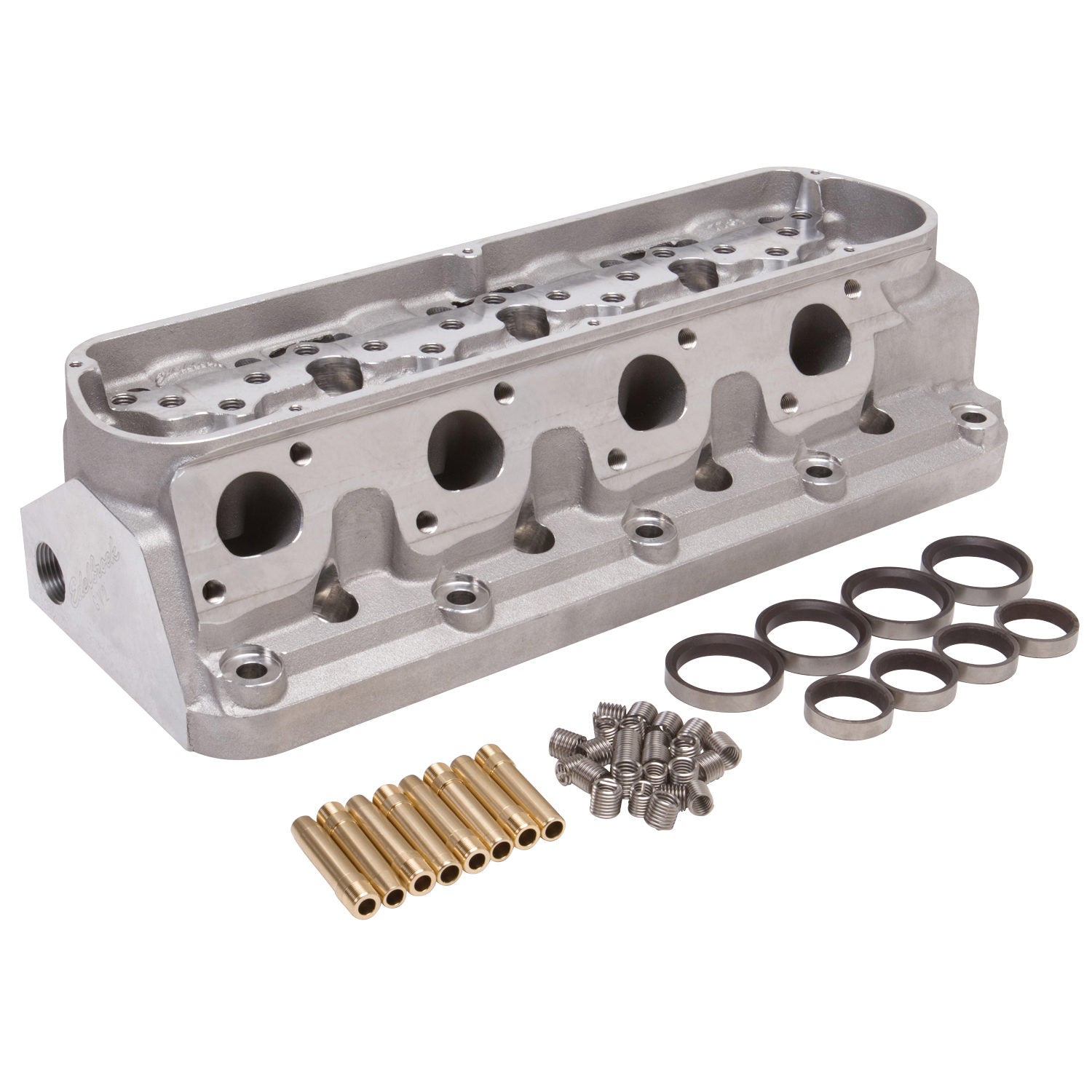

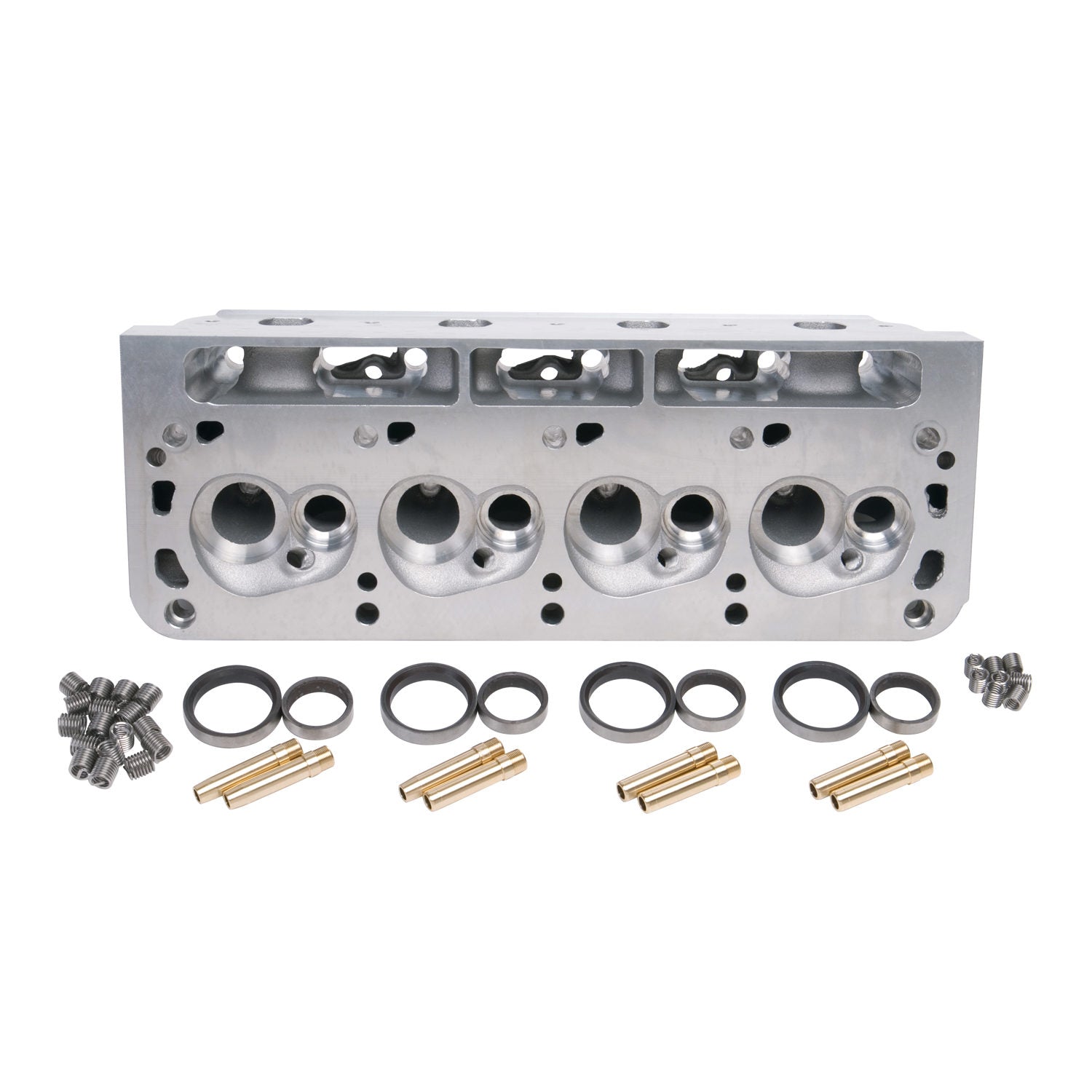

The Edelbrock 77319 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

  • Designed For Classes Requiring In-Line Valves
  • But Not Restricted To OEM Port Location
  • Extended Intake Flange
  • Raised Runners
  • Work With Yates-Style Manifolds
Valves Included: No
Series: Pro-Port
Family: Victor
Retainer Included: No
Deck Thickness: 0.625
Exhaust Valve Diameter: (Suggested) 1.66 in x 1.43
Valve Angle: 11.3
EGR Port: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Specialty: Hot Isostatic Pressing (HIP) Processing
Seat Material: Ductile Iron
Construction Type: Pro-Port Raw
Intake Valve Diameter: (Suggested) 2.24
CNC Ported: No
Guide Material: Manganese Bronze
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Sold Individually
Rocker Arm Studs/Bolts Included: No
Valve Springs Included: No
Valve Spring Retainers Included: No
Valve Seals Included: No
Valve Locks Included: No
Valve Cover Gasket Included: No
Rocker Arms Included: No
Assembled: No
Mounting Hardware Included: No
Material: Aluminum
Head Casting Number: 31-7731
Guide Plates Included: No
Grade Type: Performance
Deck Height: 9.5
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 24
