Description

Edelbrock 770769 - Cylinder Head Ford Glidden Victor Sc-1 Bare Hipped

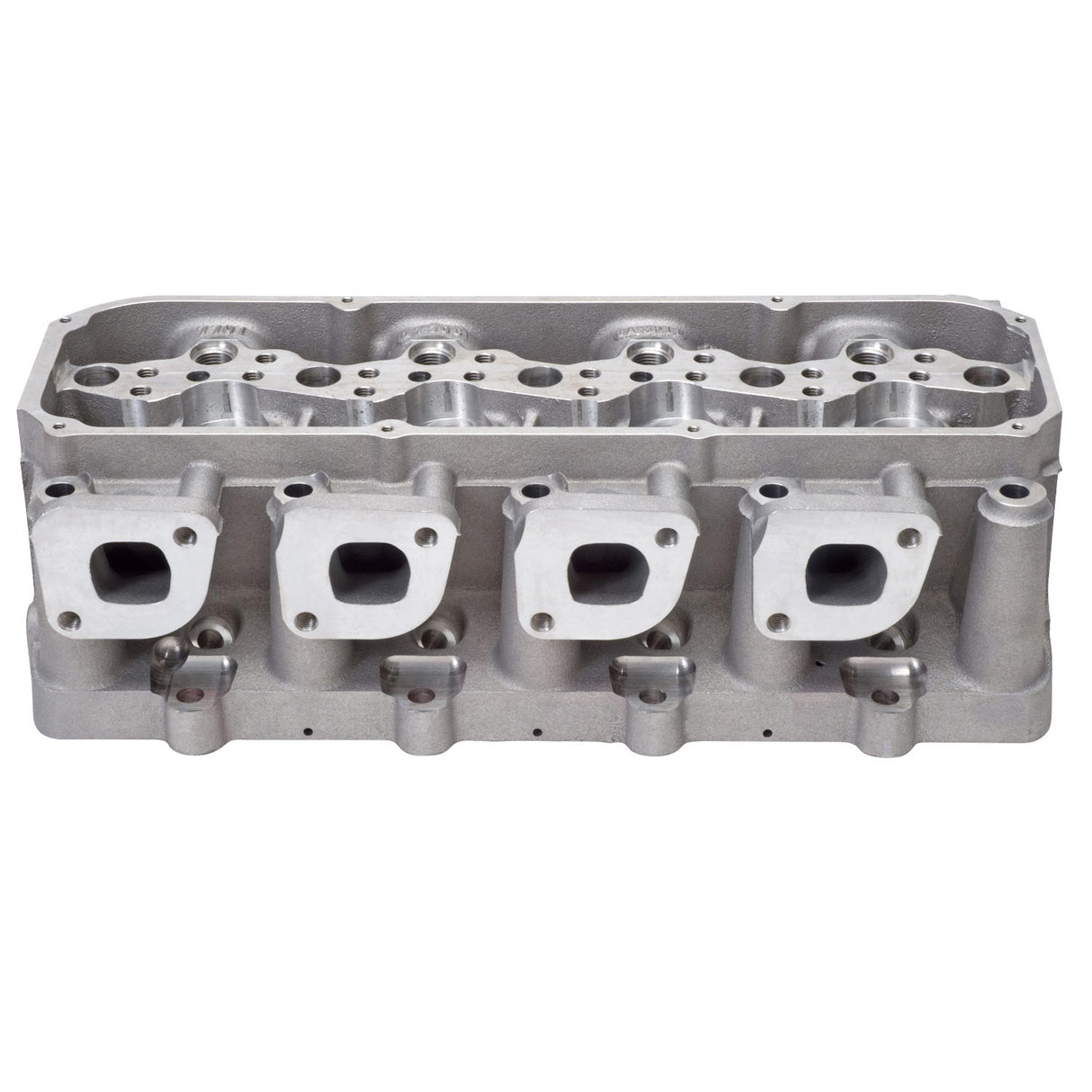

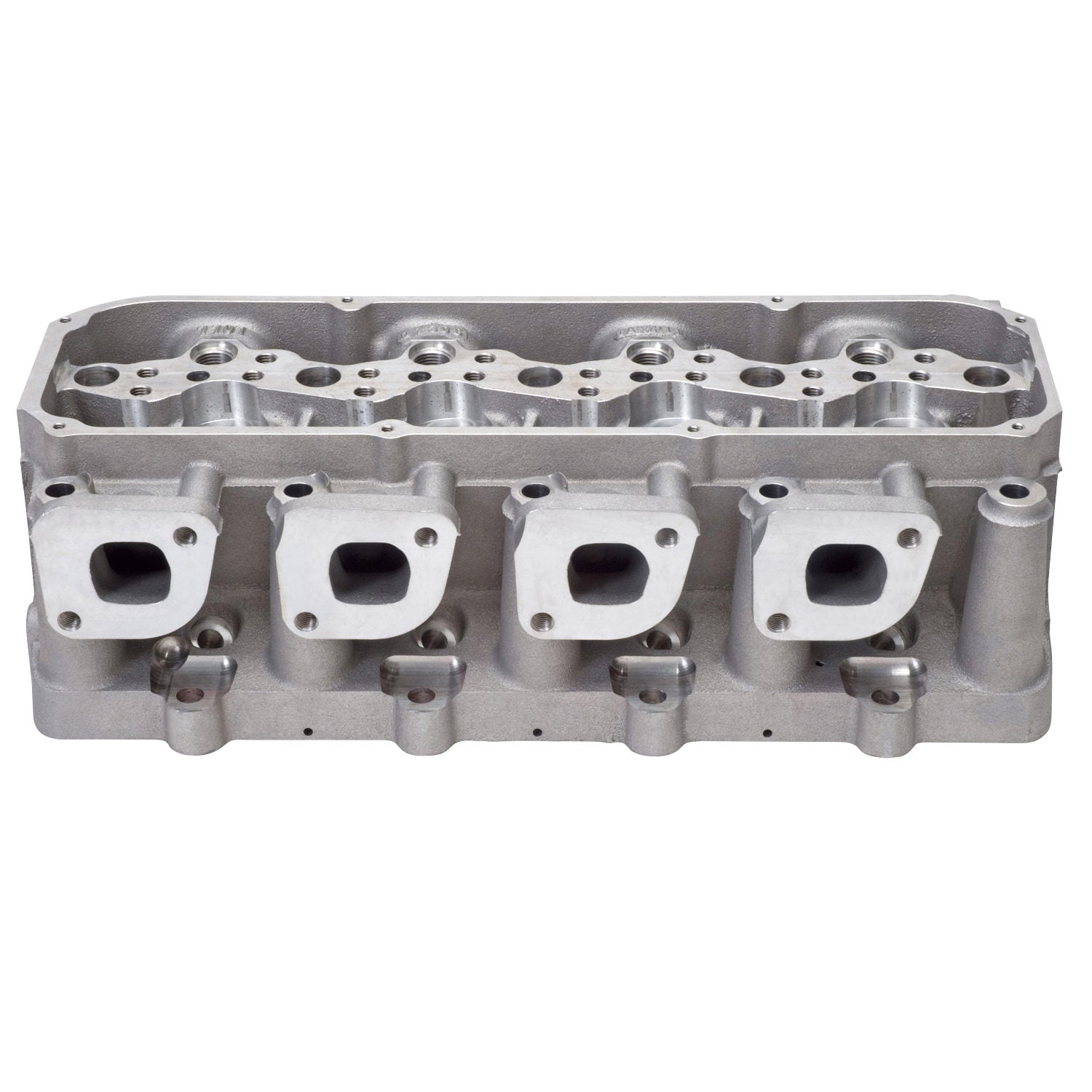

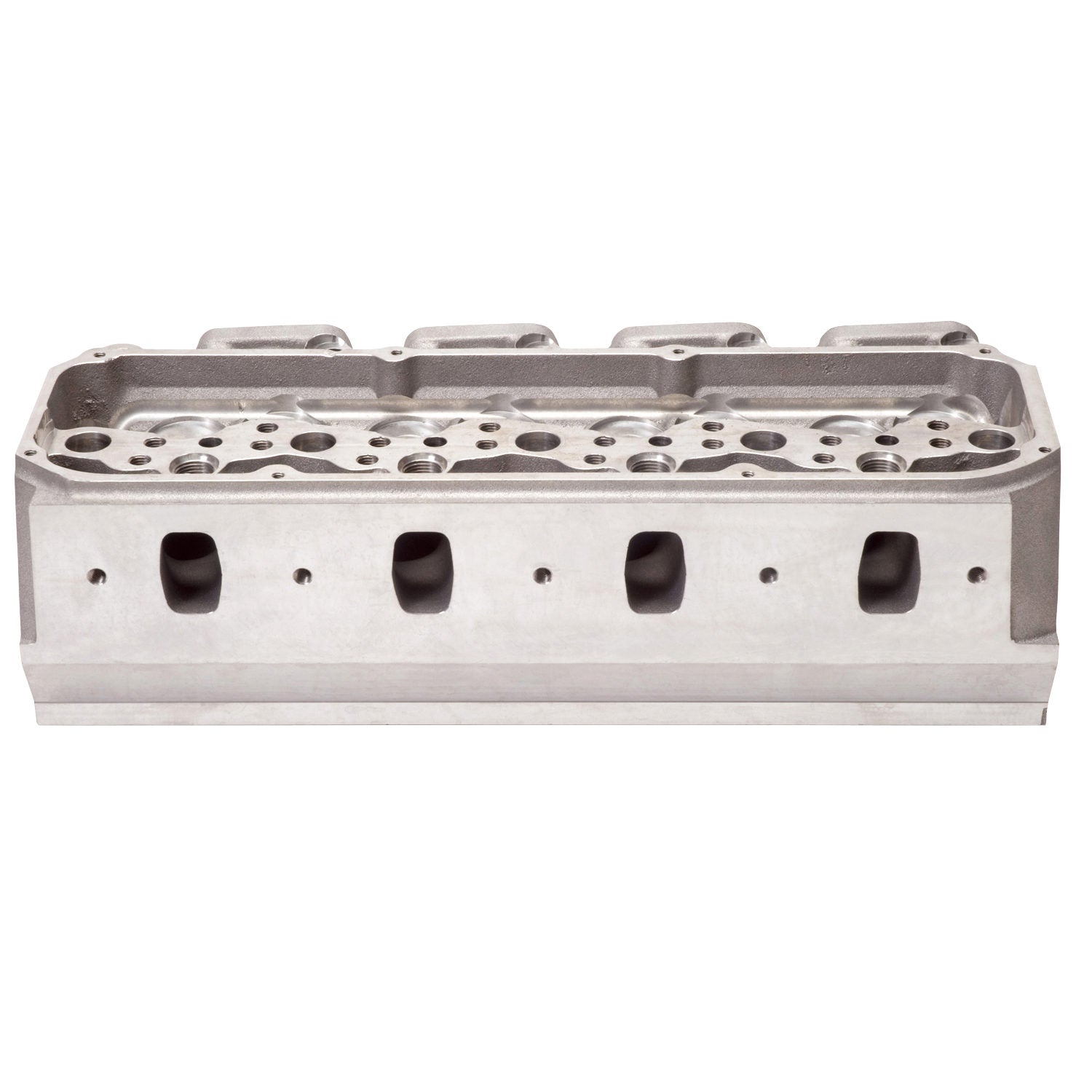

Edelbrock #770769 Pro Port Glidden-Victor SC-1 Cylinder Head is for Small-Block Ford, Race and Ultra high-performance's street Engines. Bare, HIP Treated Casting

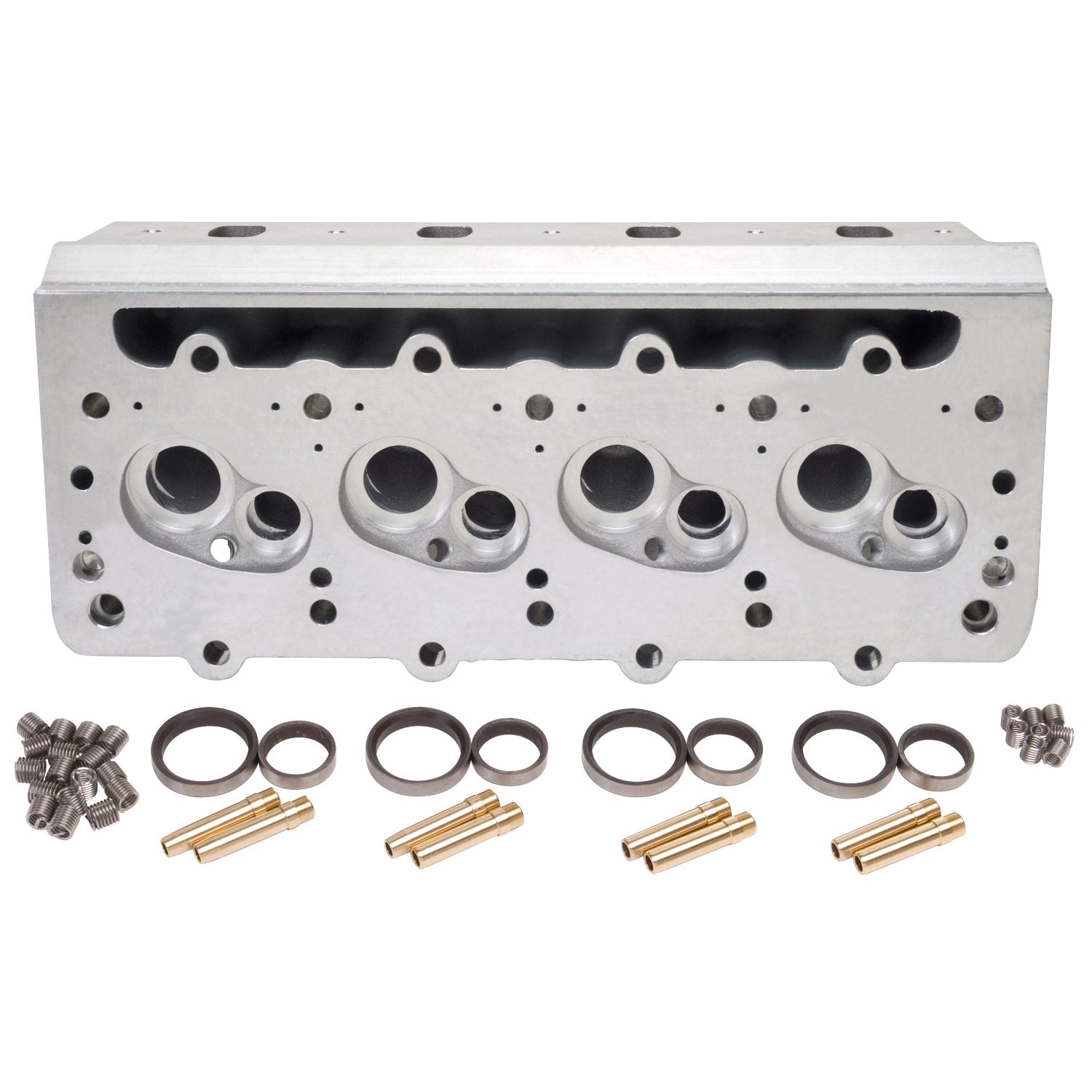

The Edelbrock 770769 Small Block Ford SC1 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Bare Unported Version Of Victor Jr. Part 61269
20-Degree Valve Angle
Designed with Drag Racer Billy Glidden

Exhaust Valve Pierce Points (X,Y)(C): 1.110 in, -0.350

Series: Pro-Port

Combustion Chamber Volume: Possible 20

Intake Valve Pierce Points (X,Y)(C): -0.660 in, 0.440

Family: Victor

Retainer Included: No

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Specialty: Hot Isostatic Pressing (HIP) Processing

Construction Type: Pro-Port Raw

Exhaust Valve Diameter: (Suggested) 1.64

Exhaust Port Entry: 1.50 in x 1.36

Intake Port Entry: 1.16 in x 1.76

Valve Seats Included: Yes

Valve Angle: Exhaust 6.88 x 0.55 deg/Intake 7.3 x 0.3

EGR Port: No

Quantity: Sold Individually

Seat Material: Ductile Iron

Seat Angle: Exhaust 45 deg/Intake 45

Valve Guides Included: Yes

CNC Ported: No

Intake Valve Diameter: (Suggested) 2.24

Guide Material: Manganese Bronze

Valve Springs Included: No

Valve Spring Retainers Included: No

Valve Seals Included: No

Valve Locks Included: No

Valve Cover Gasket Included: No

Rocker Arms Included: No

Rocker Arm Studs/Bolts Included: No

Material: Aluminum

Mounting Hardware Included: No

Head Casting Number: 31-7707

Guide Plates Included: No

Grade Type: Performance

Deck Height: 9.5

Cylinder Head Gasket Included: No

Combustion Chamber Volume: 20

Assembled: No

Valves Included: No
