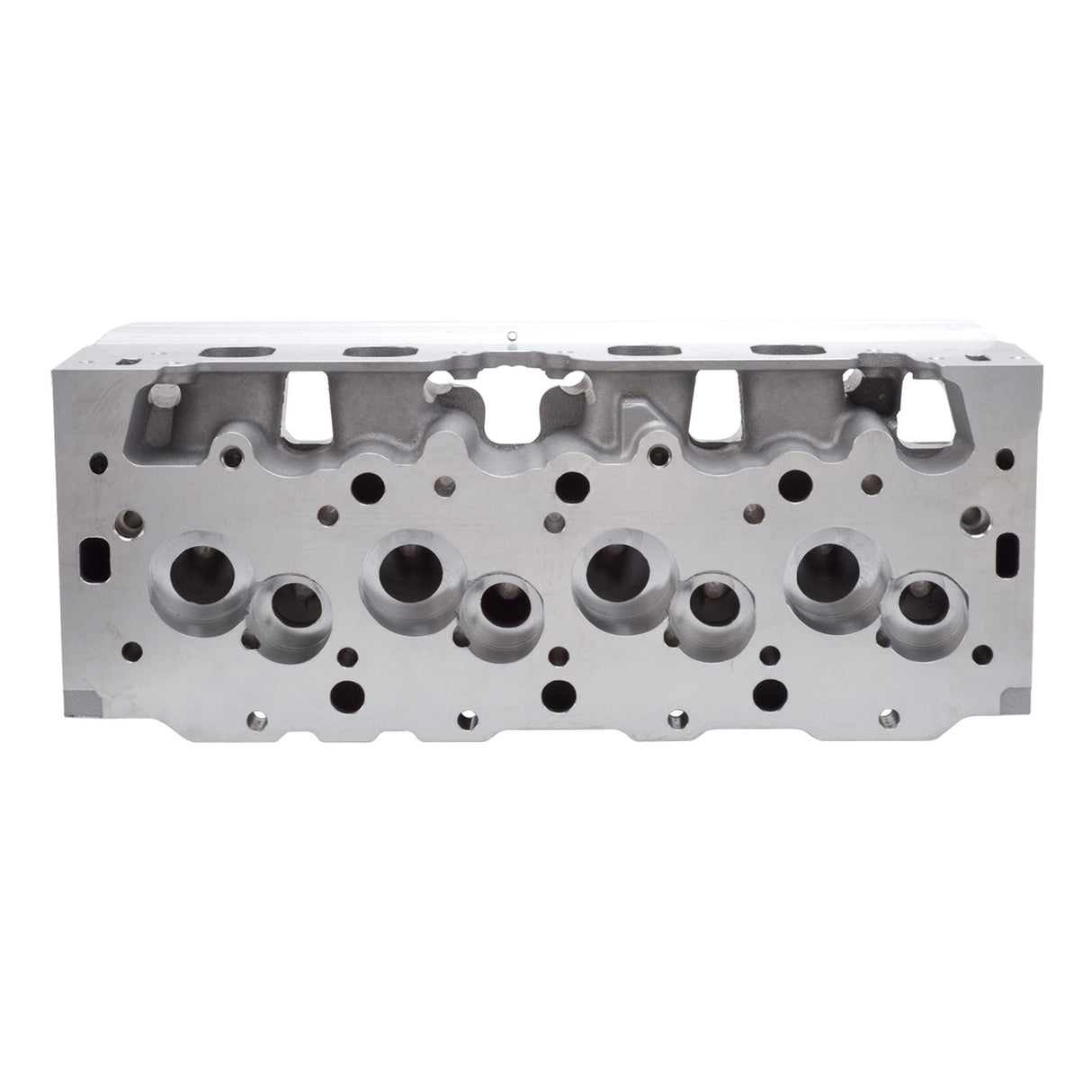

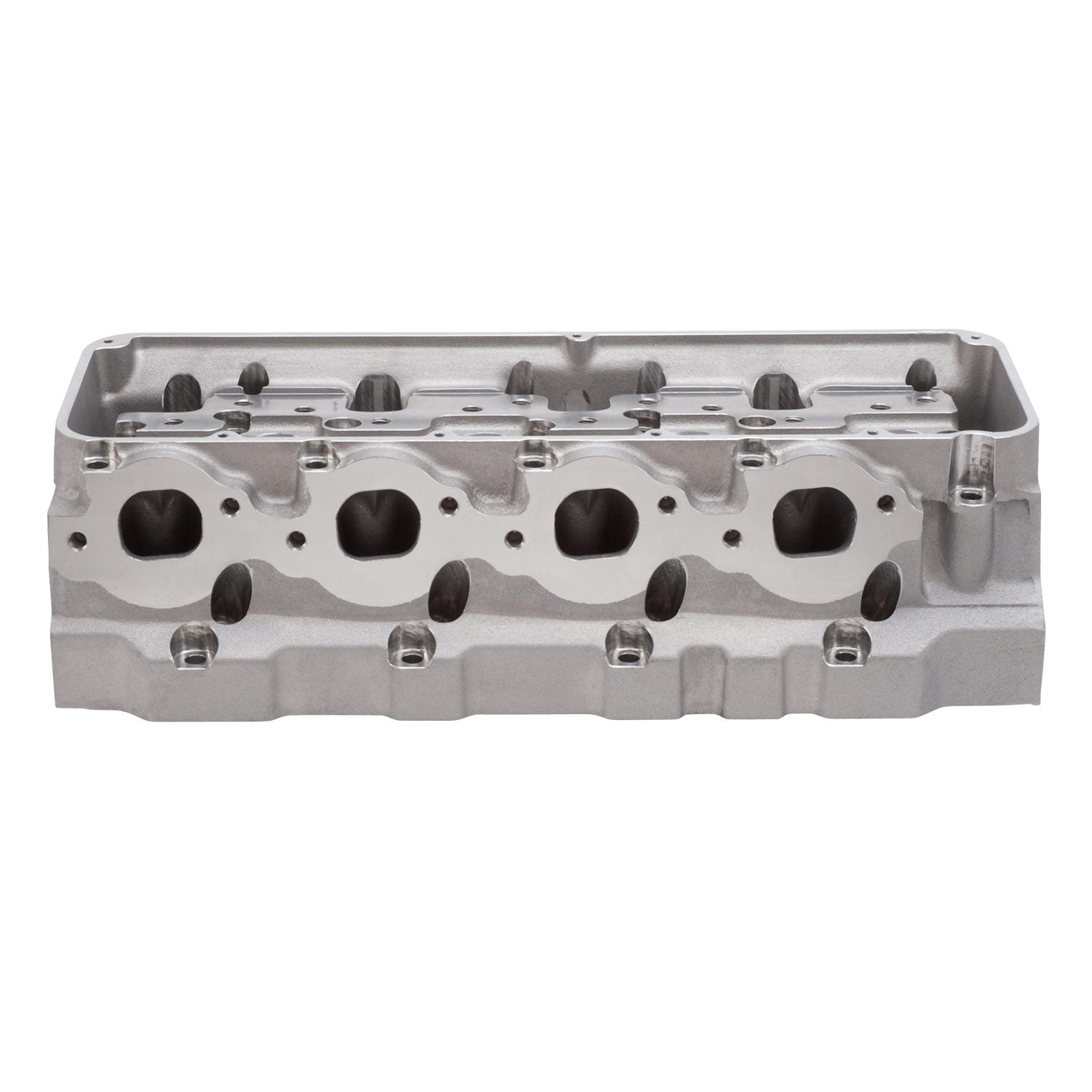

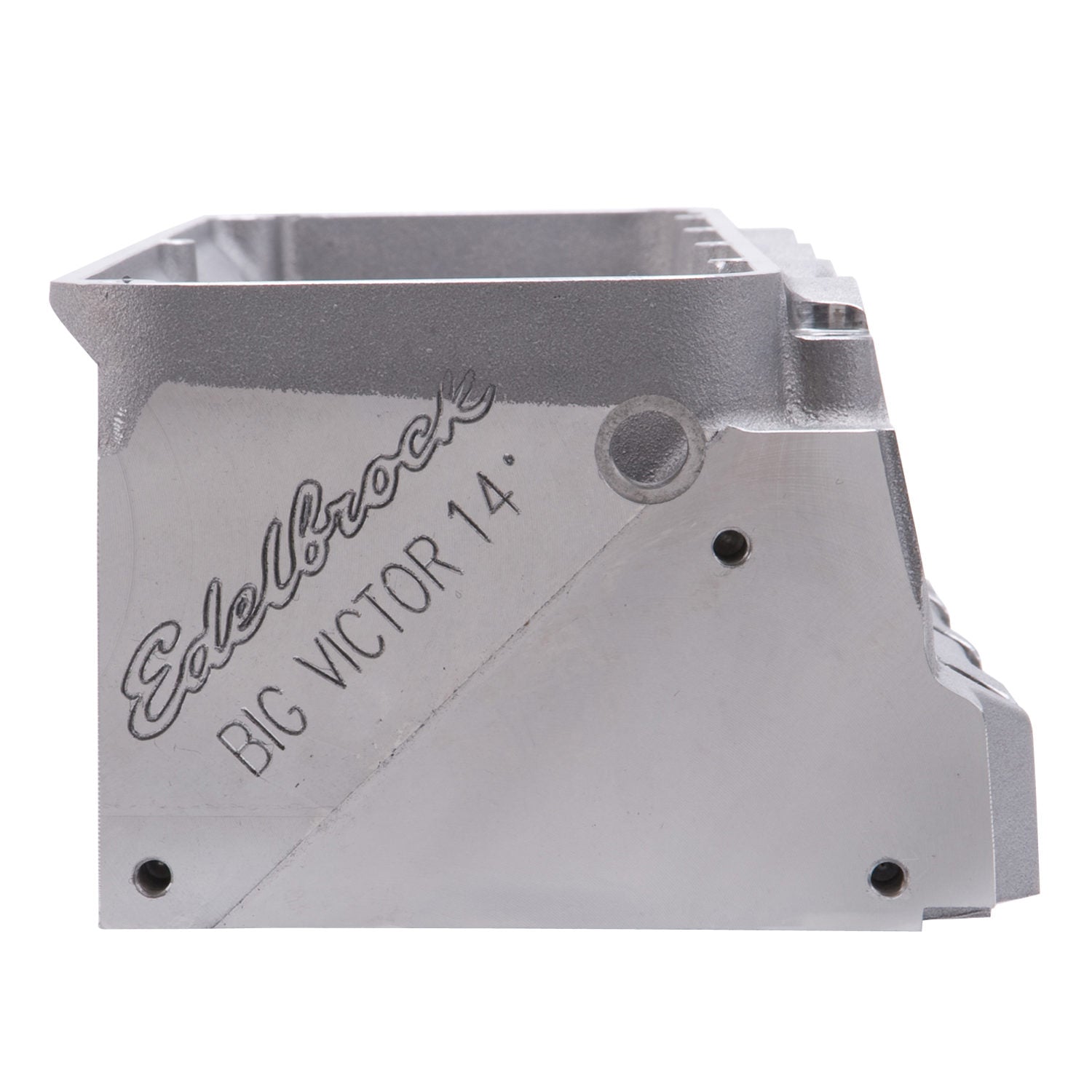

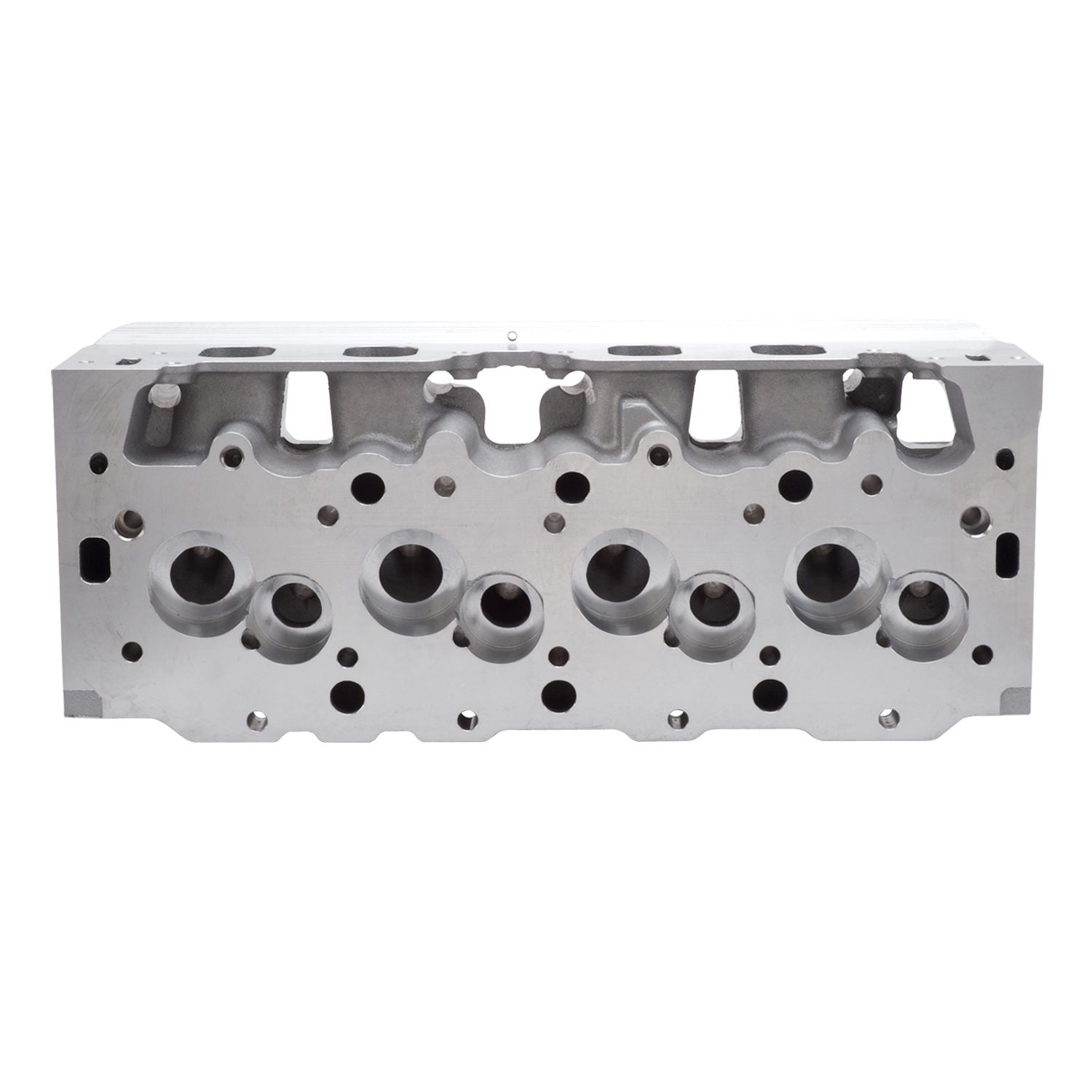

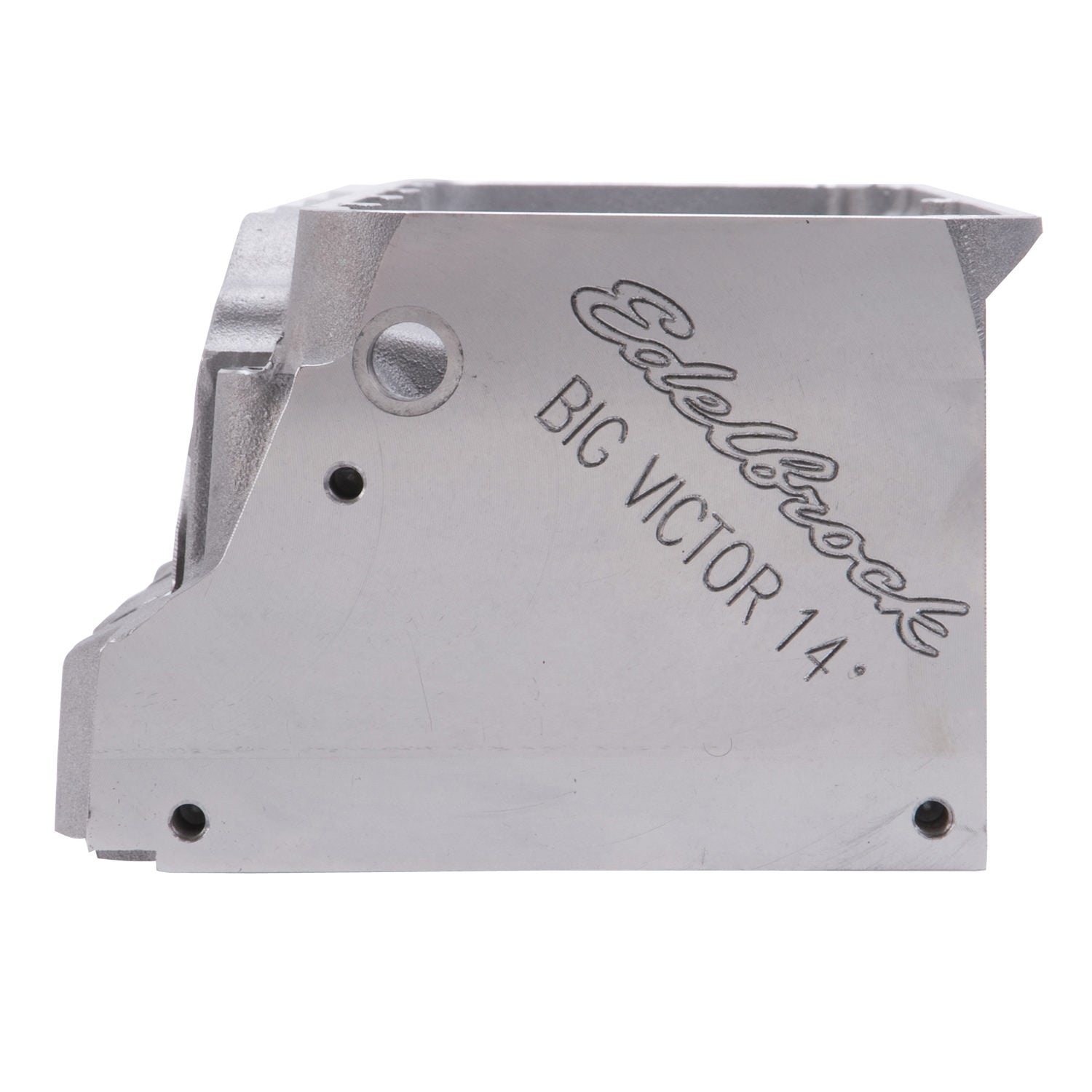

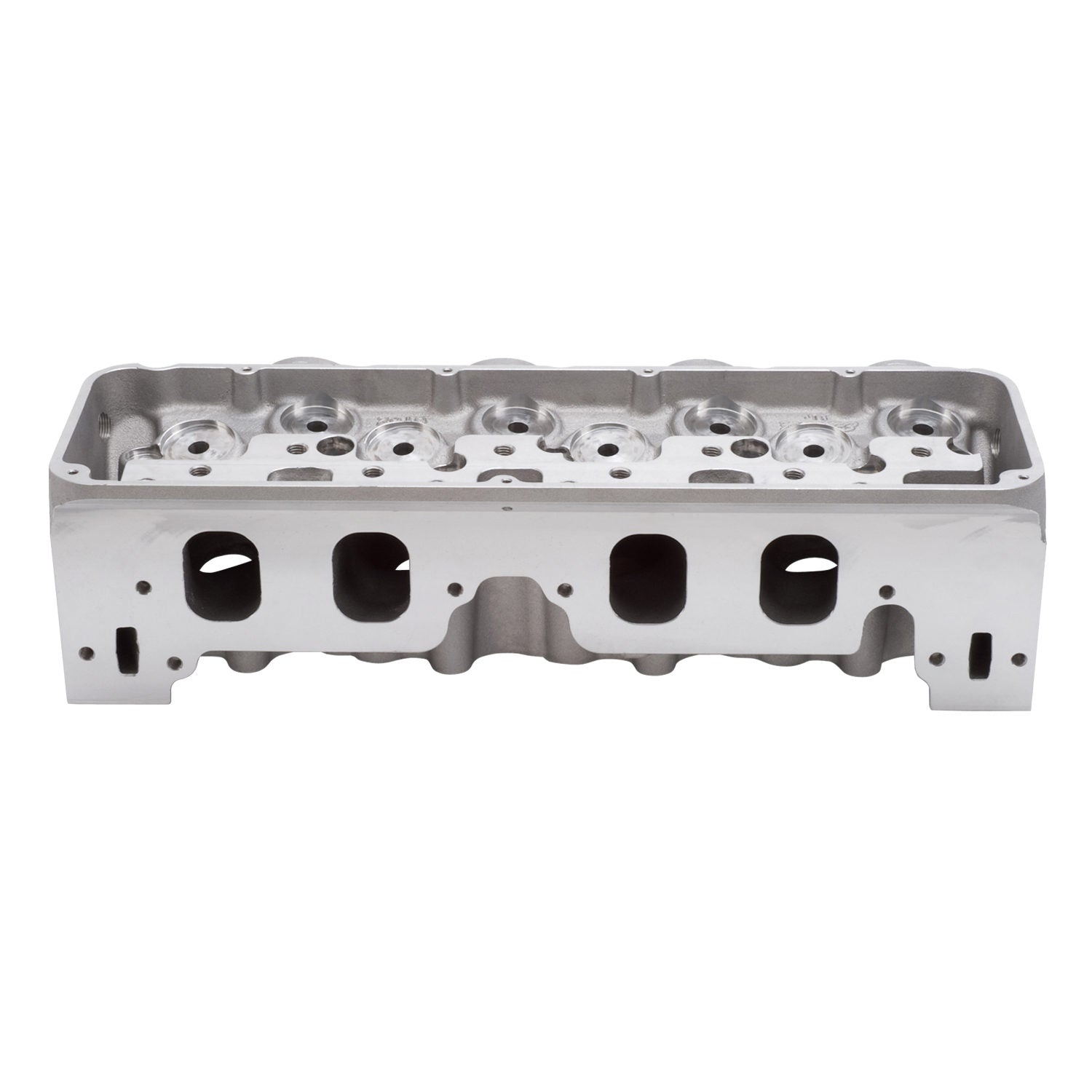

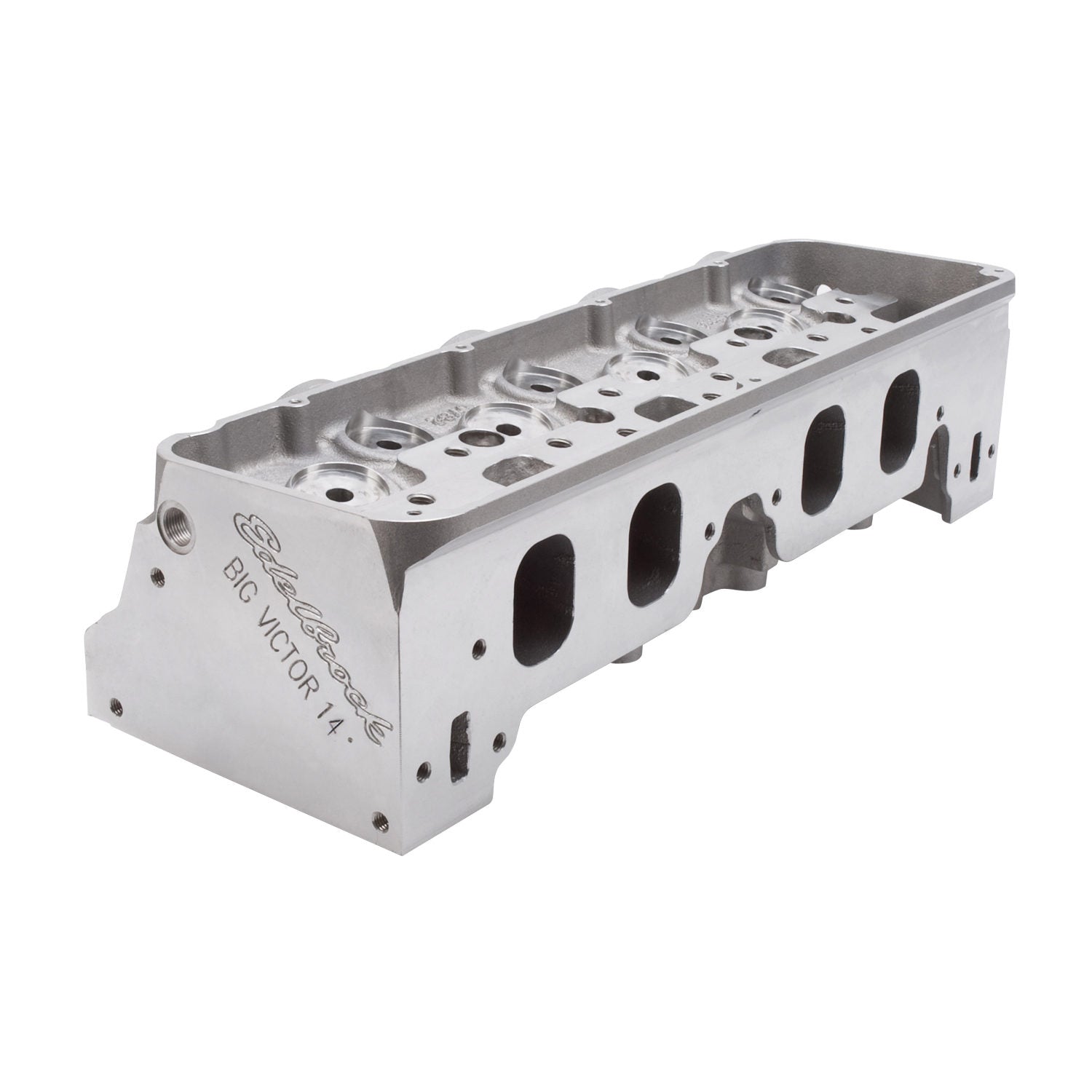

Edelbrock 618369 - Big Victor Pro-Port Raw Cylinder Head

Edelbrock  |  SKU: EDEL-618369
$2,36799 $2,60479

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 618369 - Big Victor Pro-Port Raw Cylinder Head

CYLINDER HEAD

Cylinder Head; Chevrolet; Big Victor; Big Block (Pro Port); HIP d; 14-deg. Intake Valve

Cylinder Head Specifications: Combustion chamber volume: 92cc; Intake runner volume: 442 (lh) / 451 (rh); Exhaust runner volume: 189cc; Intake valve diameter: 2.45" (Valves Not Included); Exhaust valve diameter: 1.85" (Valves Not Included); Valve stem diameter: N/A; Valve guides: Manganese bronze; Deck thickness: N/A; Valve spring diameter: Pocket diameter 1.76" (springs not included); Valve spring maximum lift: N/A; Rocker stud: Use Jesel KPS-381754 shaft-mount; Guideplate: N/A; Pushrod diameter: N/A; Valve angle: 18° x 4.0° intake; 9° x 3.9° exhaust; Exhaust port location: N/A; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * Intended for high output, large cubic inch racing engines with 4.84" bore spacing, this head is an improvement over existing 18° designs, such as the Big Chief & Big Duke. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. These cylinder heads feature CNC ported intake ports and a raised exhaust runner design for improved flow efficiency. Chambers are fully CNC ported and extra material is included in the deck to allow fine tuning of the combustion chamber design, if desired. Edelbrock and Pat Musi worked with Jesel to improve the valvetrain geometry, delivering Pro-Stock level technology on engines up to 10,000 rpm. Jesel's shaft-mounted system, #KPS-387154, is made from lightweight 7000 series aluminum and features a one-piece stand design that pairs the intake and exhaust stands for improved valvetrain stability. The intake features a 1.820" long fulcrum and is available in 1.60:1 - 1.95:1 rocker ratios; the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259. Match with Edelbrock Victor CNC Series manifolds #28003 and #28005. Pro-Port version available for custom porting.

  • 4.84 in. Bore Spacing/Unmachined Combustion Chambers
  • Bare Head
  • For Big Block Chevy
  • High Isostatic Pressing Design
  • Requires Edelbrock Valve covers PN 4259
Series: Pro-Port
Construction Type: Pro-Port Raw
Guide Plates Included: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Valve Angle: 14
EGR Port: No
Retainer Included: No
Material: Aluminum
Specialty: Hot Isostatic Pressing (HIP) Processing
Grade Type: Performance
Quantity: Sold Individually
Valve Included: No
Intake Valve Diameter: (Suggested) 2.45
CNC Ported: No
Family: Big Victor
Exhaust Valve Diameter: (Suggested) 1.85
Head Casting Number: N/A
Valve Springs Included: No
Guide Material: Manganese Bronze
