Edelbrock 61775 - Cylinder Head SB Chrysler Performer RPM 5 2 and 5 9L Magnum

Edelbrock  |  SKU: EDEL-61775
Sale price $1,25150 Regular price $1,37665

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

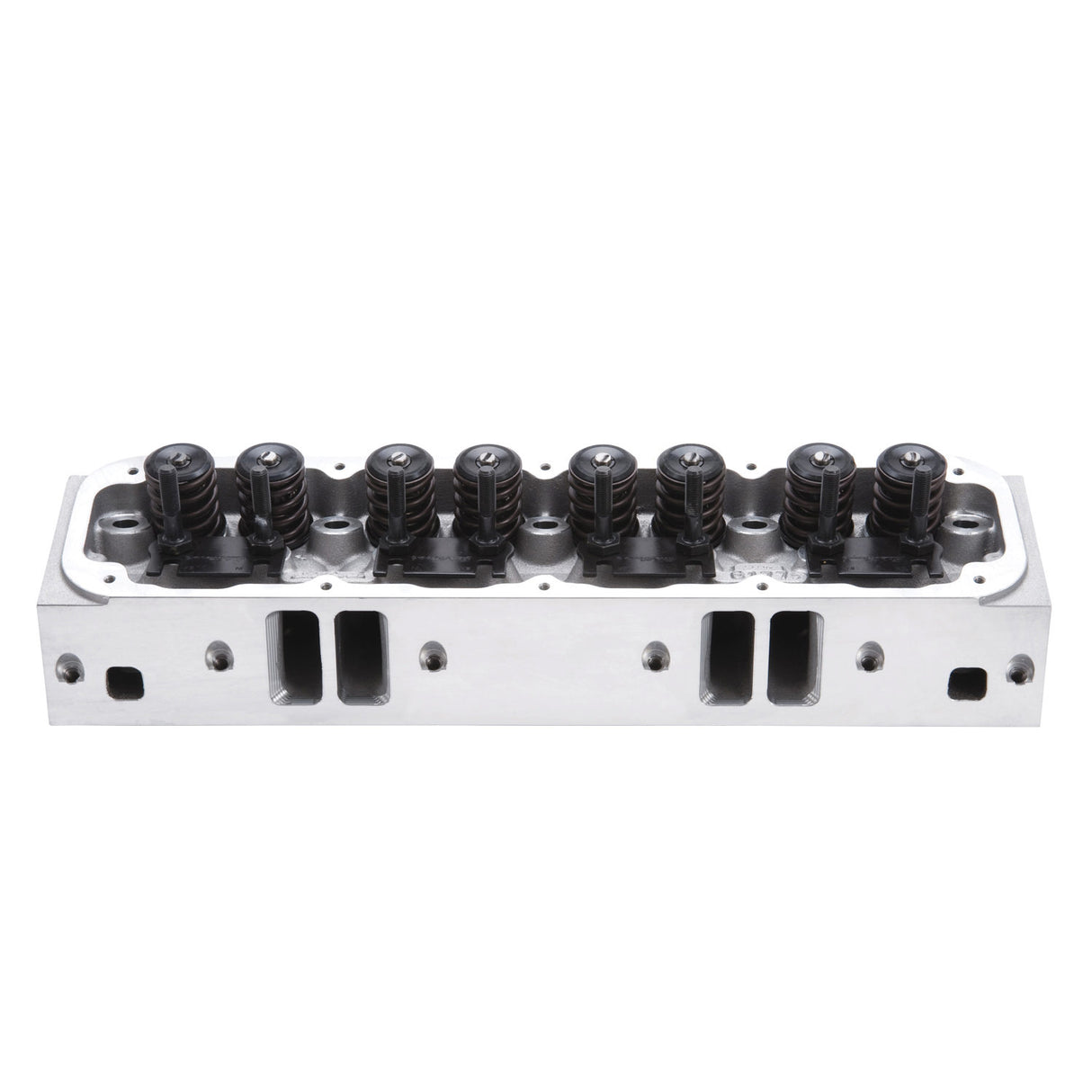

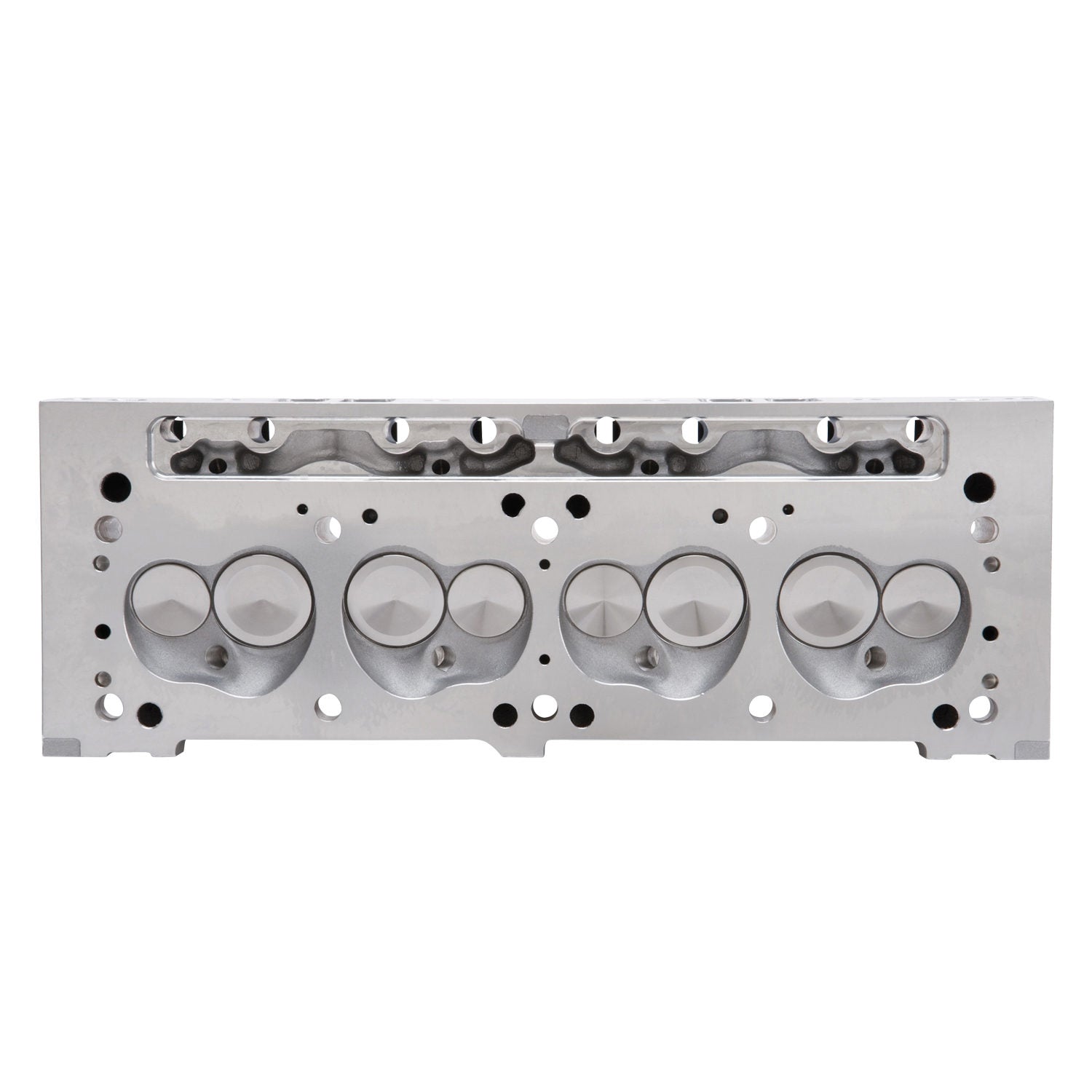

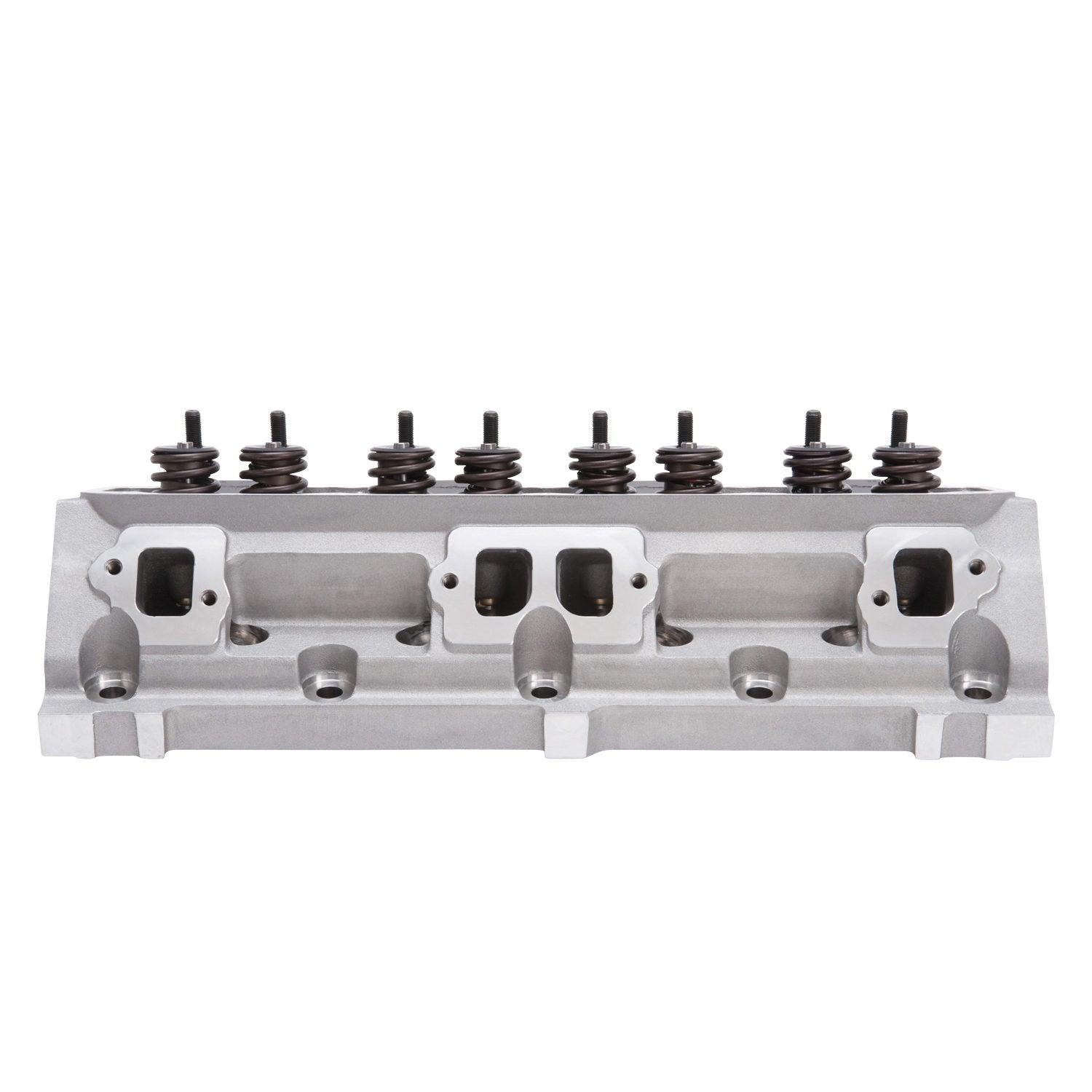

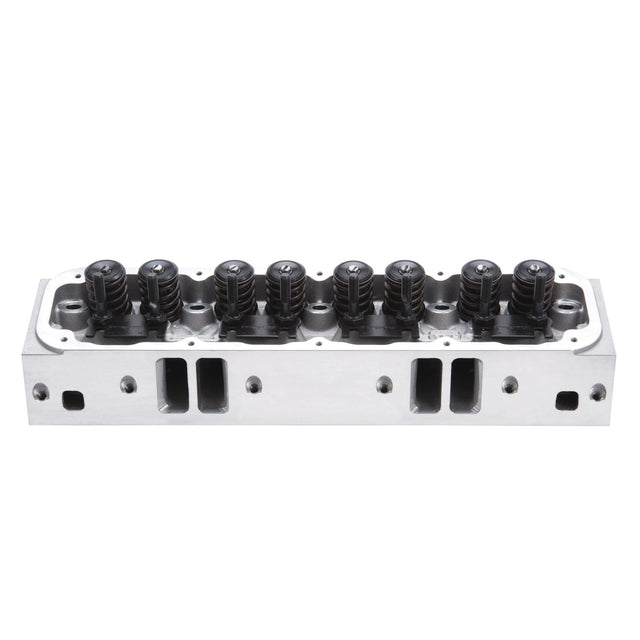

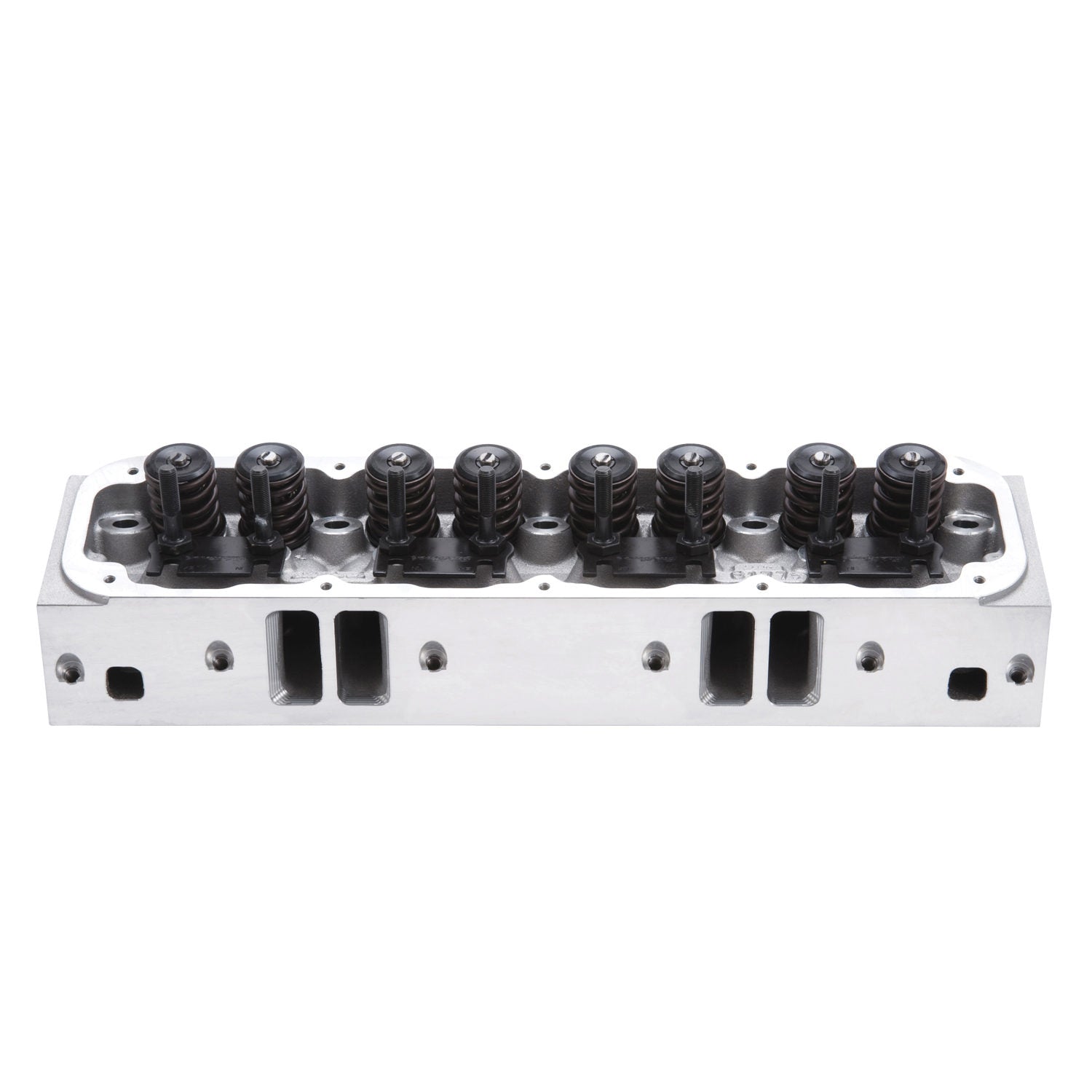

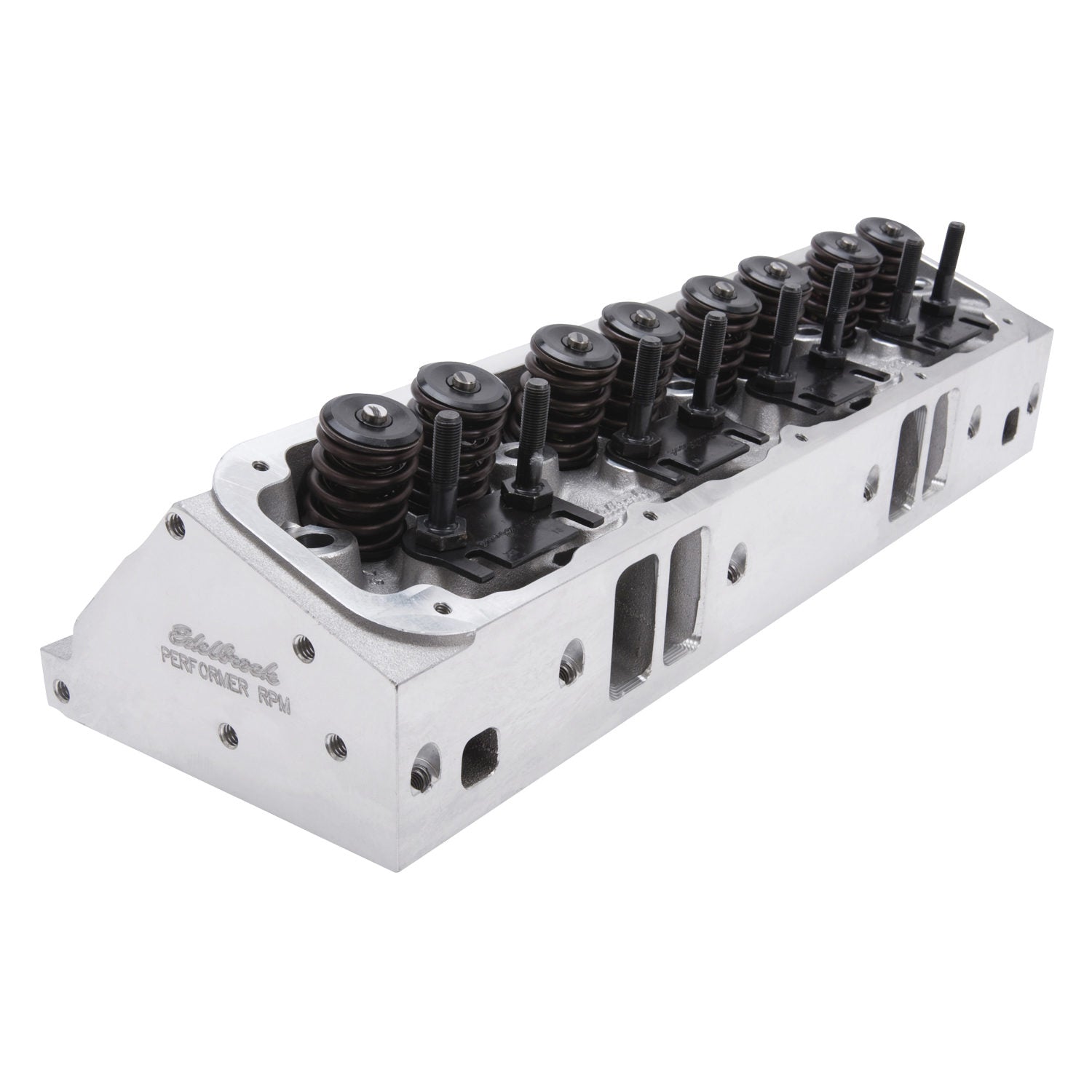

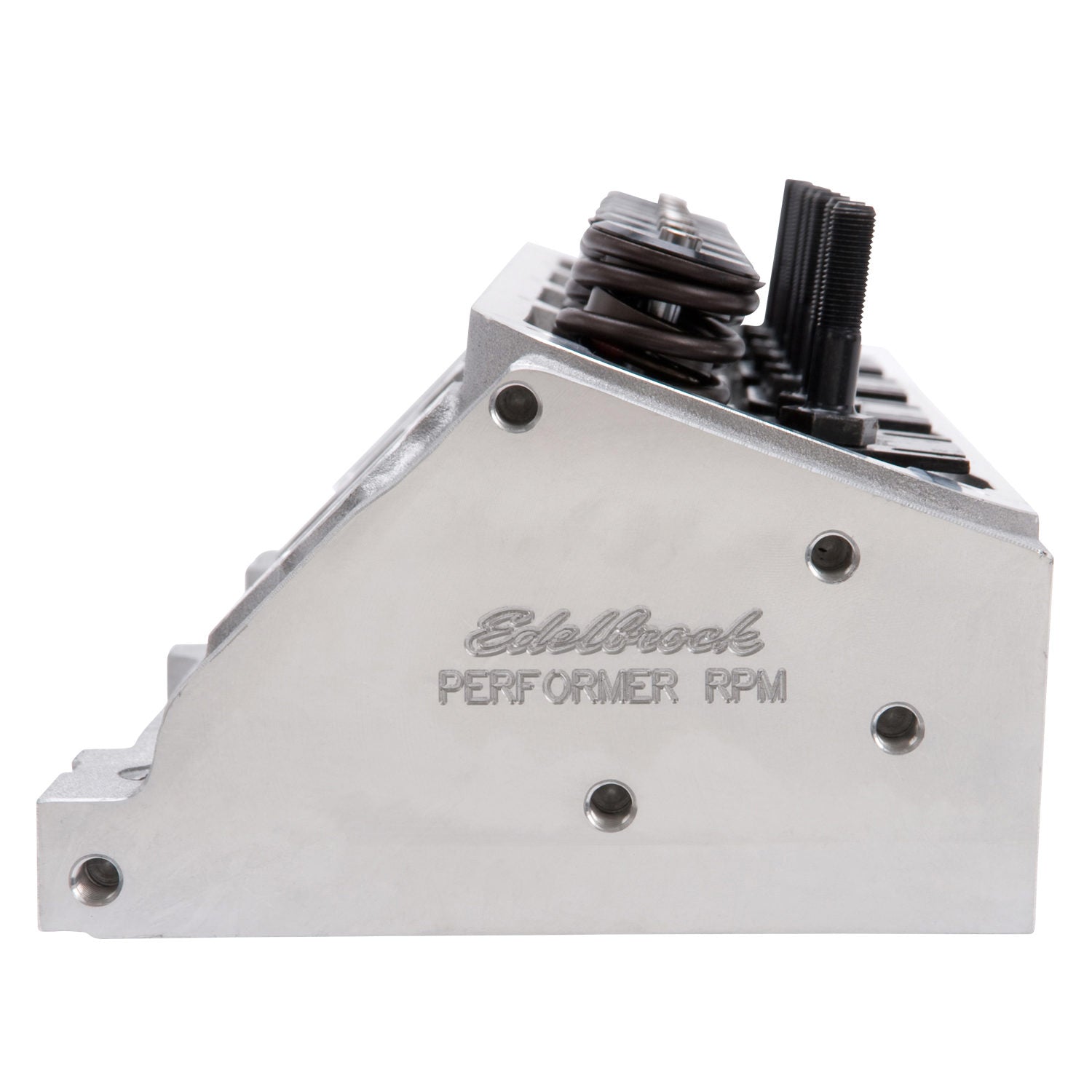

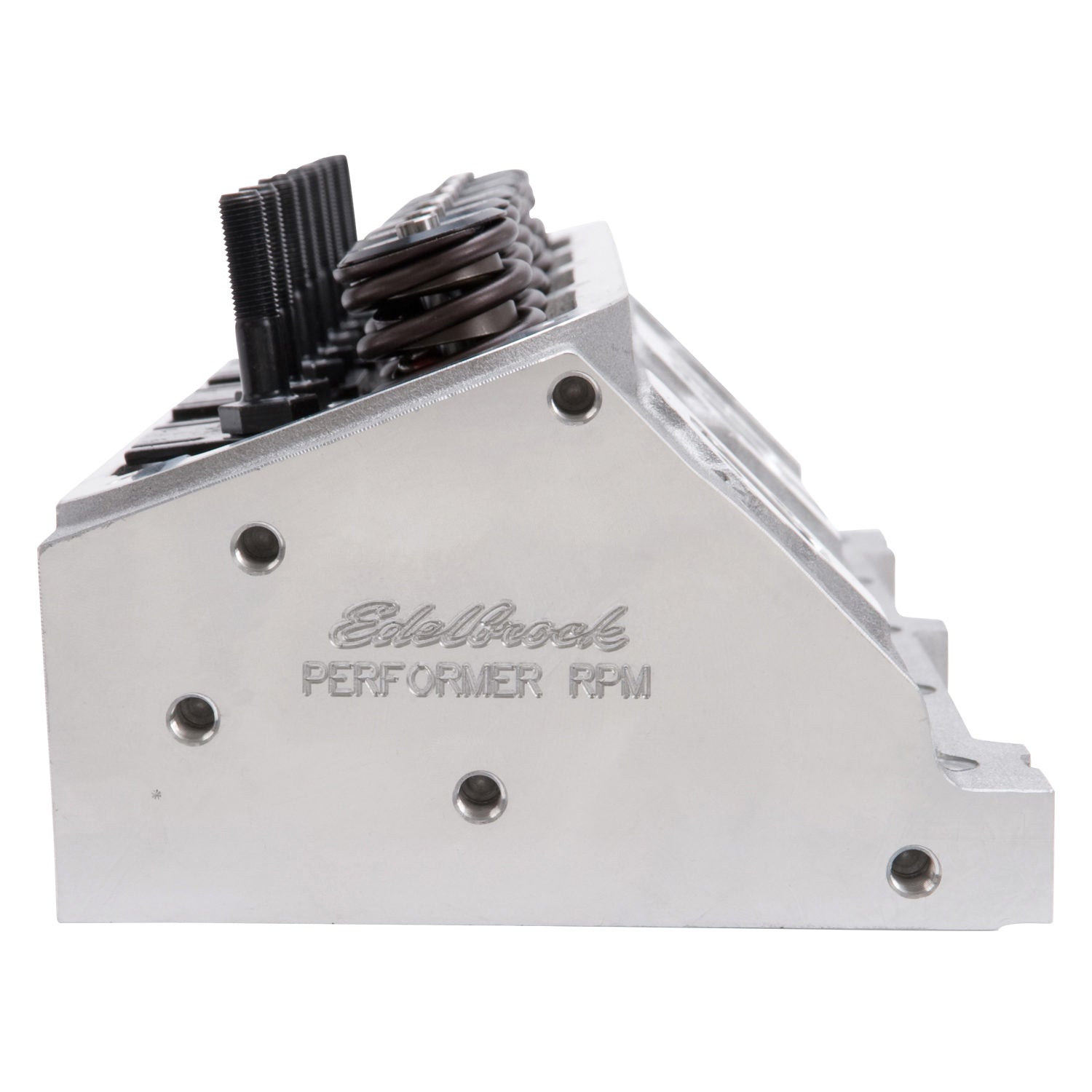

Edelbrock 61775 - Cylinder Head SB Chrysler Performer RPM 5 2 and 5 9L Magnum

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 176 cc Intake - 58 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each

Edelbrock part #61775 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications.

The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Stock Magnum Intake/Exhaust Flange/Port Locations
  • Must Use Adjustable Aftermarket Rocker Arms
CNC Ported: No
Deck Thickness: 0.625
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Combustion Chamber Volume: 58
Valve Spring Diameter: 1.46
Exhaust Port Location: Standard
Series: Performer RPM
Seat Material: Ductile Iron
Seat Angle: Exhaust 45 deg/Intake 45
Guide Material: Manganese Bronze
Camshaft Type: Hydraulic Roller
Exhaust Runner Volume: 75
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.3125
Intake Valve Diameter: 2.02
Rocker Arm Stud Diameter: 0.375
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Mounting Hardware Included: No
Intake Runner Volume: 176
Head Casting Number: 31-6177
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.6
Cylinder Head Gasket Included: No
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Quantity: Sold Individually
Retainer Included: Yes
Exhaust Valve Diameter: 1.60
EGR Port: No
Family: Performer RPM
Construction Type: Complete
Valve Angle: 18
Horsepower: 350-500
Valve Spring Maximum Lift: 0.580
