Edelbrock 61775 - Cylinder Head SB Chrysler Performer RPM 5 2 and 5 9L Magnum

Edelbrock  |  SKU: EDEL-61775
$1,19150 $1,31065

Description

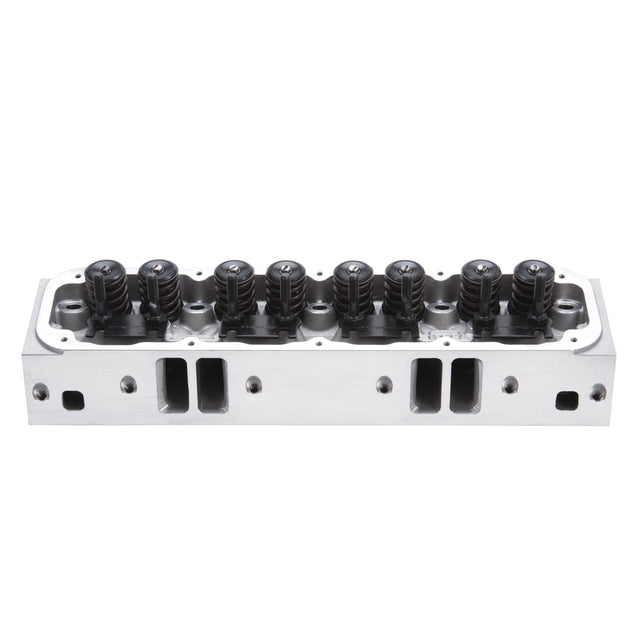

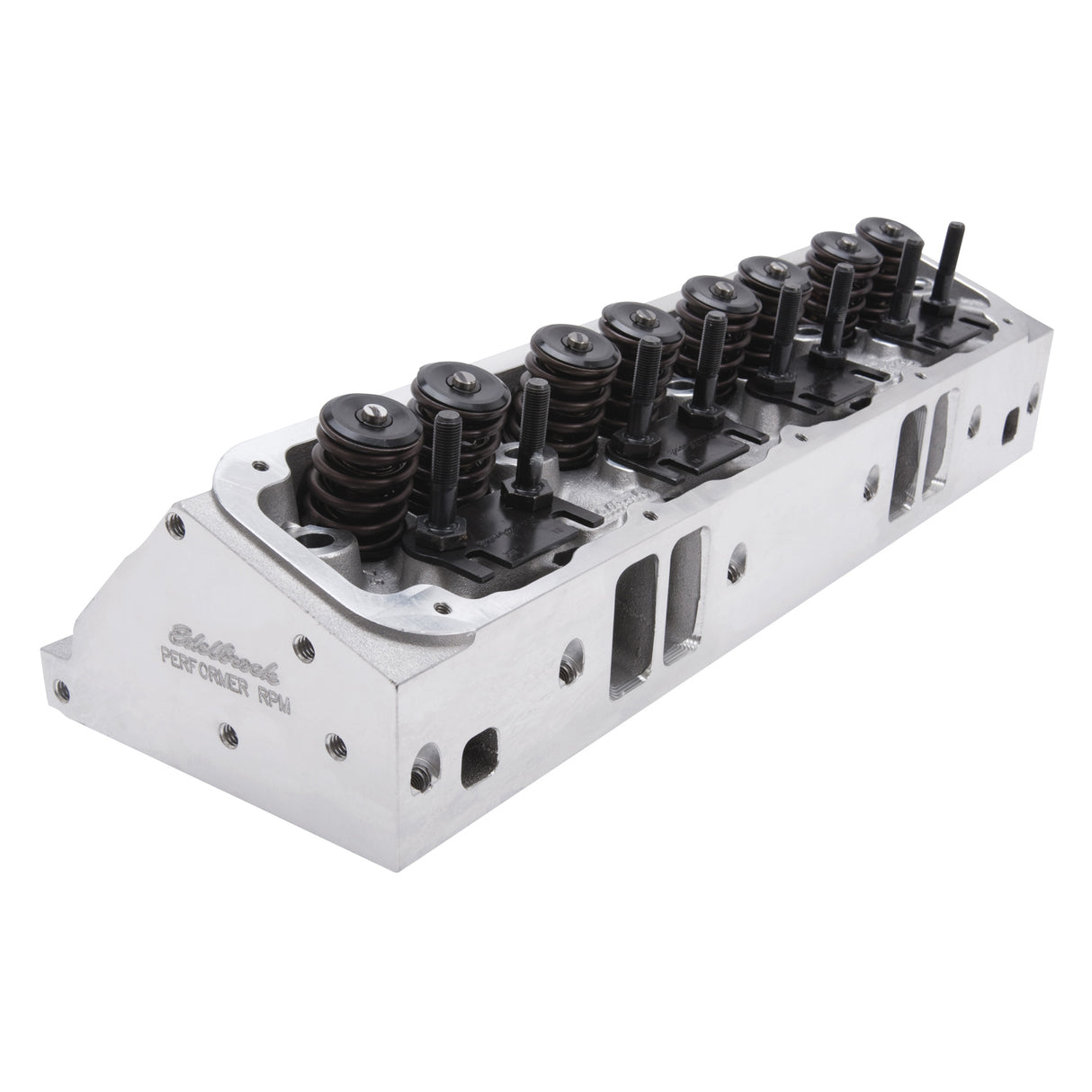

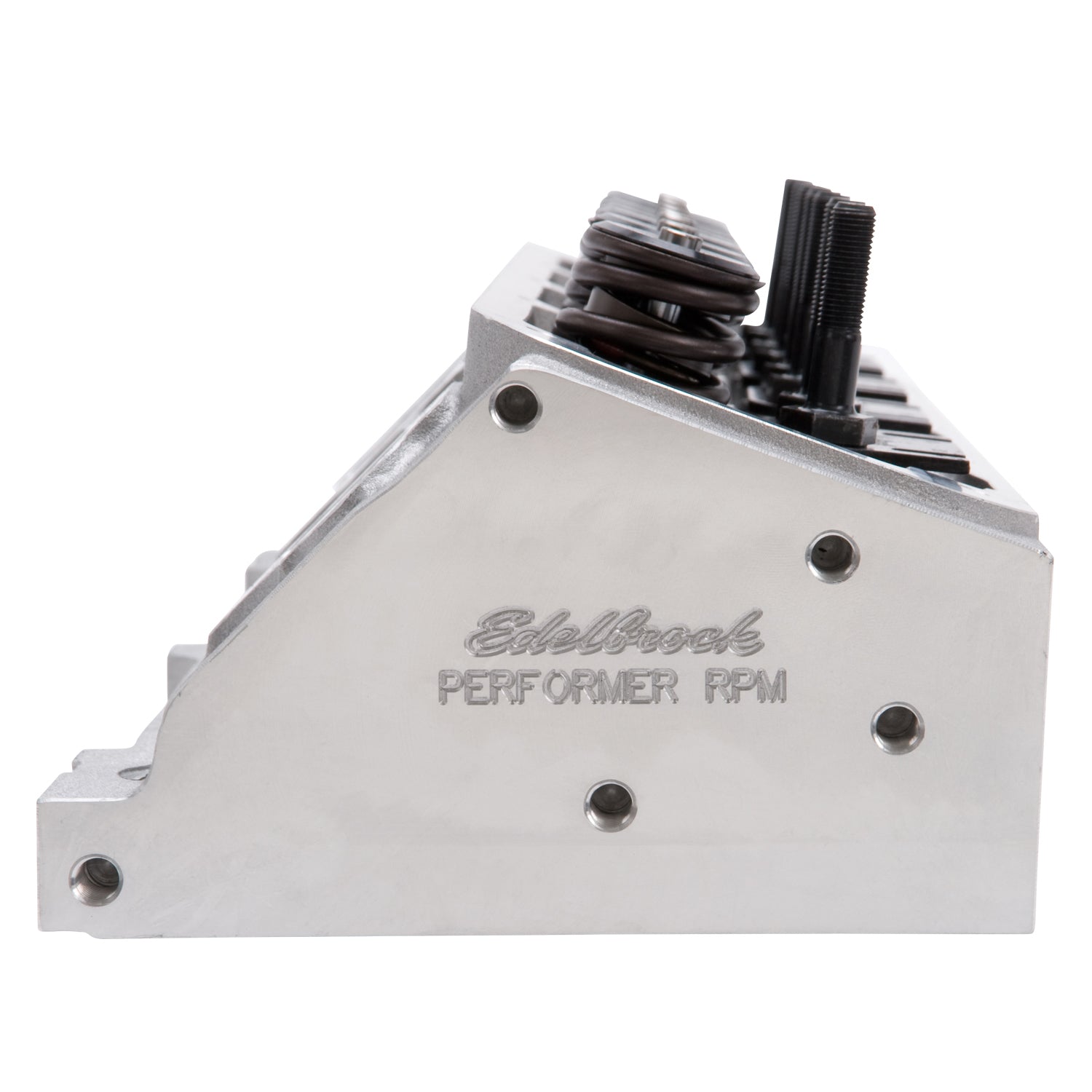

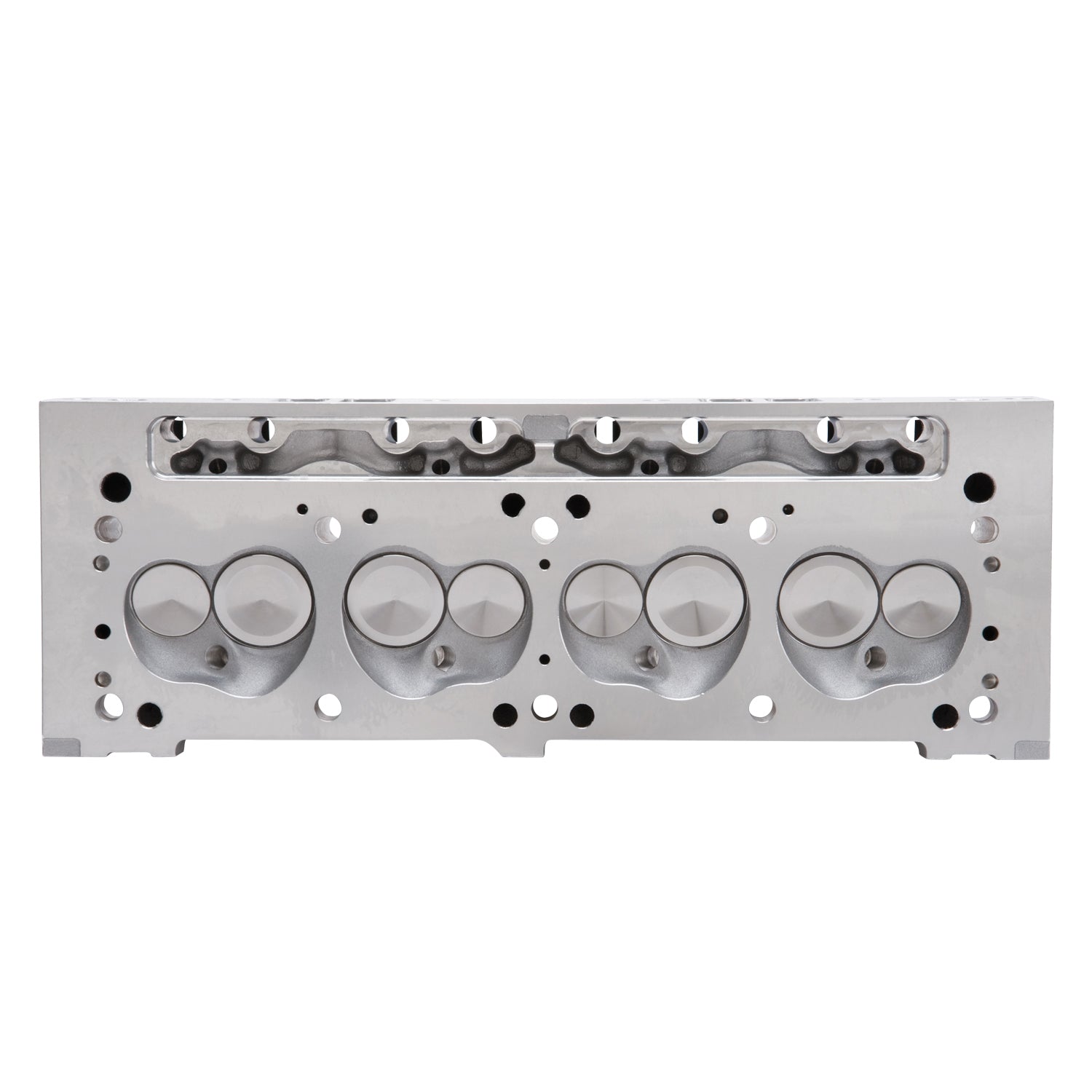

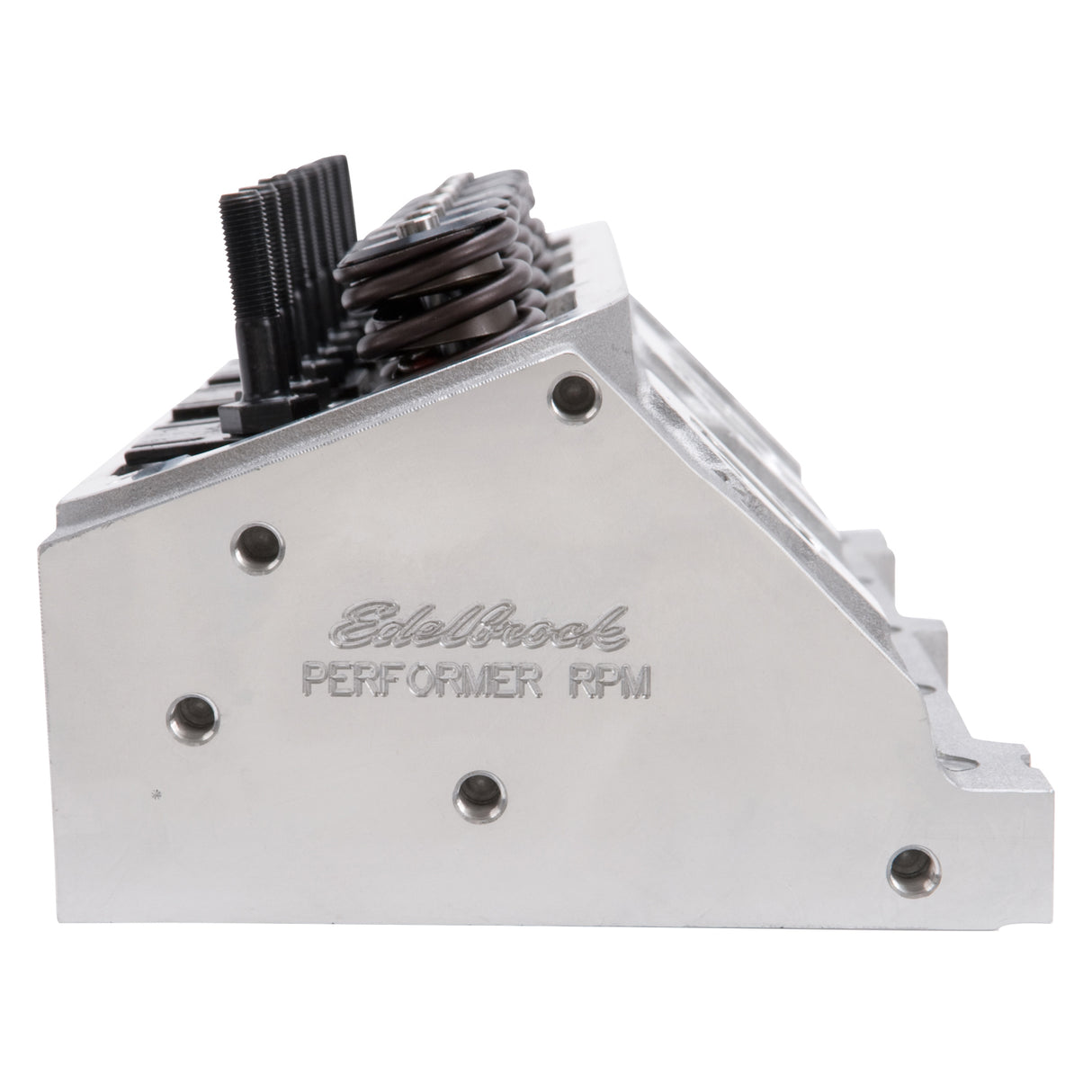

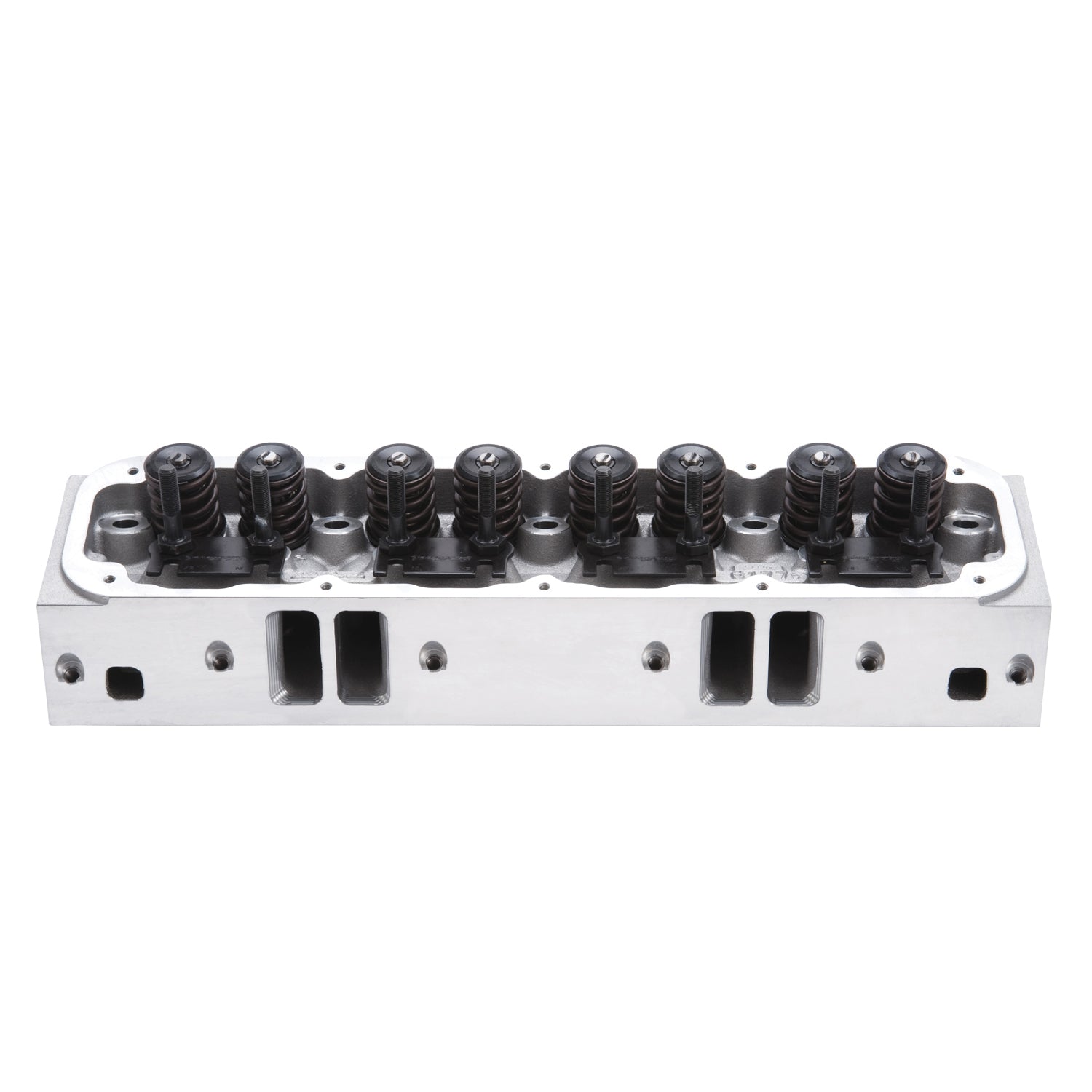

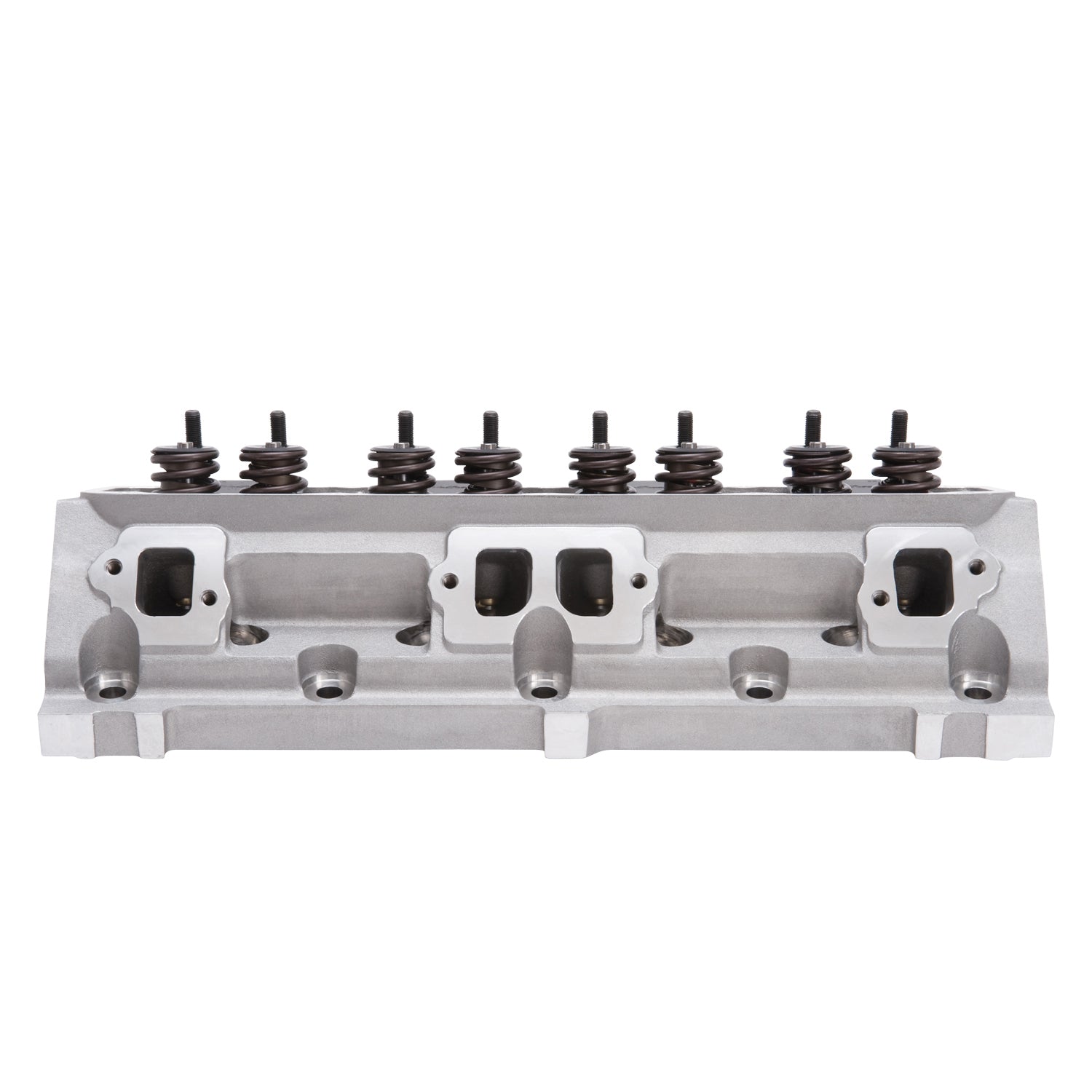

Edelbrock 61775 - Cylinder Head SB Chrysler Performer RPM 5 2 and 5 9L Magnum

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 176 cc Intake - 58 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each

Edelbrock part #61775 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications.

The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Stock Magnum Intake/Exhaust Flange/Port Locations
  • Must Use Adjustable Aftermarket Rocker Arms

Quantity: Sold Individually
Retainer Included: Yes
Exhaust Valve Diameter: 1.60
Guide Plate Material: Hardened Steel
EGR Port: No
Family: Performer RPM
Construction Type: Complete
Valve Angle: 18
Horsepower: 350-500
Valve Spring Maximum Lift: 0.580
Guide Plates Included: Yes
CNC Ported: No
Grade Type: Performance
Deck Thickness: 0.625
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Valve Included: Yes
Combustion Chamber Volume: 58
Valve Spring Diameter: 1.46
Exhaust Port Location: Standard
Series: Performer RPM
Seat Material: Ductile Iron
Head Casting Number: N/A
Seat Angle: Exhaust 45 deg/Intake 45
Guide Material: Manganese Bronze
Material: Aluminum
Camshaft Type: Hydraulic Roller
Intake Runner Volume: 176
Valve Springs Included: Yes
Exhaust Runner Volume: 75
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.3125
Intake Valve Diameter: 2.02
Rocker Arm Stud Diameter: 0.375

FITMENT DATA
