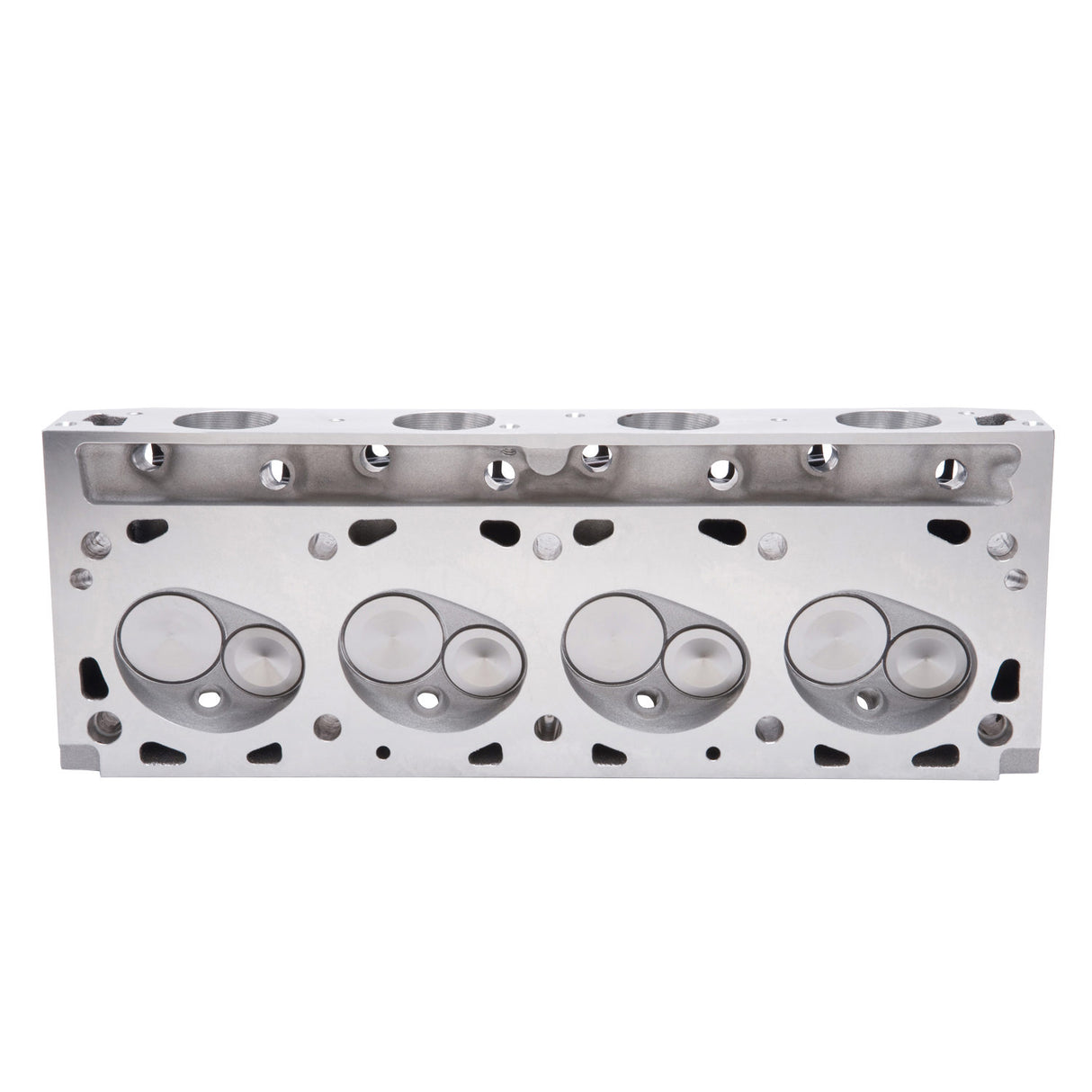

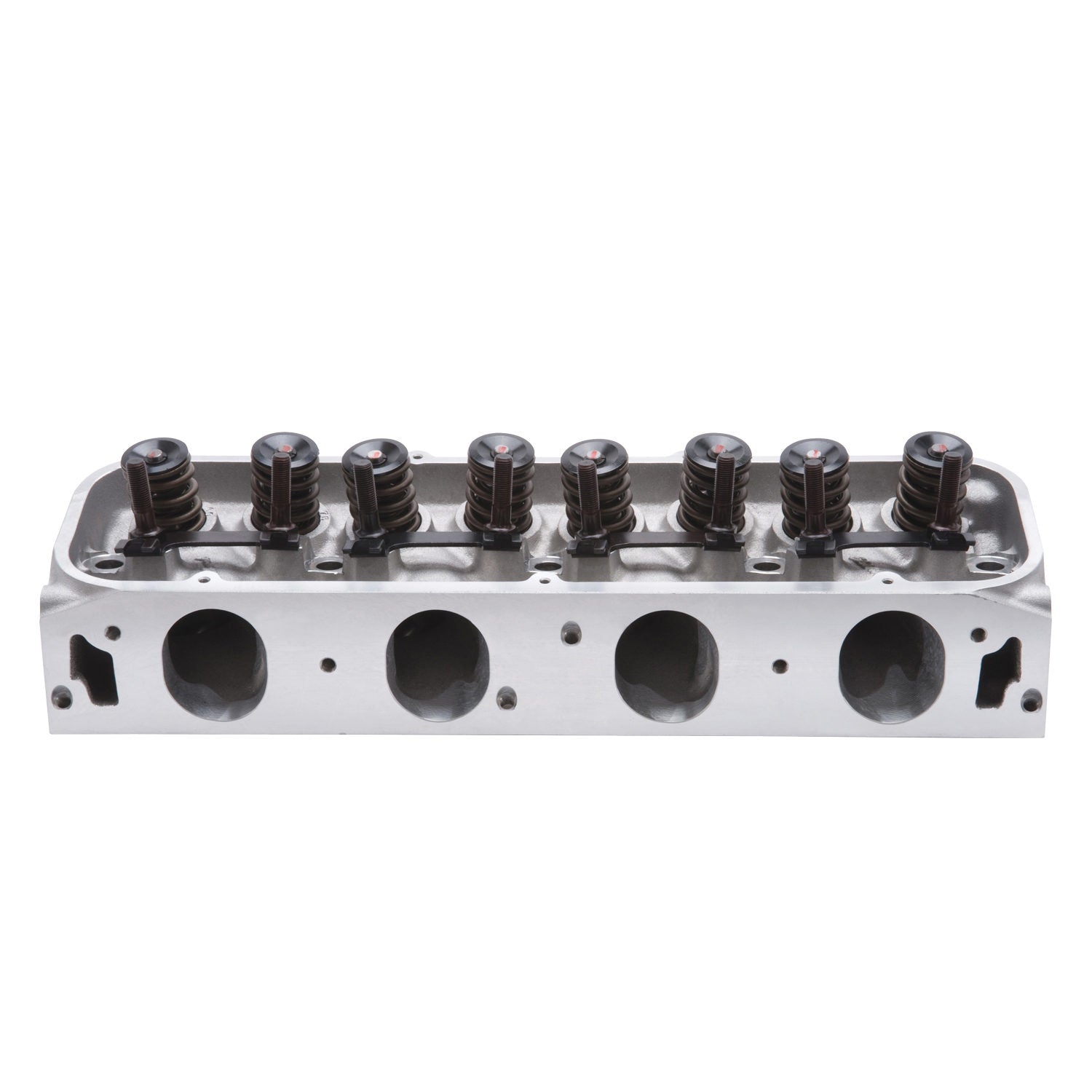

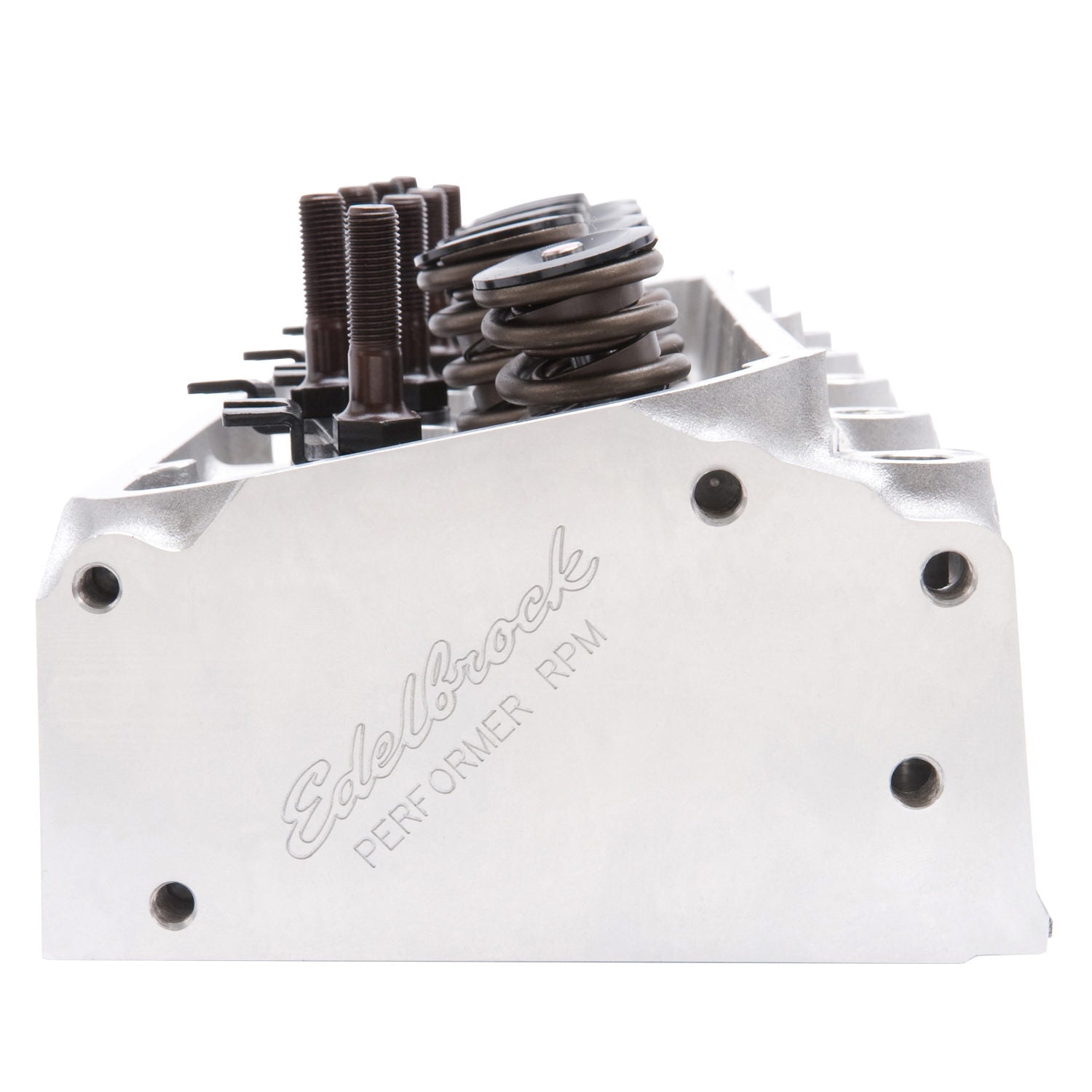

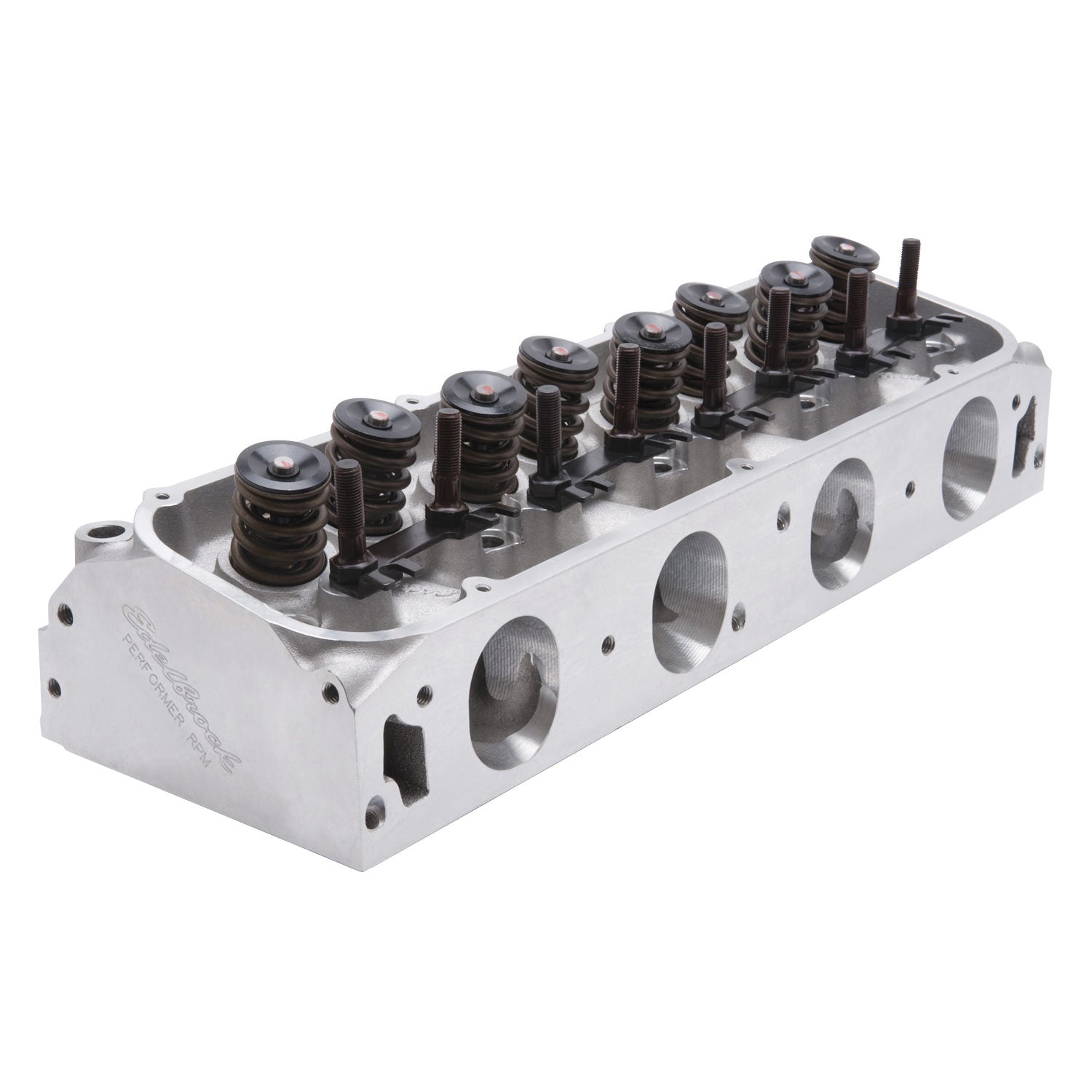

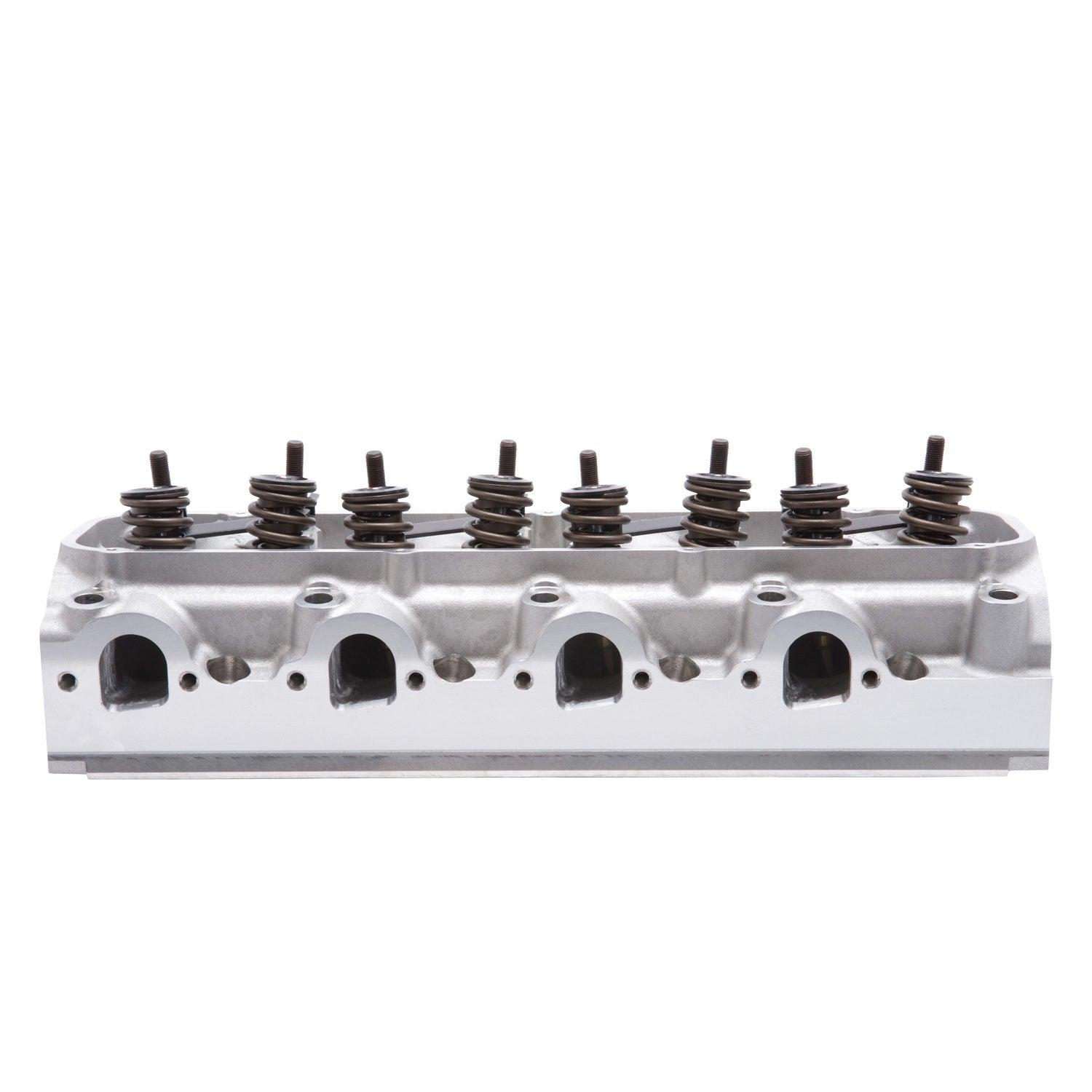

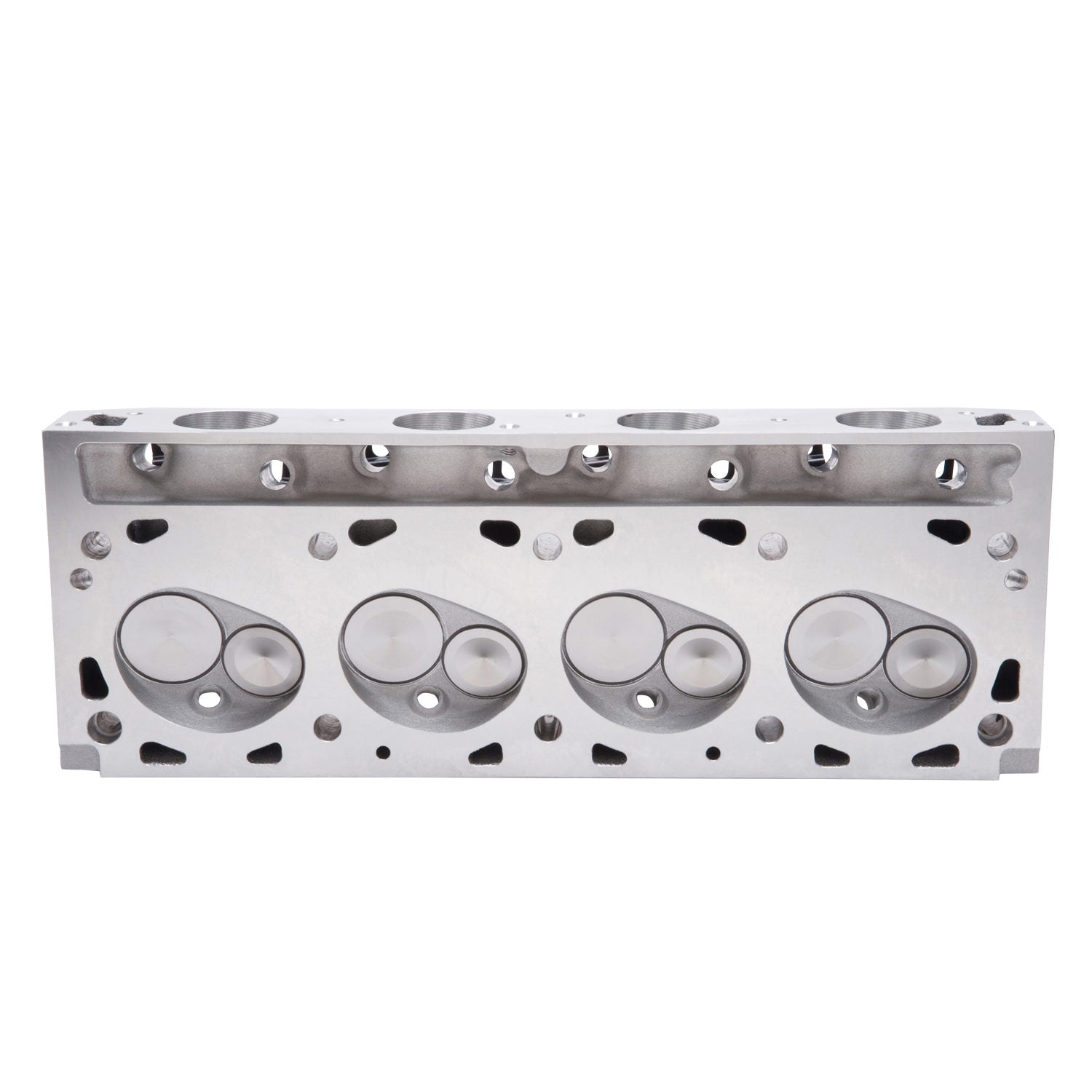

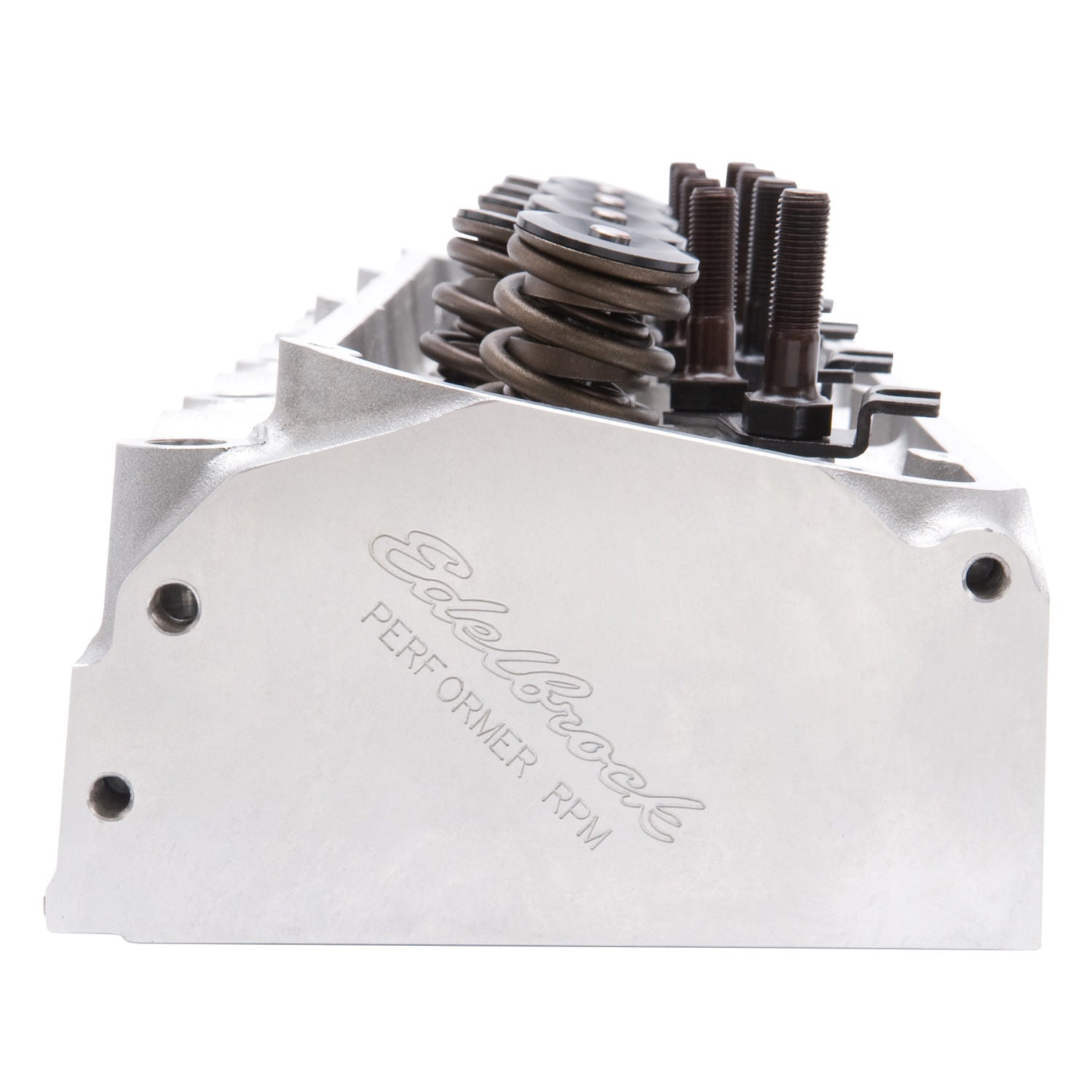

Edelbrock 61645 - Cylinder Head BB Ford Performer RPM 460 Cj for Hydraulic Roller Cam Complete

Edelbrock  |  SKU: EDEL-61645
$1,72395 $1,89634

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 61645 - Cylinder Head BB Ford Performer RPM 460 Cj for Hydraulic Roller Cam Complete

RPM Big-Block Ford 460 CJ Cylinder Head

Edelbrock part #61645 Performer RPM CJ cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications.

The Edelbrock #61645 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61645 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Hand-Blended Intake and Exhaust Bowls
  • Ideal For Drag Racing
  • Ideal For Marine Applications
  • Over 500+ At 6500 RPM
Camshaft Type: Hydraulic Roller
Push Rod Diameter: (Suggested) 0.375
Rocker Arm Stud Diameter: 0.4375
Valve Stem Diameter: 0.3438
Seat Material: Ductile Iron
Deck Thickness: 0.625
Exhaust Valve Diameter: 1.76
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
EGR Port: No
Family: Performer RPM
Horsepower: 550-650
Construction Type: Complete
Valve Spring Maximum Lift: 0.700
Guide Material: Manganese Bronze
Exhaust Port Location: Standard
Series: Performer RPM
Valve Spring Diameter: 1.55
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Sold Individually
Retainer Included: Yes
CNC Ported: No
Exhaust Runner Volume: 100
Intake Valve Diameter: 2.19
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 310
Head Casting Number: 31-6067
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 10.322
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 75
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
