Edelbrock 61629 - Cyl Head 351C Ford 2V Perf RPM Complete

Edelbrock  |  SKU: EDEL-61629
$1,44099 $1,58509

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

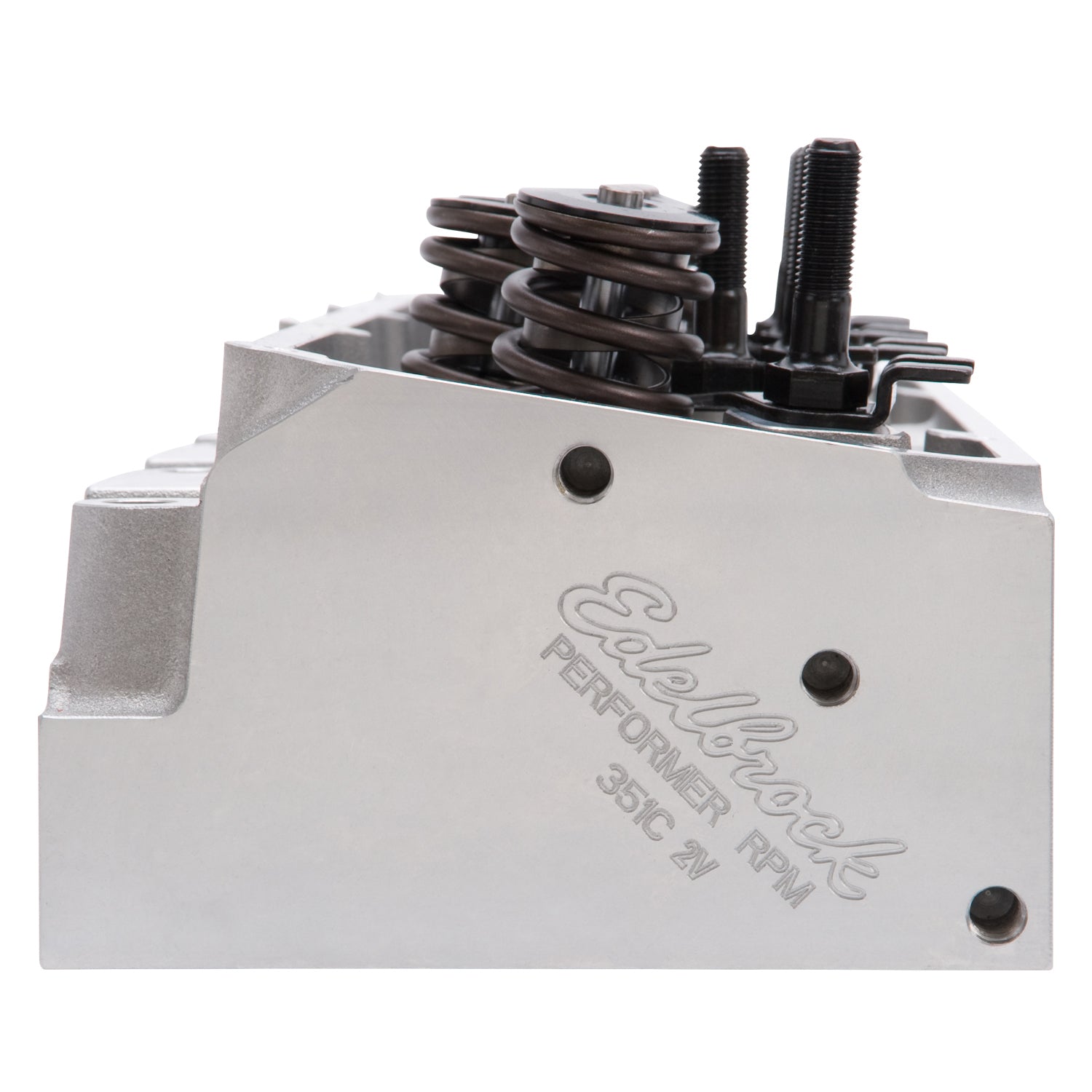

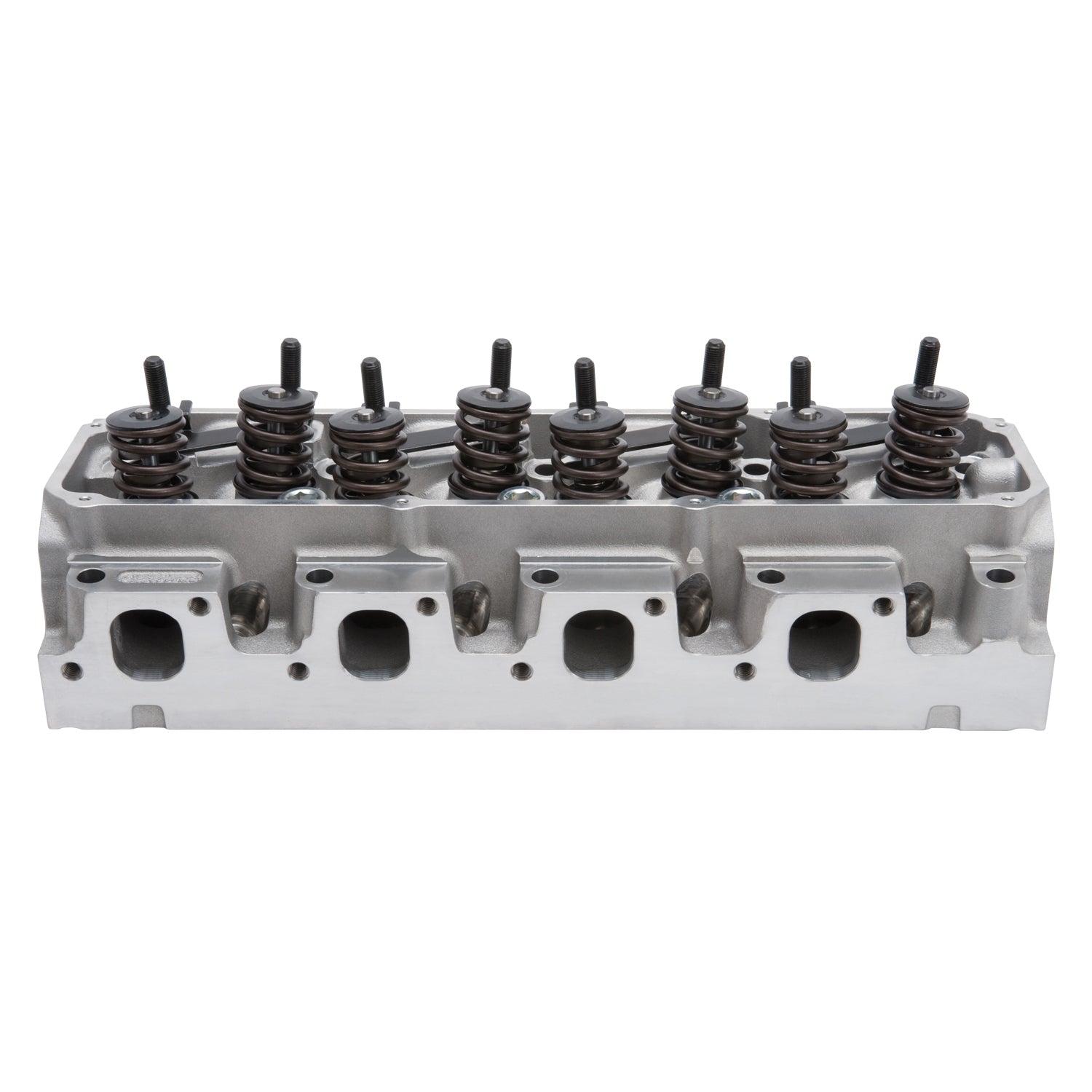

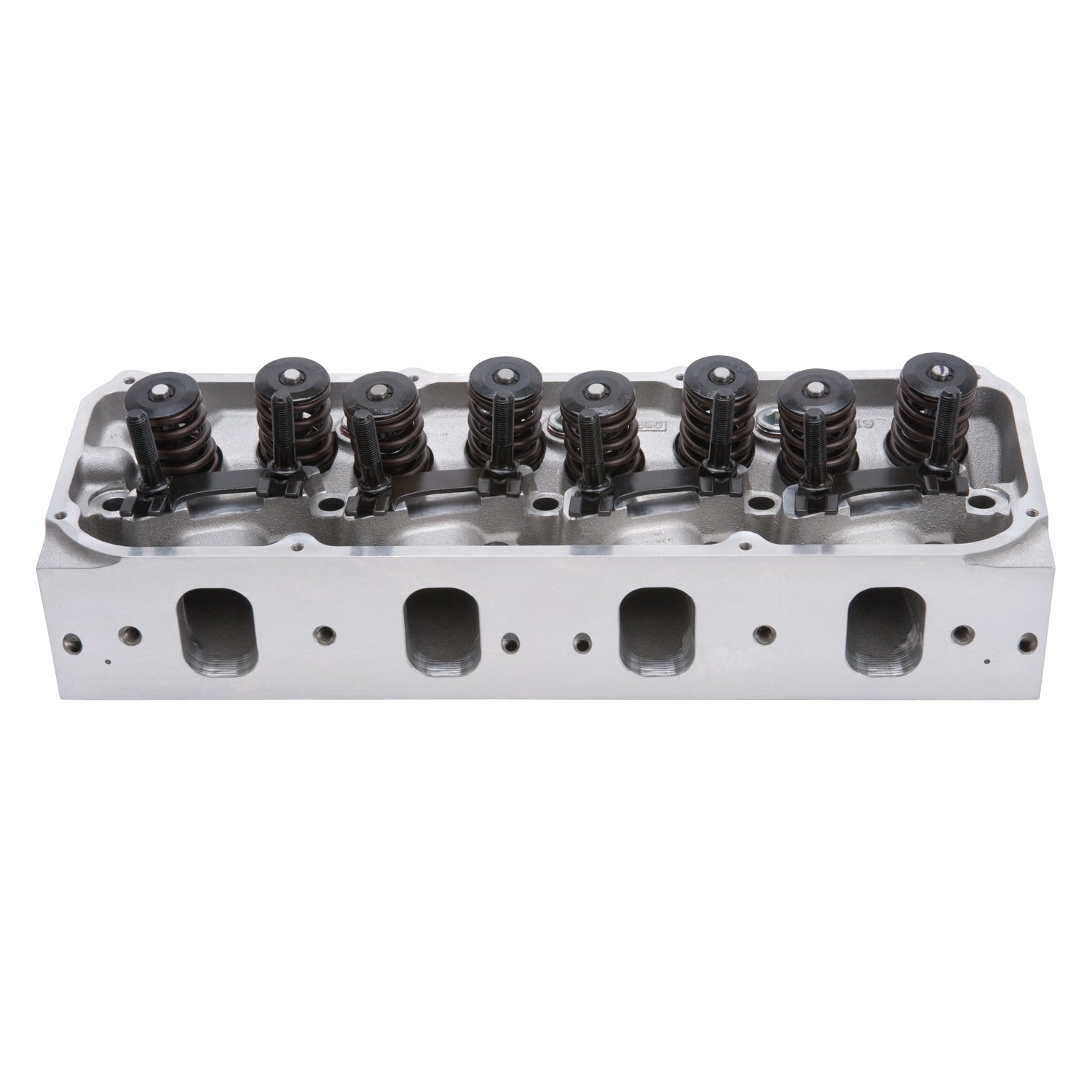

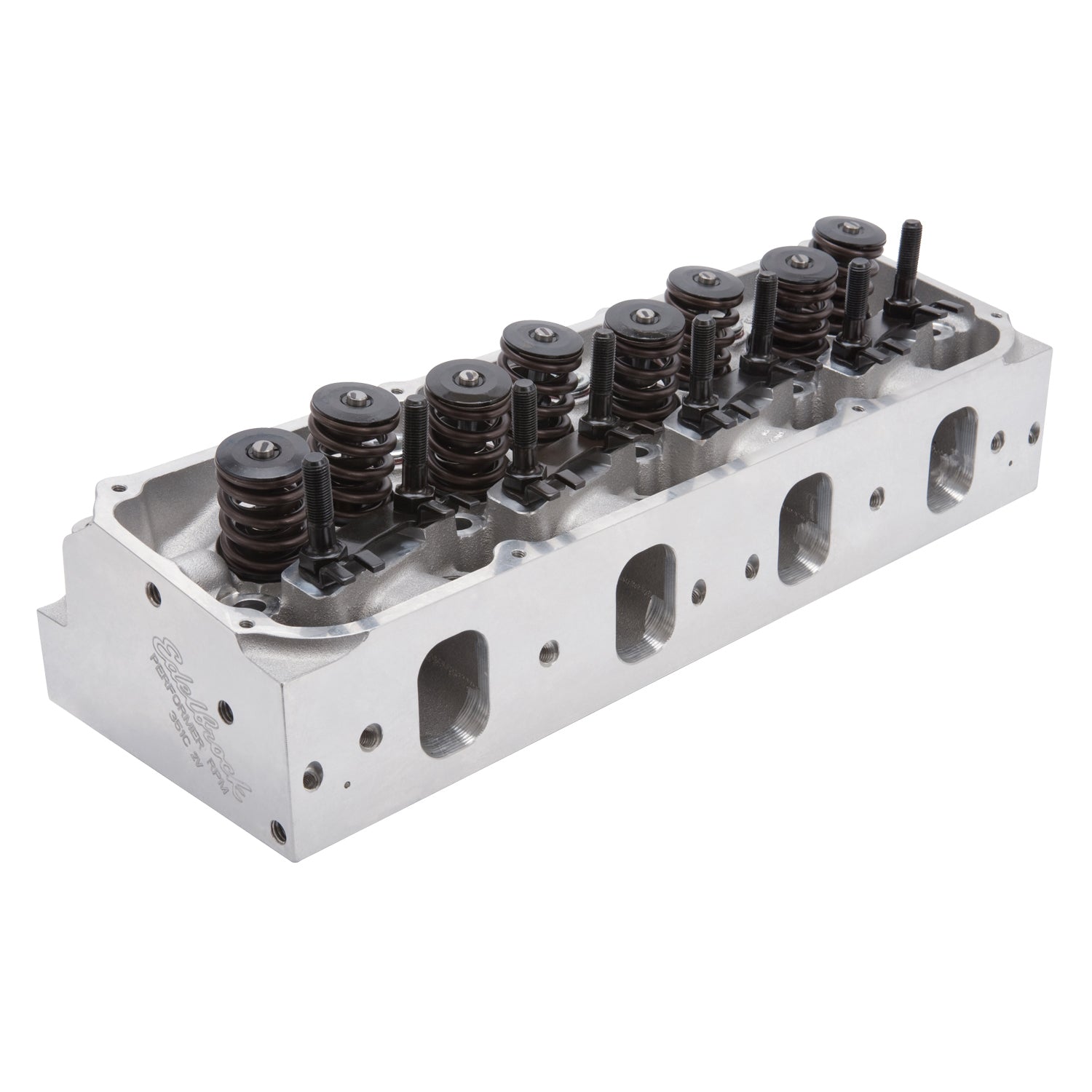

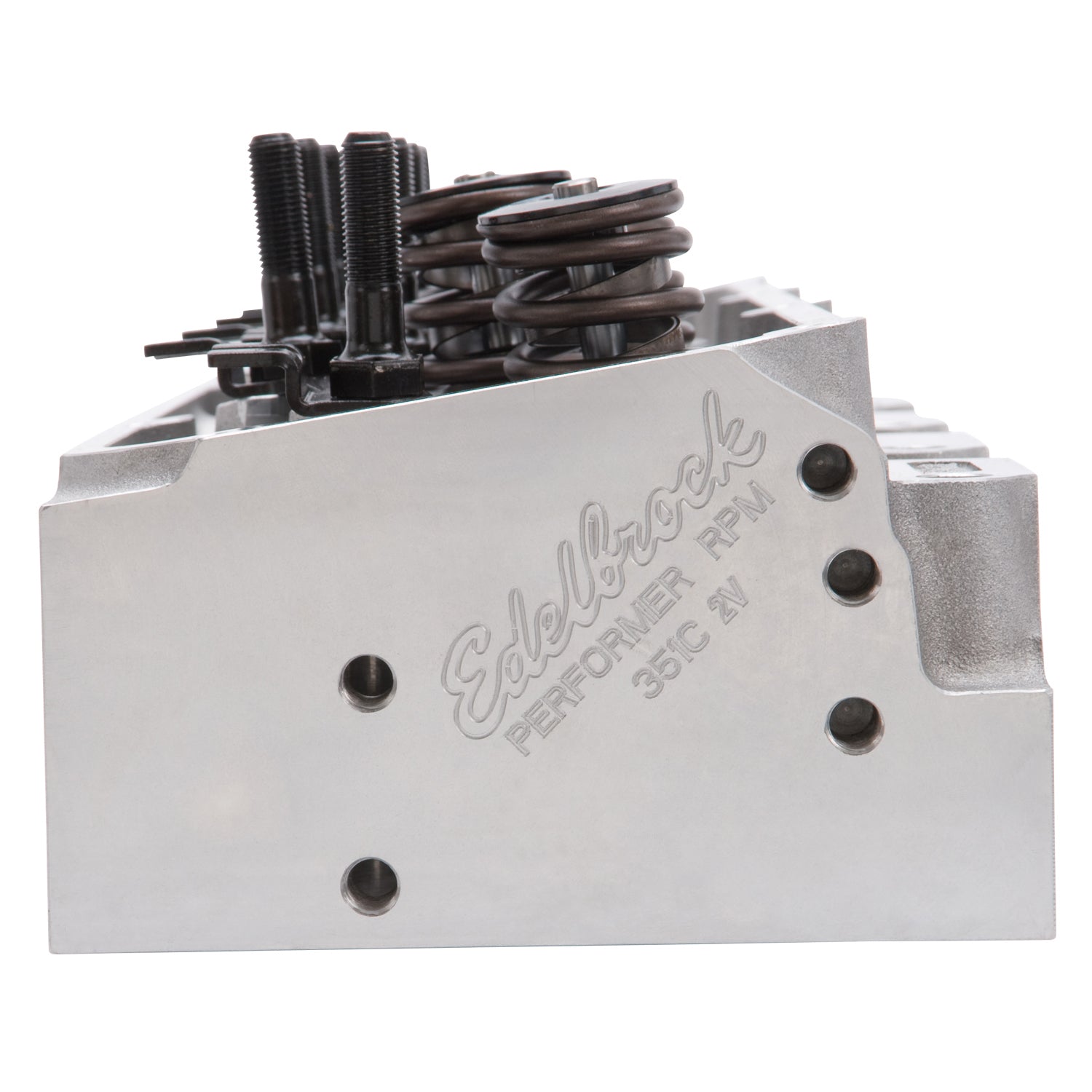

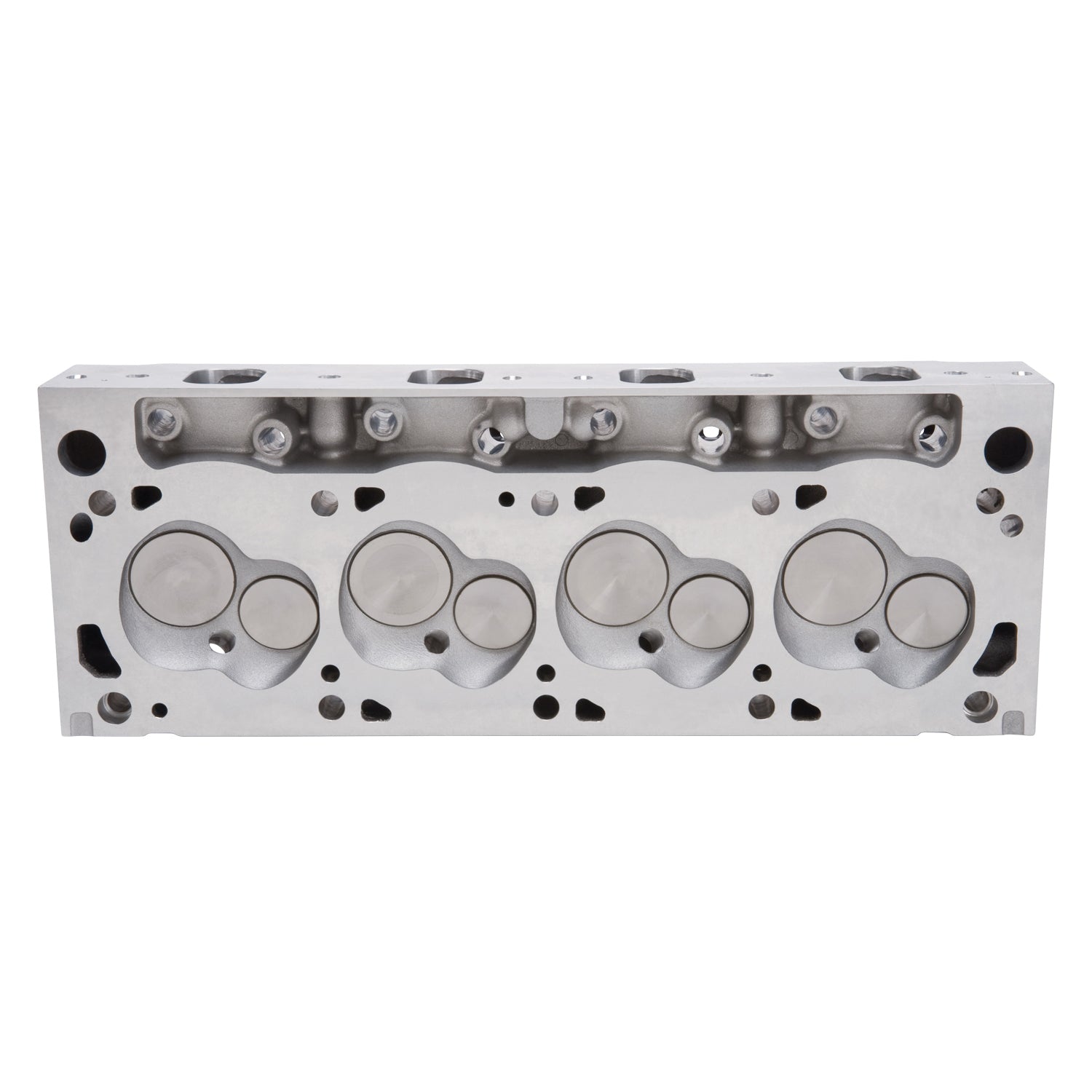

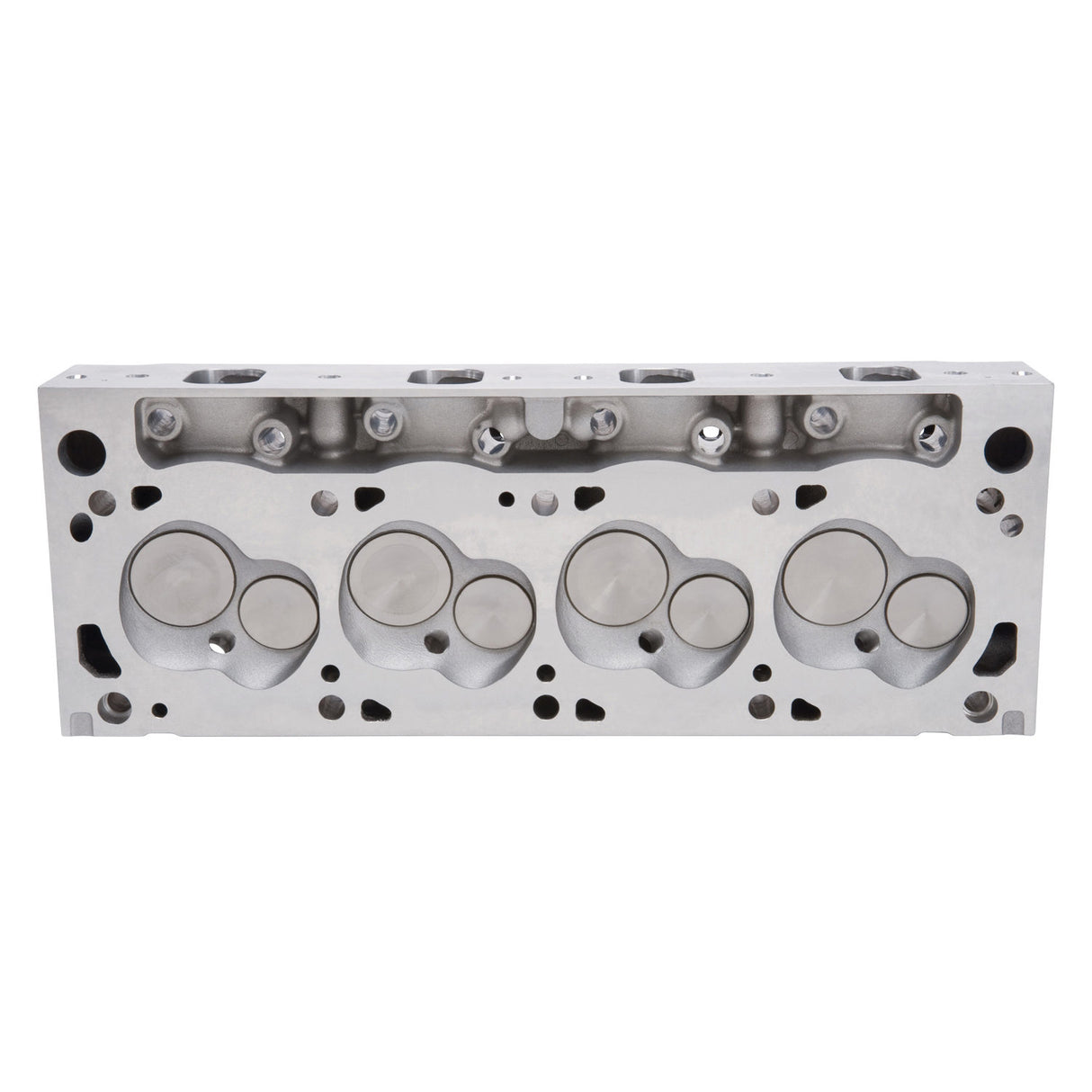

Edelbrock 61629 - Cyl Head 351C Ford 2V Perf RPM Complete

Cylinder Head - Performer RPM - Assembled - 2.050 / 1.600 in Valves - 190 cc Intake - 60 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Ford Cleveland / Modified - Each

Edelbrock part #61629 Performer RPM cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications.

The Edelbrock #61629 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61629 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Very Streetable 190cc Intake Runners
  • For Race Use Only
  • Chamber Increases Power; Torque
  • Intake/Exhaust Ports Based On 2V Design
  • Optimized Spark Plug Location
  • Improved Header Clearance
  • Match with RPM Air-Gap Manifold PN[7564]
  • Complete w/2.05 Int.; 1.60in. Exh. Valves/Springs
Valve Spring Maximum Lift: 0.580
Exhaust Runner Volume: 90
Intake Valve Diameter: 2.05
Guide Material: Manganese Bronze
Valve Stem Diameter: 0.3438
Deck Thickness: 0.625
CNC Ported: No
Rocker Arm Stud Diameter: 0.4375
Quantity: Sold Individually
Seat Material: Ductile Iron
Retainer Included: Yes
Exhaust Port Location: Standard
Series: Performer RPM
Valve Spring Diameter: 1.55
Seat Angle: Exhaust 45 deg/Intake 45
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Horsepower: 350-500
Exhaust Valve Diameter: 1.60
Valve Angle: 9.5
EGR Port: No
Family: Performer RPM
Construction Type: Complete
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 190
Head Casting Number: 31-6162
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.206
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 60
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Camshaft Type: Flat Tappet
Push Rod Diameter: (Suggested) 0.3125
