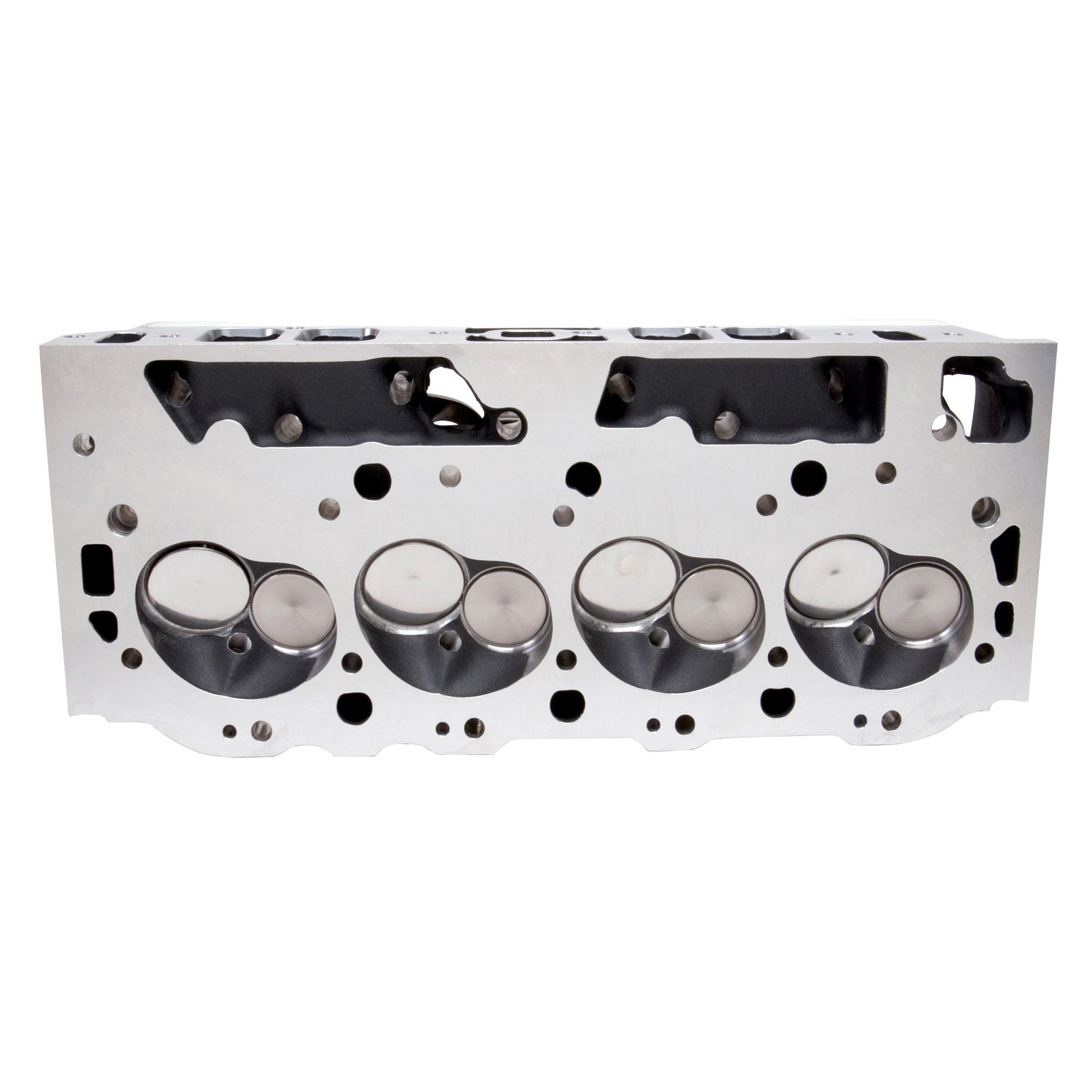

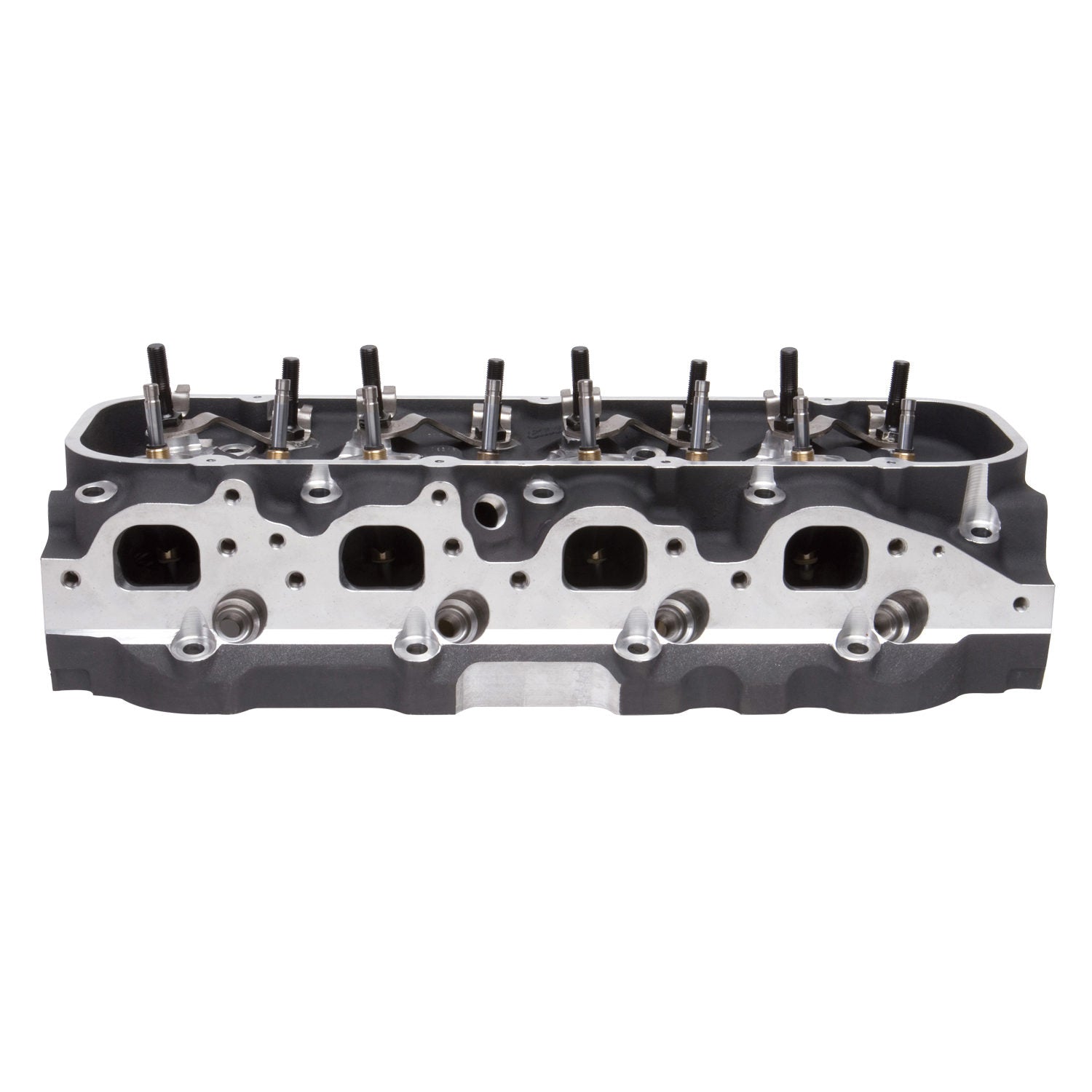

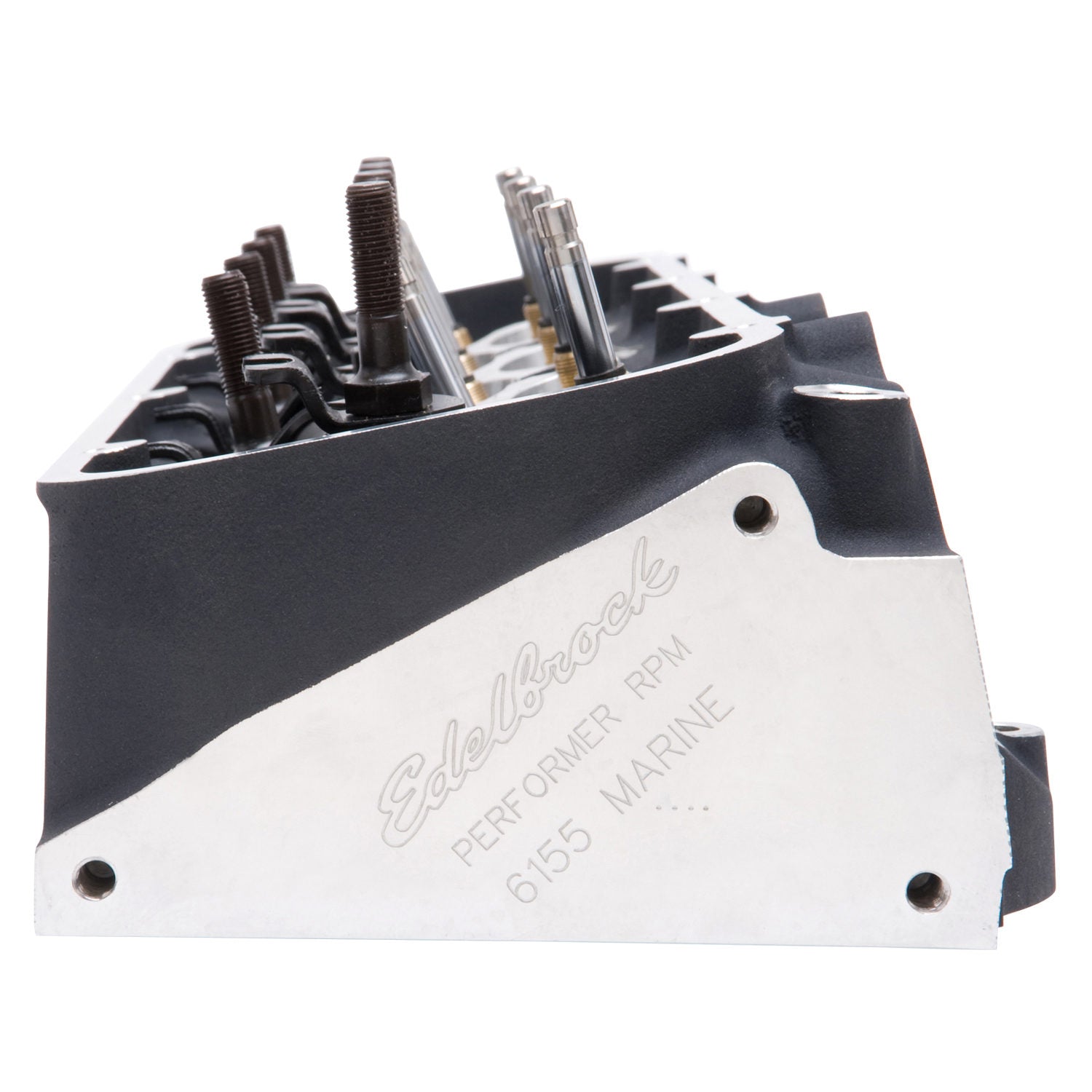

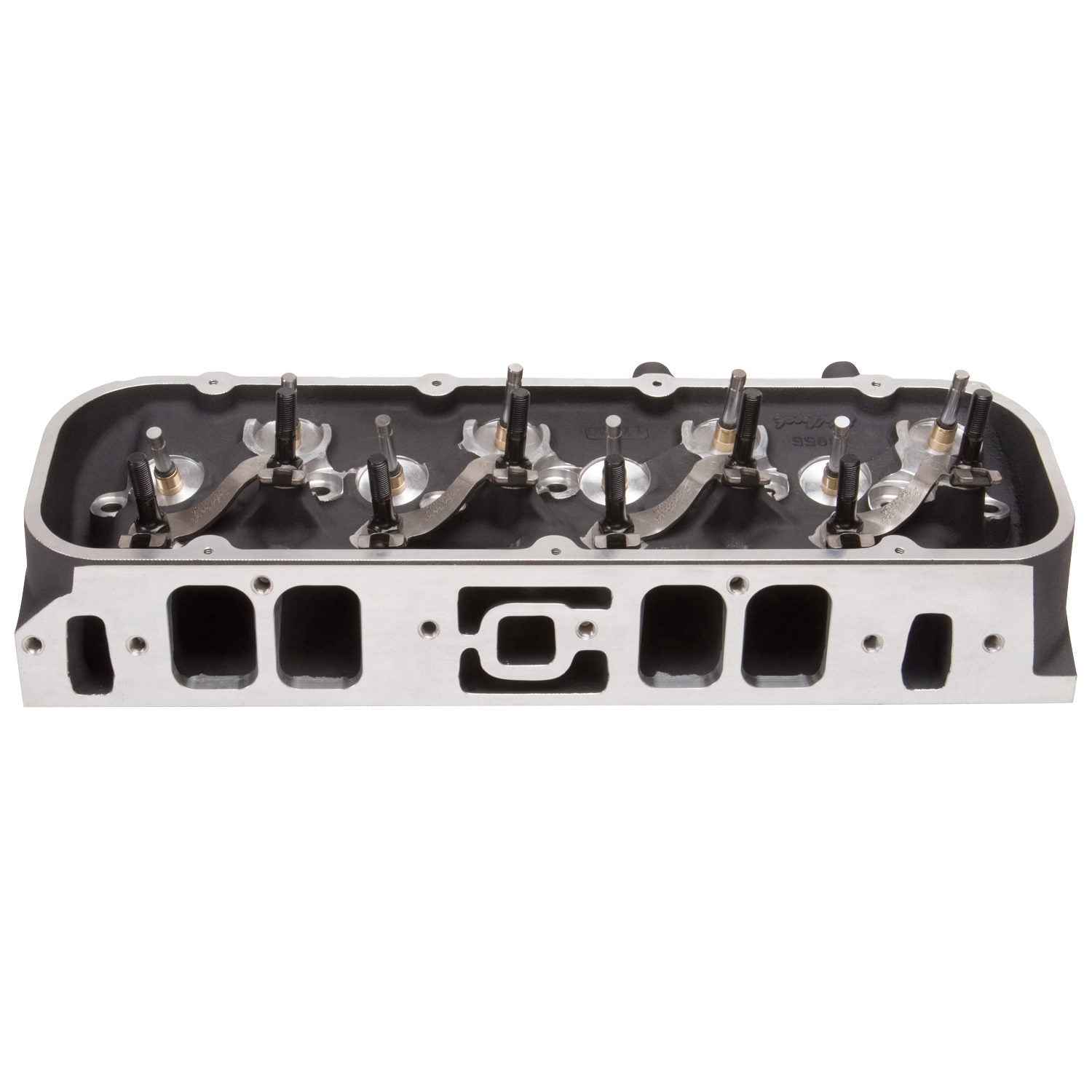

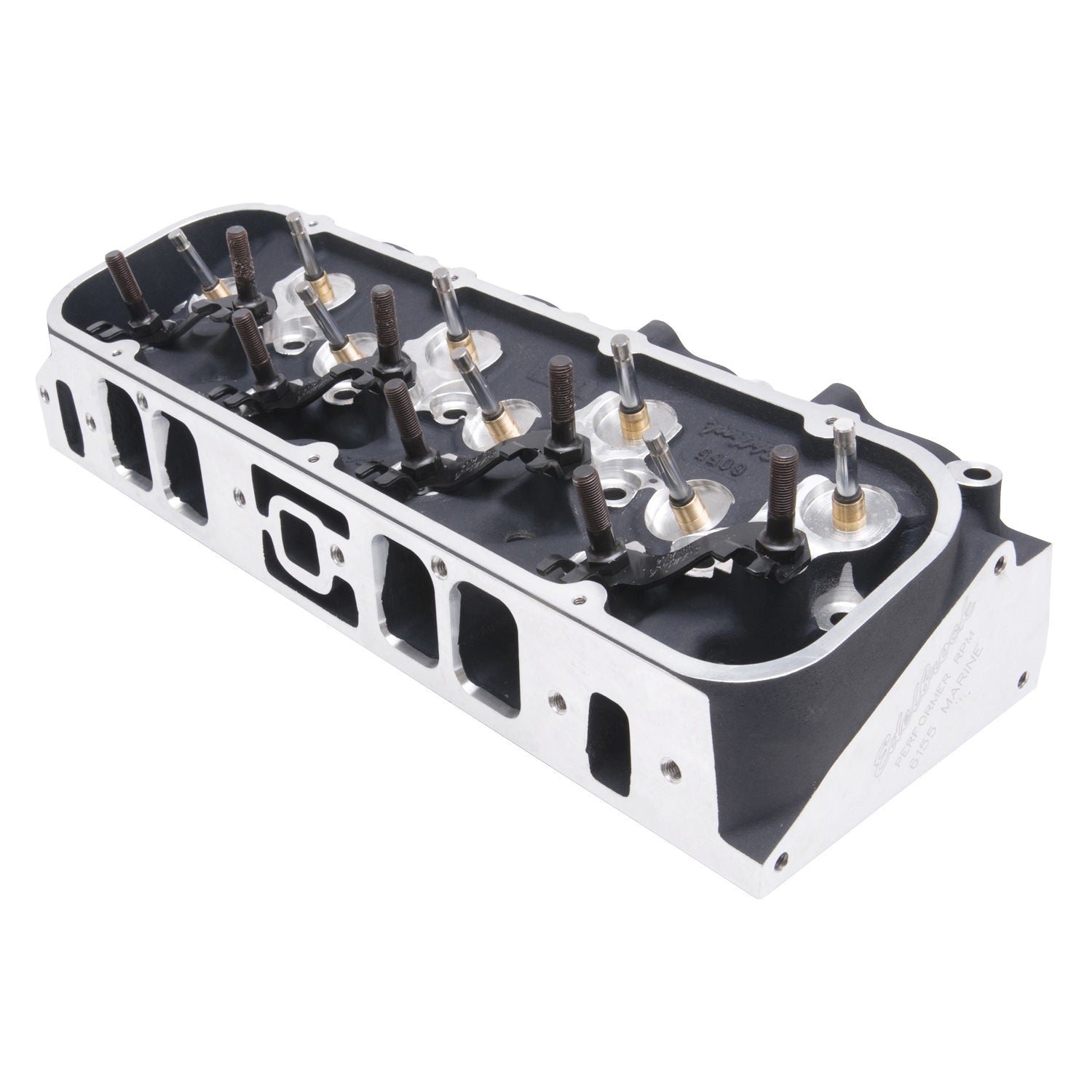

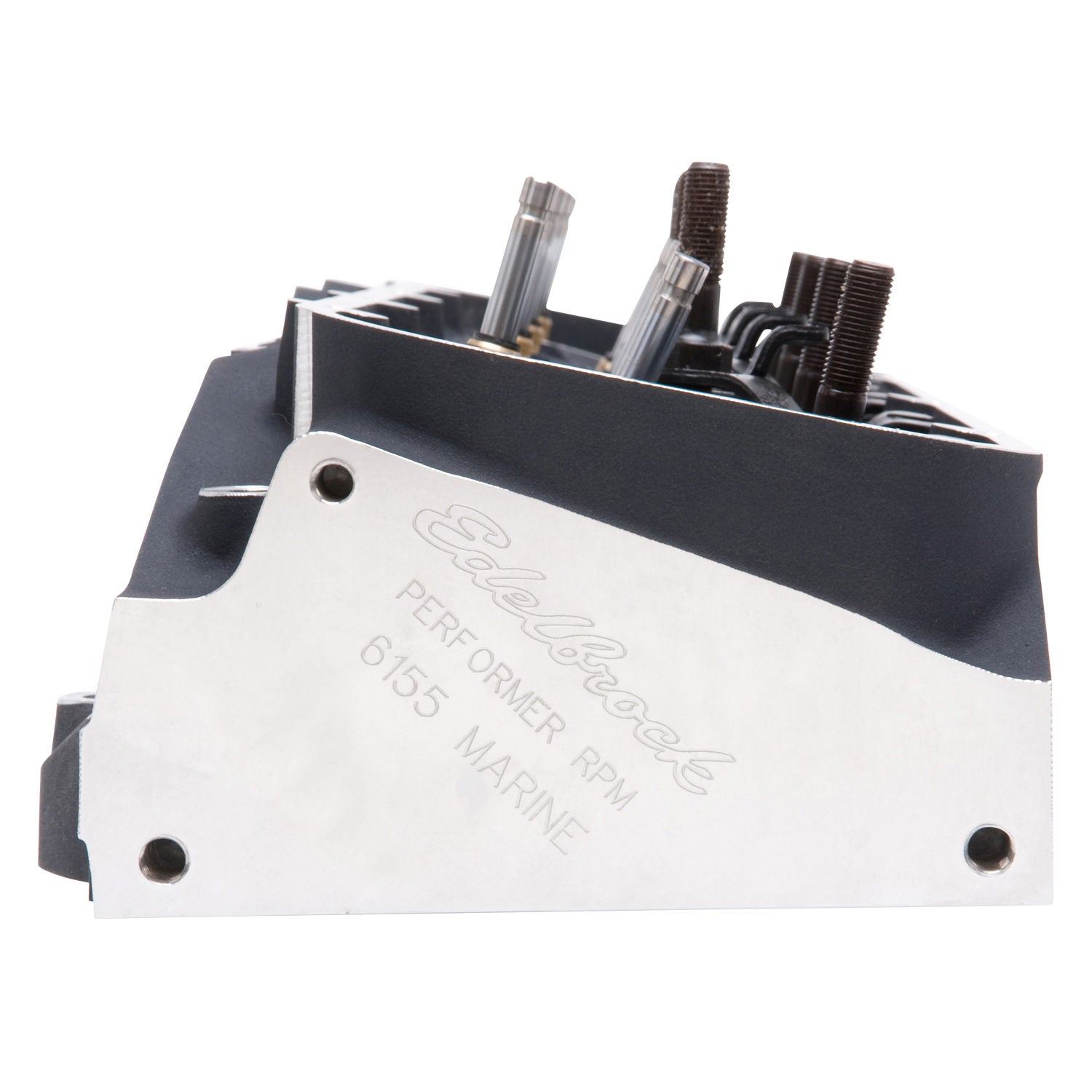

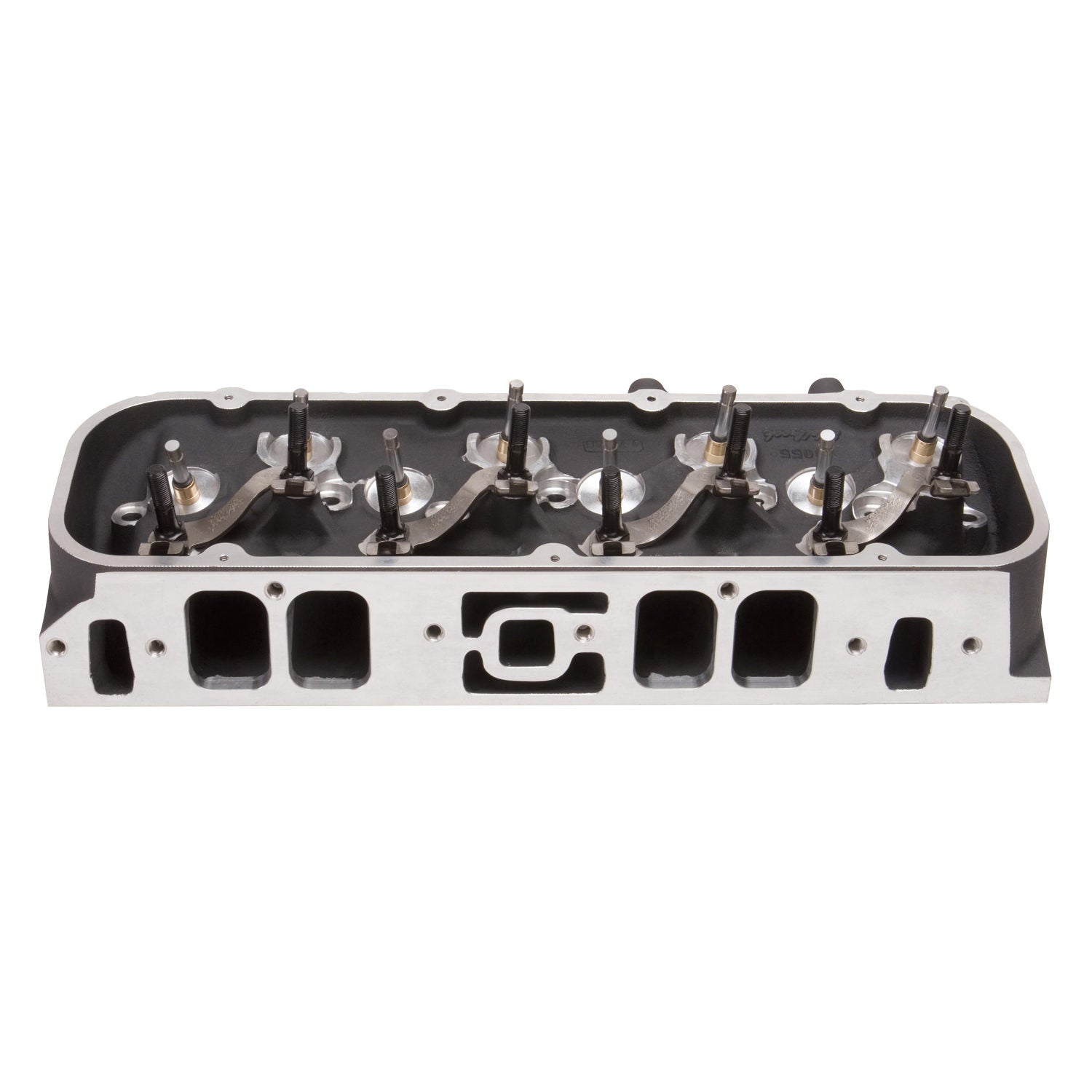

Edelbrock 61559 - Single Marine BBC Rect Port Head w/ Valves

Cylinder Head - Performer RPM Marine-Duty - Bare - 2.190 / 1.880 in Valves - 315 cc Intake - 118 cc Chamber - Angle Plug - Aluminum - Valves - Big Block Chevy - Each

Edelbrock part #61559 Performer RPM Marine-Duty cylinder heads are designed for use with Rectangular Port Big-Block Chevy Marine applications.

The Edelbrock #61559 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61559 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Heavy Duty Valves Included
Hand-Blended Intake and Exhaust Bowls
Match With Performer RPM Manifold

Deck Thickness: 0.5625

Guide Material: Manganese Bronze

Exhaust Port Location: Standard

Series: Performer RPM

Seat Angle: Exhaust 45 deg/Intake 45

Flange Type: Rectangle Intake

Horsepower: 500-600

Quantity: Sold Individually

Retainer Included: No

Valve Angle: 26

CNC Ported: Yes

Family: Performer RPM

Intake Valve Diameter: 2.25

Assembled: No

Mounting Hardware Included: No

Valve Springs Included: No

Valve Spring Retainers Included: No

Valve Seals Included: No

Valve Locks Included: No

Valve Cover Gasket Included: No

Rocker Arms Included: No

Rocker Arm Studs/Bolts Included: Yes

Material: Aluminum

Combustion Chamber Volume: 118

Intake Runner Volume: 315

Head Casting Number: 6055F

Guide Plates Included: Yes

Guide Plate Material: Chromoly Steel

Grade Type: Performance

Deck Height: 10.2

Cylinder Head Gasket Included: No

Valves Included: Yes

Guide Plate Material: Hardened Steel

Valve Stem Diameter: 0.3438

Seat Material: Ductile Iron

Push Rod Diameter: (Suggested) 0.375

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Exhaust Valve Diameter: 1.89

EGR Port: No

Exhaust Runner Volume: 110

Construction Type: Bare With Valves
