Description

Edelbrock 61529 - Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI V8 87 cc Combustion Chamber

RPM CNC Pontiac Cylinder Head 87cc Hydraulic Flat Tappet Camshaft

Edelbrock part #61529 Performer RPM CNC Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber.

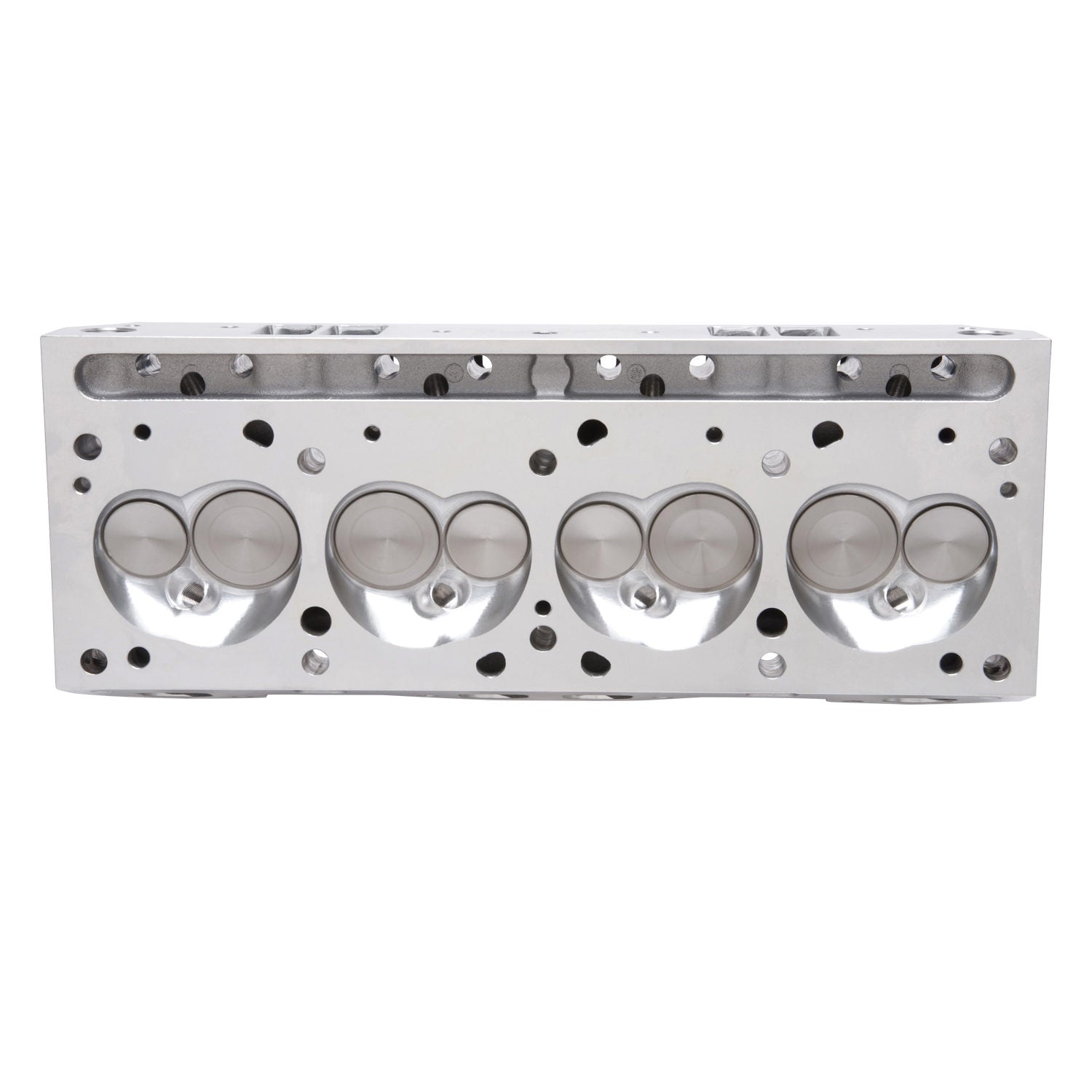

The Edelbrock #61529 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #61529 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.

Out-of-the-Box Bolt-On Performance
Hand-Blended Intake and Exhaust Bowls
CNC-Matched Intake/Exhaust Ports in Std Location
Thicker Deck Surfaces Than Other Brands

Valve Cover Gasket Included: No

Rocker Arms Included: No

Rocker Arm Studs/Bolts Included: Yes

Material: Aluminum

Assembled: Yes

Intake Runner Volume: 215

Head Casting Number: 31-6152

Guide Plates Included: Yes

Guide Plate Material: Chromoly Steel

Grade Type: Performance

Deck Height: 10.25

Cylinder Head Gasket Included: No

Combustion Chamber Volume: 87

Valves Included: Yes

Valve Lock Material: Steel

Guide Plate Material: Hardened Steel

Valve Stem Diameter: 0.3438

Valve Spring Maximum Lift: 0.575

Push Rod Diameter: (Suggested) 0.3125

Valve Angle: 14

Seat Angle: Exhaust 45 deg/Intake 45

Family: Performer RPM

Seat Material: Ductile Iron

Construction Type: Complete

Guide Material: Manganese Bronze

Exhaust Port Location: Standard

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Series: Performer RPM

CNC Ported: Yes

Camshaft Type: Flat Tappet

Intake Valve Diameter: 2.11

Deck Thickness: 0.625

EGR Port: Yes

Exhaust Runner Volume: 175

Rocker Arm Stud Diameter: 0.4375

Quantity: Sold Individually

Horsepower: 450-600

Retainer Included: Yes

Exhaust Valve Diameter: 1.66

Valve Spring Diameter: 1.46

Mounting Hardware Included: No

Valve Springs Included: Yes

Valve Spring Retainers Included: Yes

Valve Seals Included: Yes

Valve Locks Included: Yes

Valve Lock Material: Chromoly Steel
