Edelbrock 61419 - Race Cyl Head Musi CNC BBC Victor 24Deg Bare

Name: Edelbrock 61419 - Race Cyl Head Musi CNC BBC Victor 24Deg Bare
Brand: Edelbrock
SKU: EDEL-61419
Price: 2318.95 USD
Availability: InStock

Edelbrock | SKU: EDEL-61419

$2,318⁹⁵ $2,550⁸⁴

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 61419 - Race Cyl Head Musi CNC BBC Victor 24Deg Bare

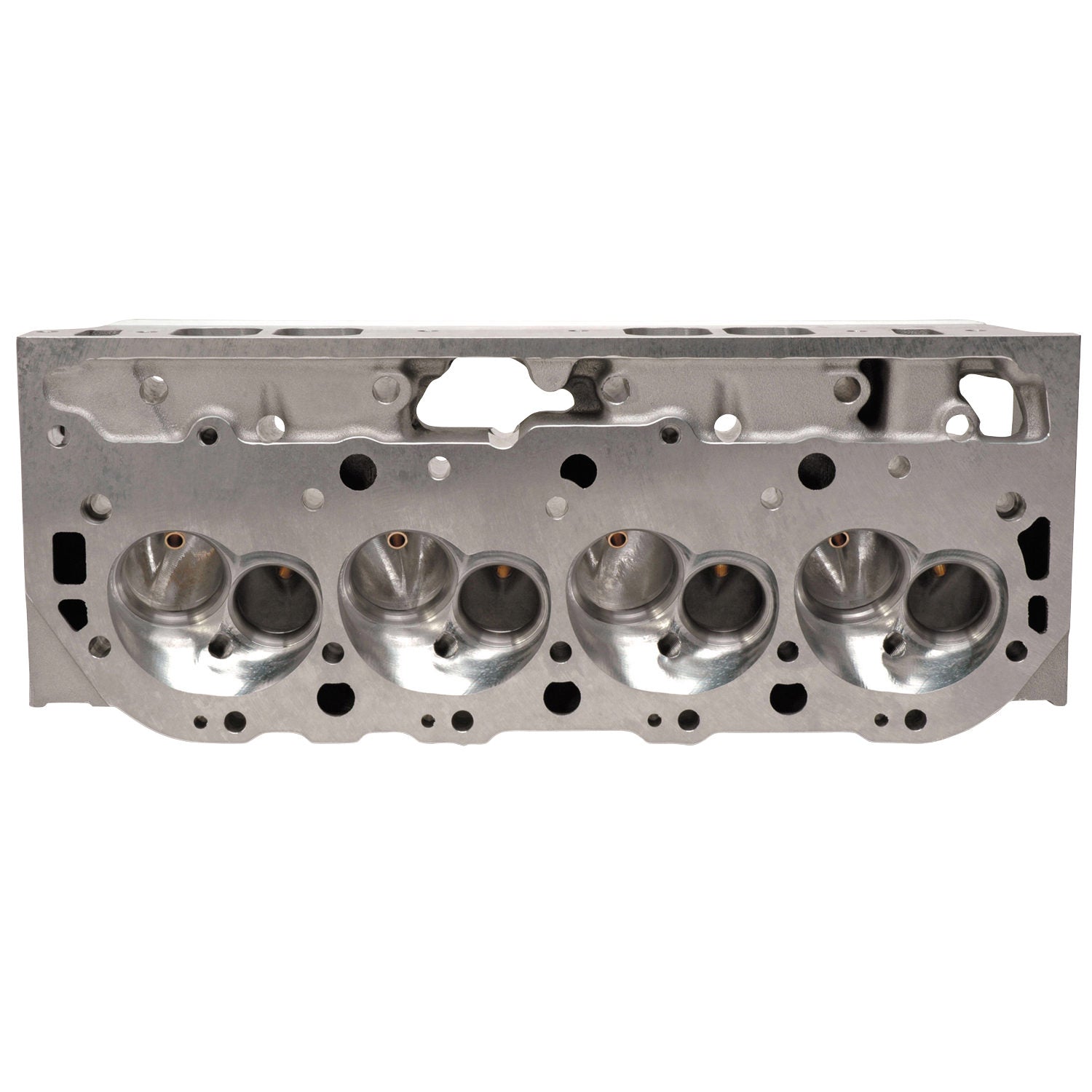

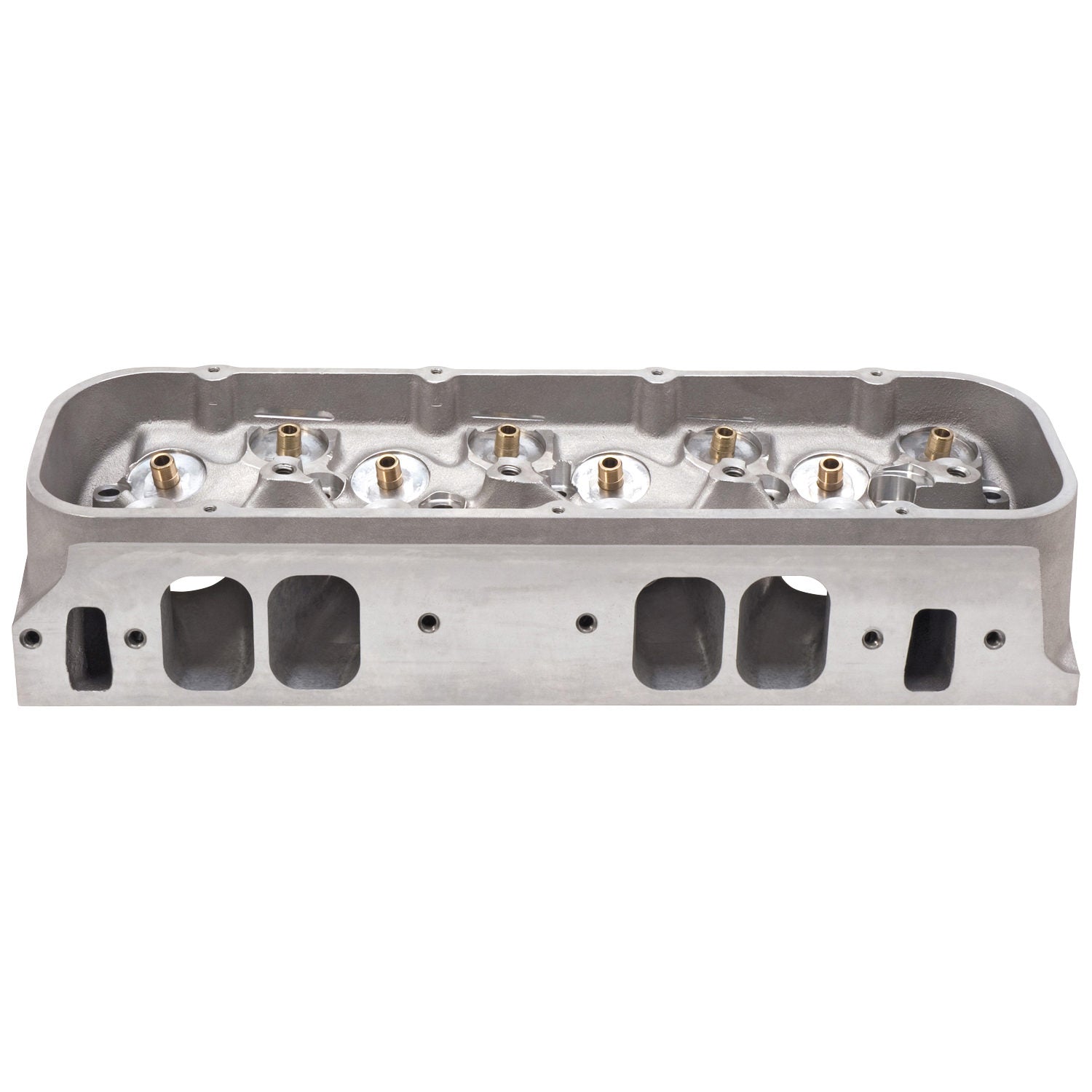

Victor Musi Big-Block Chevy CNC Cylinder Head Bare

Edelbrock part #61419 Victor 24 Degree CNC rectangular port bare cylinder heads are designed for use with large cubic inch and/or high air demand Big Block Chevy engines with a minimum 4.47" diameter bore.

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61419 Victor 24deg CNC Bare cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.

Designed By Pat Musi For Competition
Complete Head with 2.30 Int. 1.90 Exh. Valves
Rolled Over Deck; Altered Valve Locations
Fully CNC Head Ported Intake Ports/Exhaust Throats
Only Conventional Port Head Capable of 950+ HP

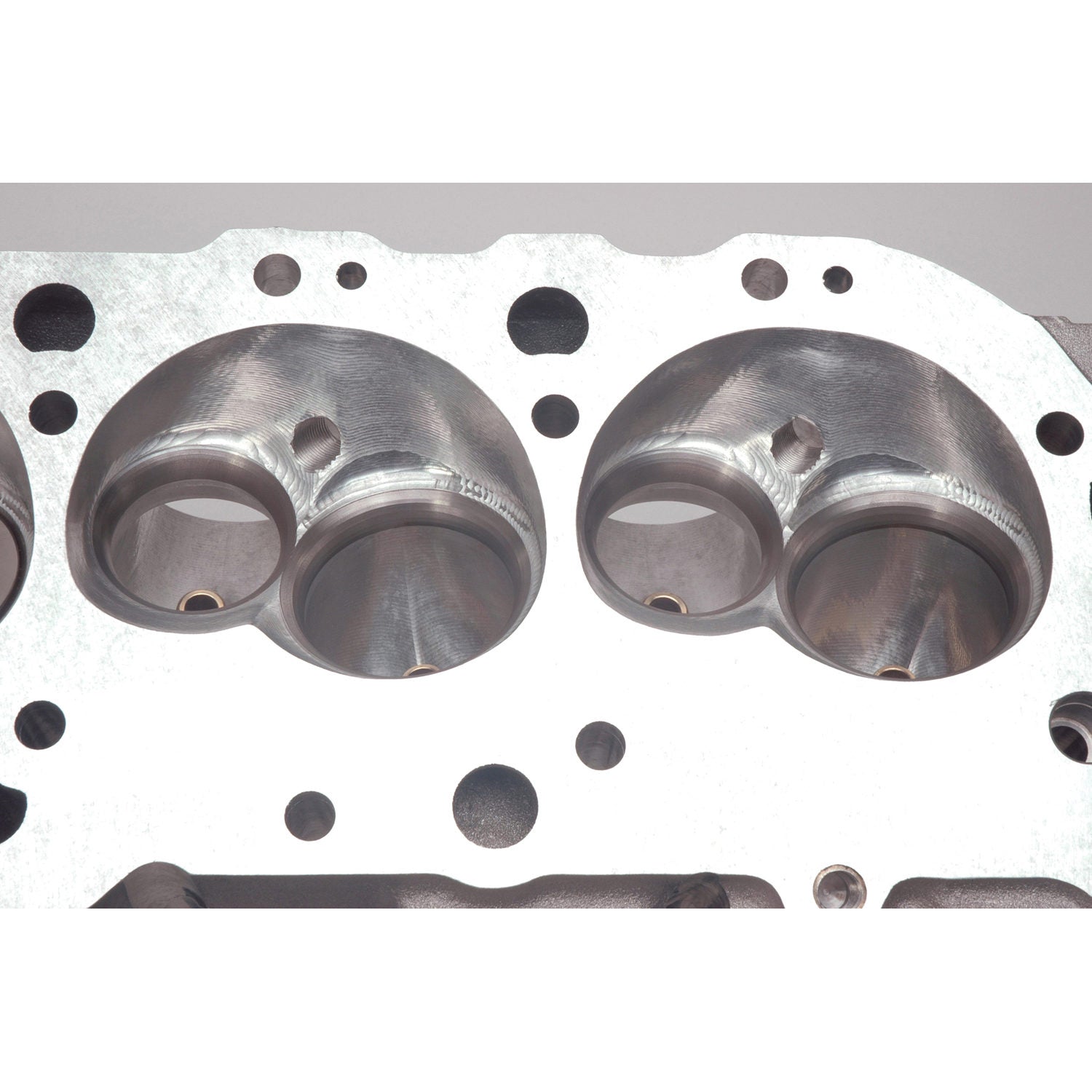

118cc Chamber; 367cc-377cc Intake Port

Valve Angle: Exhaust 14 x 4 deg/Intake 24 x 5.5

Flange Type: Rectangle Intake

Quantity: Sold Individually

Series: Edelbrock/Musi

CNC Ported: Yes

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Guide Plates Included: Yes

Exhaust Runner Volume: 128

Exhaust Port Location: +0.500

Retainer Included: No

EGR Port: Yes

Family: Edelbrock/Musi

Construction Type: Bare

Assembled: No

Rocker Arm Studs/Bolts Included: No

Valve Springs Included: No

Valve Spring Retainers Included: No

Valve Seals Included: No

Valve Locks Included: No

Valve Cover Gasket Included: No

Rocker Arms Included: No

Mounting Hardware Included: No

Combustion Chamber Volume: 119

Material: Aluminum

Intake Runner Volume: 377

Head Casting Number: 31-6140

Grade Type: Performance

Deck Height: 9.8

Cylinder Head Gasket Included: No

Valves Included: No

Seat Material: Ductile Iron

Seat Angle: Exhaust 45 deg/Intake 45

Guide Material: Manganese Bronze

Horsepower: 600-900

Deck Thickness: 0.5625

Edelbrock 61419 - Race Cyl Head Musi CNC BBC Victor 24Deg Bare
