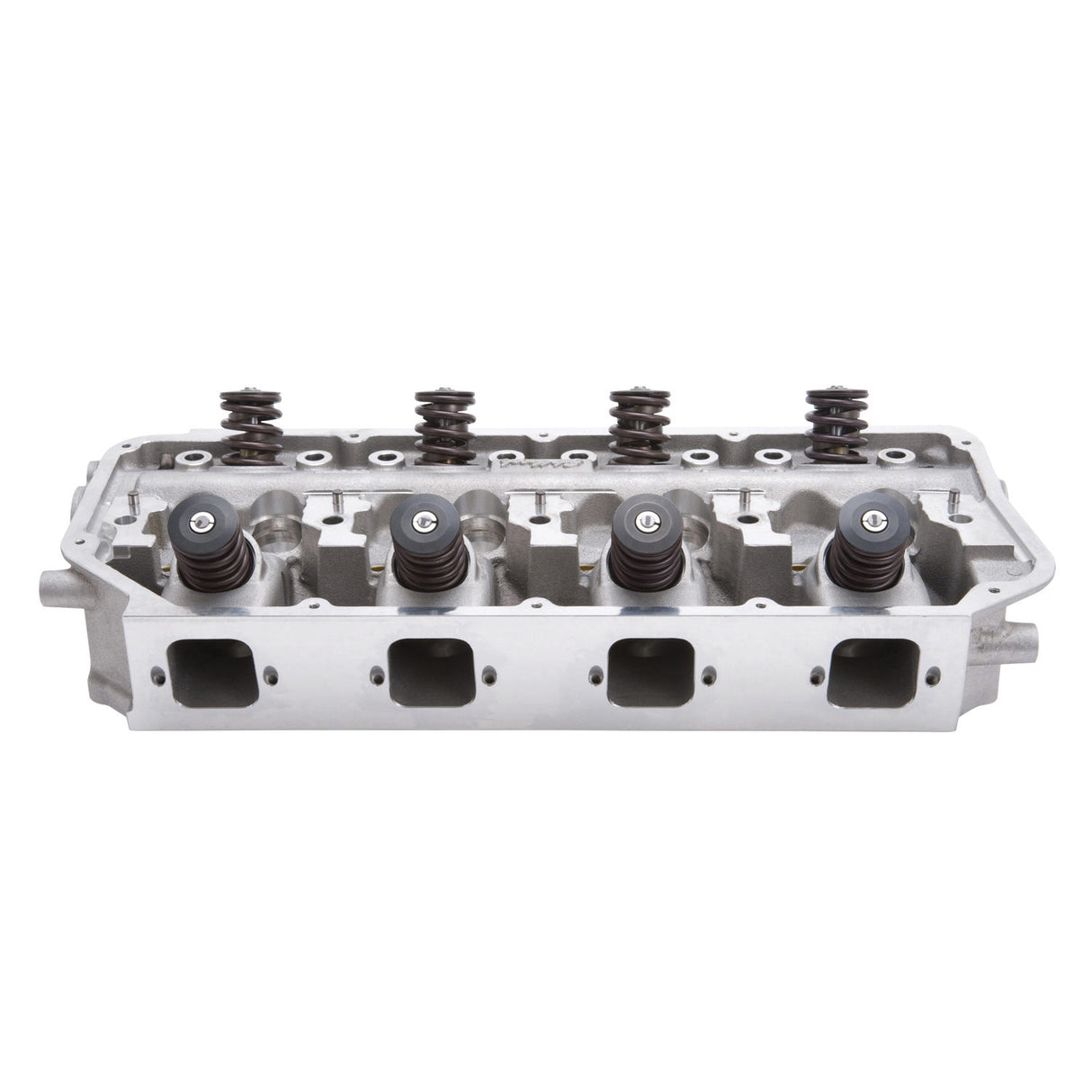

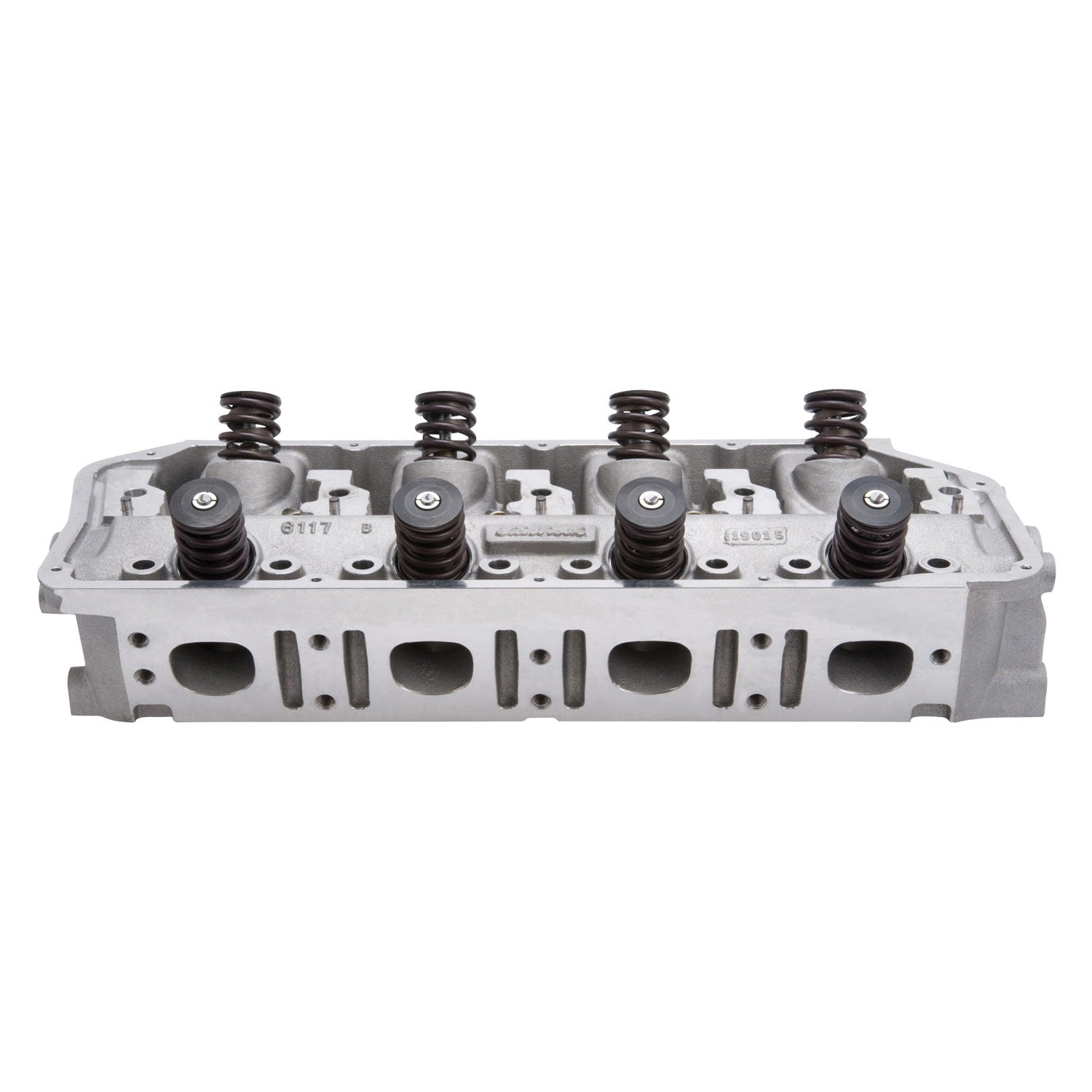

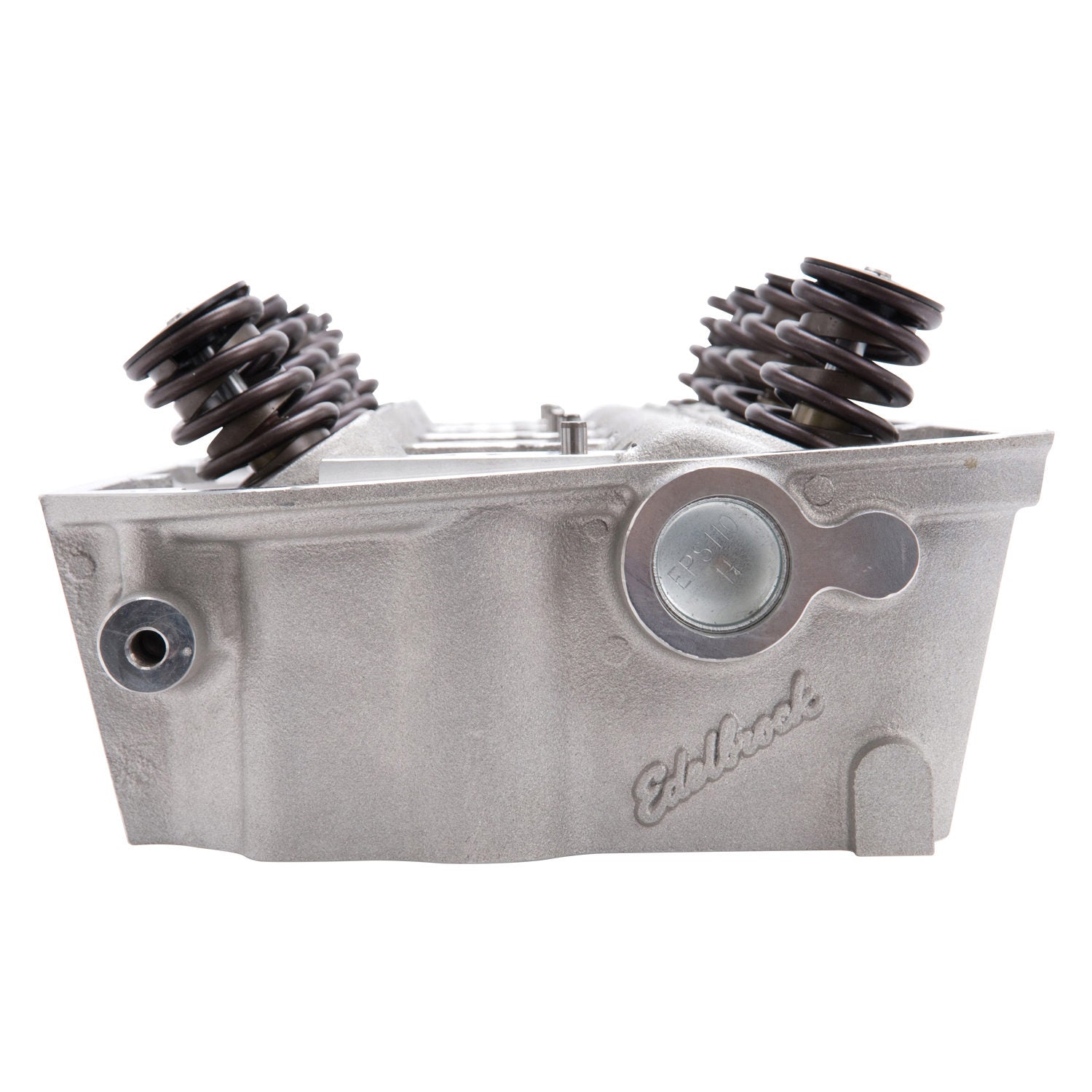

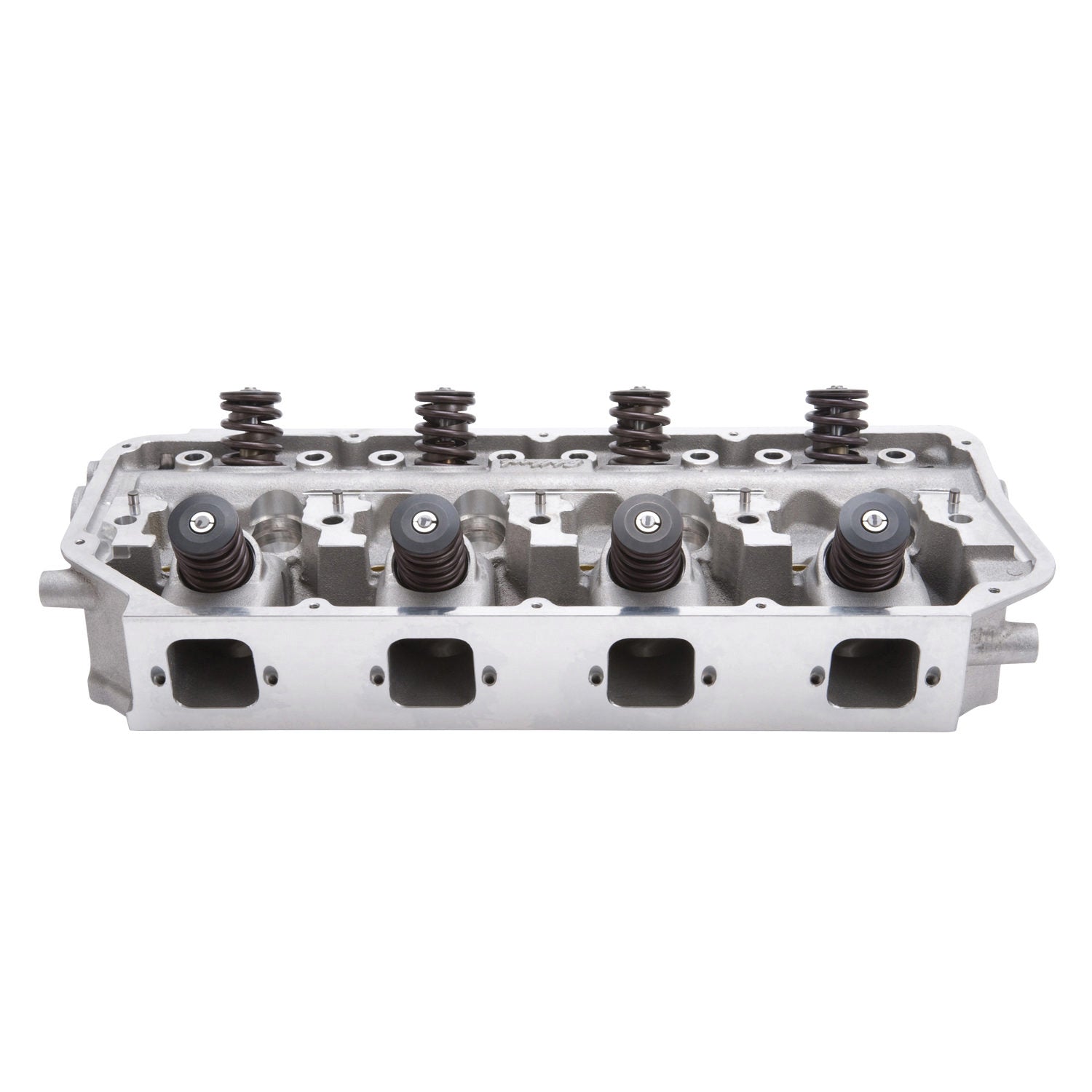

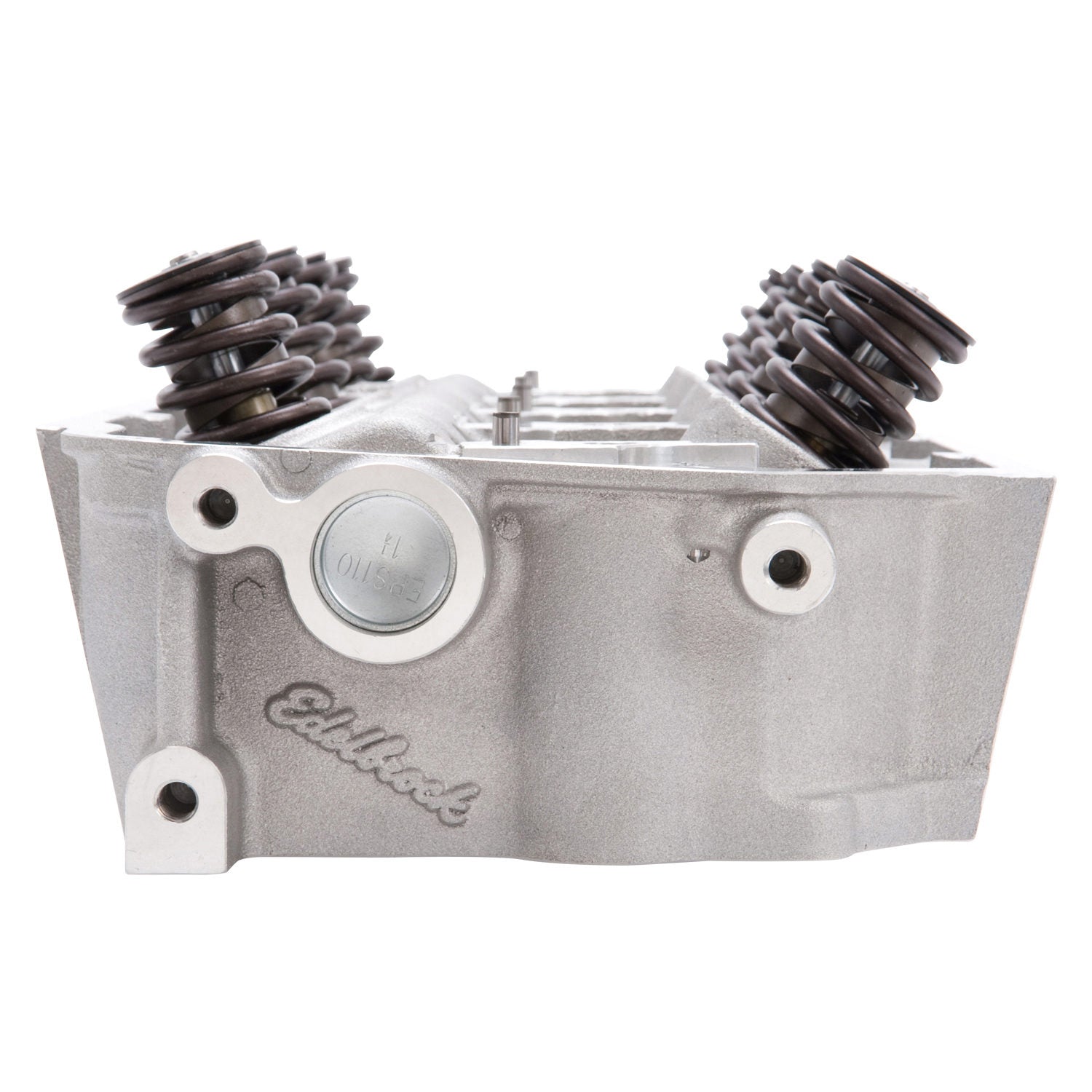

Edelbrock 61179 - Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete

Edelbrock  |  SKU: EDEL-61179
$1,87595 $2,06354
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 61179 - Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete

Cylinder Head - Victor JR. - Assembled - 2.320 / 1.940 in Valves - 245 cc Intake - 170 cc Chamber - 1.540 in Springs - Straight Plug - Aluminum - Mopar 426 Hemi - Each

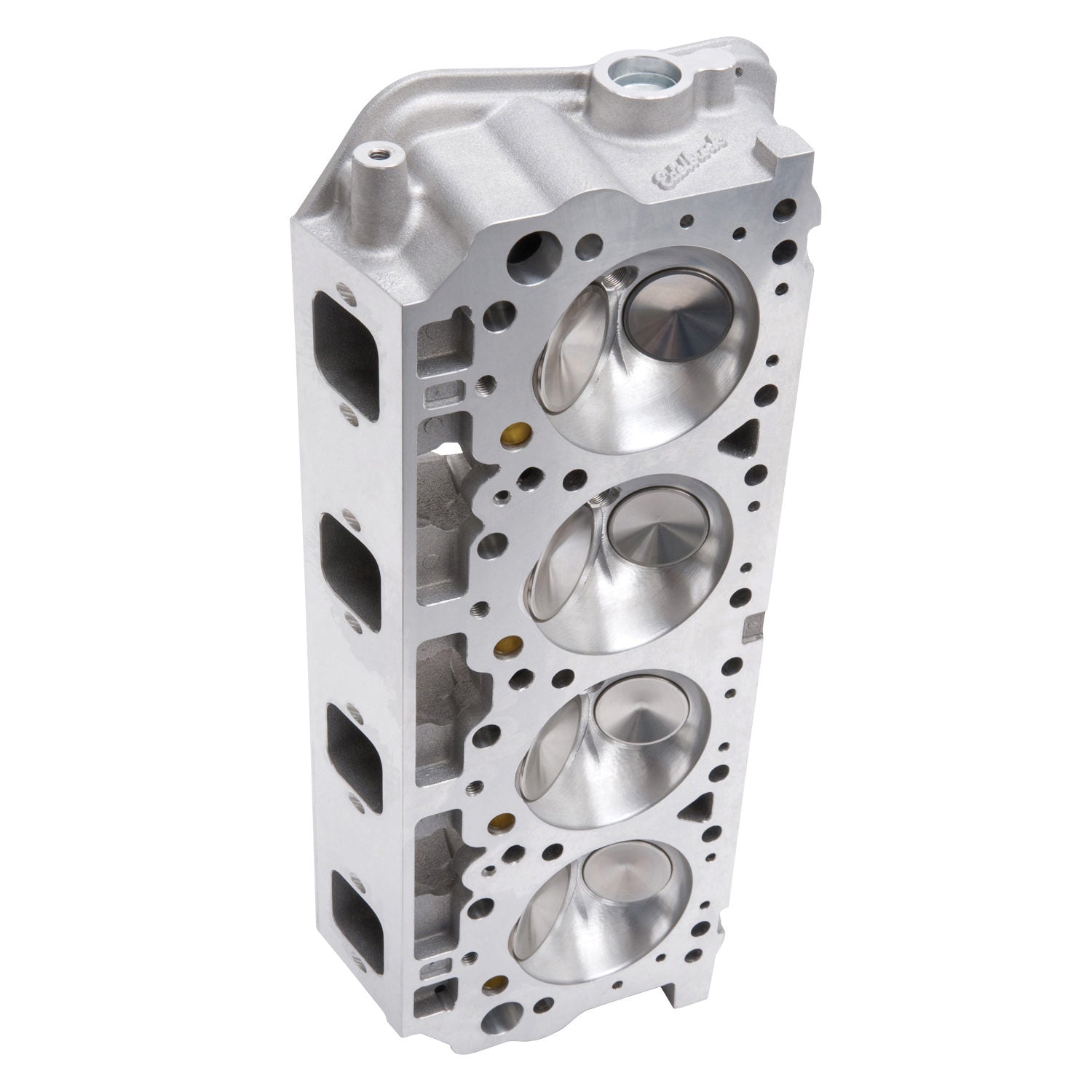

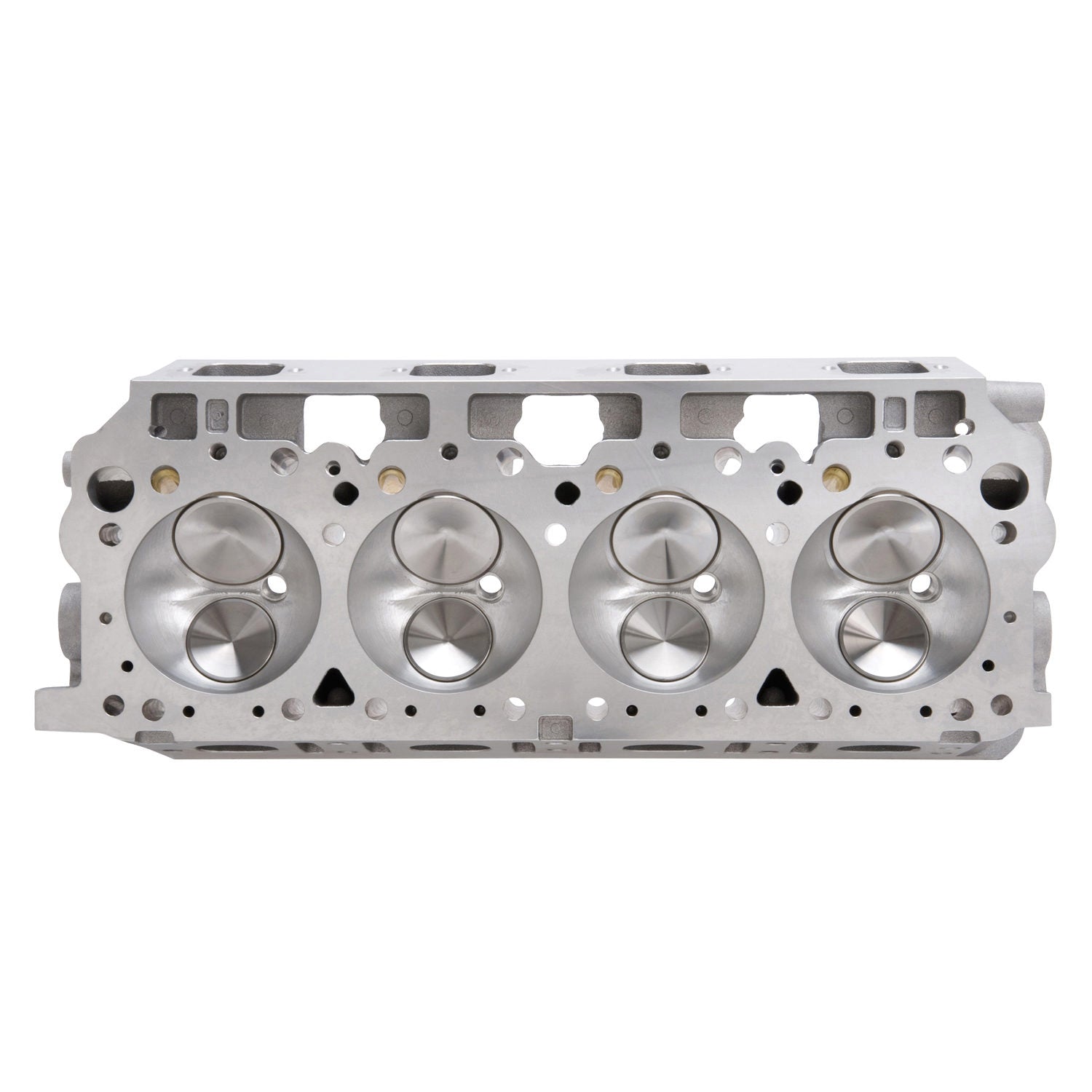

Our new Edelbrock #61179 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance.

Our new Edelbrock #61179 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

  • CNC Chambers
  • CNC Blended Valve Seats
  • Revised Exhaust Valve Angle
Exhaust Port Location: Standard
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Sold Individually
Seat Material: Ductile Iron
Retainer Included: Yes
CNC Ported: Yes
Camshaft Type: Flat Tappet
Exhaust Valve Diameter: 1.94
Series: Victor Jr.
Horsepower: 550-800
Guide Material: Manganese Bronze
Valve Stem Diameter: 0.3125
Deck Thickness: 0.625
Valve Spring Diameter: 1.54
Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
Family: Victor Jr.
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Push Rod Diameter: (Suggested) 0.3125 in Or 0.375
Intake Valve Diameter: 2.320
Valve Spring Maximum Lift: 0.600
EGR Port: No
Exhaust Runner Volume: 105
Construction Type: Complete
Rocker Arm Studs/Bolts Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Mounting Hardware Included: No
Assembled: Yes
Material: Aluminum
Intake Runner Volume: 245
Head Casting Number: 31-6117
Guide Plates Included: No
Grade Type: Performance
Deck Height: 10.72
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 170
Valves Included: Yes
Valve Lock Material: Steel
