Edelbrock 61169 - Cylinder Head Chrysler 426-572 Hemi Bare Single

Edelbrock  |  SKU: EDEL-61169
$1,45599 $1,60159

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

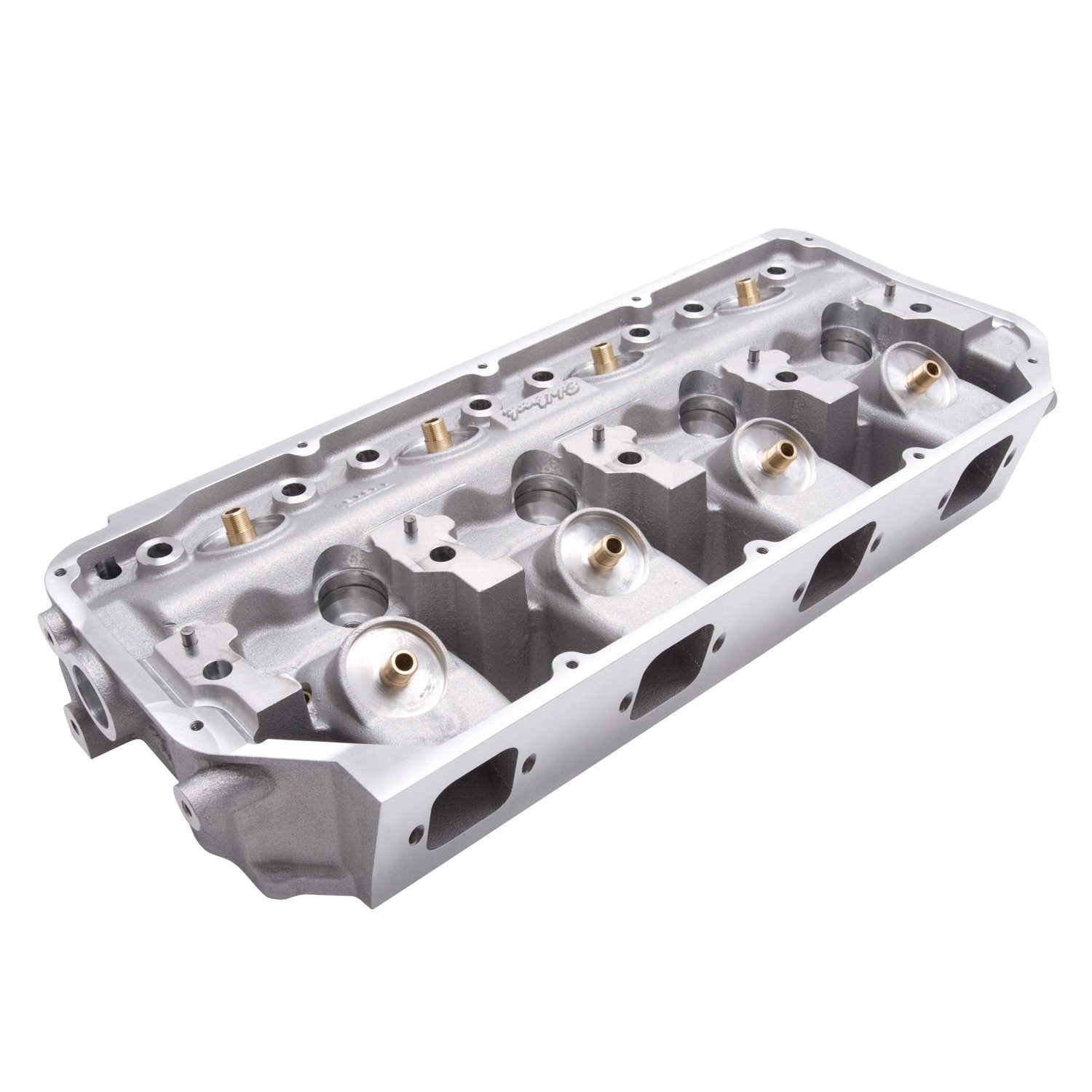

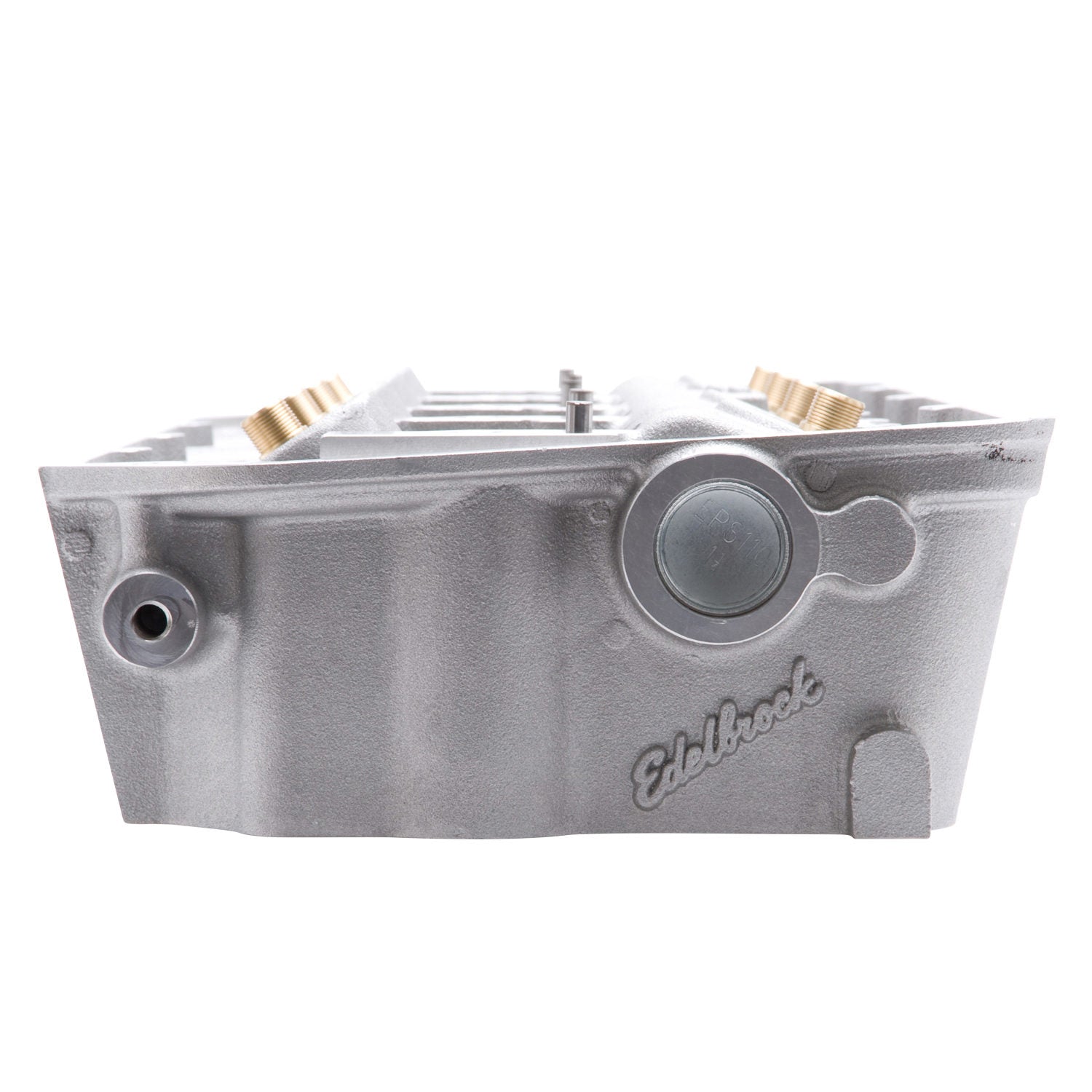

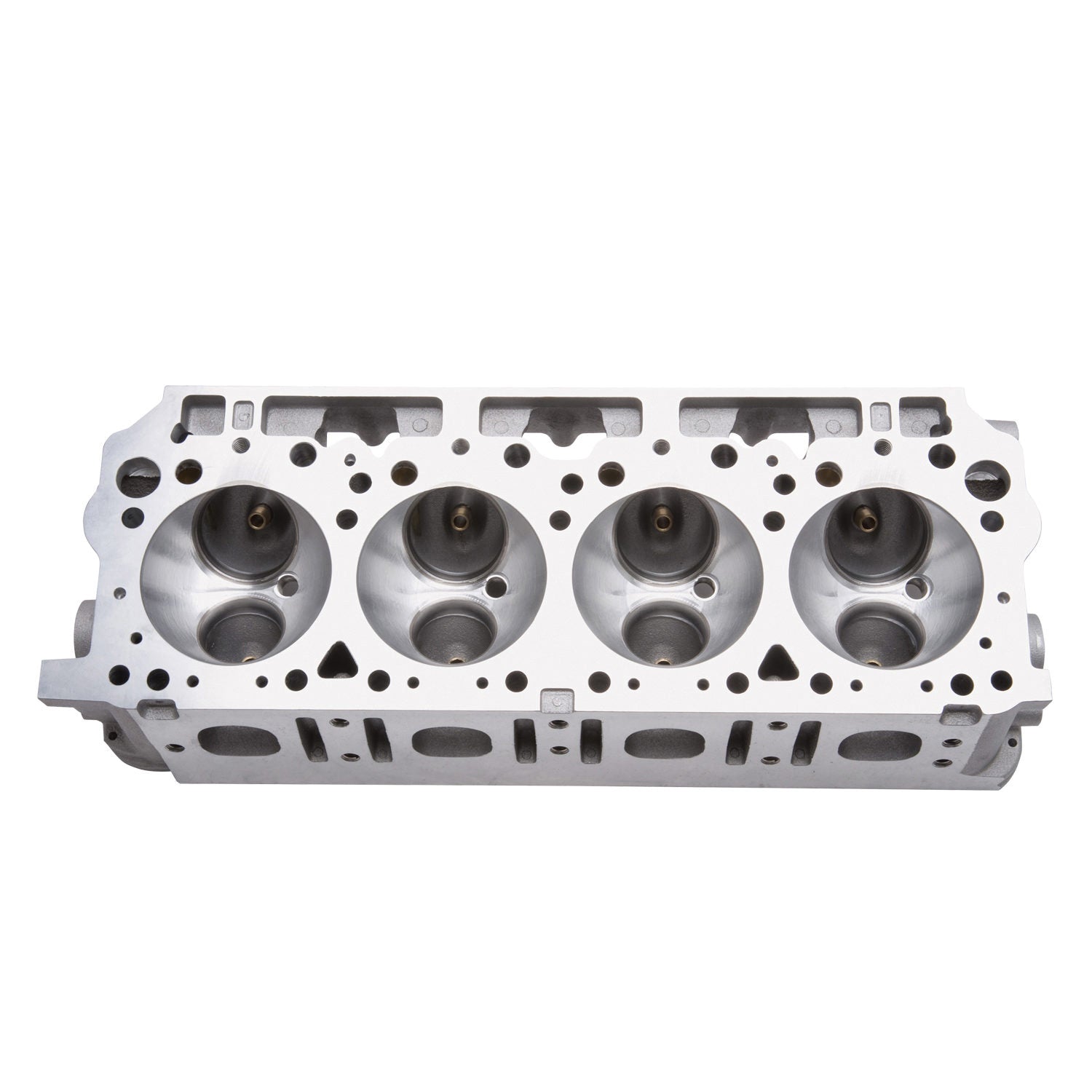

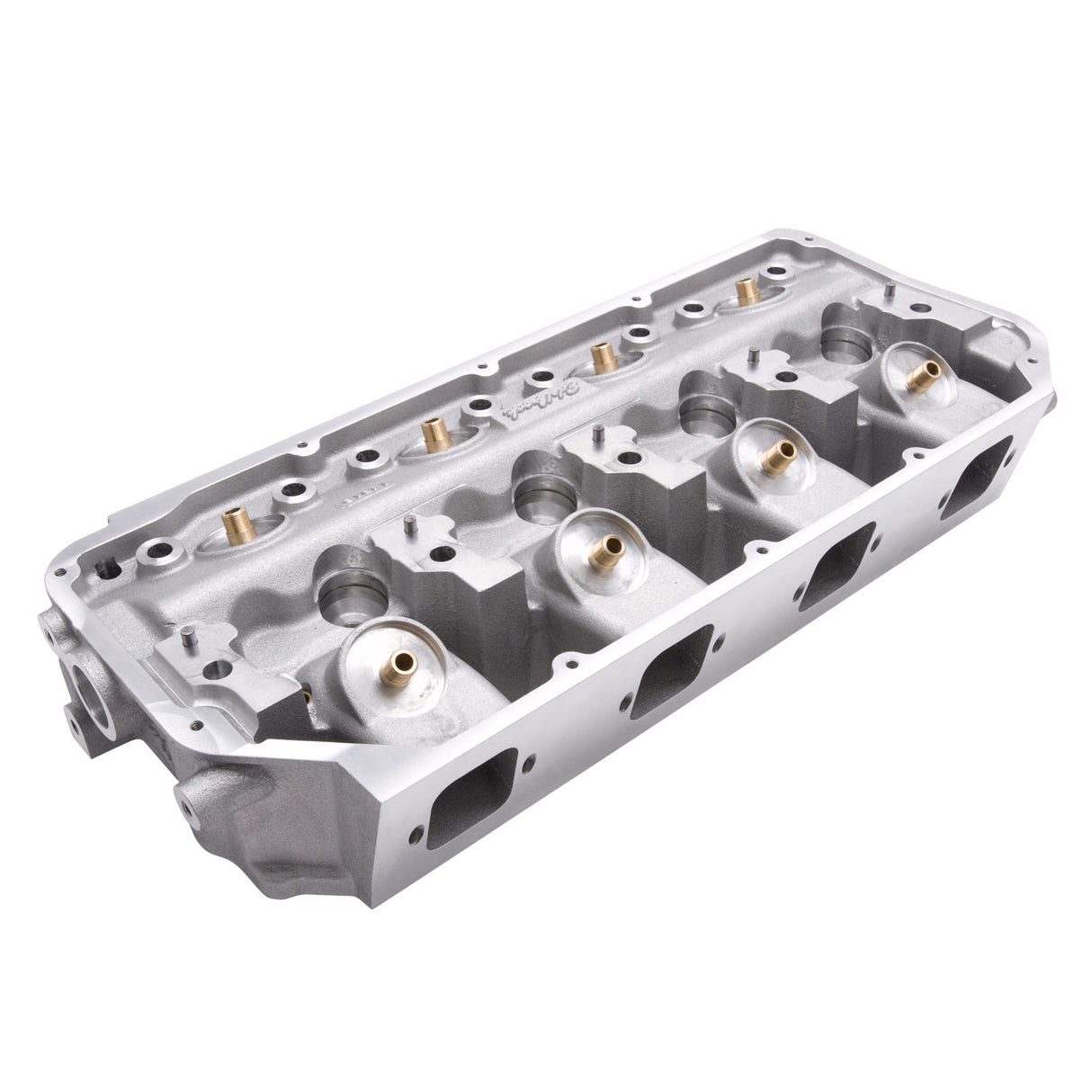

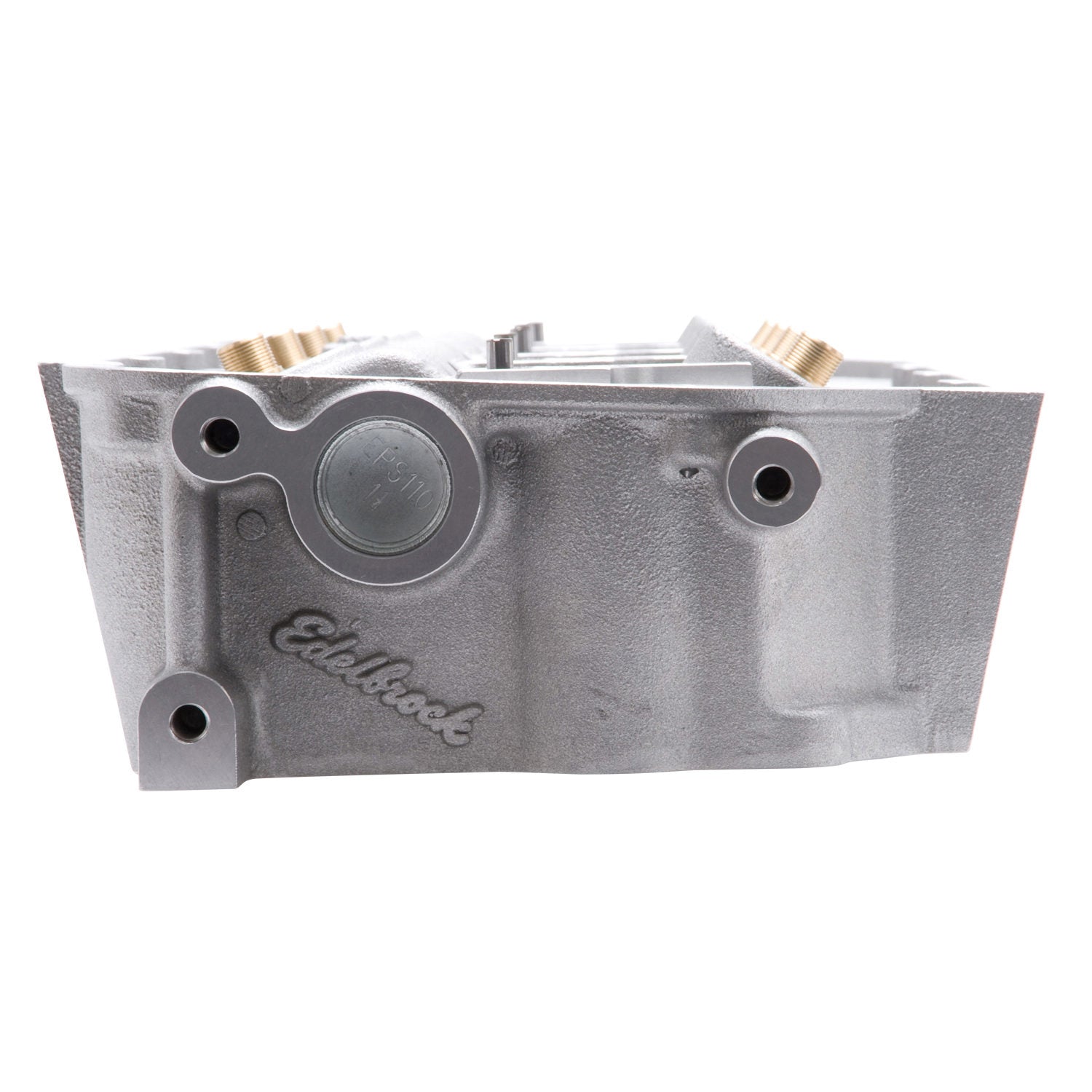

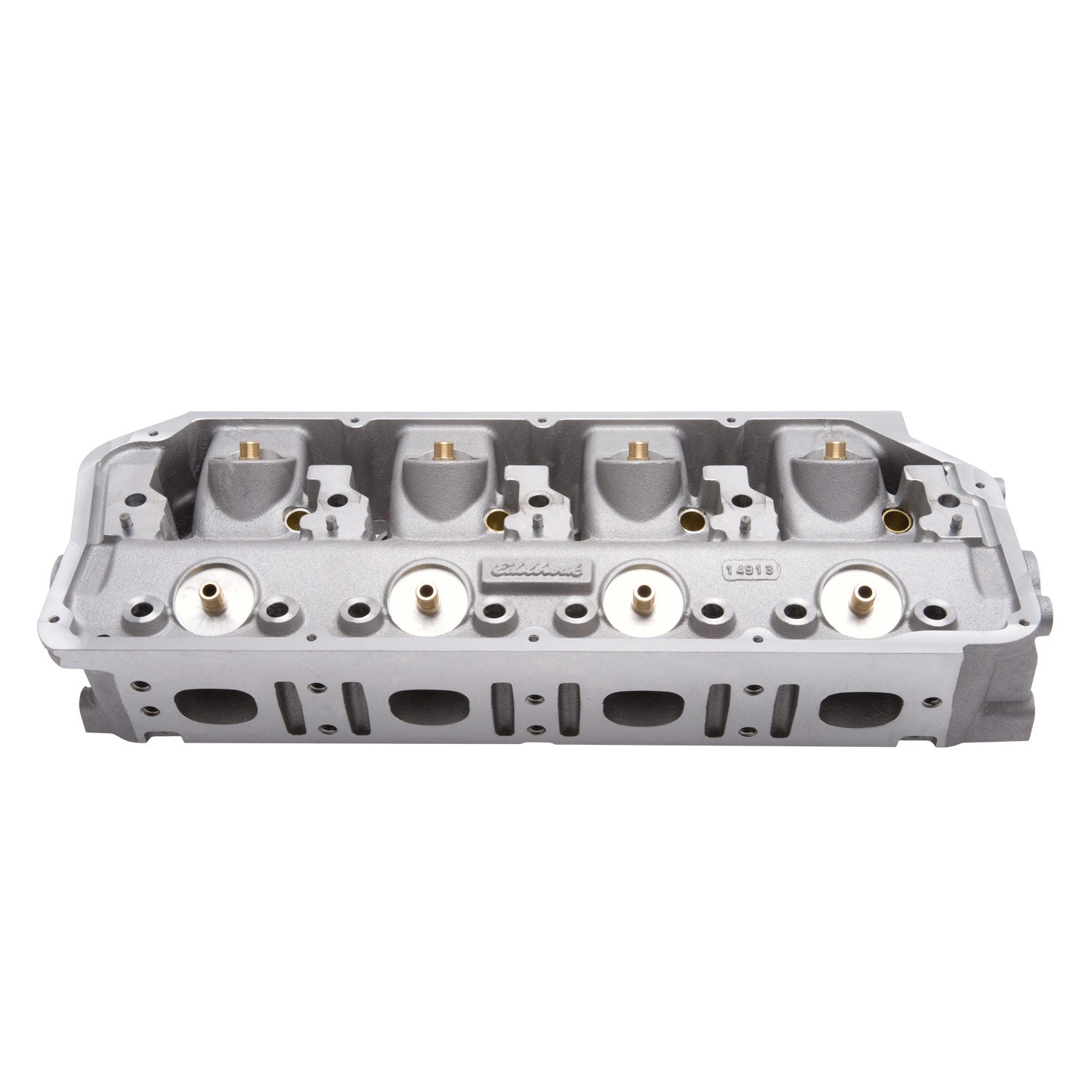

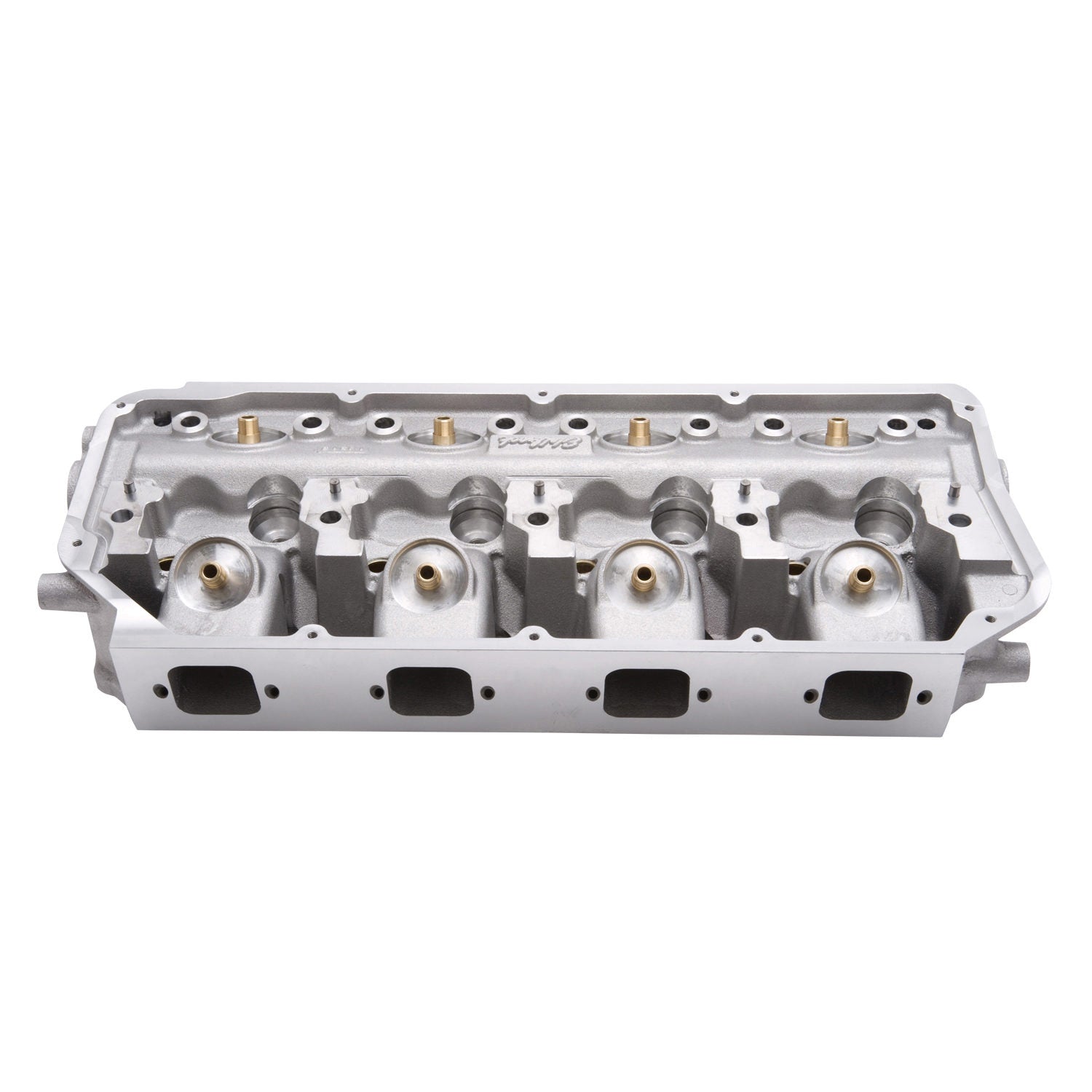

Edelbrock 61169 - Cylinder Head Chrysler 426-572 Hemi Bare Single

Victor Jr Gen II HEMI Chrysler Cylinder Head Bare

Our new Edelbrock #61169 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance.

Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

  • CNC Chambers
  • CNC Blended Valve Seats
  • Revised Exhaust Valve Angle
Cylinder Head Gasket Included: No
Assembled: No
Valves Included: No
CNC Ported: Yes
Quantity: Sold Individually
Seat Material: Ductile Iron
Seat Angle: Exhaust 45 deg/Intake 45
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Construction Type: Bare
Exhaust Runner Volume: 105
EGR Port: No
Retainer Included: No
Deck Thickness: 0.625
Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
Series: Victor Jr.
Family: Victor Jr.
Exhaust Port Location: Standard
Guide Material: Manganese Bronze
Valve Springs Included: No
Mounting Hardware Included: No
Valve Spring Retainers Included: No
Valve Seals Included: No
Valve Locks Included: No
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: No
Combustion Chamber Volume: 170
Material: Aluminum
Intake Runner Volume: 245
Head Casting Number: 31-6117
Guide Plates Included: No
Grade Type: Performance
Deck Height: 10.72
