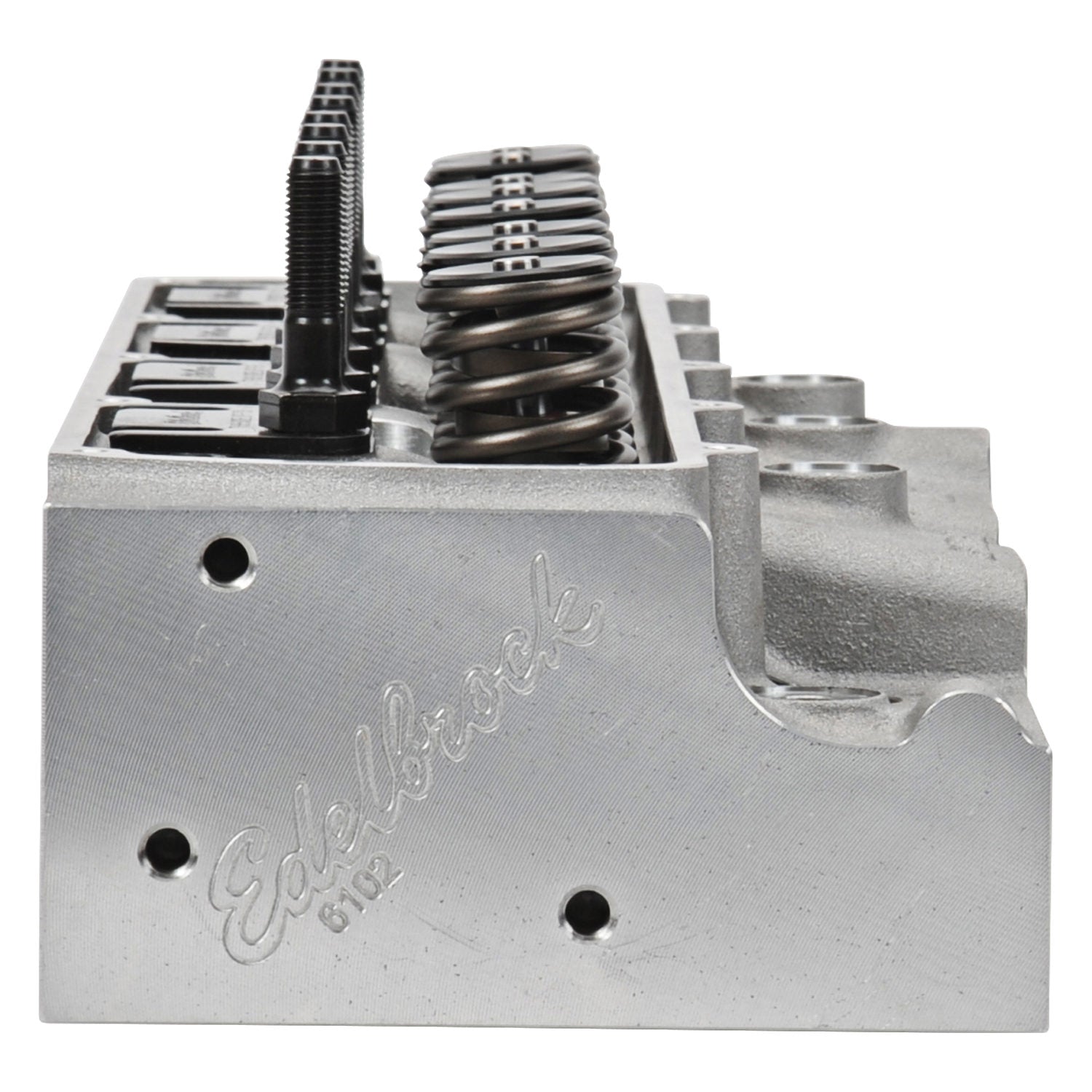

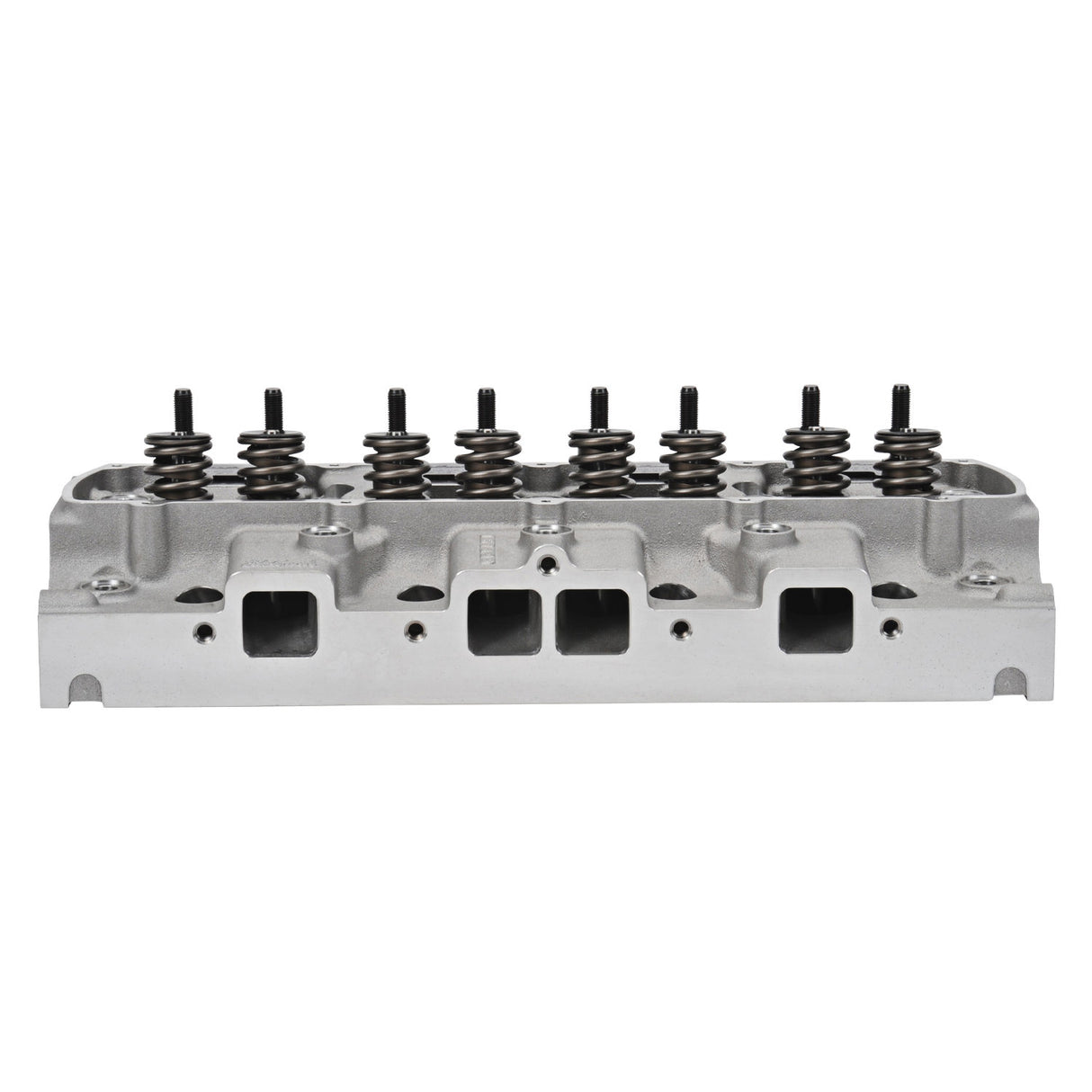

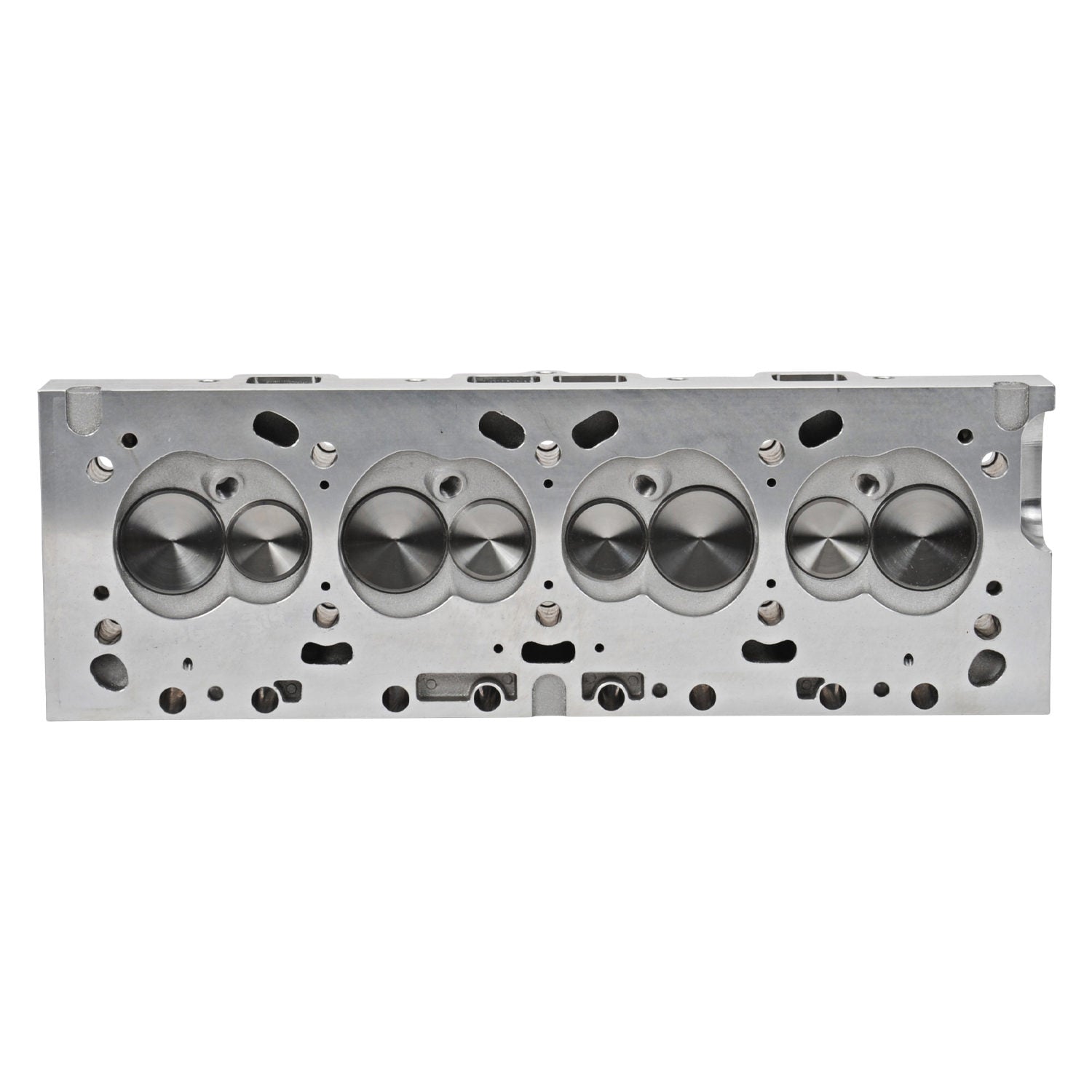

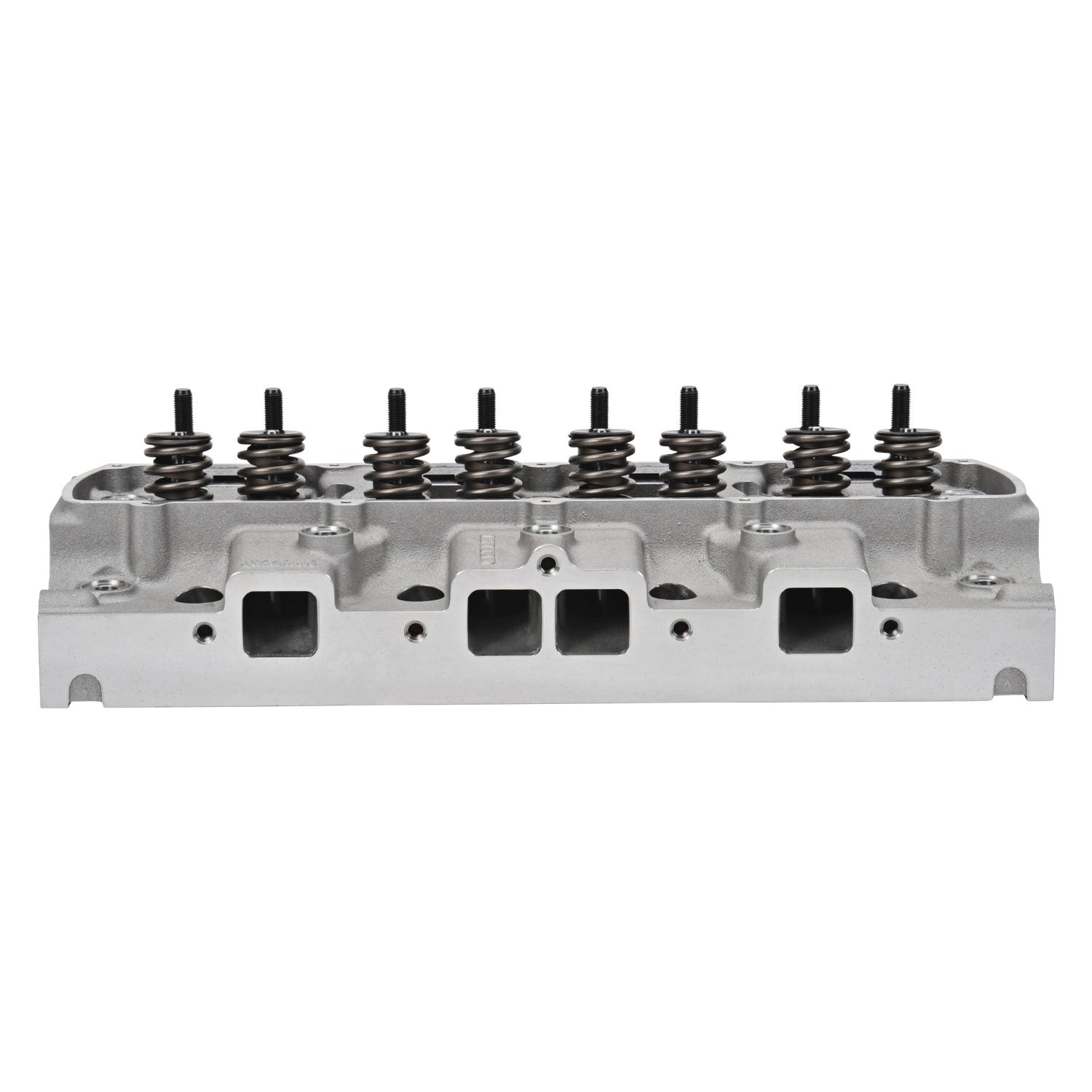

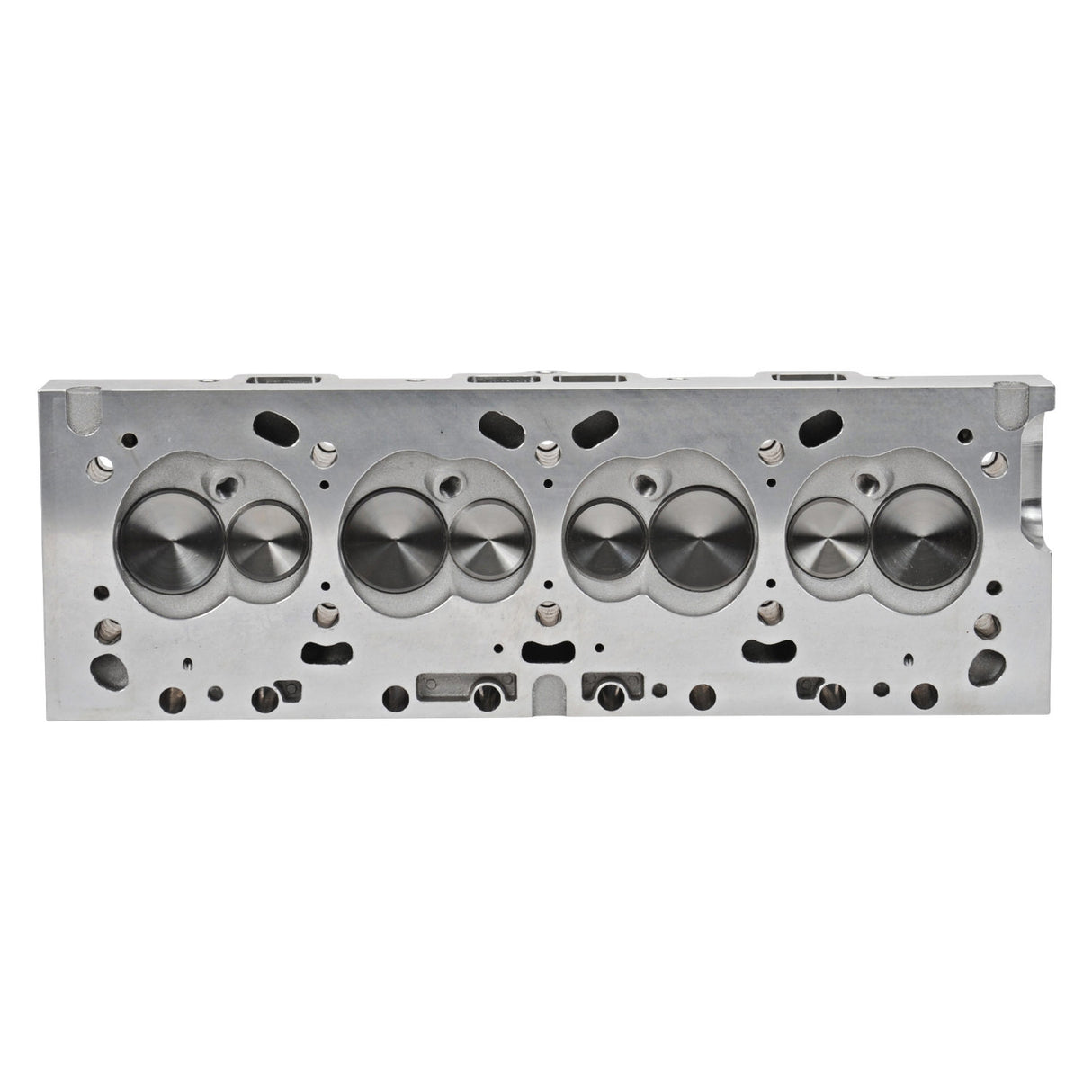

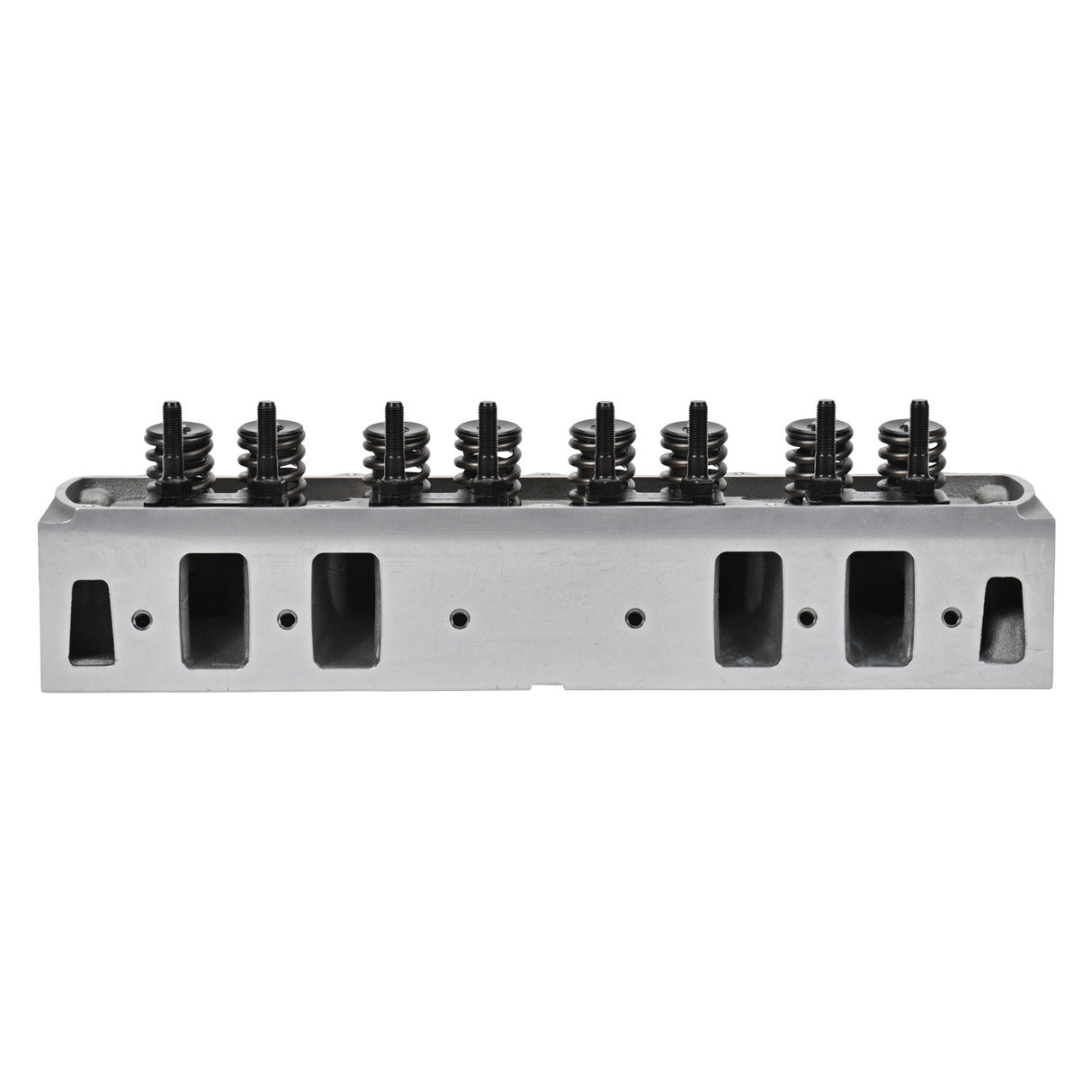

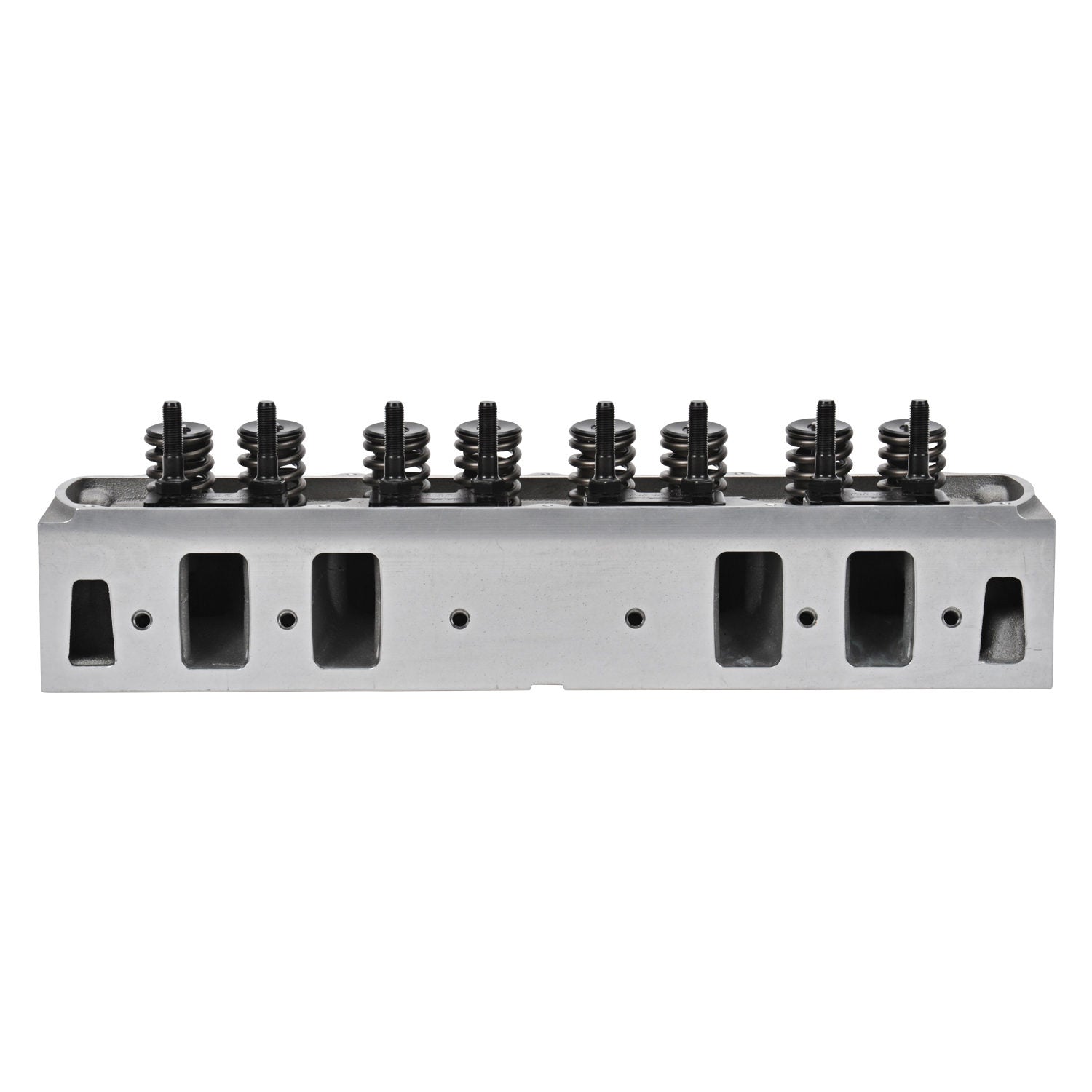

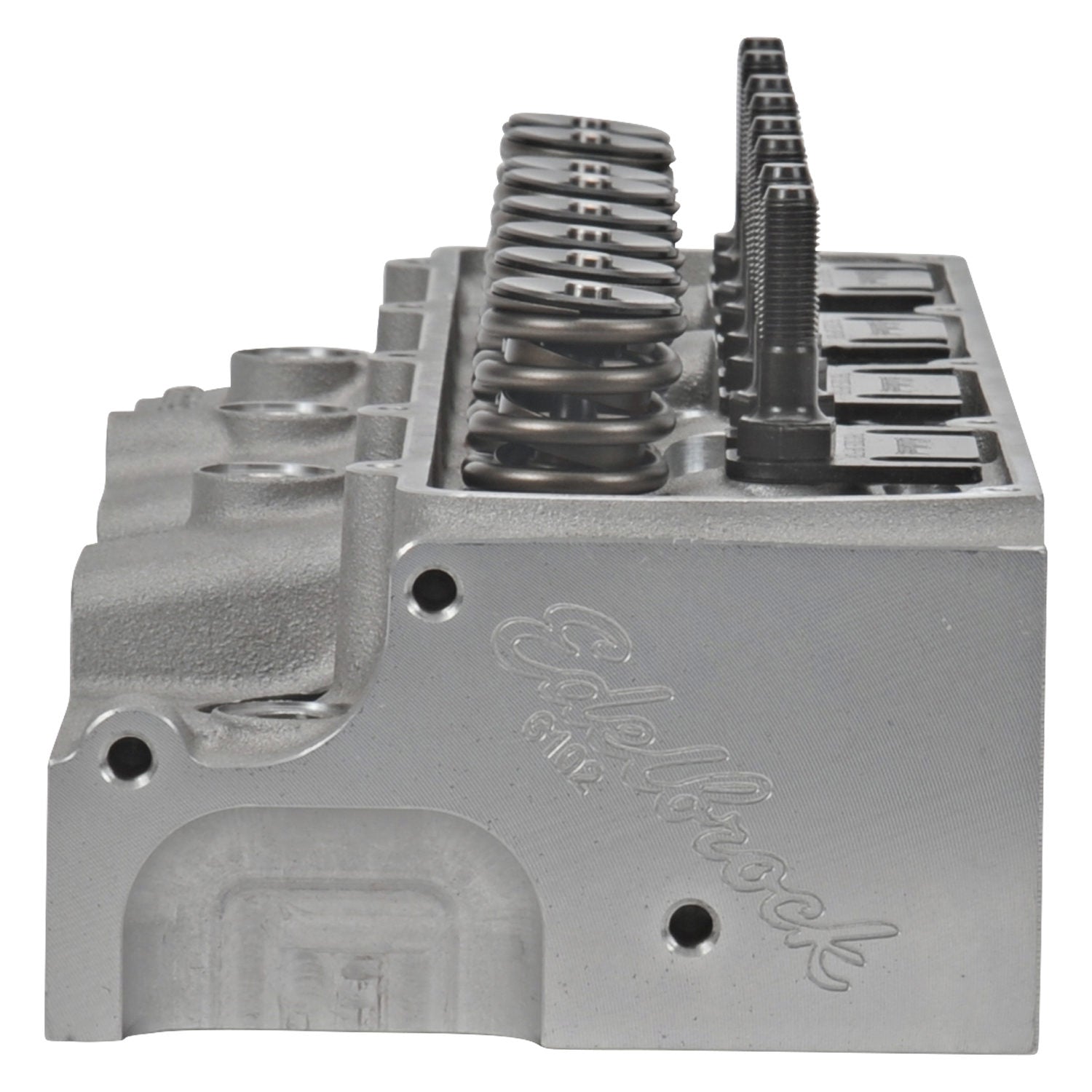

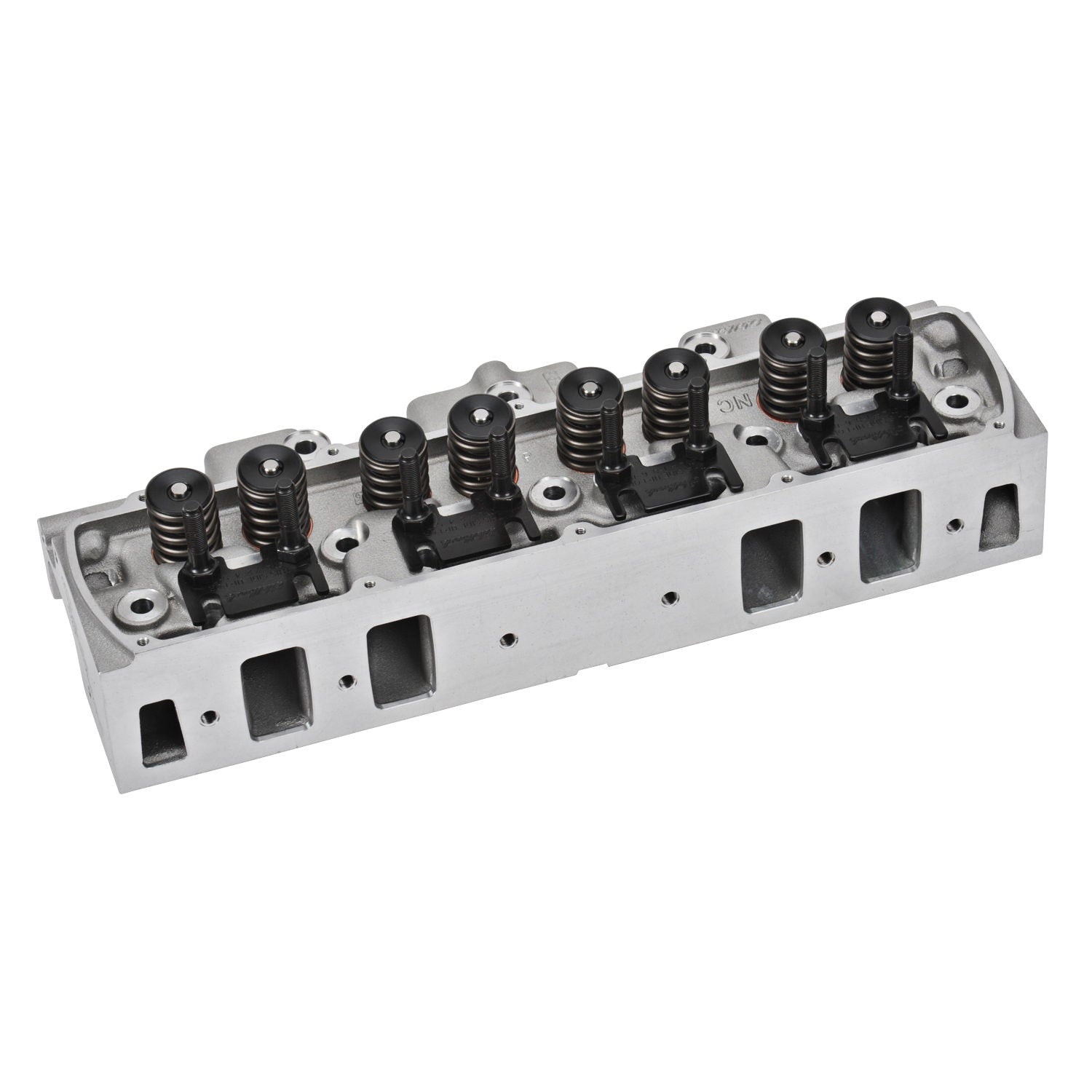

Edelbrock 61025 - Single Performer RPM Oldsmobile Big Block Cylinder Head (For Use w/ Hyd Roller Camshaft)

Edelbrock  |  SKU: EDEL-61025
$1,30999 $1,44099
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 61025 - Single Performer RPM Oldsmobile Big Block Cylinder Head (For Use w/ Hyd Roller Camshaft)

Cylinder Head - Performer RPM - Assembled - 2.150 / 1.680 in Valves - 218 cc Intake - 77 cc Chamber - 1.105 in Springs - Aluminum - Oldsmobile V8 - Each

The Edelbrock #61025 Performer RPM Cylinder Head for 1965-76 Oldsmobile 400, 425 and 455 CID V8 engines with hydraulic roller cam is a perfect performance upgrade for big-block Olds-powered street machines and muscle cars. This aluminum cylinder head supersedes the 60515 Olds head and features a redesigned 77cc combustion chamber, larger intake valves and refined bowl blending for improved flow. The #61025 Performer RPM head has improved accommodation for a factory-style mechanical fuel pump with spark plug locations moved slightly towards the exhaust valve for optimized combustion. Intake and exhaust ports have been improved over previous designs, and extra material has been added above the intake port for head work. Performer RPM #61025 heads are cast and machined by Edelbrock in the USA and comes complete with the highest quality intake and exhaust valves and valve springs.

  • Performer Series RPM Cylinder Head
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Quantity: Sold Individually
Horsepower: 450-600
Seat Material: Ductile Iron
Retainer Included: Yes
Exhaust Port Location: Standard
Series: Performer RPM
Exhaust Valve Diameter: 1.680
Camshaft Type: Hydraulic Roller
Head Casting Number: N/A
Guide Material: Manganese Bronze
Family: Performer RPM
Construction Type: Complete
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter: 2.150
Valve Spring Diameter: 1.105
Valve Spring Maximum Lift: 0.600
EGR Port: No
Exhaust Runner Volume: 128
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.375
Deck Thickness: 0.625
Valve Angle: 6
Seat Angle: Exhaust 60 deg/Intake 60
CNC Ported: No
Rocker Arm Stud Diameter: 0.4375
Rocker Arm Studs/Bolts Included: Yes
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Material: Aluminum
Mounting Hardware Included: No
Intake Runner Volume: 218
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 77
