Edelbrock 60989 - Single SBC Etec-200 Head Comp

Edelbrock  |  SKU: EDEL-60989
Sale price $1,04899 Regular price $1,15389

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

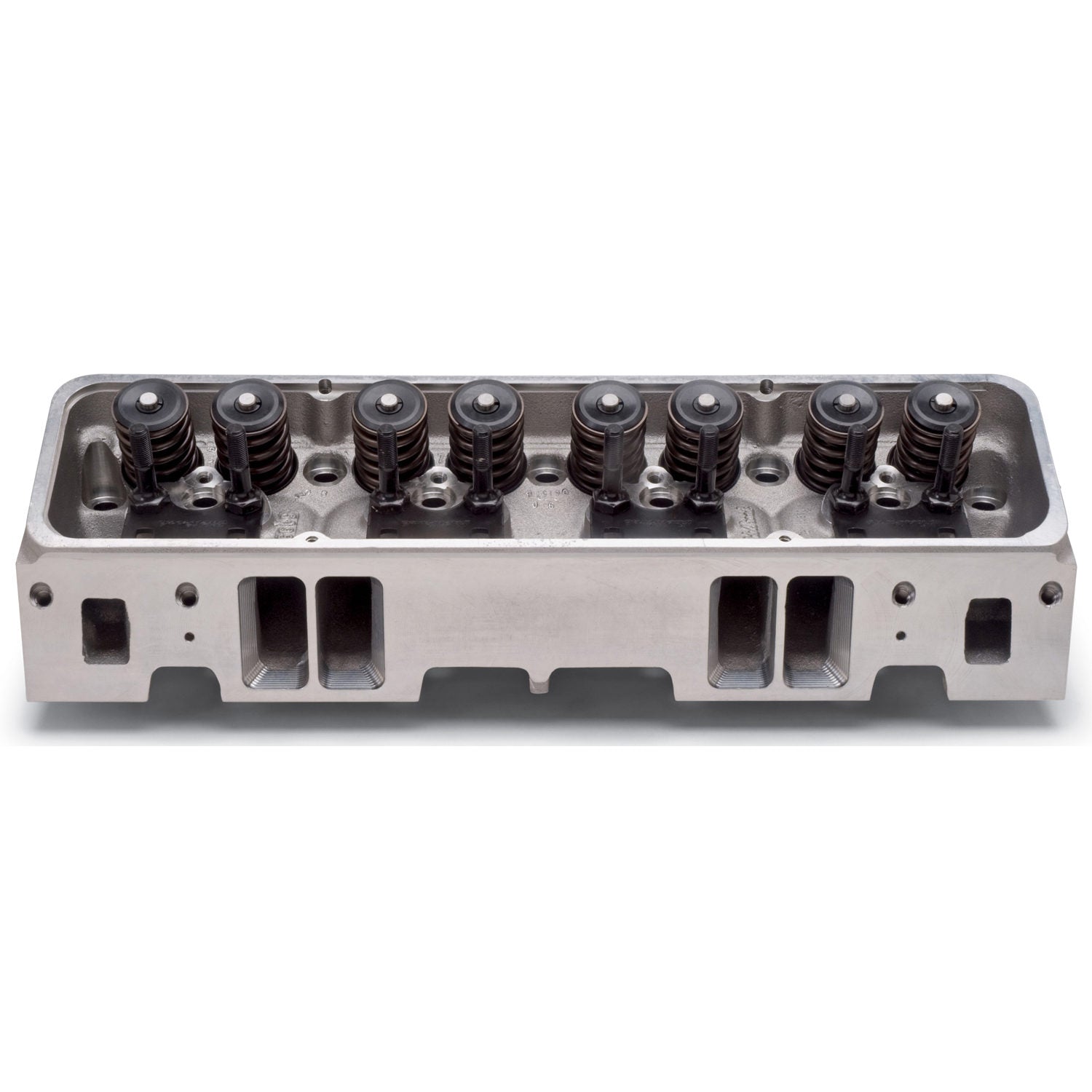

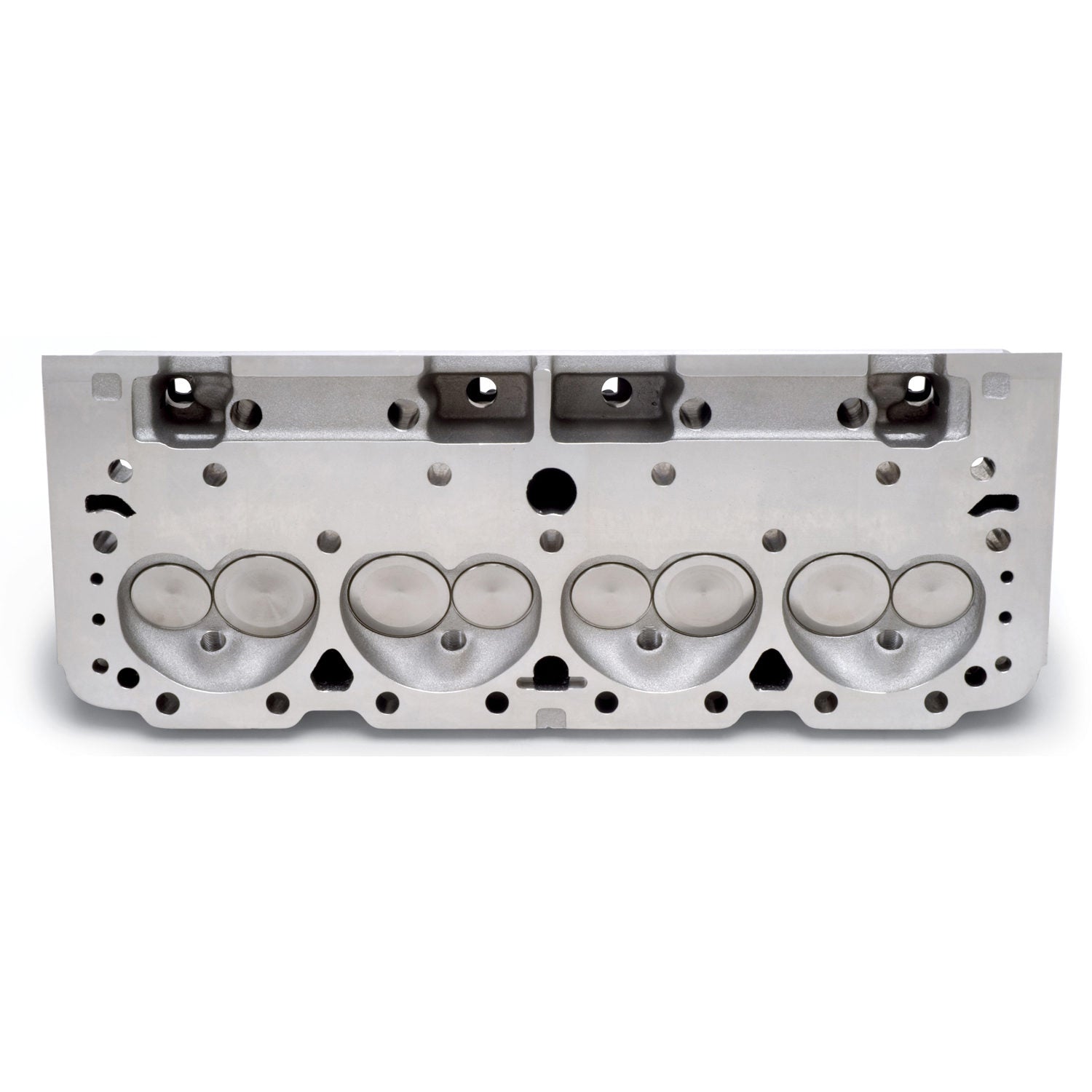

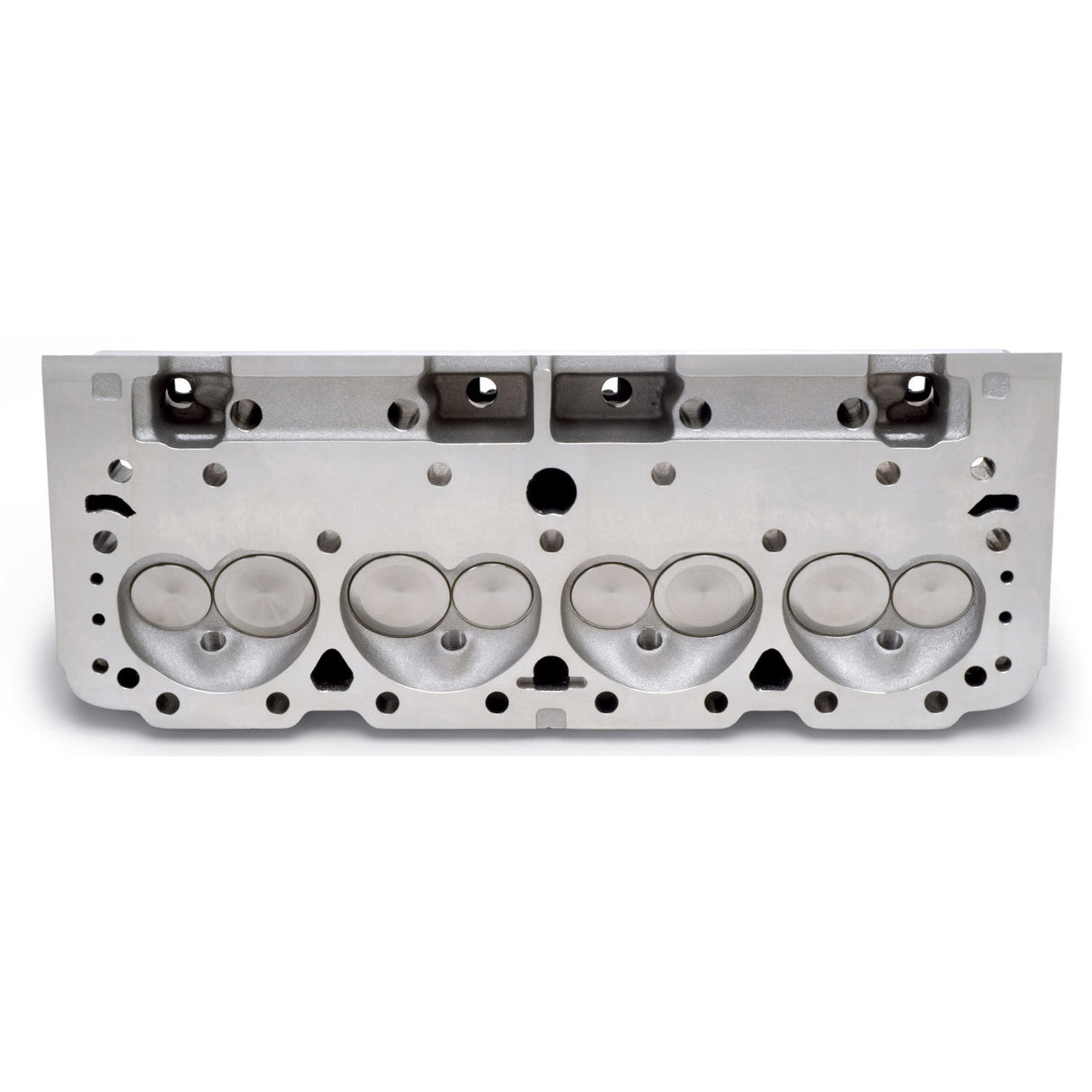

Edelbrock 60989 - Single SBC Etec-200 Head Comp

E-Tec-200 Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam

The Edelbrock #60989 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.

  • 200cc Intake 64cc Chamber for Vortec-Style Intake
  • Accept Standard or Center-Bolt Valve Covers
  • Hand-Blended Intake and Exhaust Bowls
  • Outflow Fast Burn Heads
  • Heli-Coils in Rocker Studs and Exhaust Bolt Holes
  • Hand-Assembled w/Highest Quality Components
Exhaust Runner Volume: 80
Valve Stem Diameter: 0.3438
Intake Valve Diameter: 2.02
Valve Spring Maximum Lift: 0.575
Valve Angle: 23
Rocker Arm Stud Diameter: 0.375
Series: E-Tec
Family: E-Tec
Camshaft Type: Flat Tappet
Horsepower: 350-500
Push Rod Diameter: (Suggested) 0.625
Deck Thickness: 0.625
CNC Ported: No
Exhaust Port Location: Standard
Seat Material: Ductile Iron
Seat Angle: Exhaust 45 deg/Intake 45
Guide Material: Manganese Bronze
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Center Bore Inside Diameter: Straight
Exhaust Valve Diameter: 1.60
Valve Spring Diameter: 1.46
Construction Type: Complete
Quantity: Sold Individually
Retainer Included: Yes
EGR Port: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 200
Head Casting Number: 6098F
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
