Edelbrock 60909 - Single Perf SBC 64cc Head Comp

Edelbrock  |  SKU: EDEL-60909
Sale price $1,17899 Regular price $1,29689

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

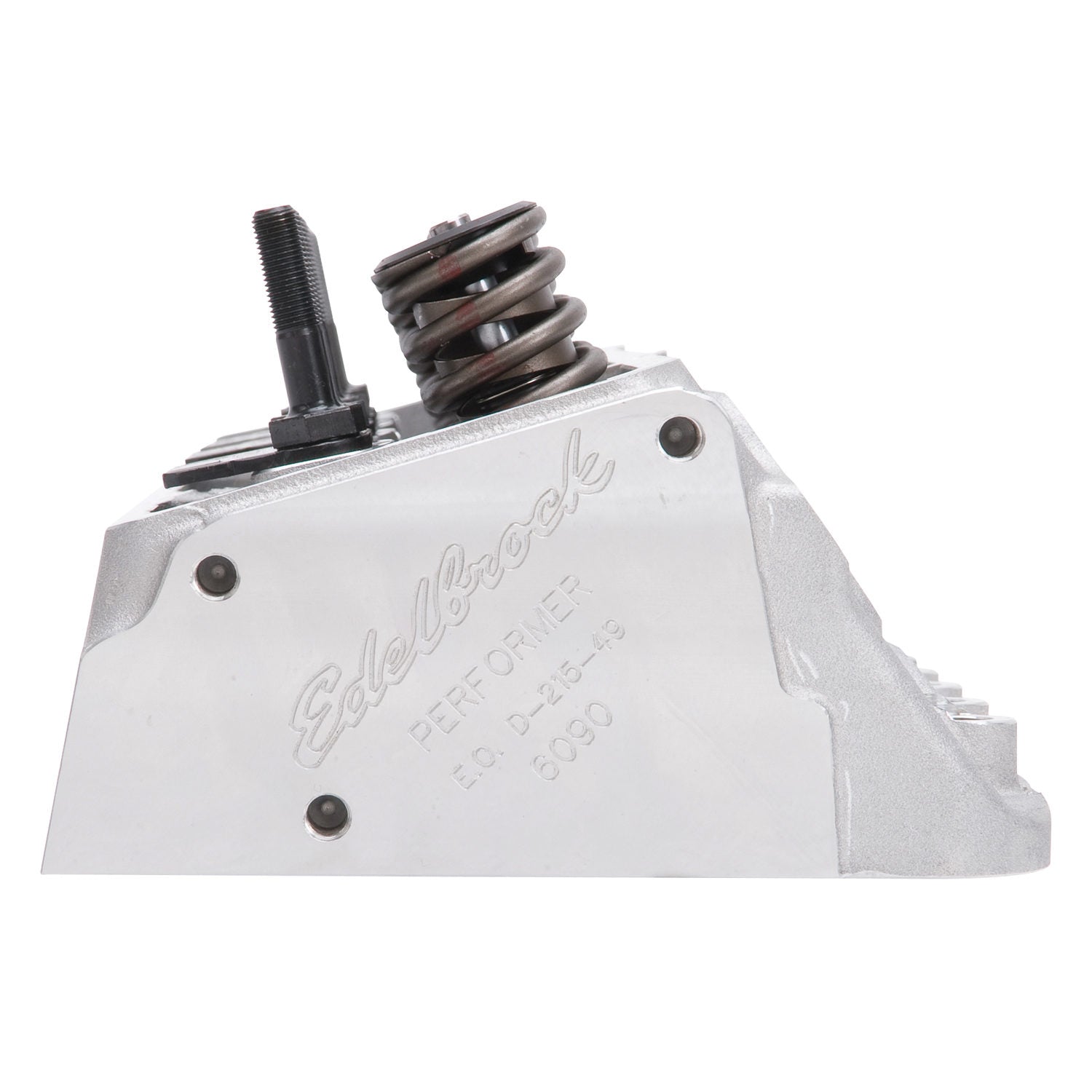

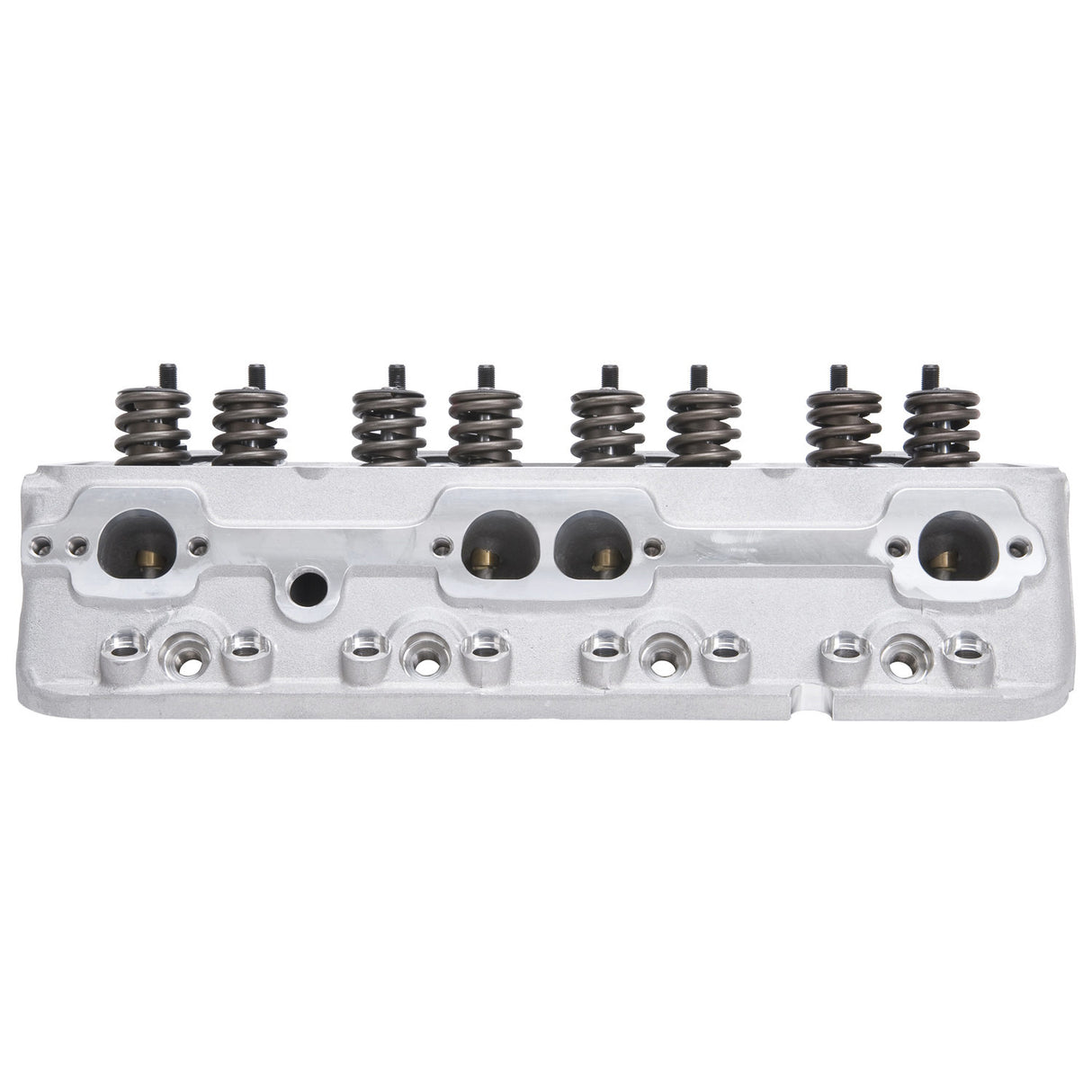

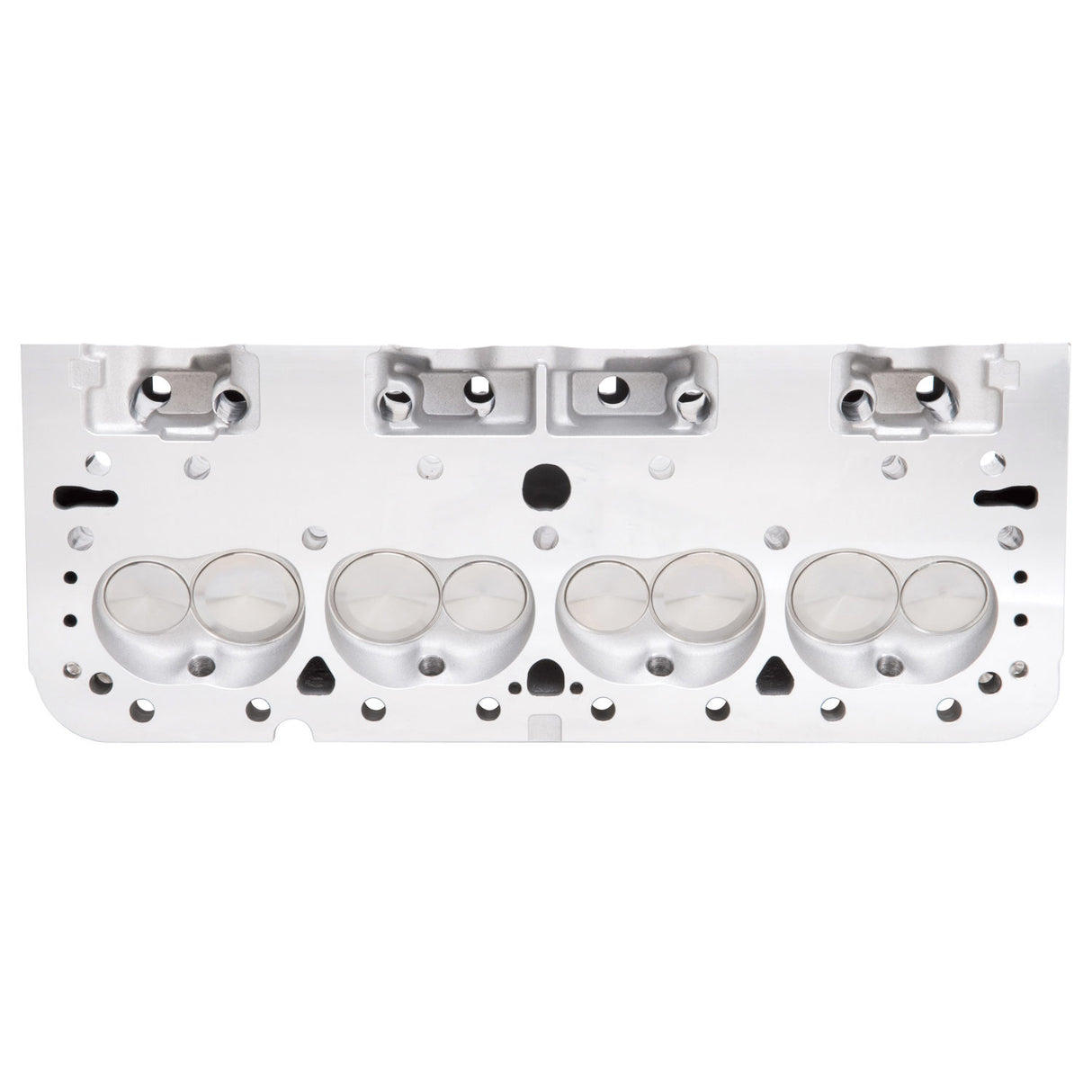

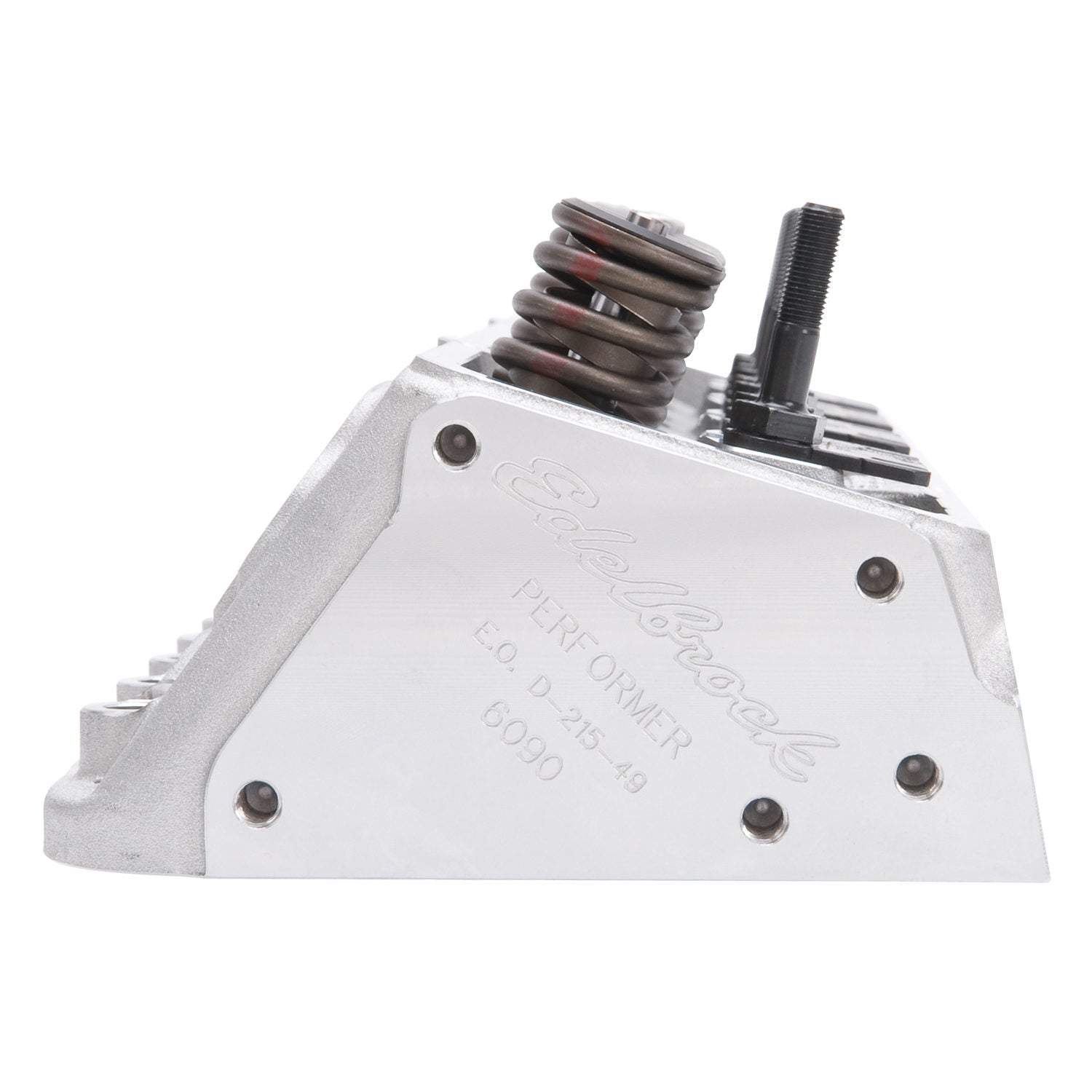

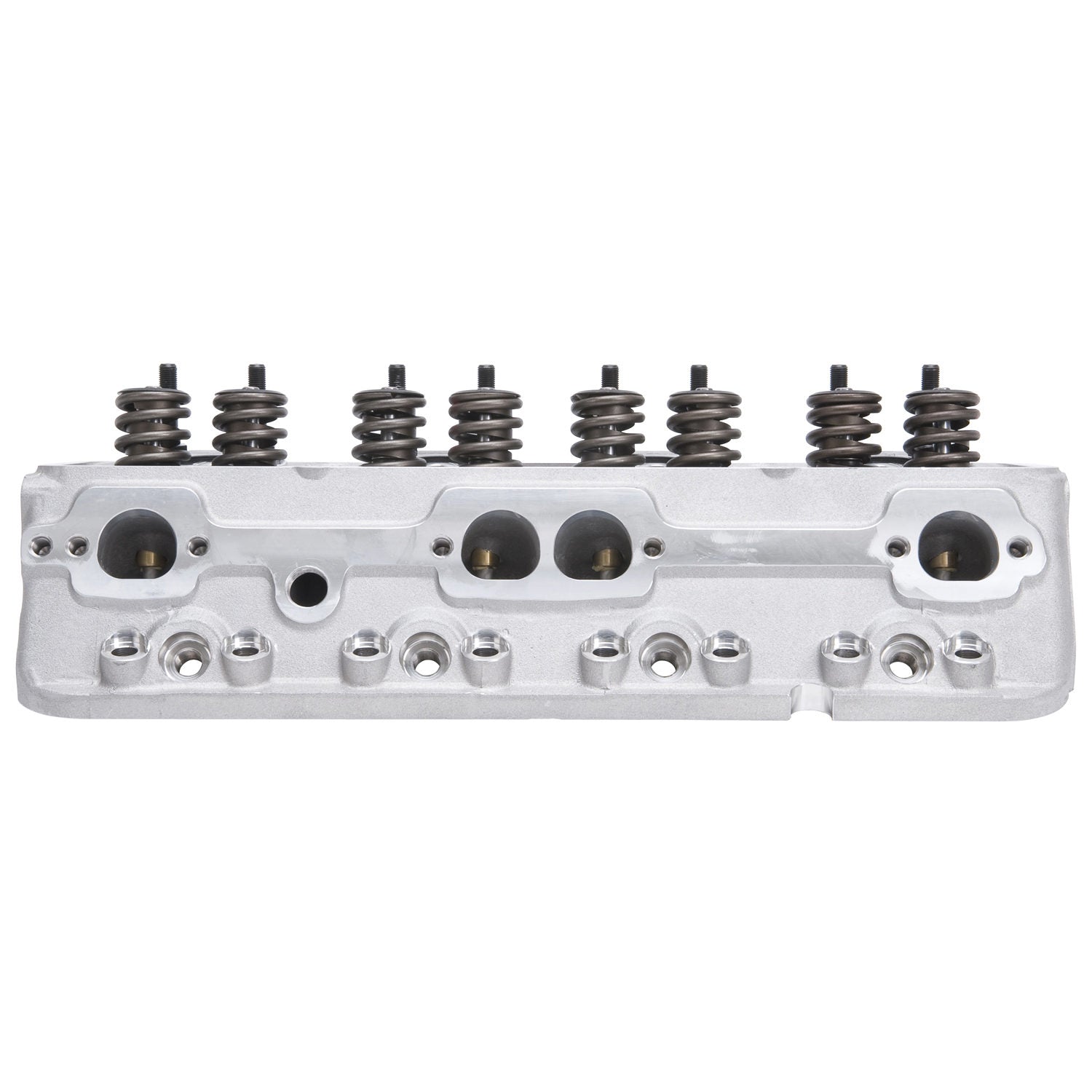

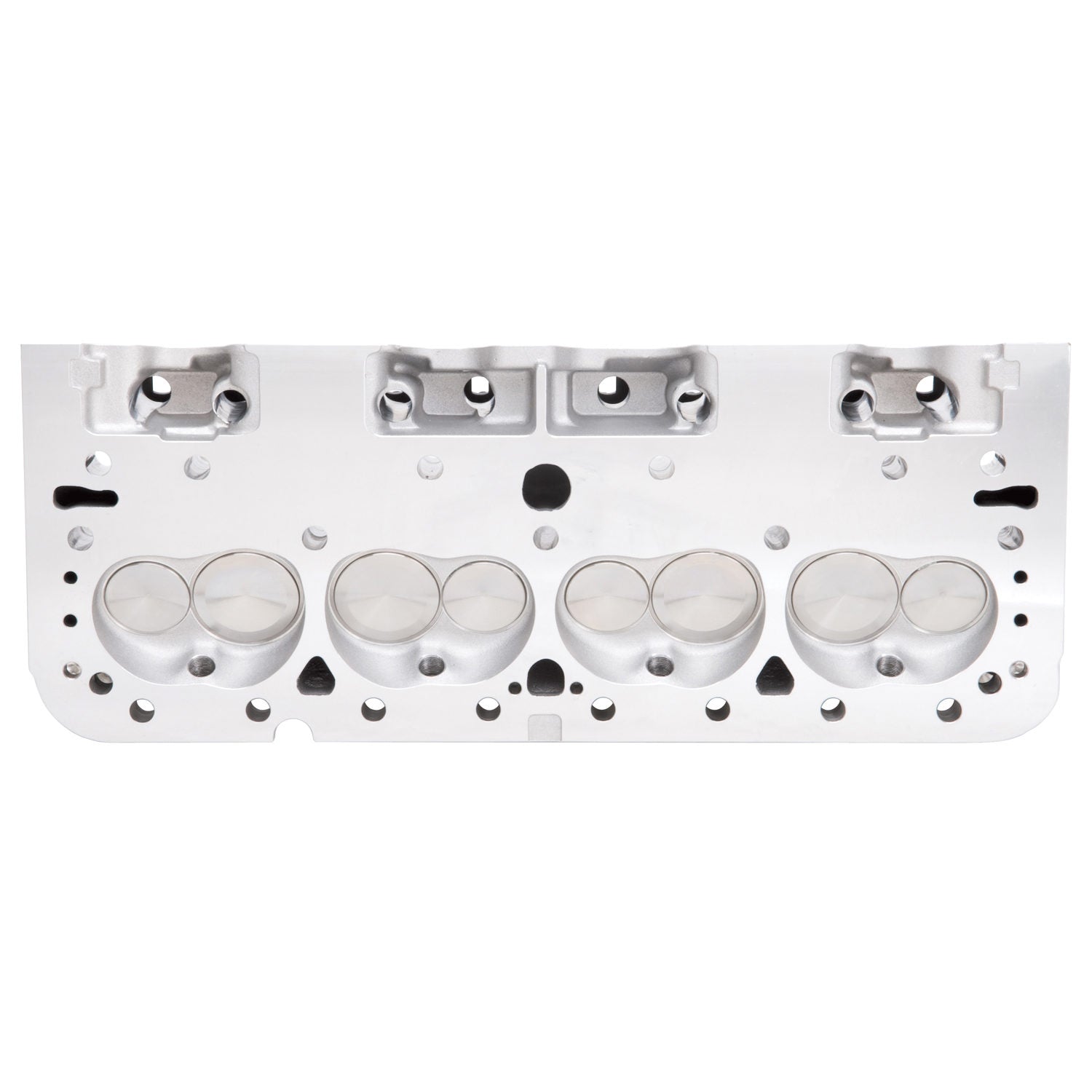

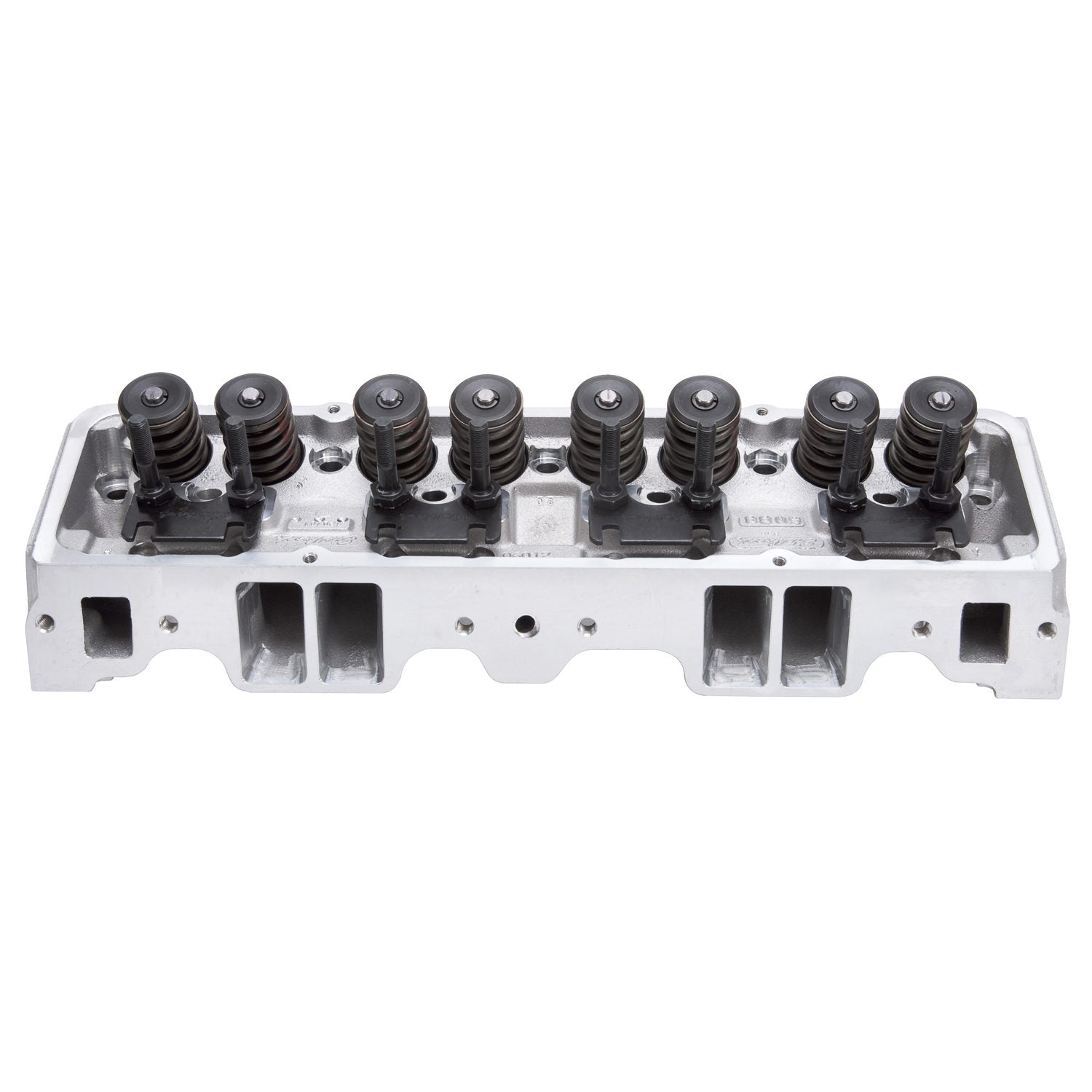

Edelbrock 60909 - Single Perf SBC 64cc Head Comp

Cylinder Head - Performer - Assembled - 2.020 / 1.600 in Valve - 185 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Each

The Edelbrock #60909 Performer Cylinder Heads are designed for 302-400 cid small-block Chevy engines up to 1986. These cylinder heads include your choice of 64cc or 70cc combustion chambers and high flow intake and exhaust ports.

The Edelbrock #60909 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance.

  • 50-State Street Legal Aluminum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • 64cc Combustion Chambers Improve Performance
  • Retain Stock Compression Ratio
Exhaust Port Location: Standard
Family: Performer
Rotor Center Bore Inside Diameter: Straight
Seat Angle: Exhaust 45 deg/Intake 45
Series: Performer
Quantity: Sold Individually
Horsepower: 300-450
Seat Material: Ductile Iron
Retainer Included: Yes
Valve Spring Diameter: 1.46
9040: D-215-94
Exhaust Runner Volume: 65
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
Construction Type: Complete
Valve Stem Diameter: 0.3438
CNC Ported: No
EGR Port: Yes
Deck Thickness: 0.5625
Valve Spring Maximum Lift: 0.575
Guide Material: Manganese Bronze
Camshaft Type: Flat Tappet
Push Rod Diameter: (Suggested) 0.3125
Intake Valve Diameter: 2.02
Valve Angle: 23
Rocker Arm Stud Diameter: 0.375
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 185
Head Casting Number: 31-6088
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
