Edelbrock 60229 - Single Perf RPM SBF Head 1 90 Comp

Name: Edelbrock 60229 - Single Perf RPM SBF Head 1 90 Comp
Brand: Edelbrock
SKU: EDEL-60229
Price: 1119.99 USD
Availability: InStock

Edelbrock | SKU: EDEL-60229

$1,119⁹⁹ $1,231⁹⁹

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

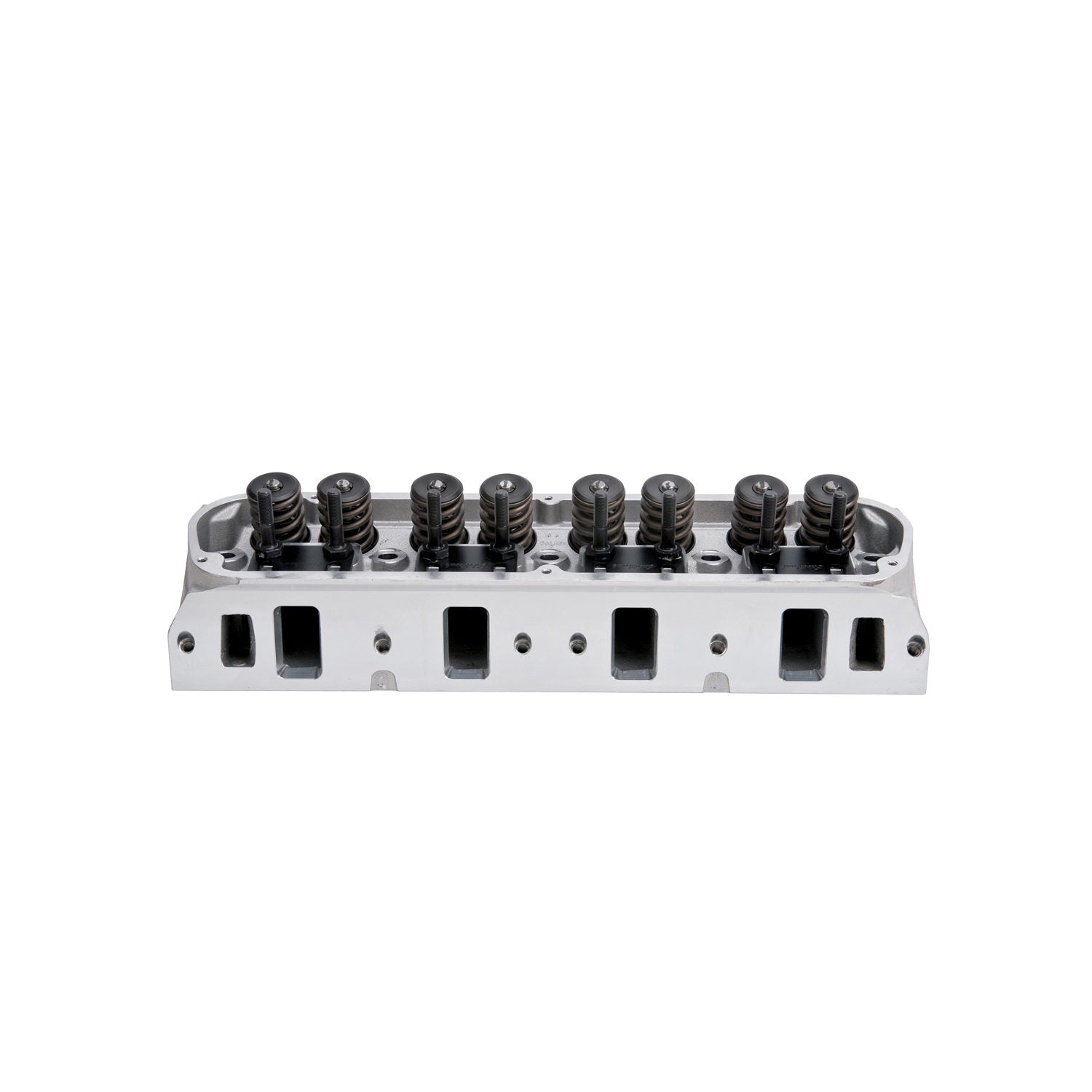

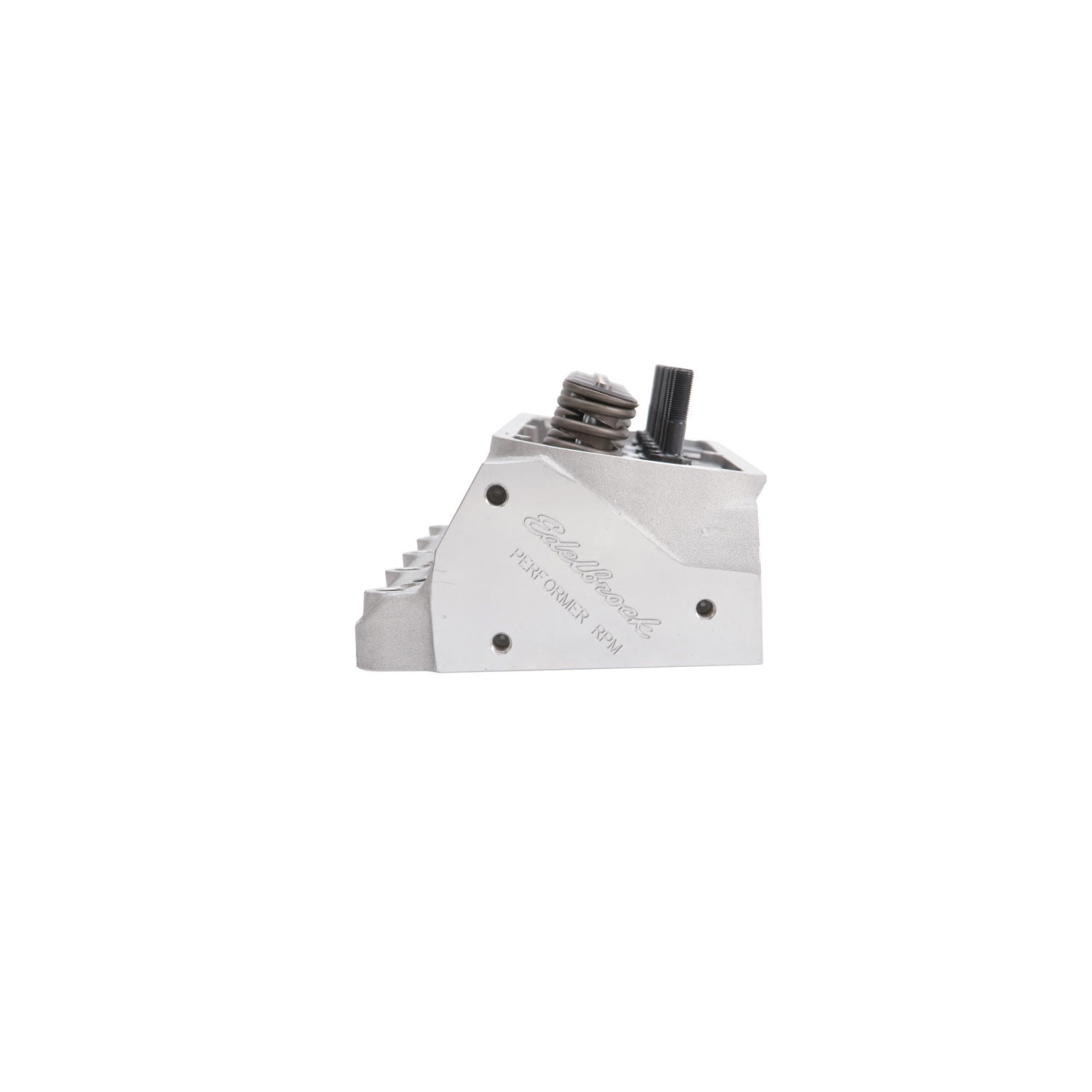

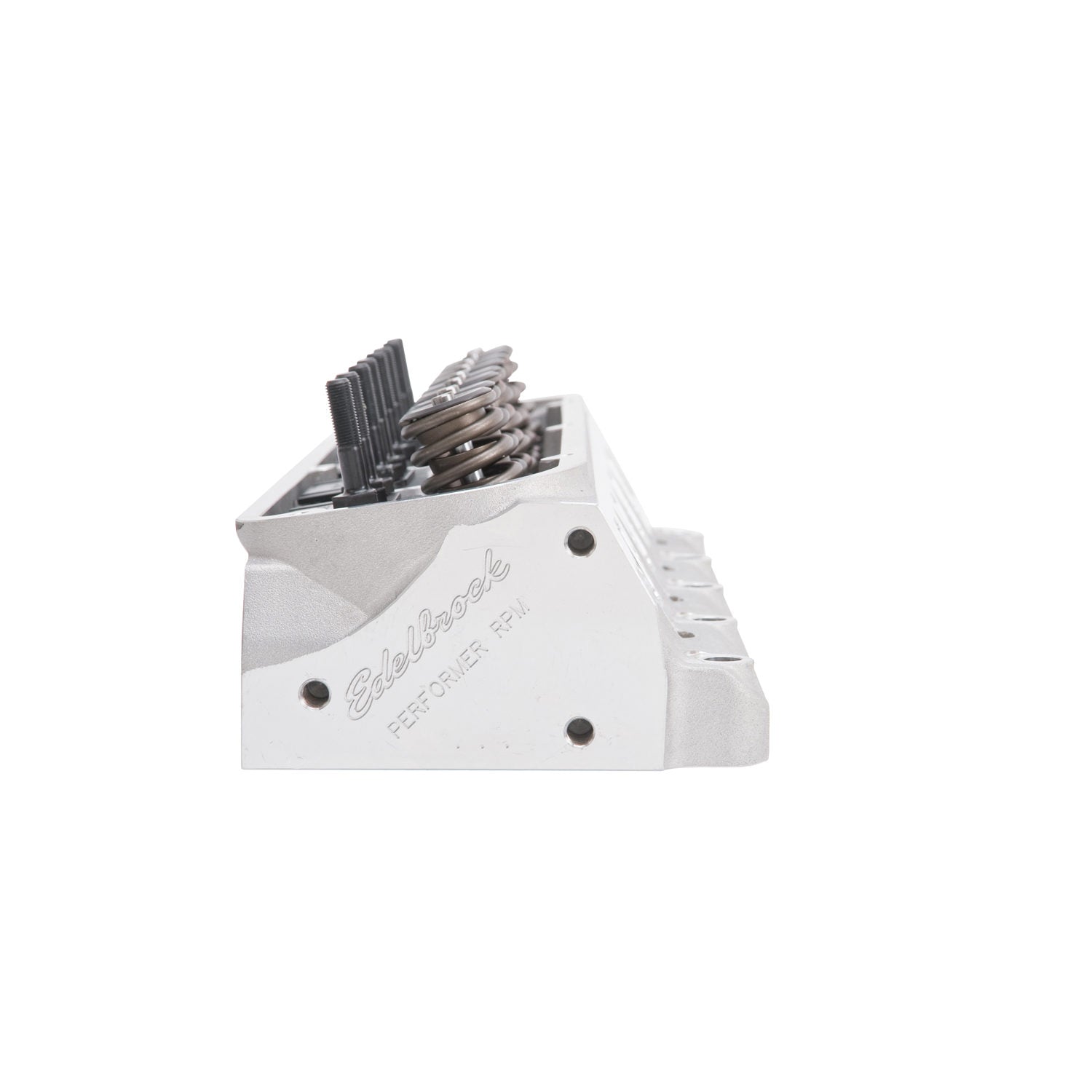

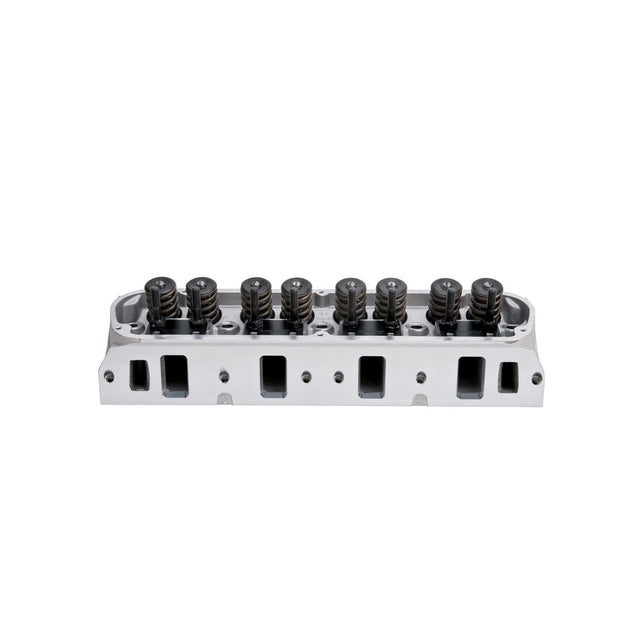

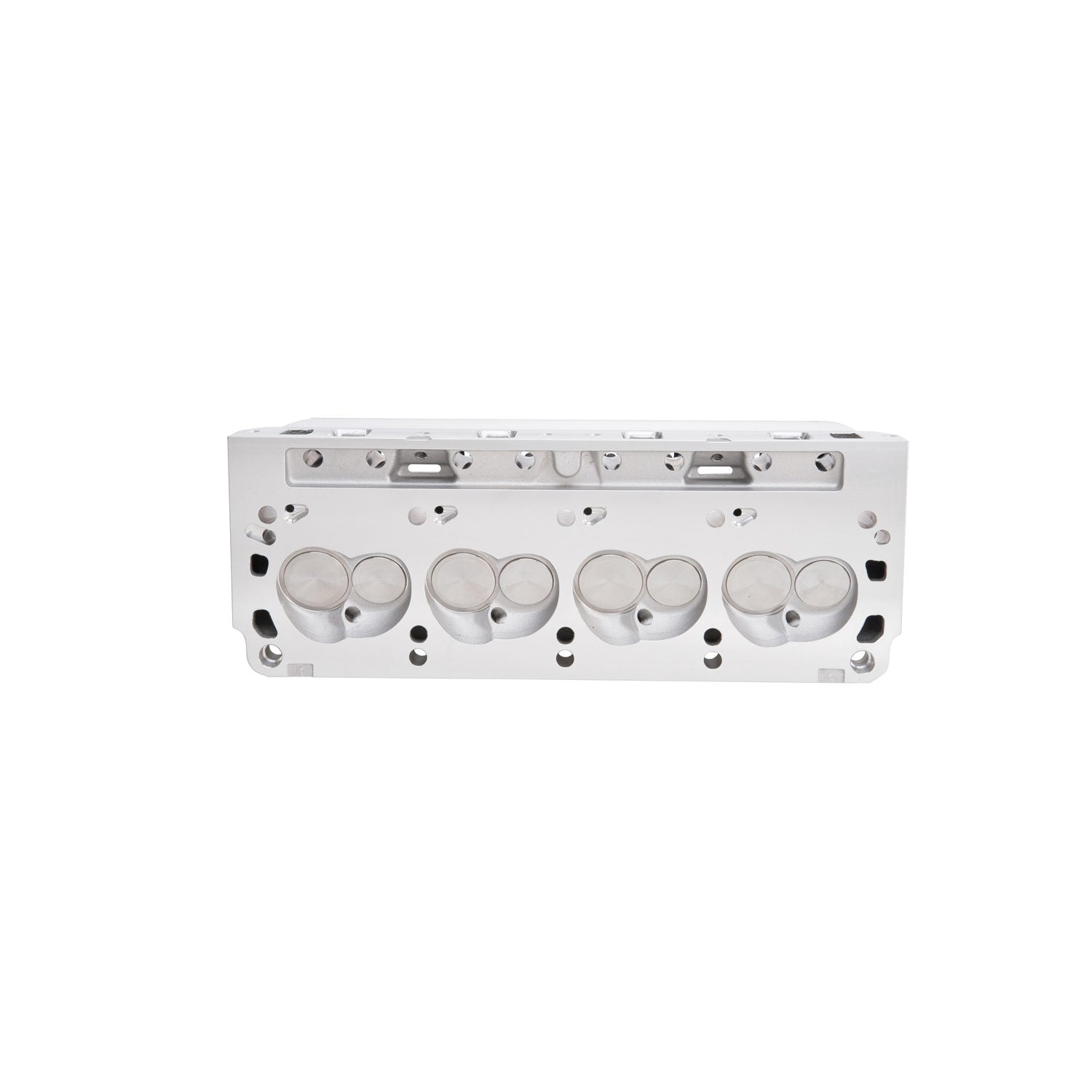

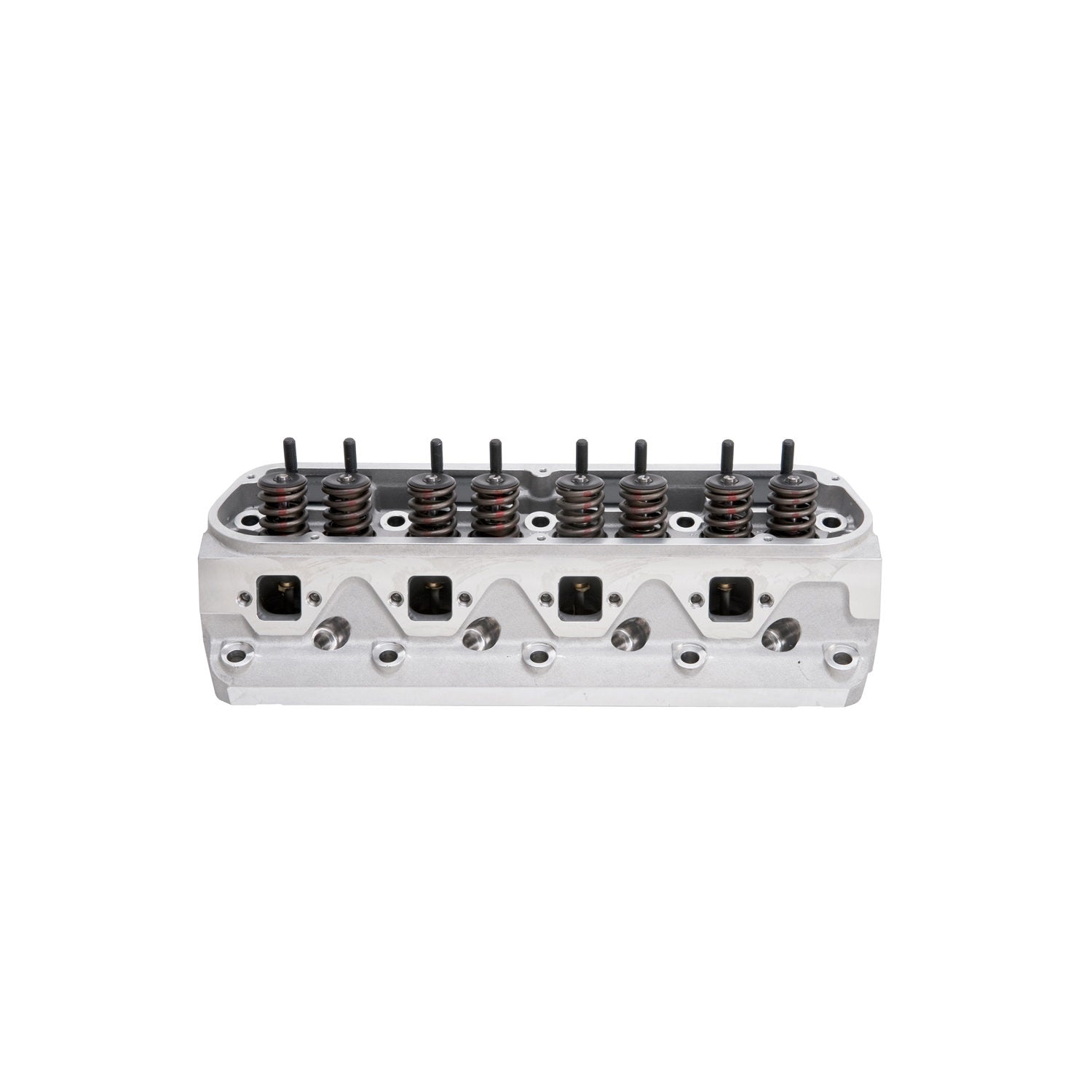

Edelbrock 60229 - Single Perf RPM SBF Head 1 90 Comp

Cylinder Head - Performer RPM - Assembled - 1.900 / 1.600 in Valves - 170 cc Intake - 60 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Ford - Each

The Edelbrock #60229 Performer RPM cylinder heads are designed for use with 289-351W Small-Block Ford applications. The #60229 heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

The Edelbrock #60229 Performer RPM cylinder head is designed for use with 289-351W c.i.d. Small-Block Ford applications. The Edelbrock #60229 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Out-of-the-Box Bolt-On Performance
Maximum Performance From Idle through Mid-Range
Intake valves are for use with stock pistons
Designed For Non-Emissions

Exhaust Port Location: Standard

Exhaust Runner Volume: 60

Series: Performer RPM

Camshaft Type: Flat Tappet

Horsepower: 325-500

CNC Ported: No

Guide Material: Manganese Bronze

Push Rod Diameter: (Suggested) 0.3125

Valve Stem Diameter: 0.3438

Rocker Arm Stud Diameter: 0.375

RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Exhaust Valve Diameter: 1.60

EGR Port: No

Family: Performer RPM

Seat Material: Ductile Iron

Construction Type: Complete

Deck Thickness: 0.625

Intake Valve Diameter: 1.90

Seat Angle: Exhaust 45 deg/Intake 45

Quantity: Sold Individually

Retainer Included: Yes

Valve Spring Diameter: 1.46

Valve Spring Maximum Lift: 0.575

Valve Angle: 20

Mounting Hardware Included: No

Valve Springs Included: Yes

Valve Spring Retainers Included: Yes

Valve Seals Included: Yes

Valve Locks Included: Yes

Valve Lock Material: Chromoly Steel

Valve Cover Gasket Included: No

Rocker Arms Included: No

Rocker Arm Studs/Bolts Included: Yes

Material: Aluminum

Assembled: Yes

Intake Runner Volume: 170

Head Casting Number: 6025P

Guide Plates Included: Yes

Guide Plate Material: Chromoly Steel

Grade Type: Performance

Deck Height: 8.2

Cylinder Head Gasket Included: No

Combustion Chamber Volume: 60

Valves Included: Yes

Valve Lock Material: Steel

Guide Plate Material: Hardened Steel
