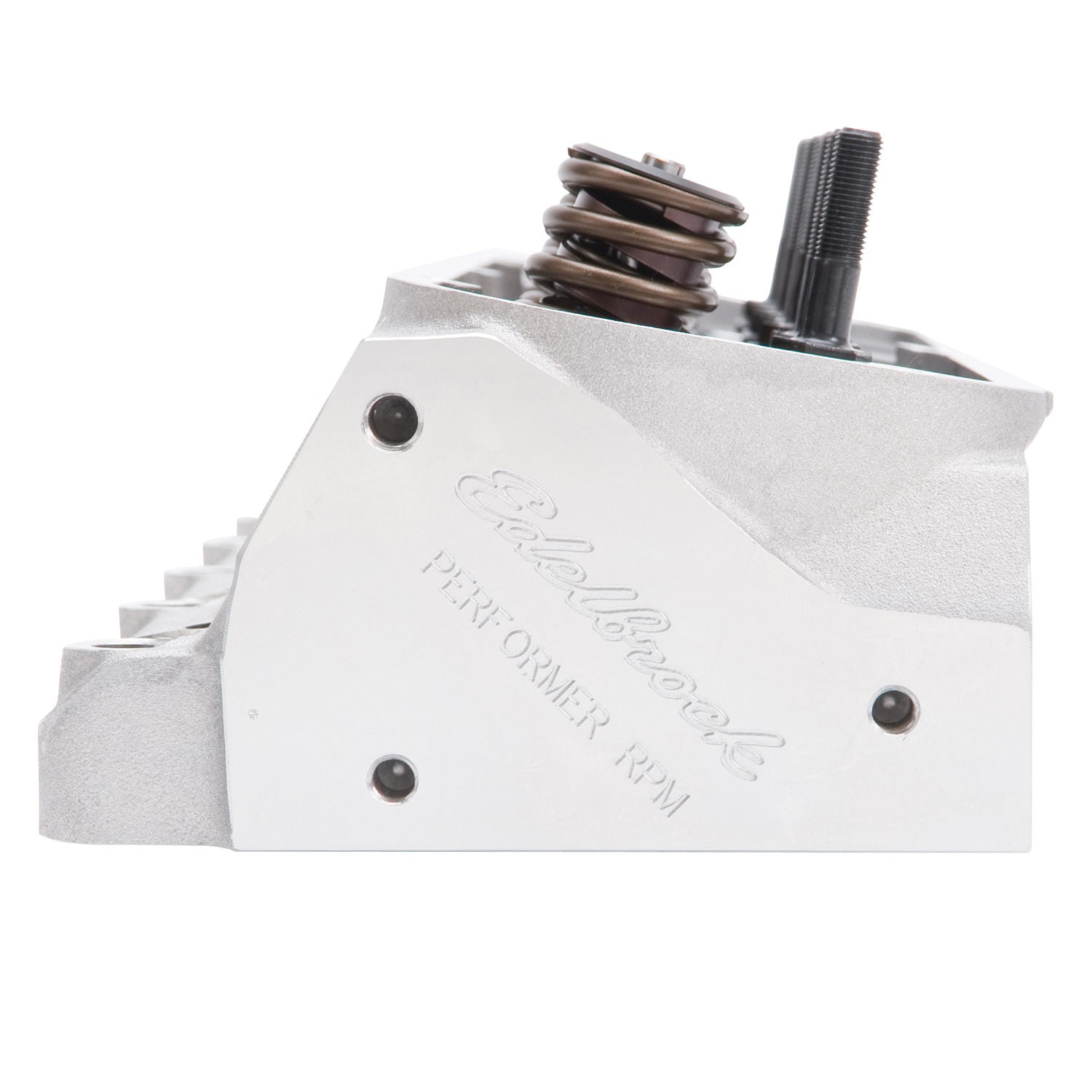

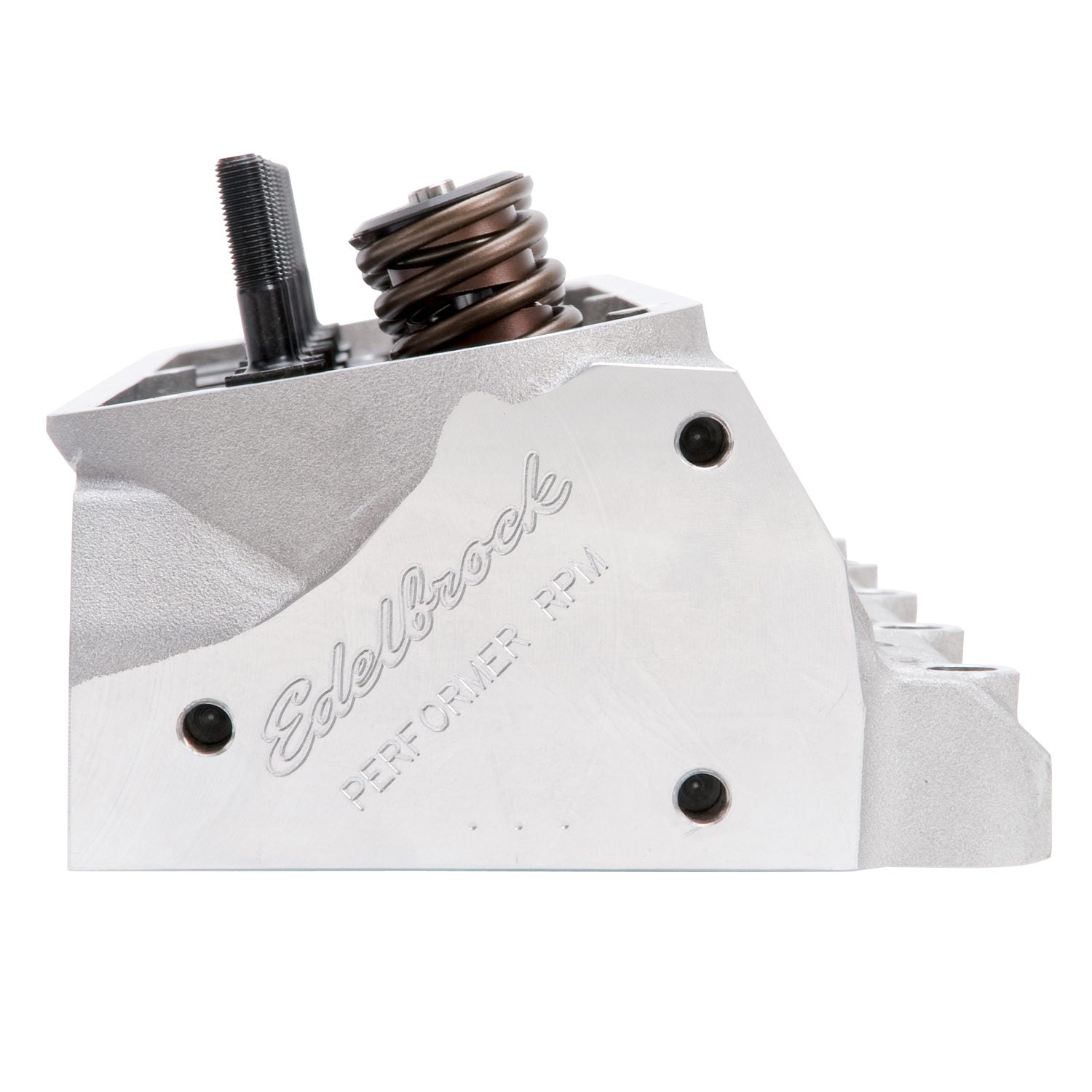

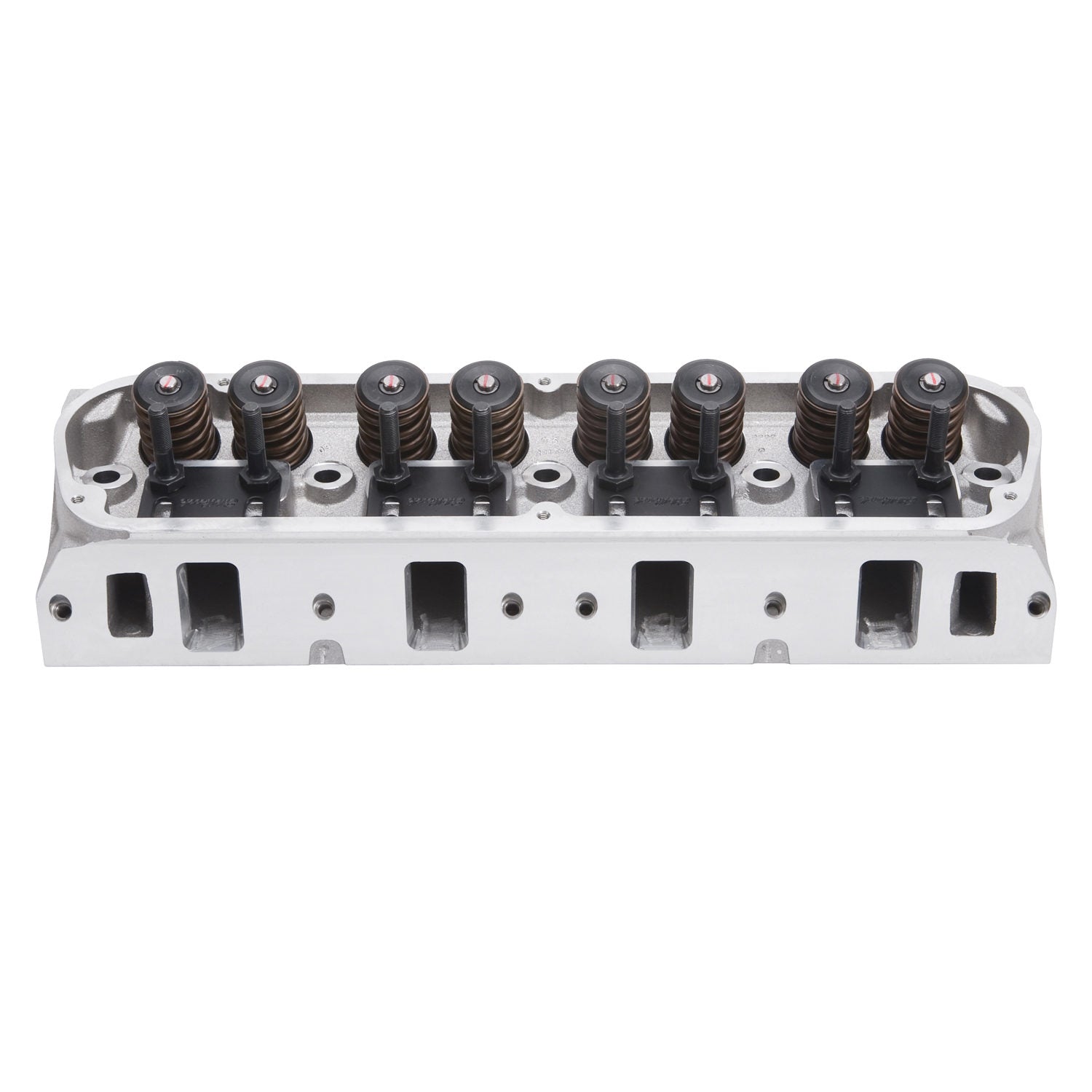

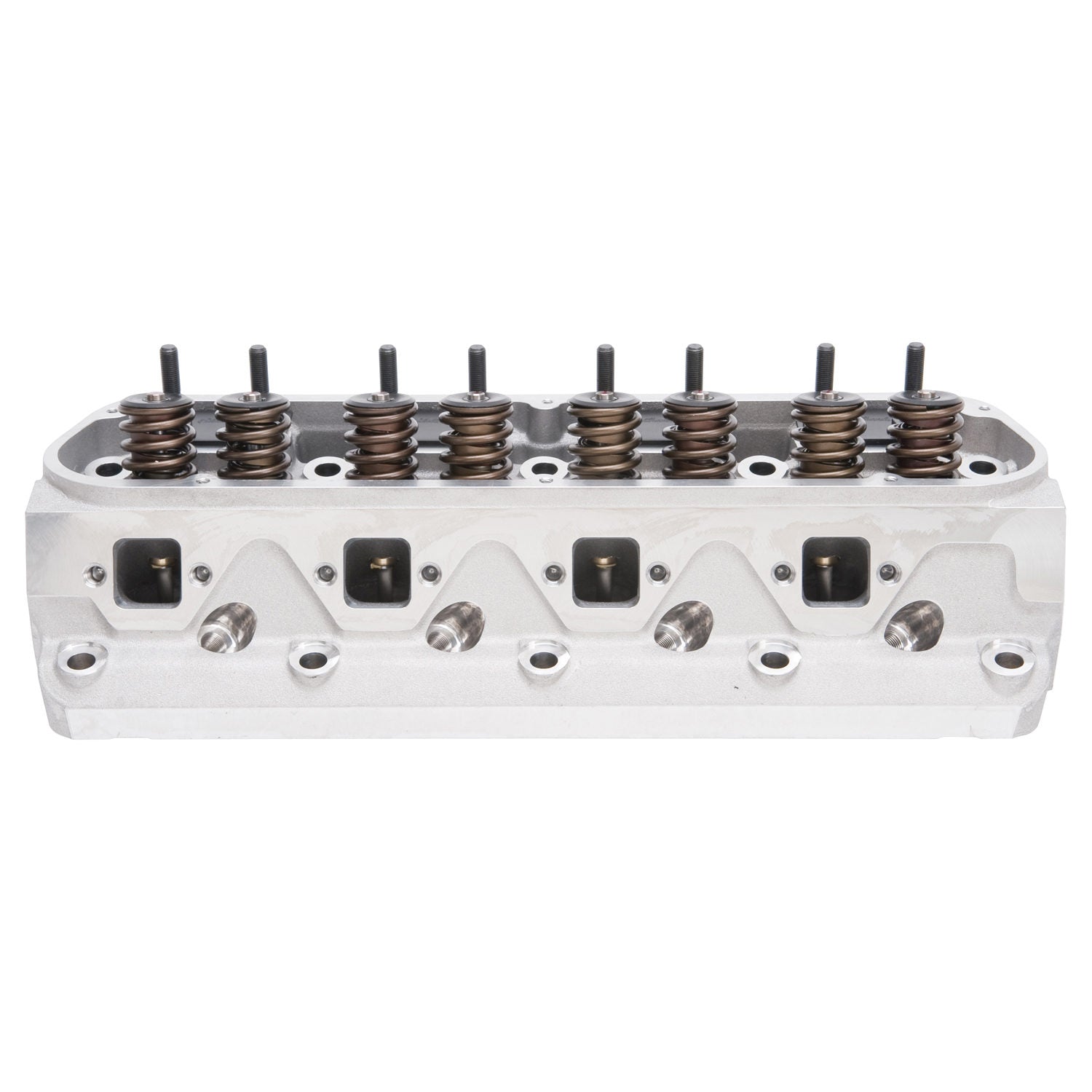

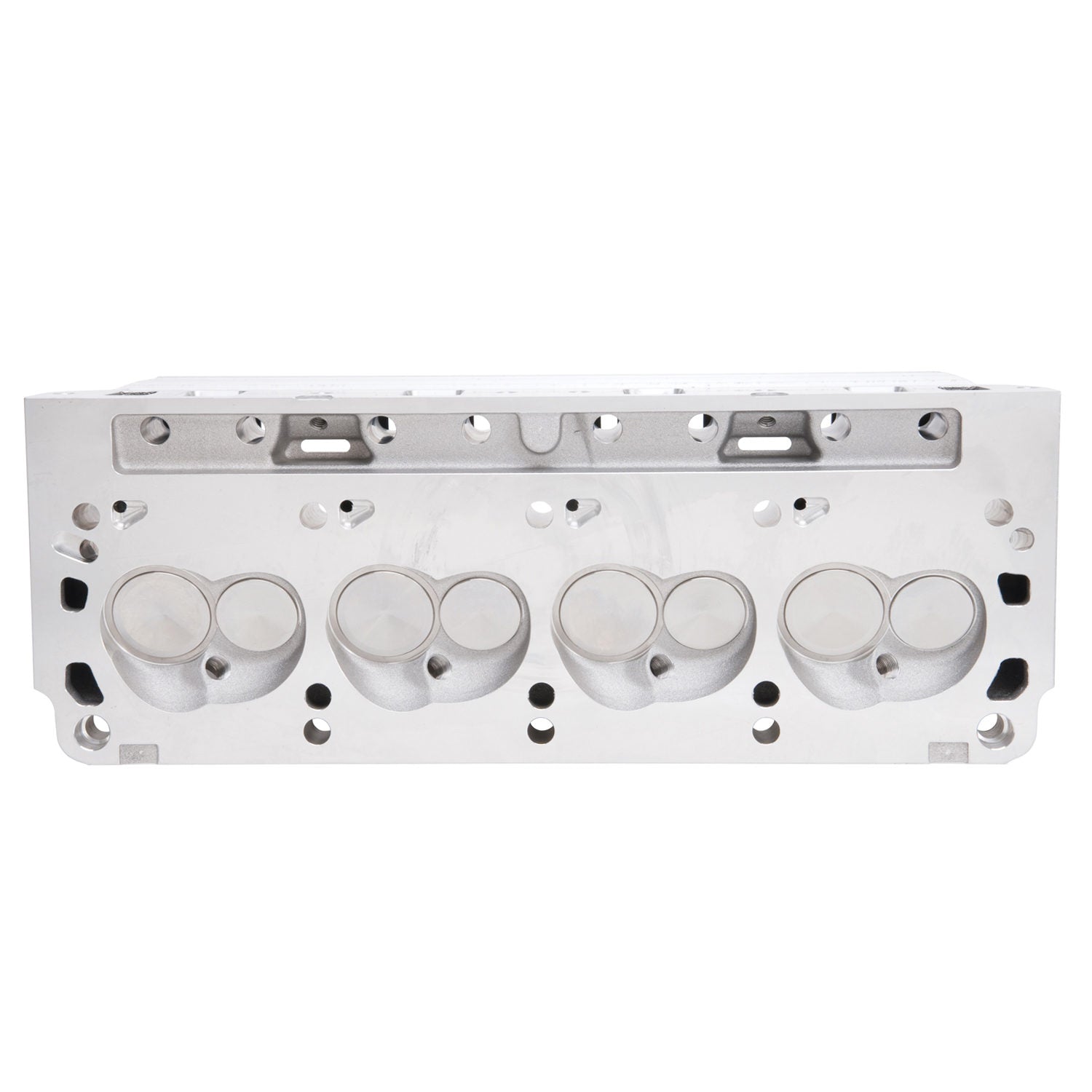

Edelbrock 60225 - Cylinder Head SB Ford Performer RPM 1 90In Int Valve for Hydraulic Roller Cam As Cast (Ea)

Edelbrock  |  SKU: EDEL-60225
$1,15795 $1,27374

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 60225 - Cylinder Head SB Ford Performer RPM 1 90In Int Valve for Hydraulic Roller Cam As Cast (Ea)

Cylinder Head - Performer RPM - Assembled - 1.900 / 1.600 in Valves - 170 cc Intake - 60 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Ford - Each

The Edelbrock #60225 Performer RPM cylinder heads are designed for use with 289-351W SB Ford applications. The #60225 heads are perfect for street performance, daily drivers and muscle cars where more performance is needed

The Edelbrock #60225 Performer RPM cylinder head is designed for use with 289-351W c.i.d. Small-Block Ford applications. The Edelbrock #60225 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • 70cc Combustion Chambers Improve Performance
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 170
Head Casting Number: 6025P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.5
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 60
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Valve Stem Diameter: 0.3438
Rocker Arm Stud Diameter: 0.375
Exhaust Runner Volume: 60
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
EGR Port: No
Horsepower: 300-450
Seat Material: Ductile Iron
Deck Thickness: 0.625
Guide Material: Manganese Bronze
Camshaft Type: Hydraulic Roller
Push Rod Diameter: (Suggested) 0.3125
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Sold Individually
Retainer Included: Yes
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.575
Valve Angle: 20
Exhaust Port Location: Standard
Series: Performer RPM
Family: Performer RPM
Construction Type: Complete
CNC Ported: No
Intake Valve Diameter: 1.90
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
