Edelbrock 5794 - V/S Chev 262-400 Perf RPM and Torker Spring Kit
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

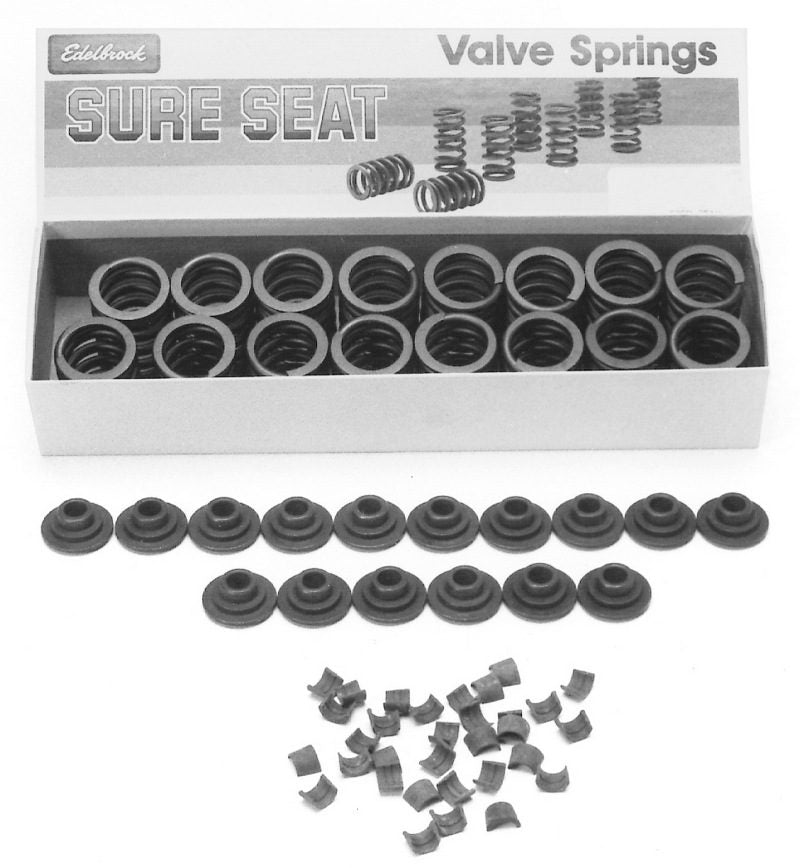

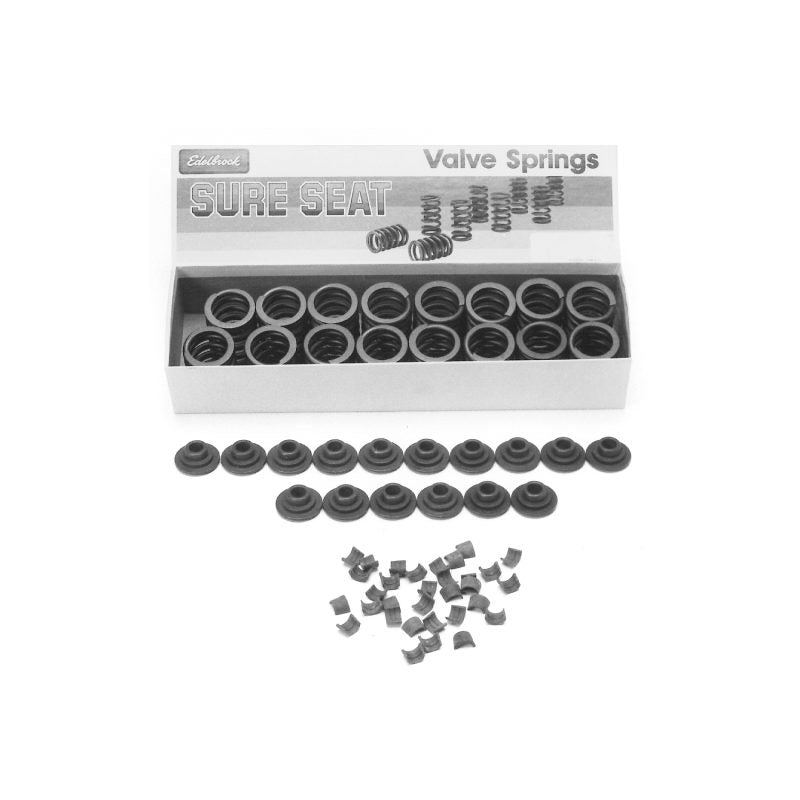

Edelbrock 5794 - V/S Chev 262-400 Perf RPM and Torker Spring Kit
Valve Spring - Sure Seat - Single Spring / Damper - 357 lb/in Spring Rate - 1.120 in Coil Bind - 1.265 in OD - Steel Retainers / Steel Valve Locks Included - Small Block Chevy - Kit
Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160"
- Complete Kit: Includes Retainers And Locks
- High-Quality Alloy For Long Life
- Springs Precision Wound To Close Tolerances
- Includes Superior Quality Steel Retainers
- Includes 7 Deg. Heat-Treated Valve Stem Locks
- Retainers and Locks Black Oxide Coated
- Non-Rotator Style: Dyno-Tested And Street-Proven
- Great Match to Edelbrock Camshaft Kit
