Edelbrock 5440 - Chrysler 440 Ch-28 Manifold
Edelbrock | SKU:
EDEL-5440
Sale price
$53095
Regular price
$58404
Unit price
/
Unavailable
$53.09 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

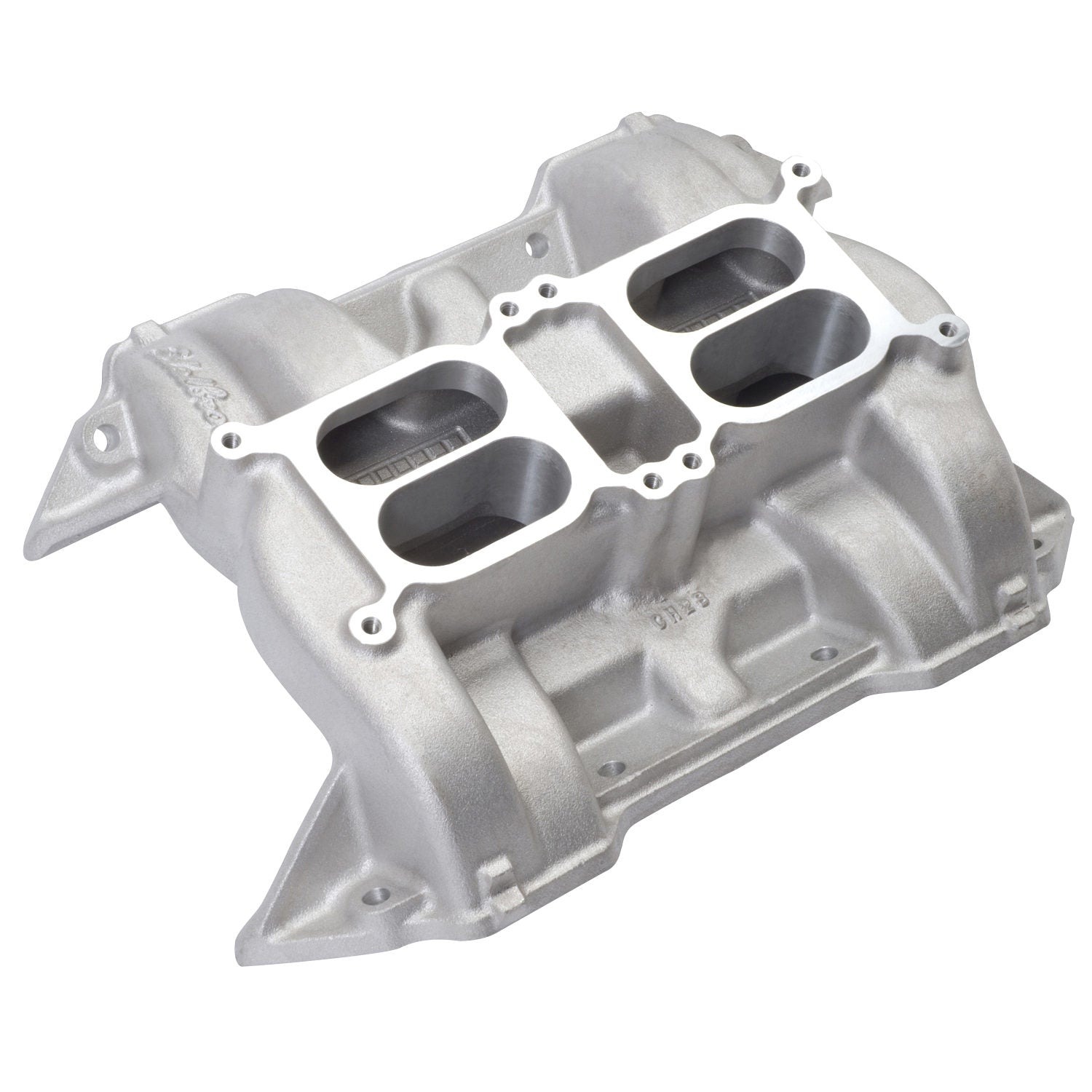

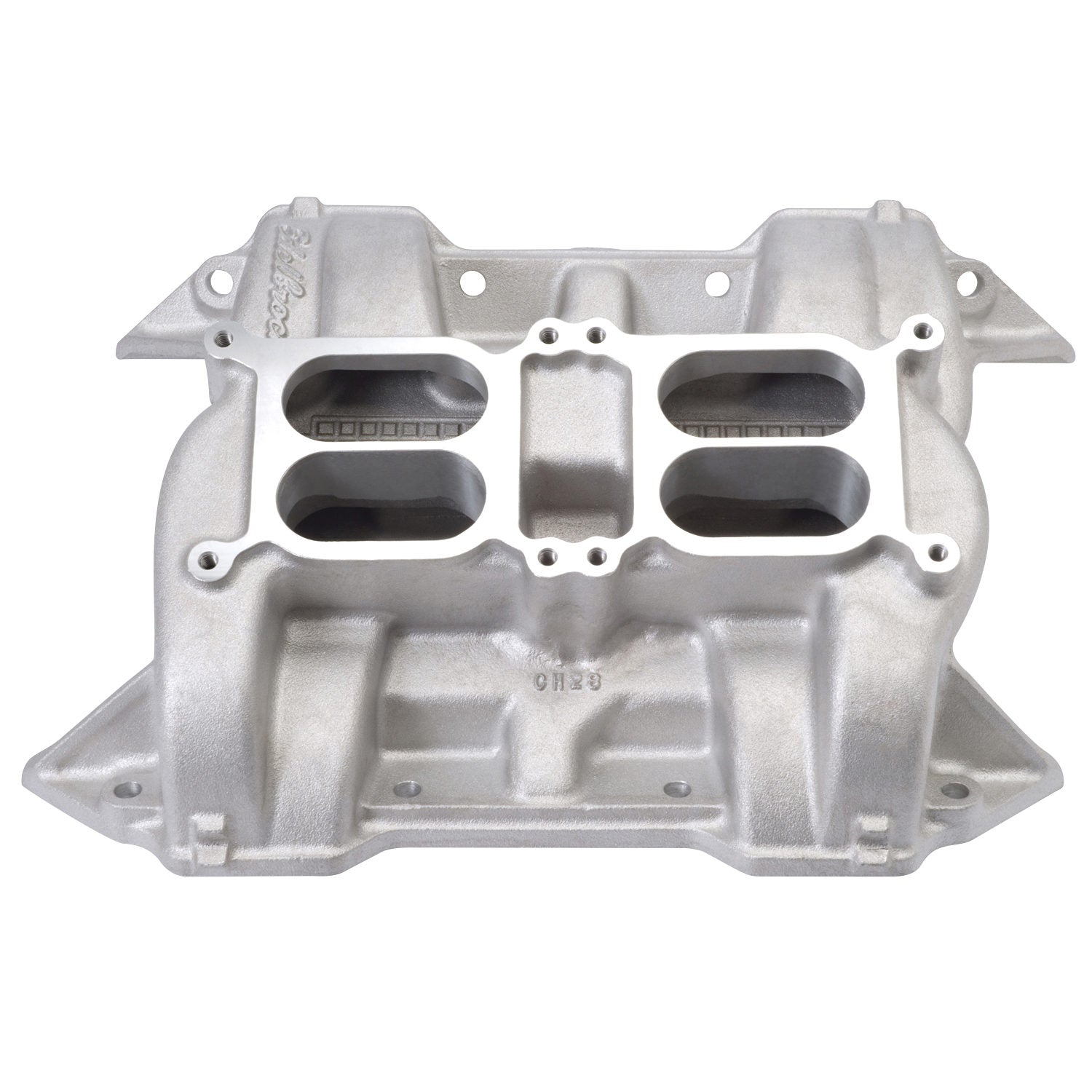

Edelbrock 5440 - Chrysler 440 Ch-28 Manifold
Intake Manifold - Chrysler Ch-28 - Square Bore - Dual Quad - Aluminum - Natural - Mopar RB-Series - Each
Edelbrock CH-28 Dual-Quad Intake Manifold for Chrysler 413-426-440 Big-Block V8
Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block.
- Designed for 1500 to 6000 RPM Performance
- Manifold Has Balanced 180+ Firing Order
- Smooth and Consistent Part-Throttle Power
- Offers Excellent Performance Potential
- Carburetor Center-To-Center Dimensions 6.4375 in.
- Match with Other Dual-Quad Items for Total Package
- Engine Swaps
Series: Dual-Quad/Multi Carb
Grade Type: Performance
Single Or Dual Plane Type: Dual
CNC Ported: No
Rear Maximum Height: 4.880
Material: Aluminum
Center Maximum Height: 4.660
Flange Type: 4150 Dual-Quad (4-Barrel Square Bore)
Gasket Or Seal Included: No
Basic Operating RPM Range: 1500-6000
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Vehicle Model: Chrysler
Color: Satin
EGR Port: No
Front Maximum Height: 4.450
