Edelbrock 5090 - Cylinder Head E-Street Big Block Chrysler 75cc Chamber Complete Pair

Edelbrock  |  SKU: EDEL-5090
$1,64295 $1,80724

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

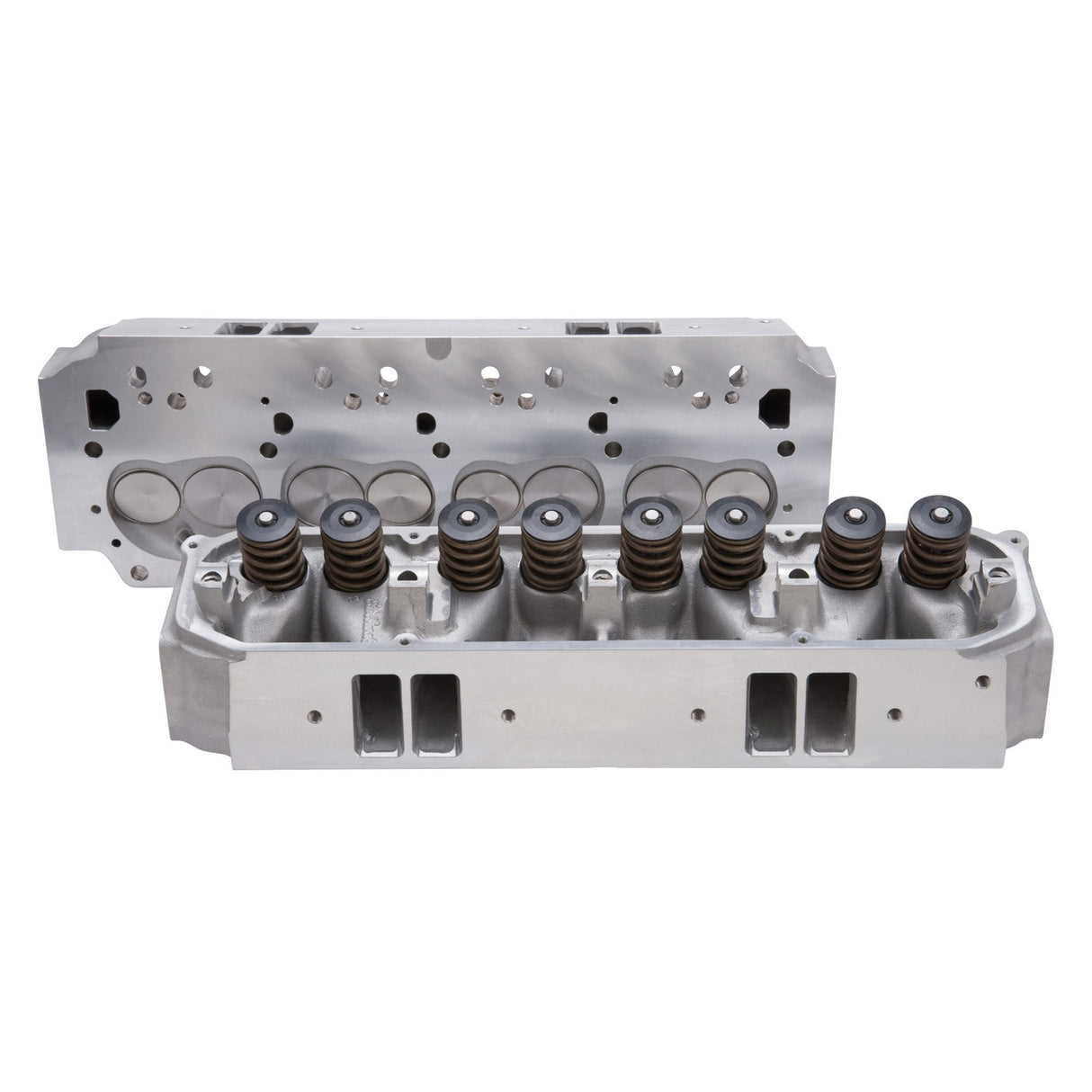

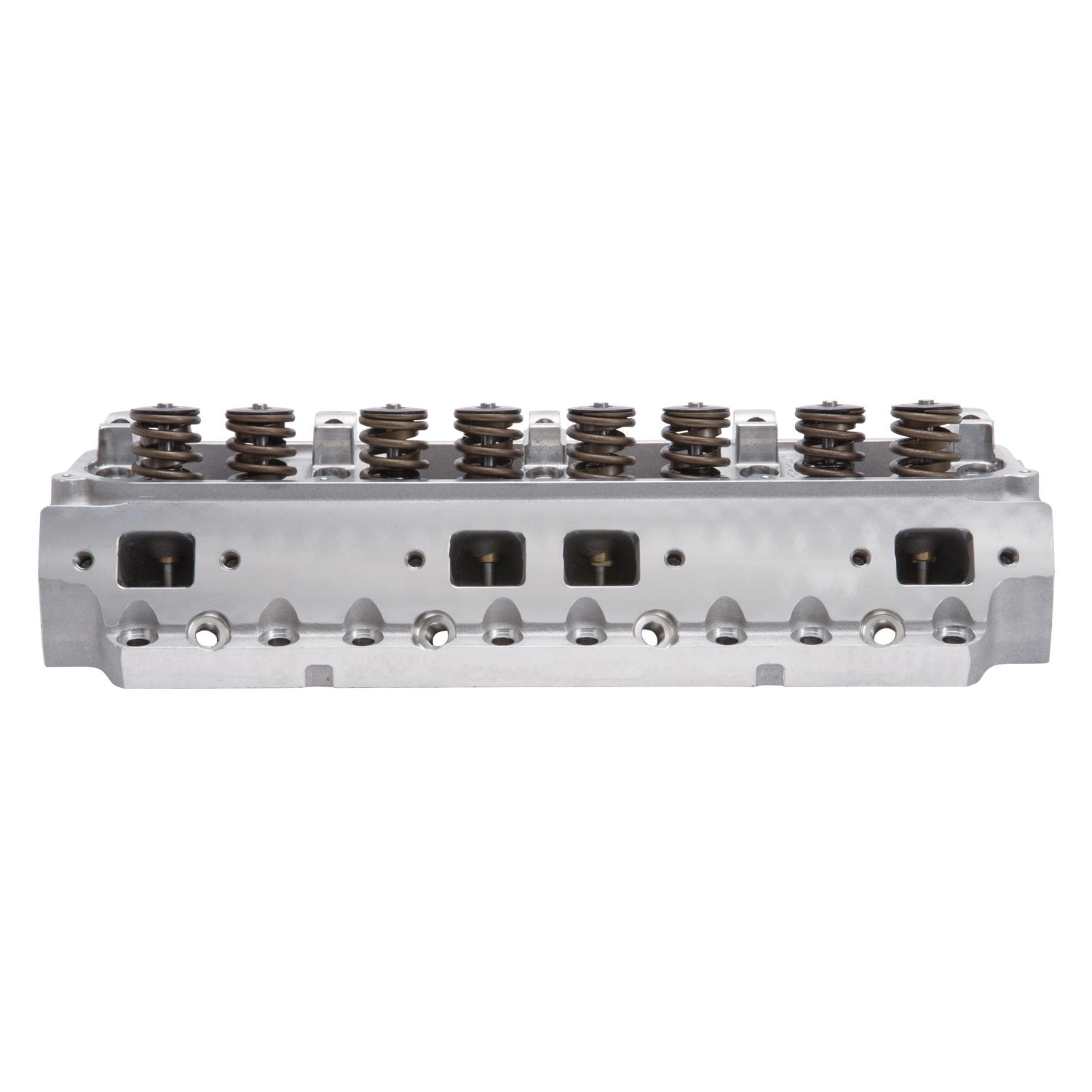

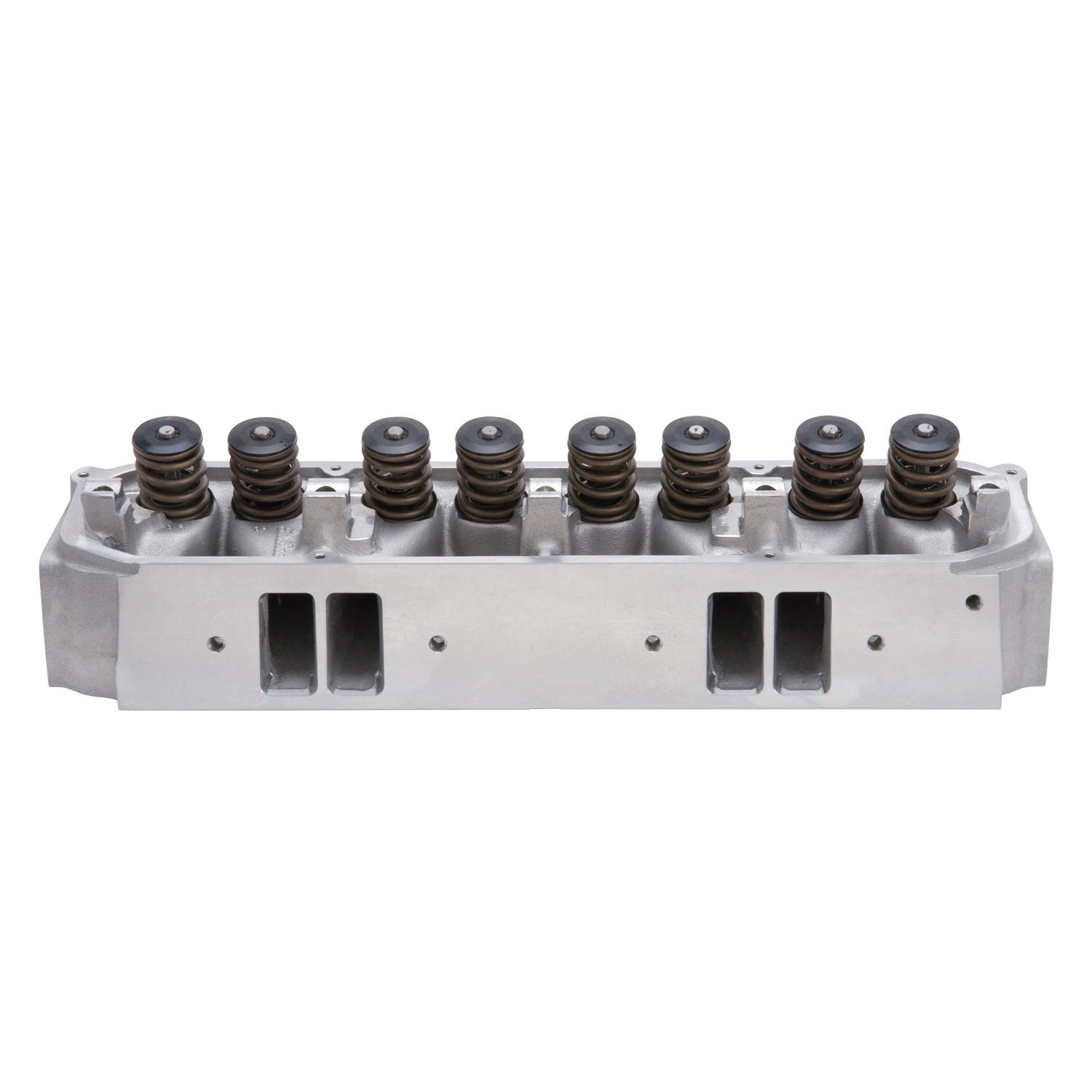

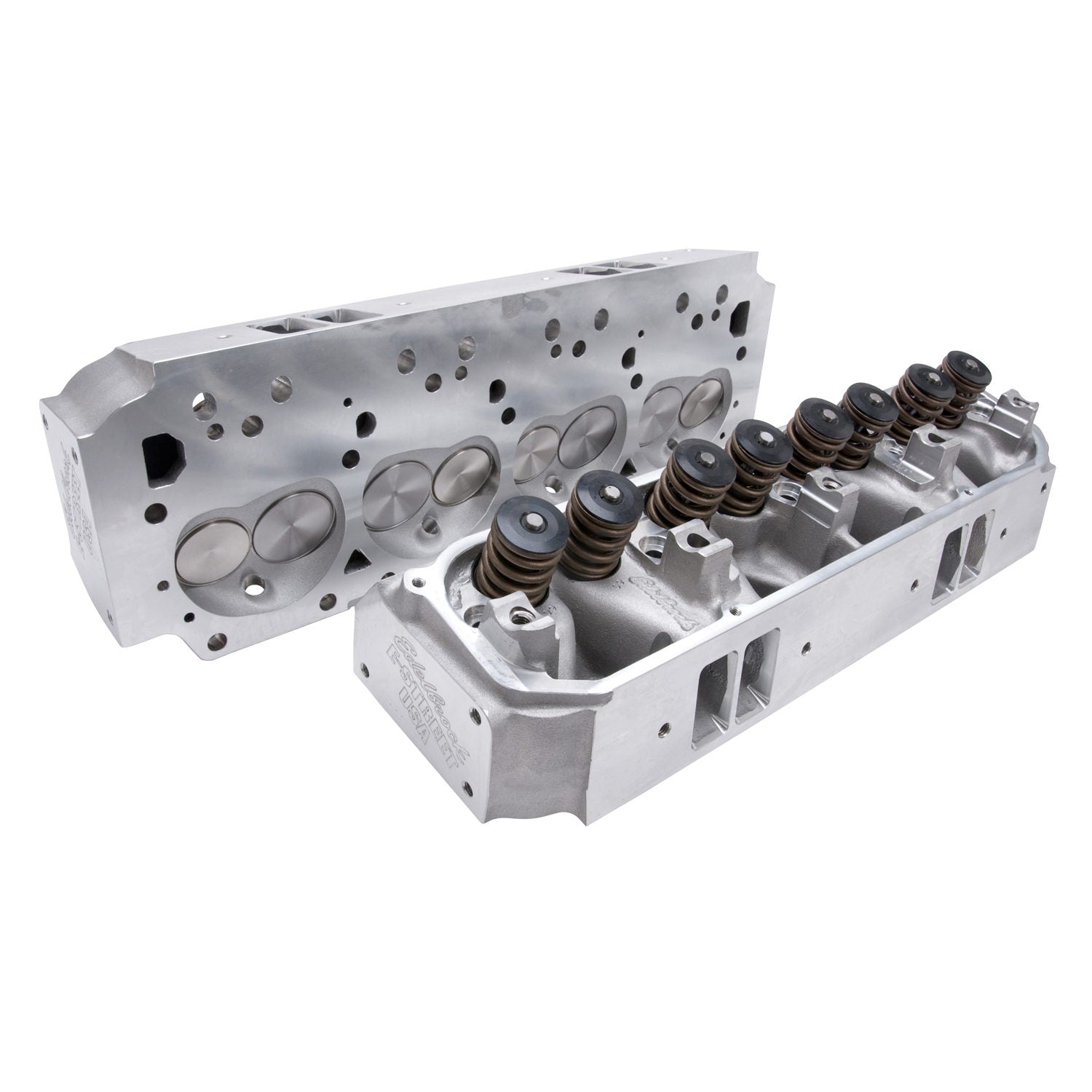

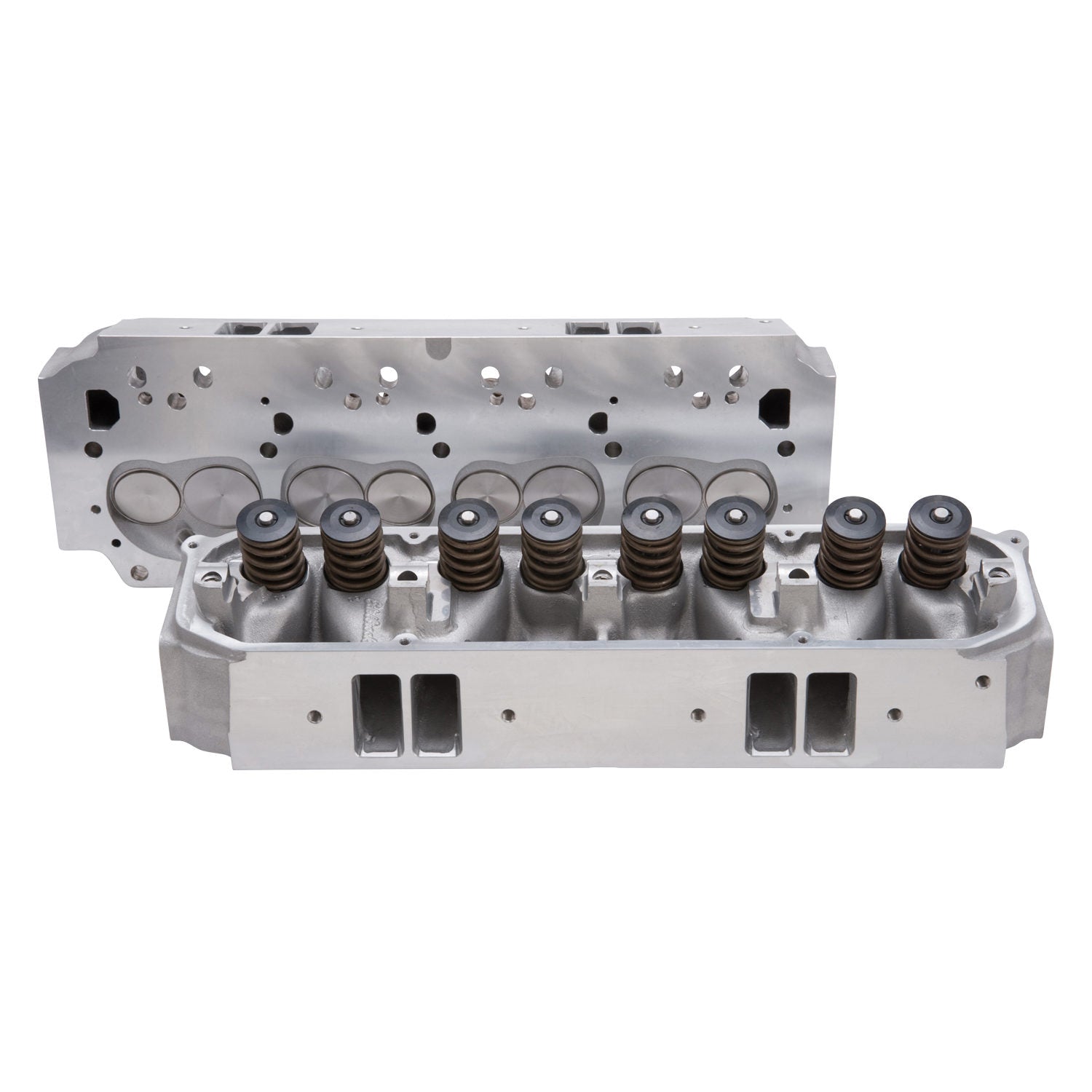

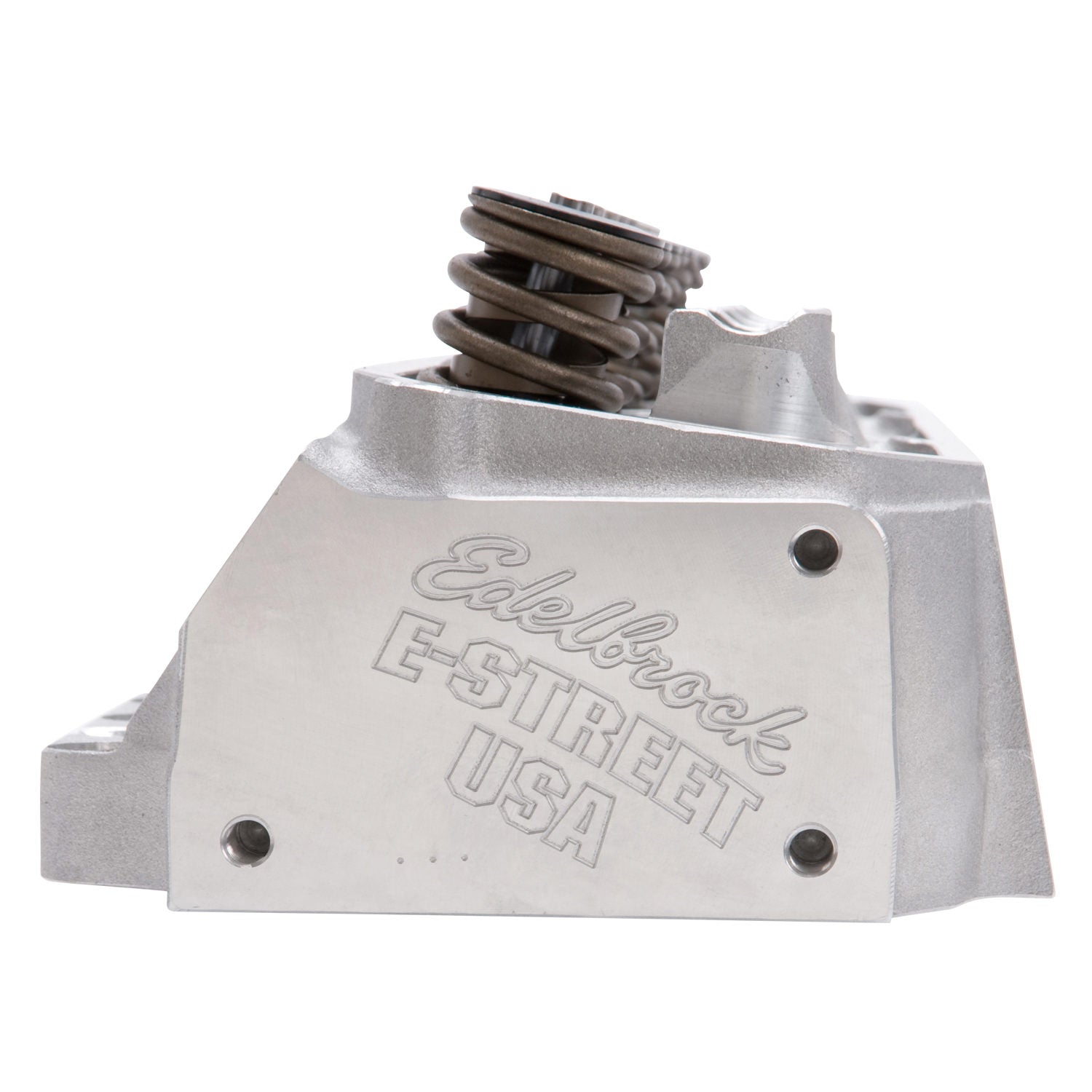

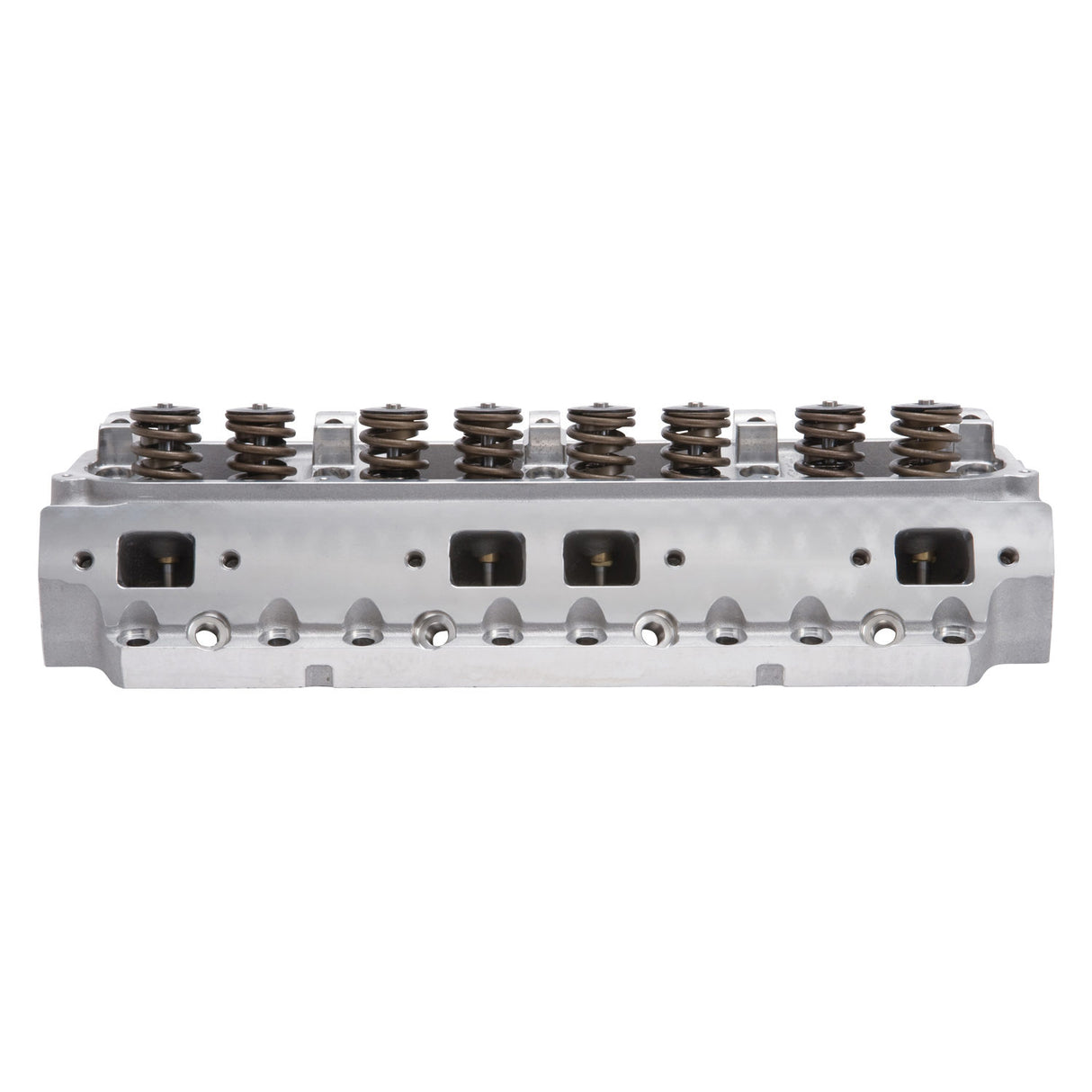

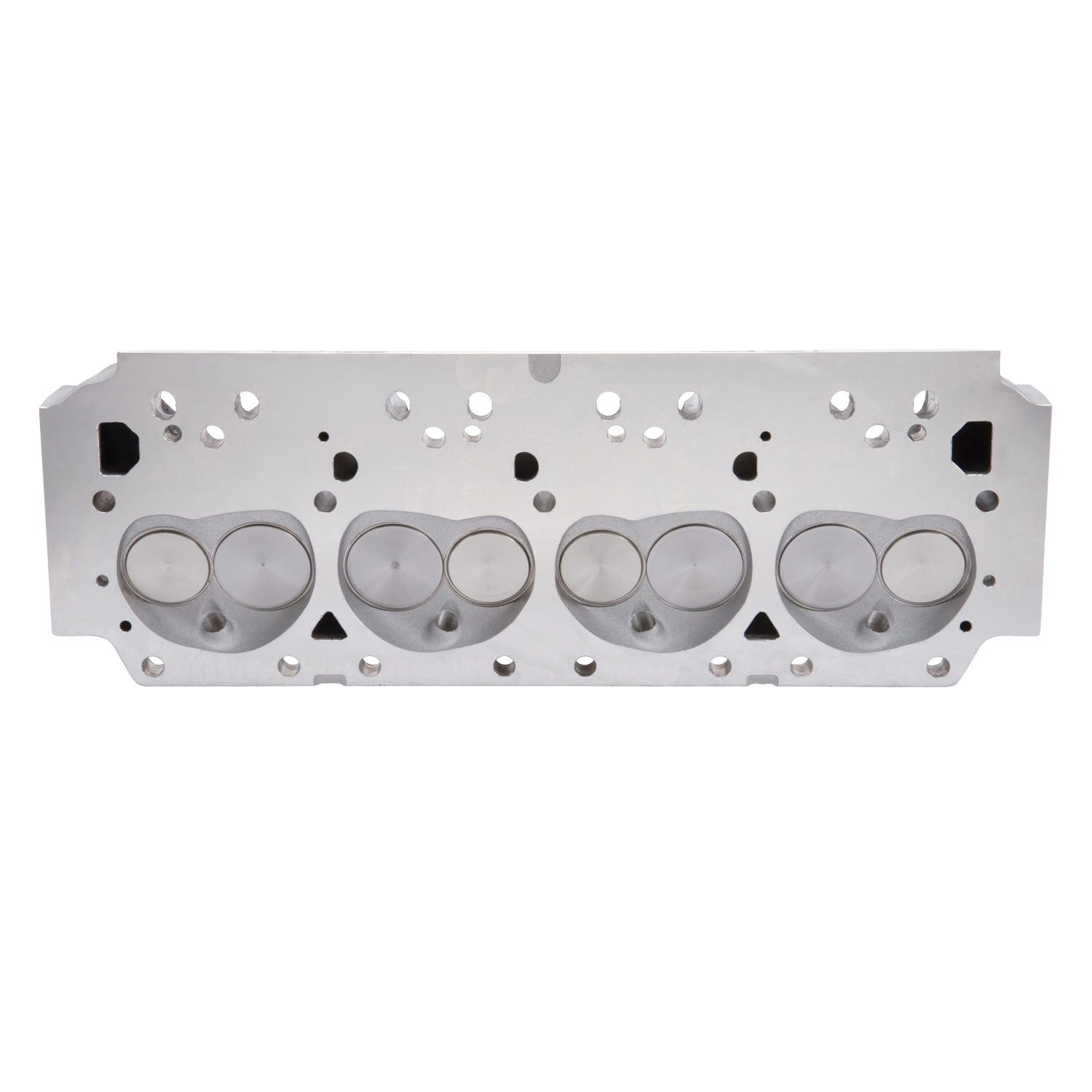

Edelbrock 5090 - Cylinder Head E-Street Big Block Chrysler 75cc Chamber Complete Pair

Cylinder Head - E-Street - Assembled - 2.140 / 1.810 in Valves - 210 cc Intake - 75 cc Chamber - 1.550 in Springs - Straight Plug - Aluminum - Mopar RB-Series - Pair

The Edelbrock #5090 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Construction Type: Complete
Deck Thickness: 0.625
Rocker Arm Studs/Bolts Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Mounting Hardware Included: No
Assembled: Yes
Material: Aluminum
Intake Runner Volume: 210
Head Casting Number: 5090F
Guide Plates Included: No
Grade Type: Performance
Deck Height: 9.98
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 75
Valves Included: Yes
Valve Lock Material: Steel
Exhaust Runner Volume: 70
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.375
Valve Angle: 15
Exhaust Port Location: Standard
Camshaft Type: Flat Tappet
CNC Ported: No
Guide Material: Manganese Bronze
Quantity: Set of 2
Valve Spring Diameter: 1.55
Seat Angle: Exhaust 45 deg/Intake 45
Series: E-Street
Horsepower: 400-550
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Family: E-Street
Intake Valve Diameter: 2.14
Exhaust Valve Diameter: 1.81
Valve Spring Maximum Lift: 0.600
EGR Port: No
Seat Material: Ductile Iron
