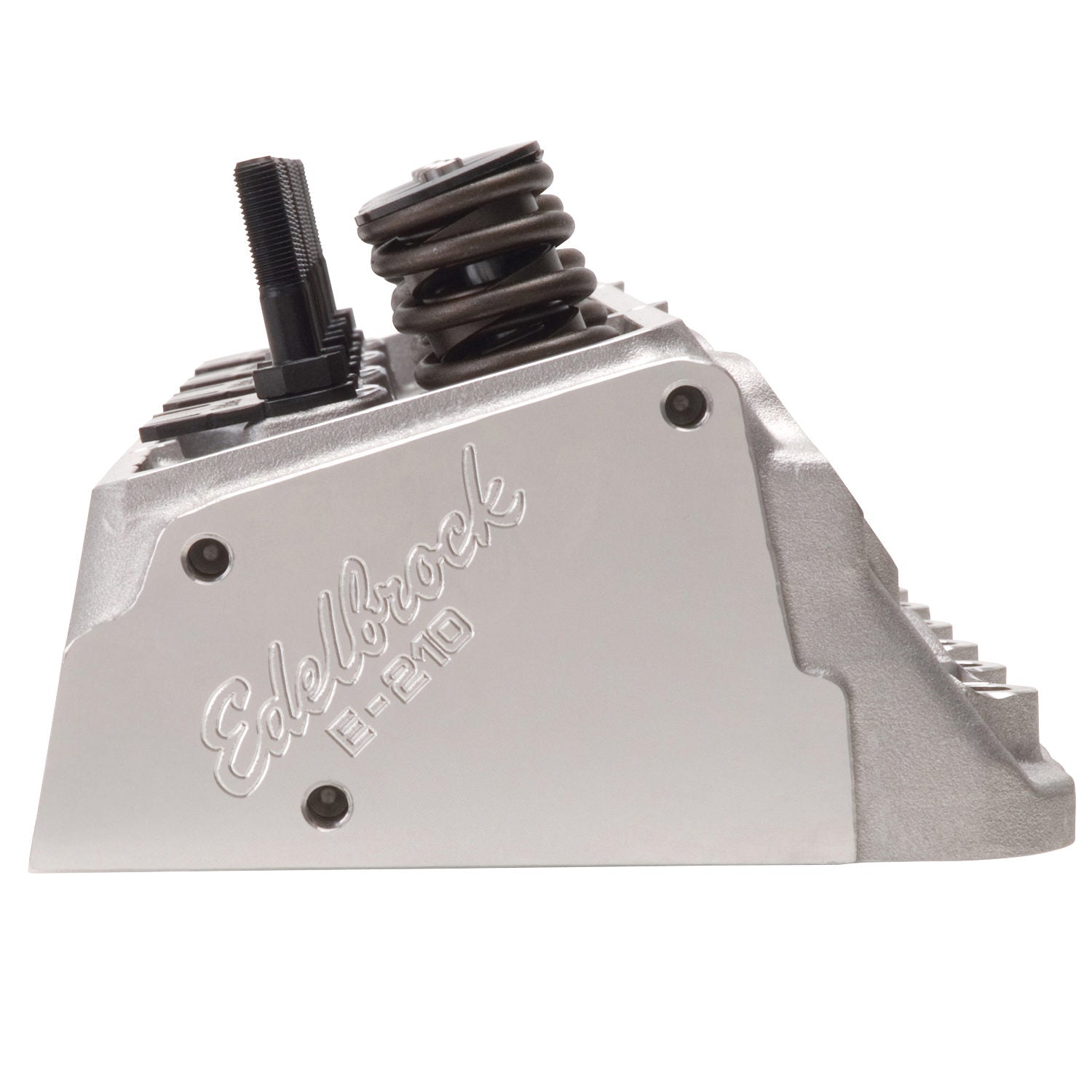

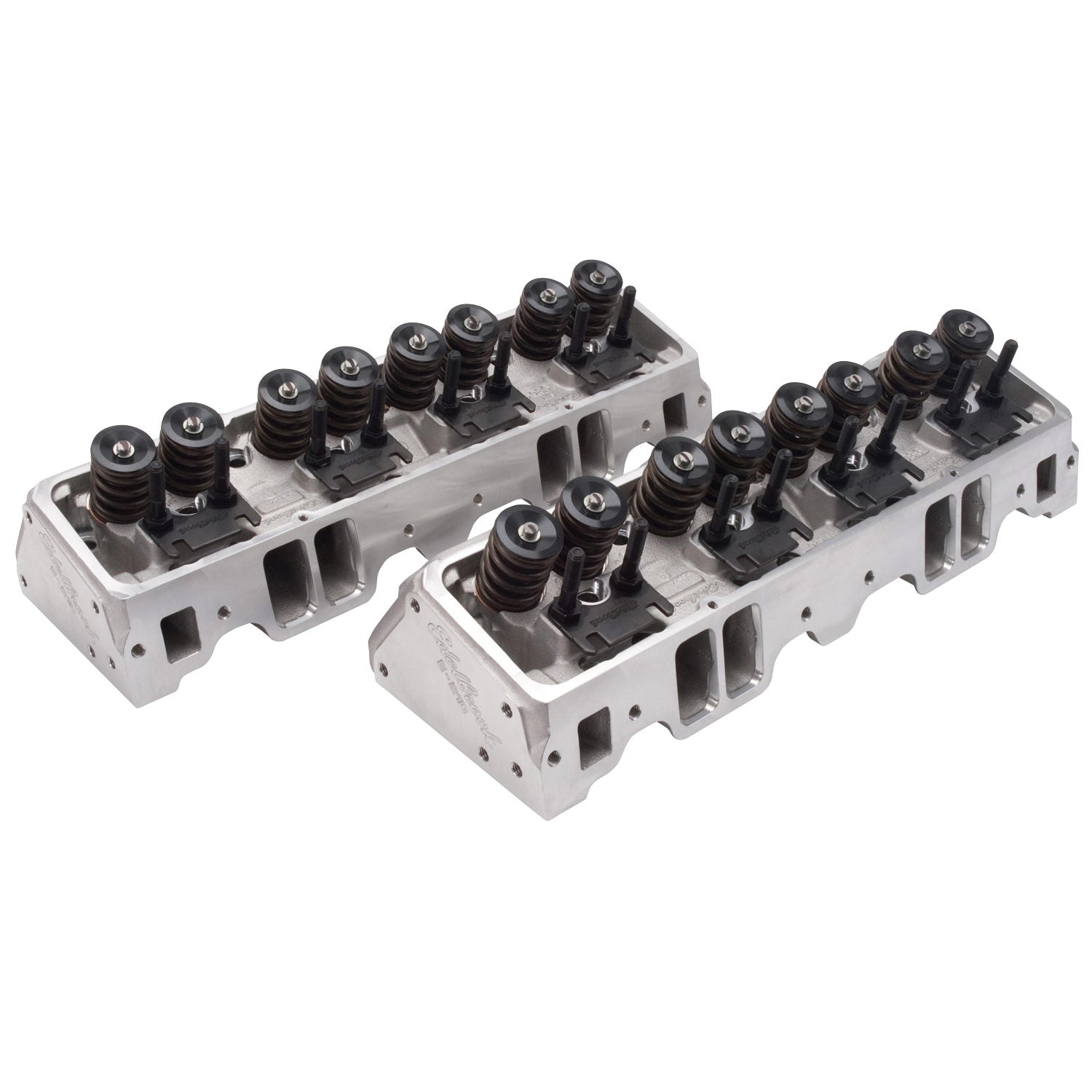

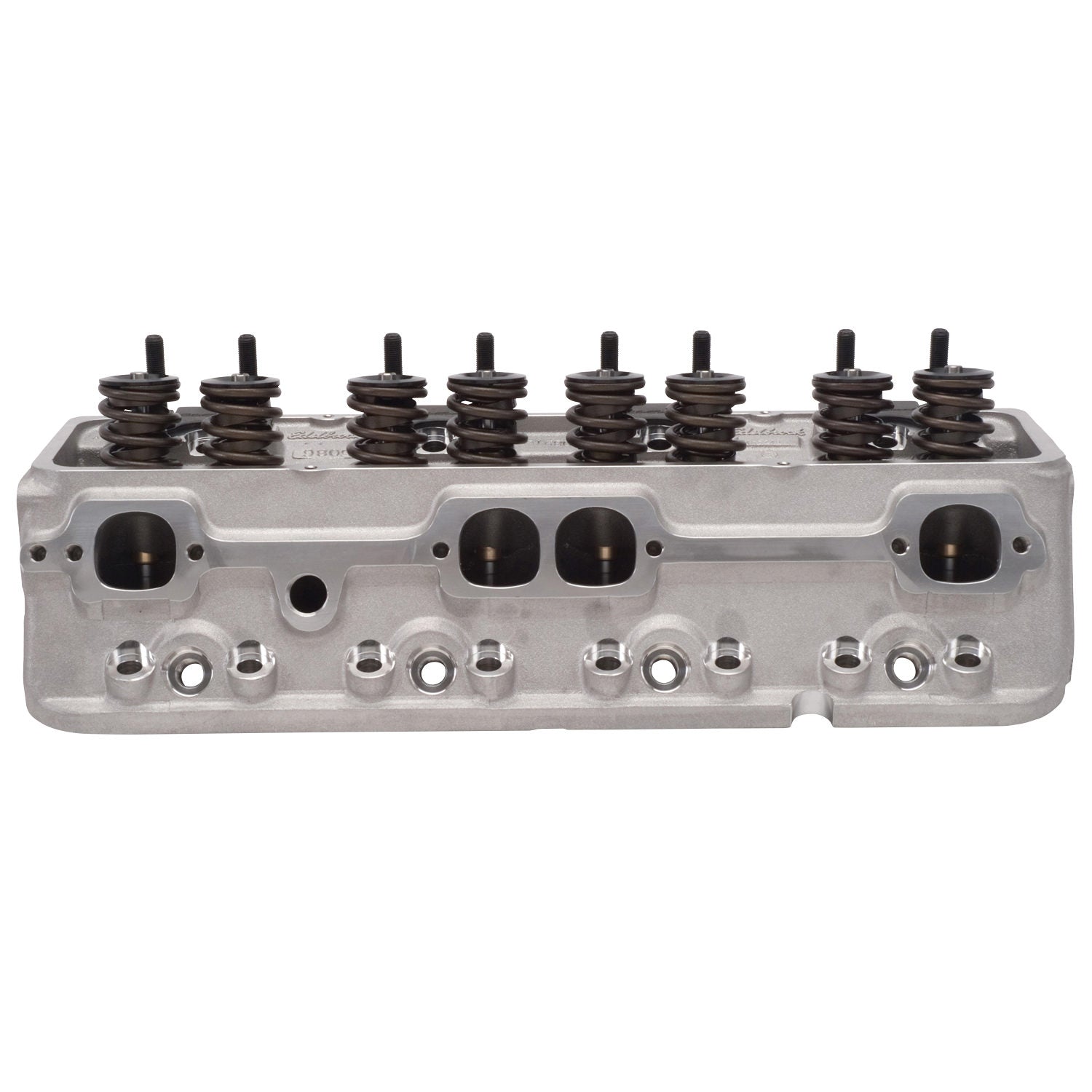

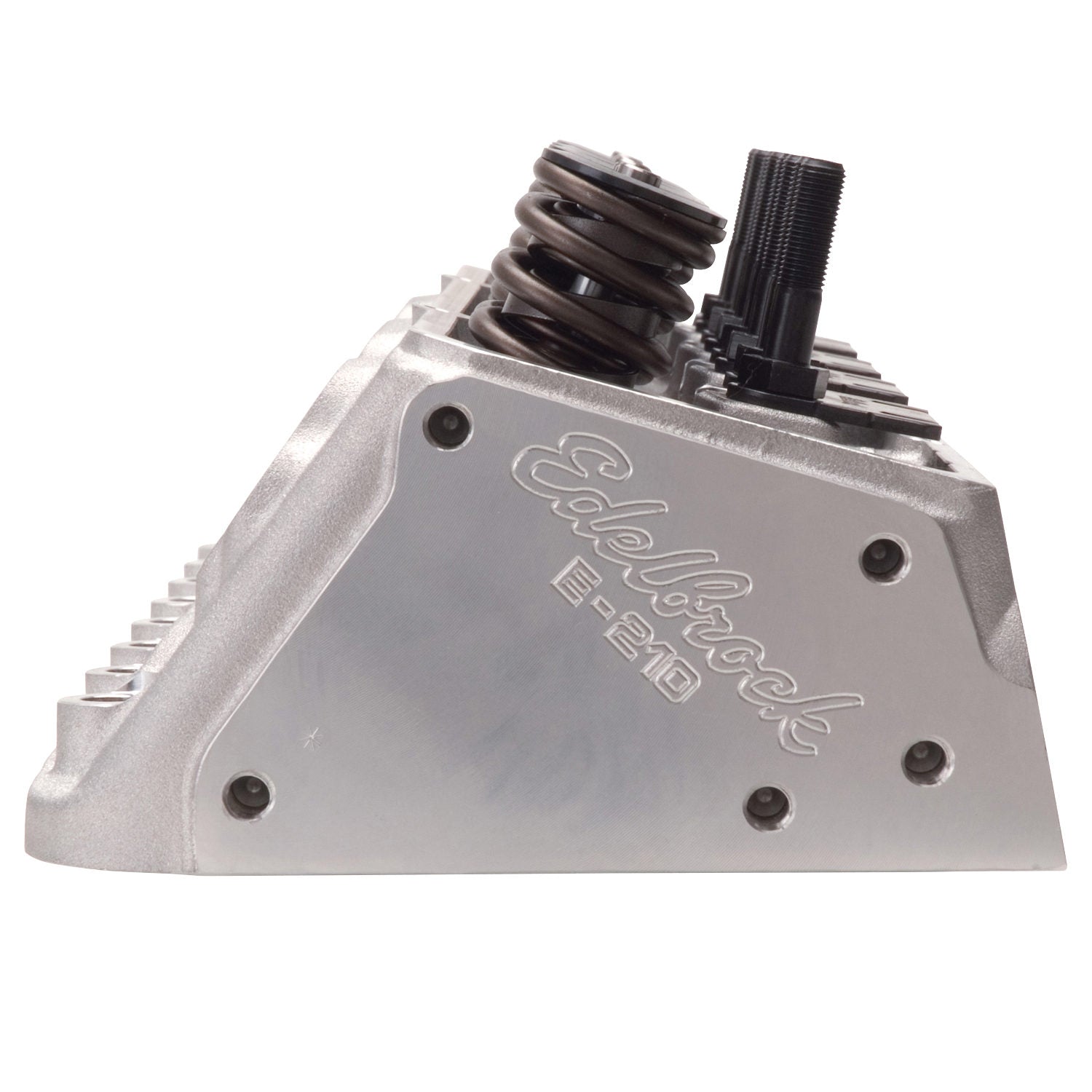

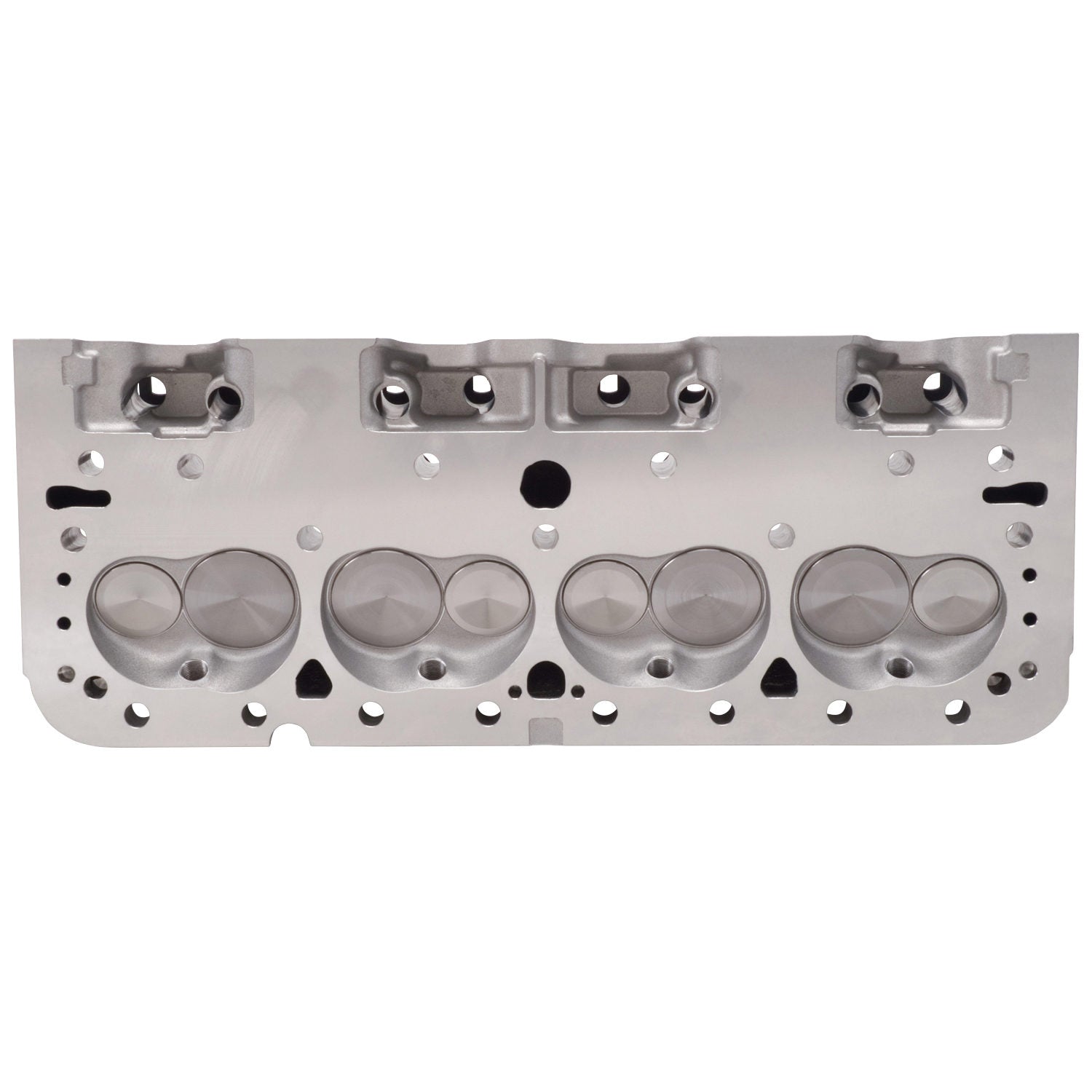

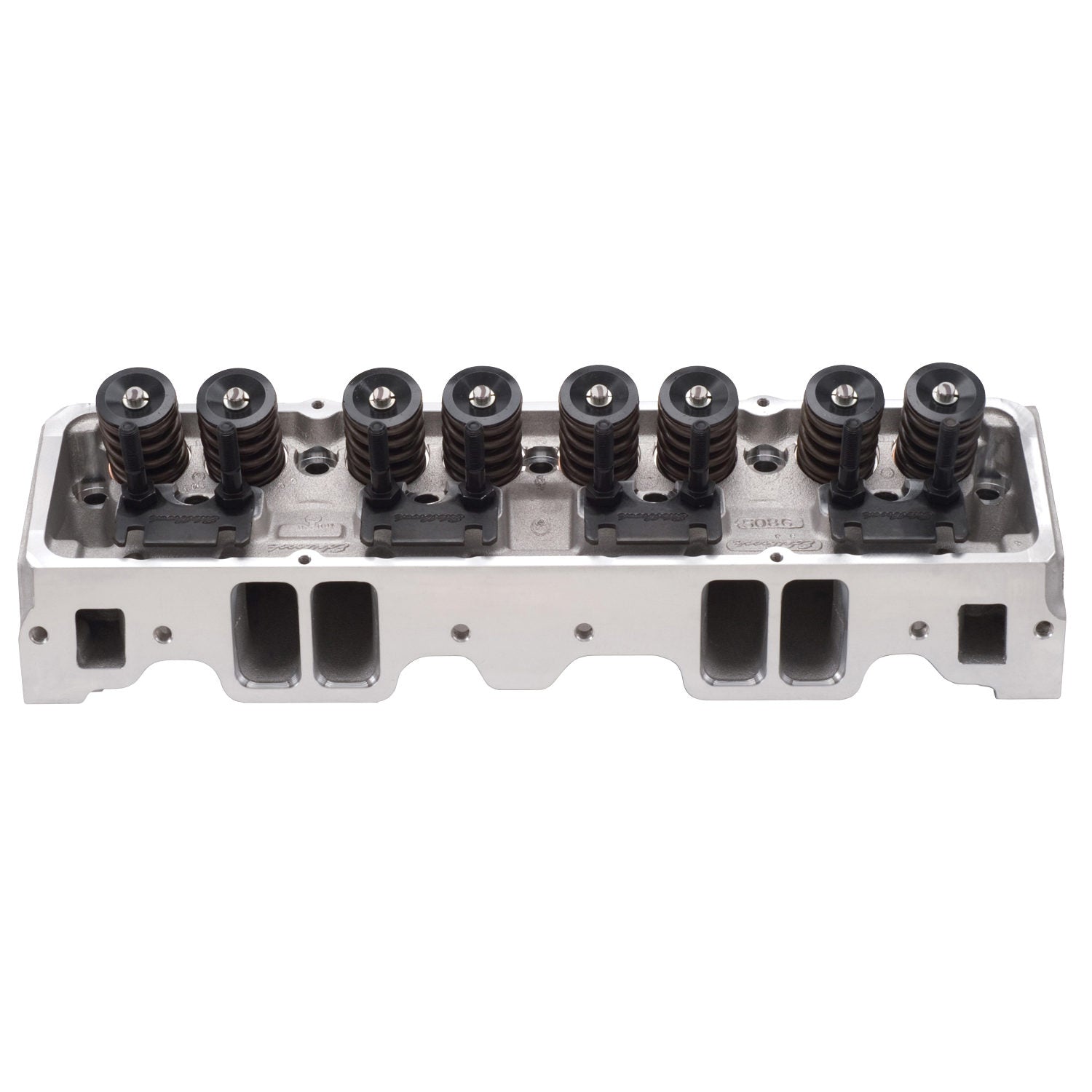

Edelbrock 5087 - Cylinder Head E-Series E-210 SB Chevrolet (Complete Pair)

Edelbrock  |  SKU: EDEL-5087
Sale price $2,30299 Regular price $2,53329

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 5087 - Cylinder Head E-Series E-210 SB Chevrolet (Complete Pair)

Cylinder Head - E-Series E-210 - Assembled - 2.080 / 1.600 in Valves - 210 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

  • Race Level Performance
  • Fully Compatible With OEM Equipment
  • Can Support 500+ Horsepower/6500 RPM
  • Larger Runners For Increased Airflow
  • Revised Exhaust Ports/Larger Diameter Springs
  • Ideal For Spec Series Racer
  • Exhaust Port Flange In Stock Location
  • Made In The U.S.A.
Valve Spring Diameter: 1.55
Series: E-Series
Horsepower: 400-550
Retainer Included: Yes
Push Rod Diameter: (Suggested) 0.5625
Valve Angle: 23
CNC Ported: No
Exhaust Port Location: Standard
Guide Material: Manganese Bronze
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 210
Head Casting Number: 5086P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Exhaust Runner Volume: 75
Valve Stem Diameter: 0.3438
Intake Valve Diameter: 2.08
Rocker Arm Stud Diameter: 0.375
EGR Port: No
Construction Type: Complete
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Center Bore Inside Diameter: Straight
Exhaust Valve Diameter: 1.60
Valve Spring Maximum Lift: 0.650
Family: E-Series
Seat Material: Ductile Iron
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Set of 2
Camshaft Type: Hydraulic Roller
Deck Thickness: 0.5625
