Edelbrock 5085 - 1Pr Cyl Head E-210 SBC 64cc Perf RPM (Complete Pair)

Edelbrock  |  SKU: EDEL-5085
Sale price $2,19999 Regular price $2,41999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

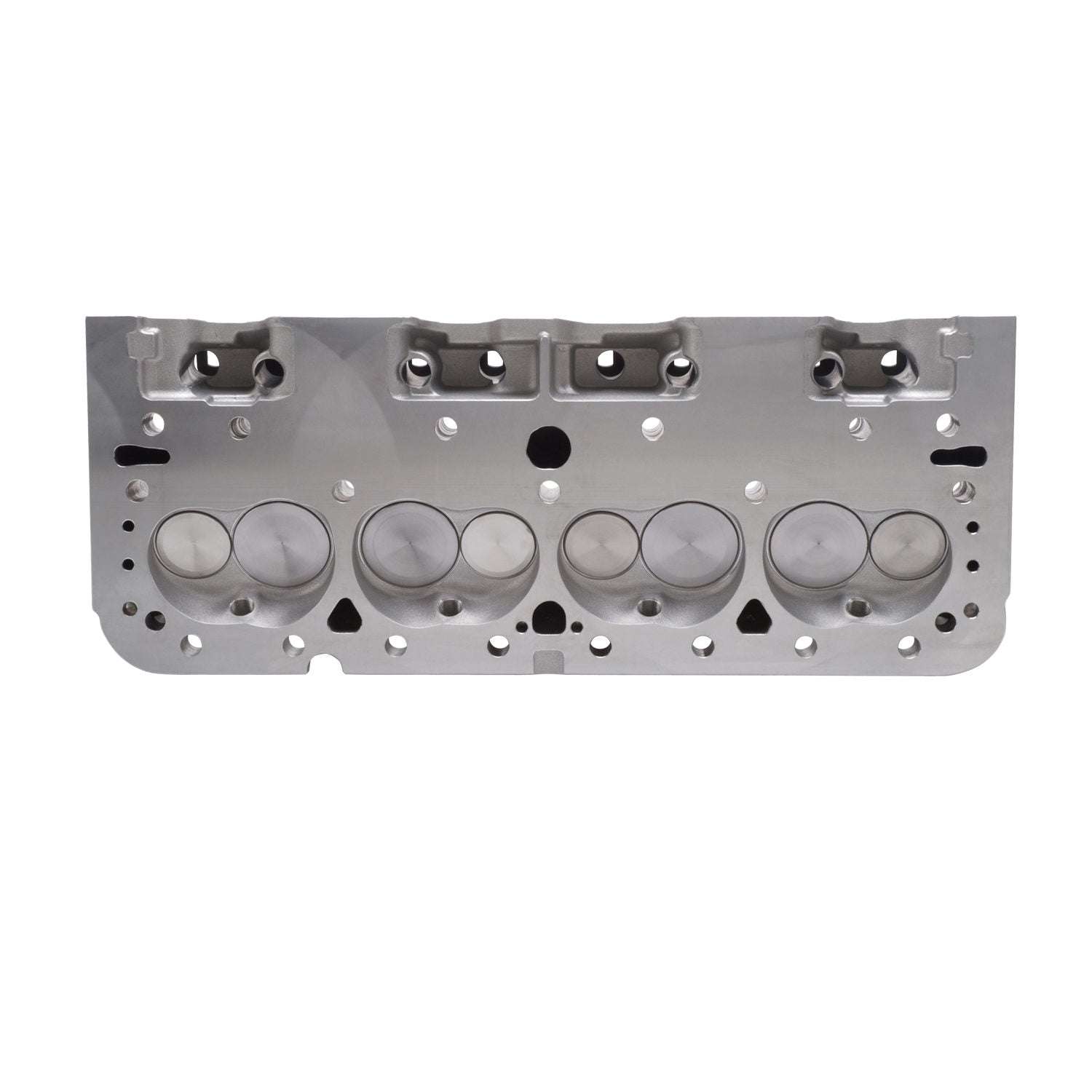

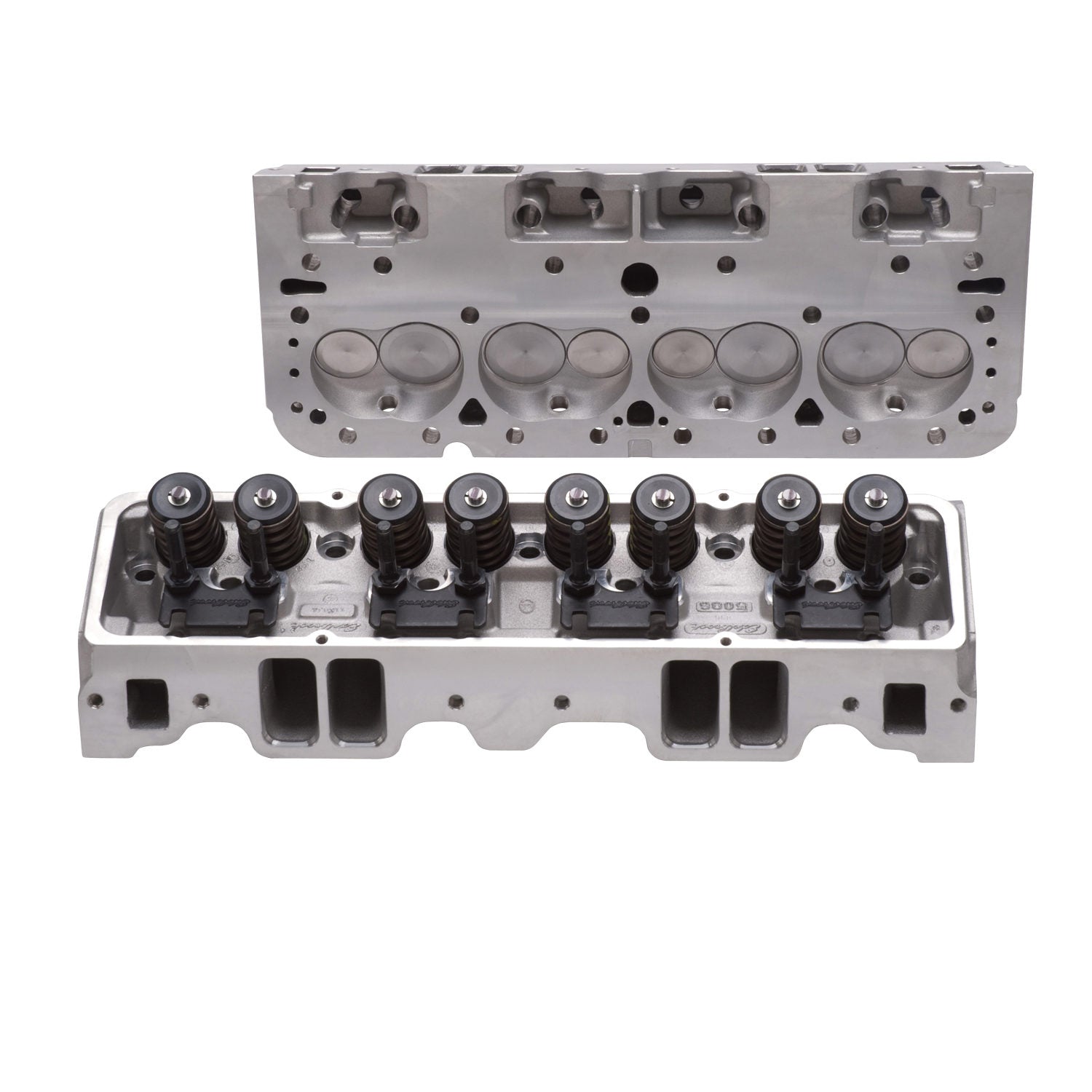

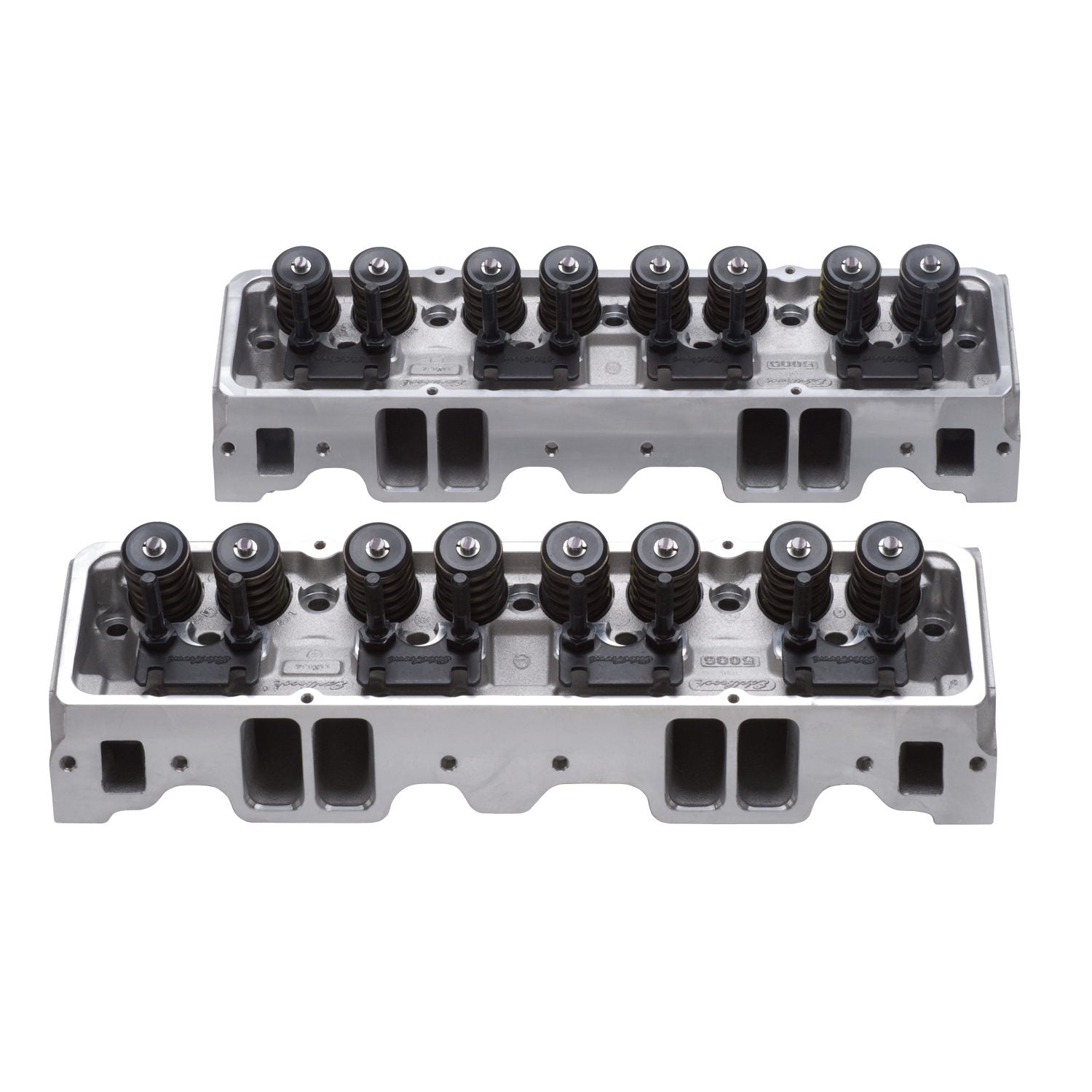

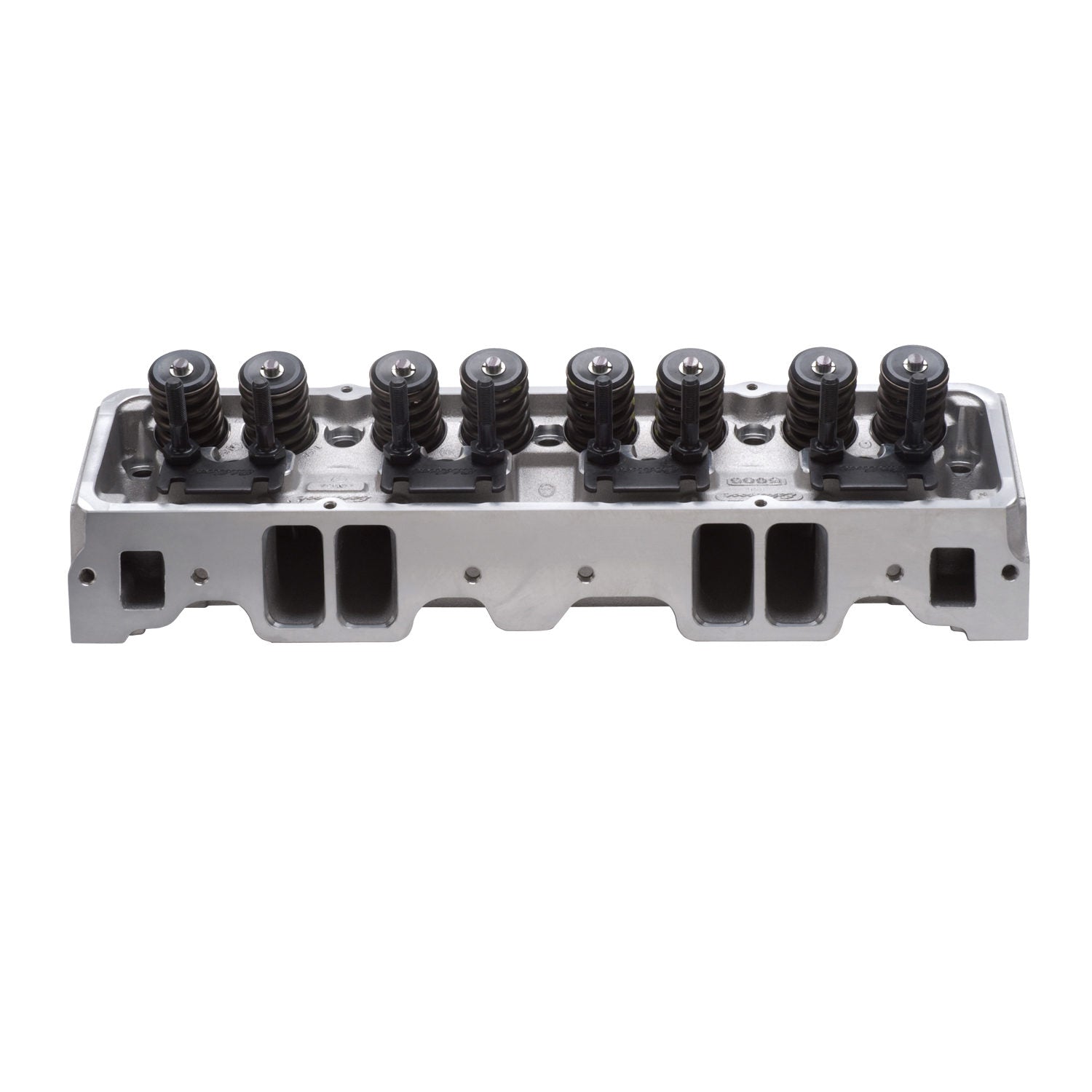

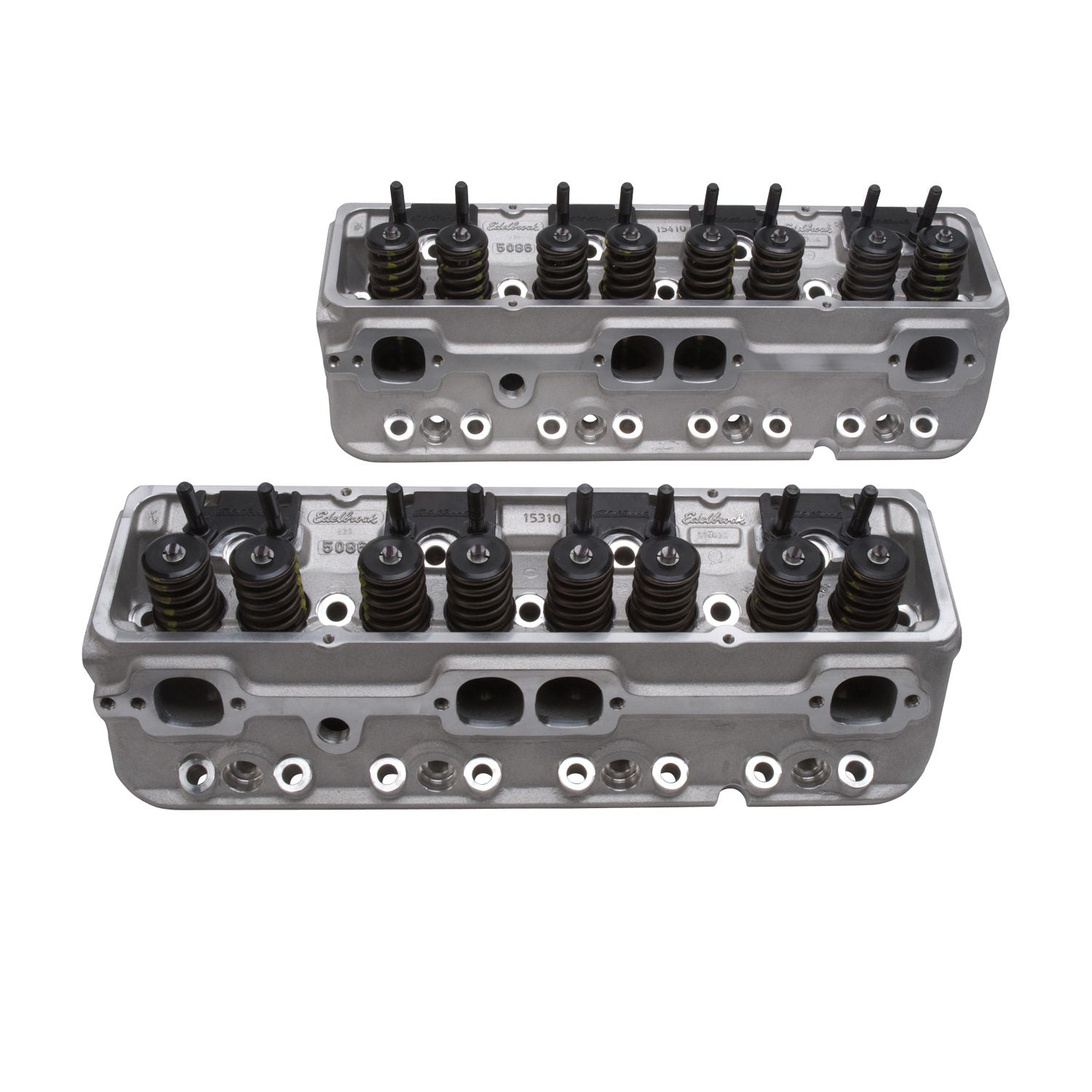

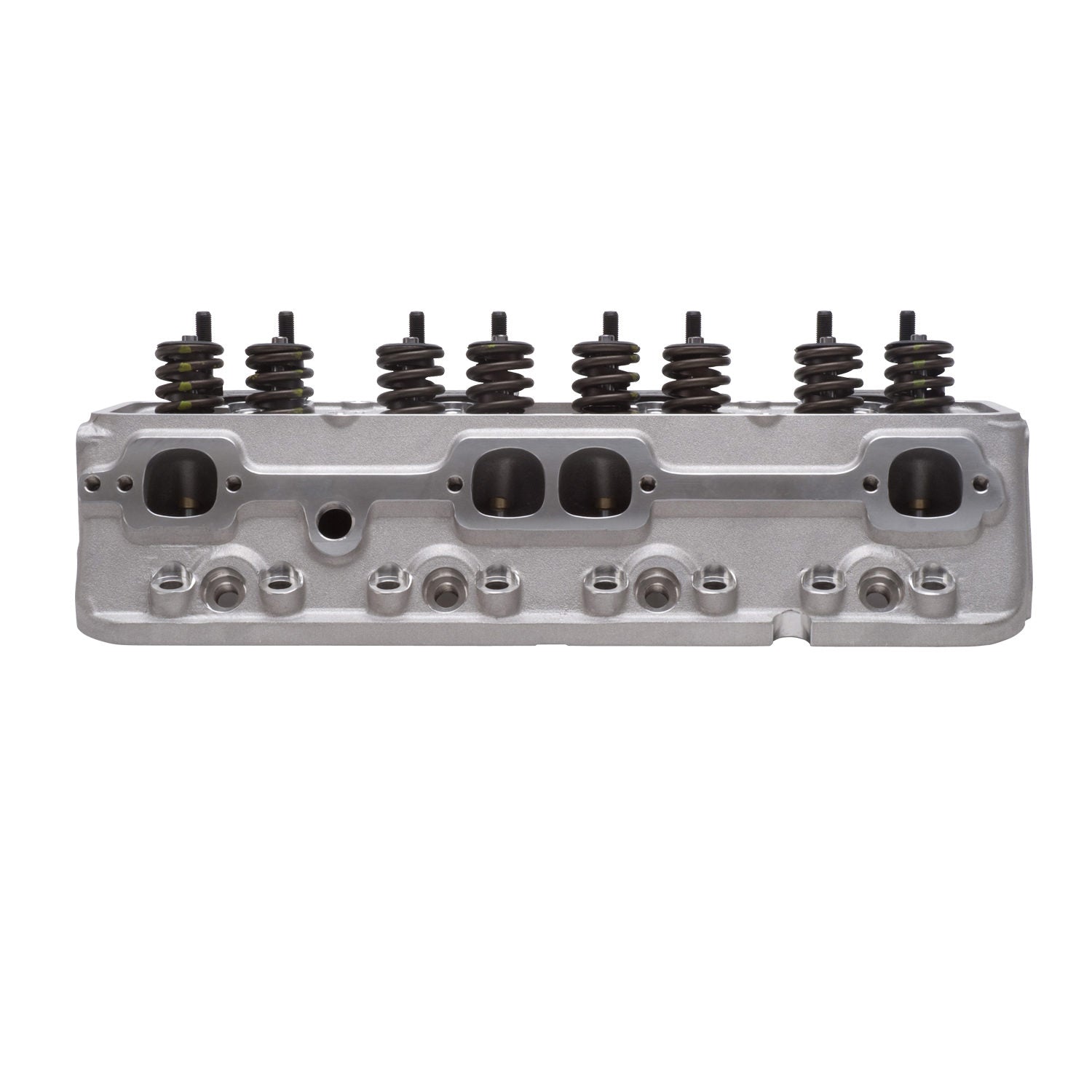

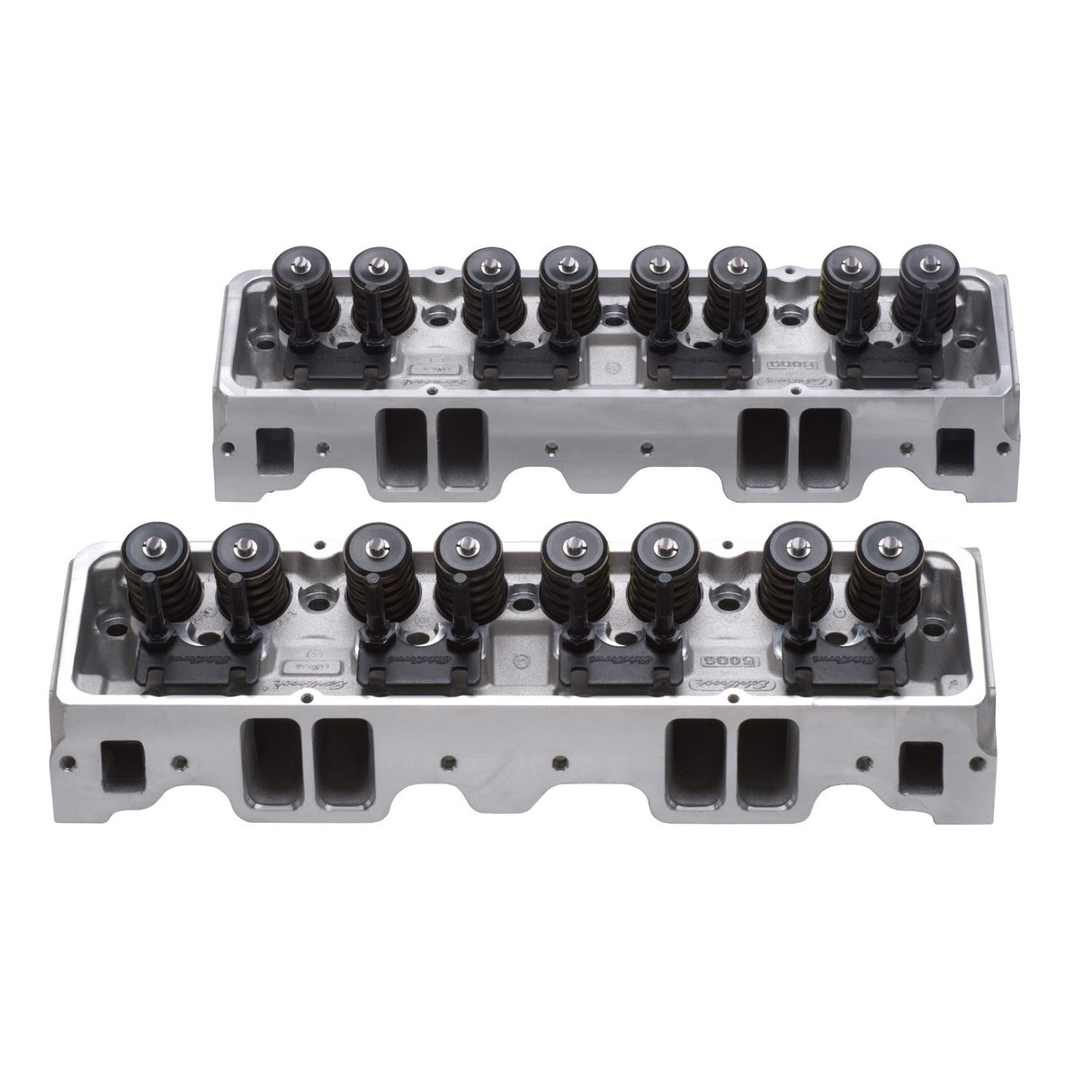

Edelbrock 5085 - 1Pr Cyl Head E-210 SBC 64cc Perf RPM (Complete Pair)

Small-Block Chevy E-Series Cylinder Head E-210 Flat Tappet Camshaft

The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

  • Race Level Performance
  • Fully Compatible With OEM Equipment
  • Can Support 500+ Horsepower/6500 RPM
  • Larger Runners For Increased Airflow
  • Revised Exhaust Ports/Larger Diameter Springs
  • Ideal For Spec Series Racer
  • Exhaust Port Flange In Stock Location
  • Made In The U.S.A.
Family: E-Series
Rotor Center Bore Inside Diameter: Straight
Seat Angle: Exhaust 45 deg/Intake 45
Valve Stem Diameter: 0.3438
Seat Material: Ductile Iron
Rocker Arm Stud Diameter: 0.375
Quantity: Set of 2
Camshaft Type: Flat Tappet
Valve Angle: 23
Series: E-Series
Push Rod Diameter: (Suggested) 0.5625
Deck Thickness: 0.5625
Valve Spring Maximum Lift: 0.575
Exhaust Port Location: Standard
Horsepower: 400-550
Retainer Included: Yes
Valve Spring Diameter: 1.46
CNC Ported: No
Exhaust Runner Volume: 75
Construction Type: Complete
Guide Material: Manganese Bronze
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter: 2.08
Exhaust Valve Diameter: 1.60
EGR Port: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 210
Head Casting Number: 5086P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
