Edelbrock 5073 - Cylinder Head E-Street SB Chevrolet 70cc (Complete Pair)

Edelbrock  |  SKU: EDEL-5073
$1,62099 $1,78309

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

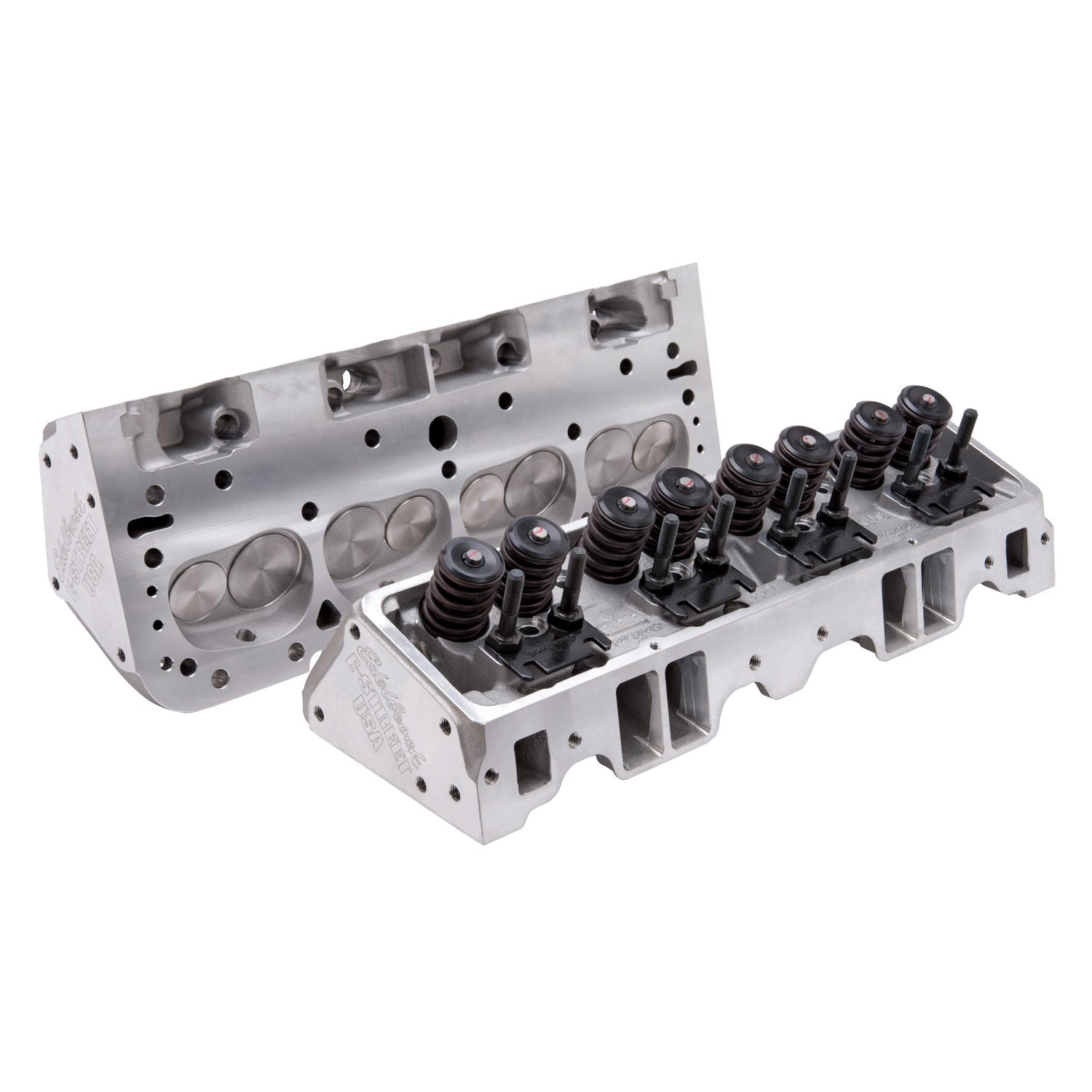

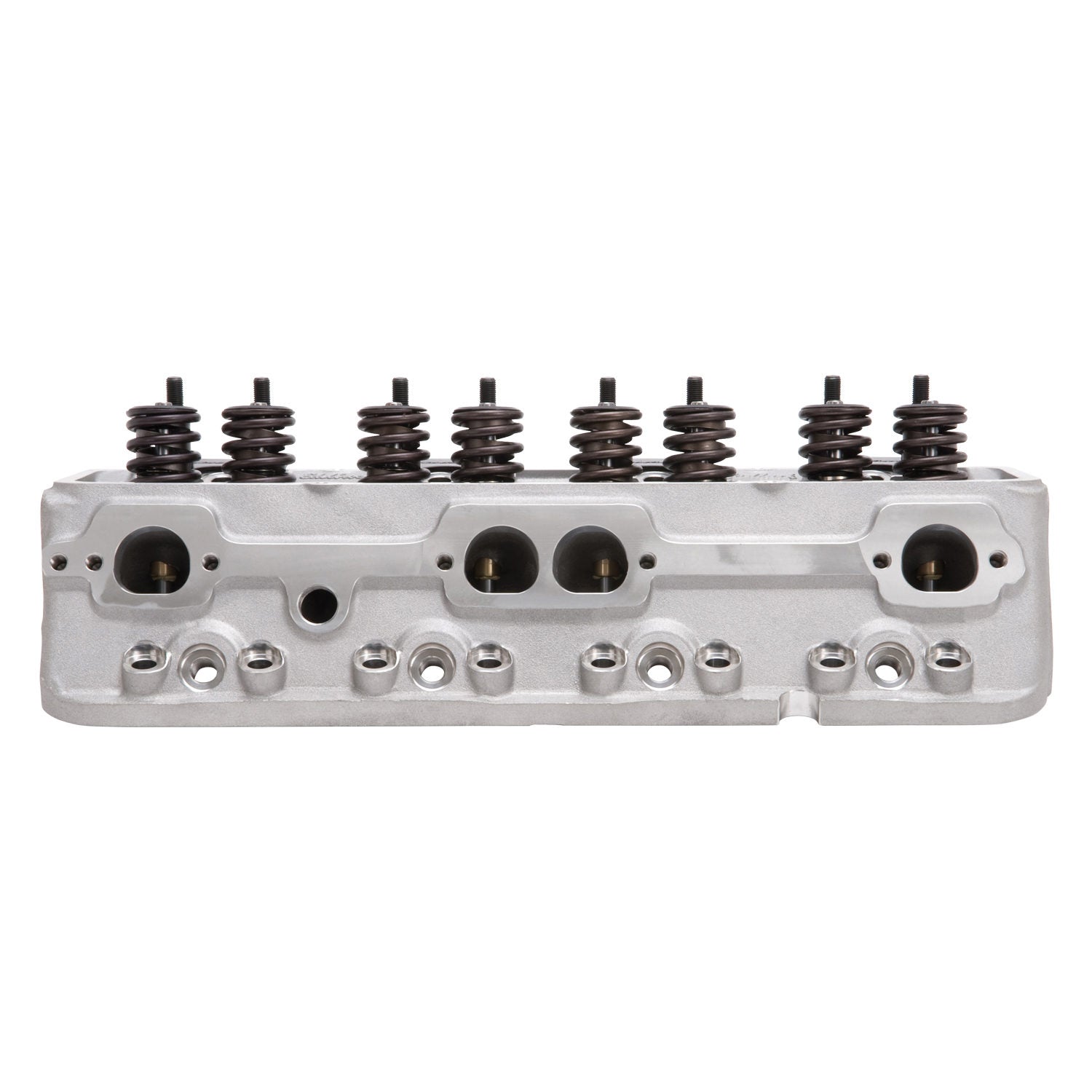

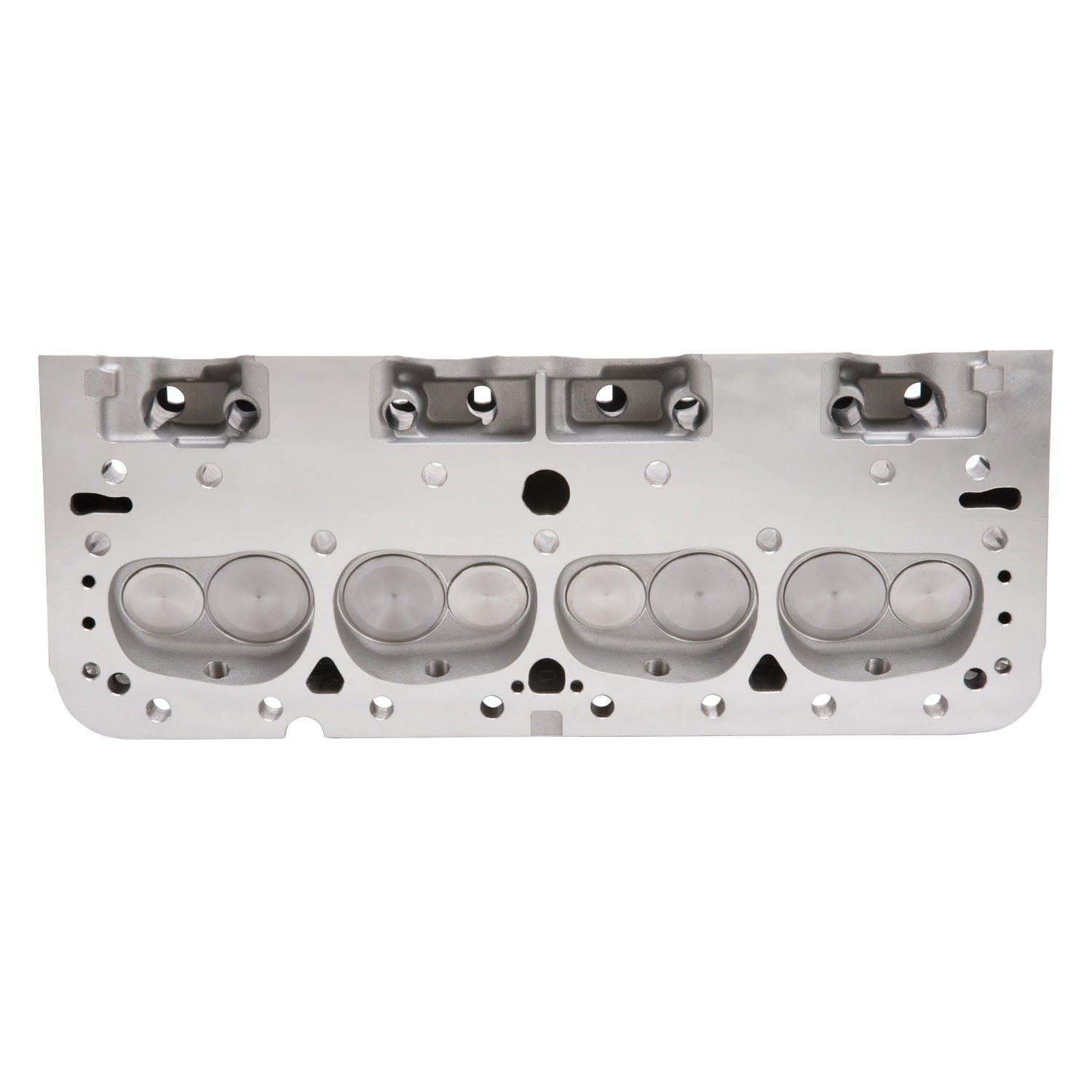

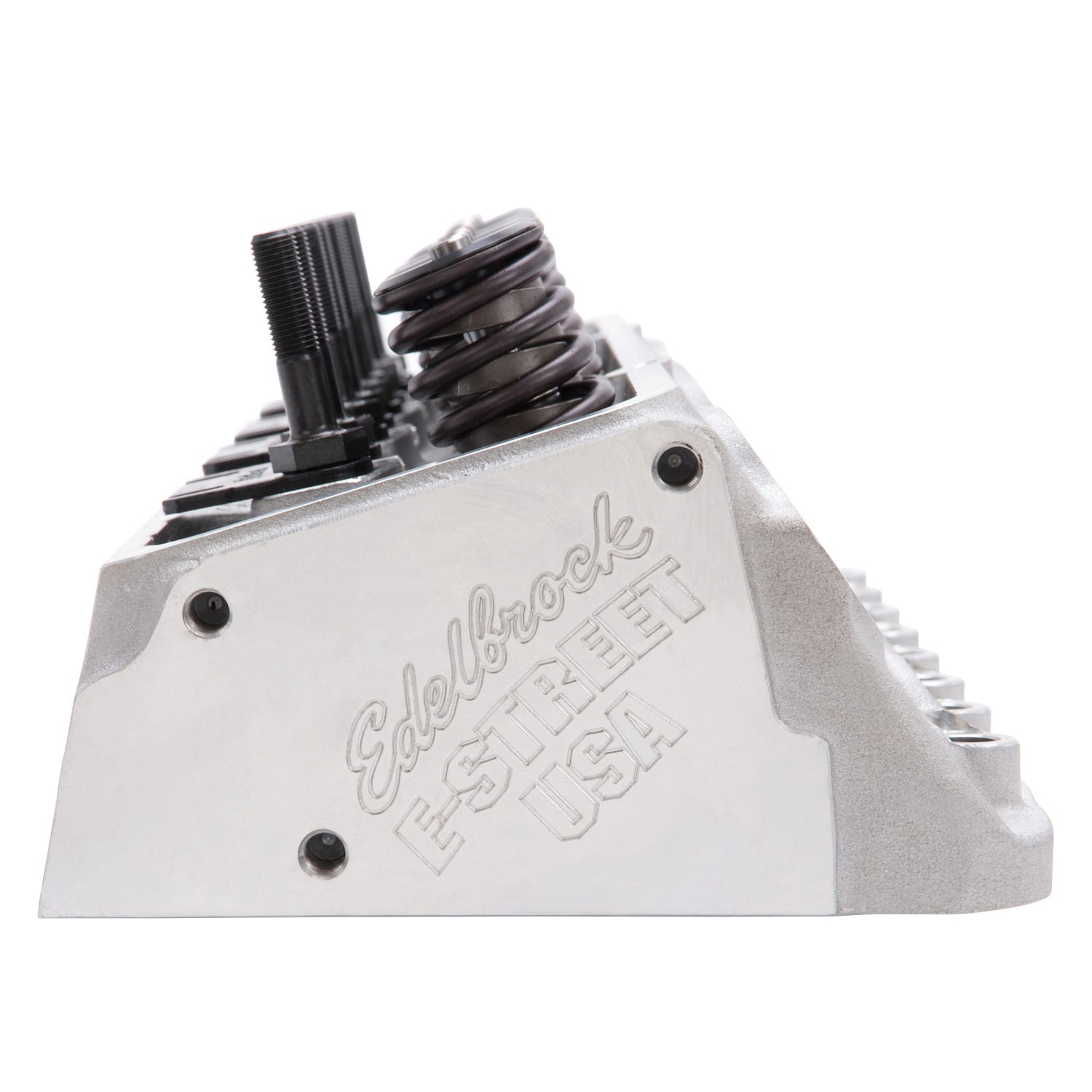

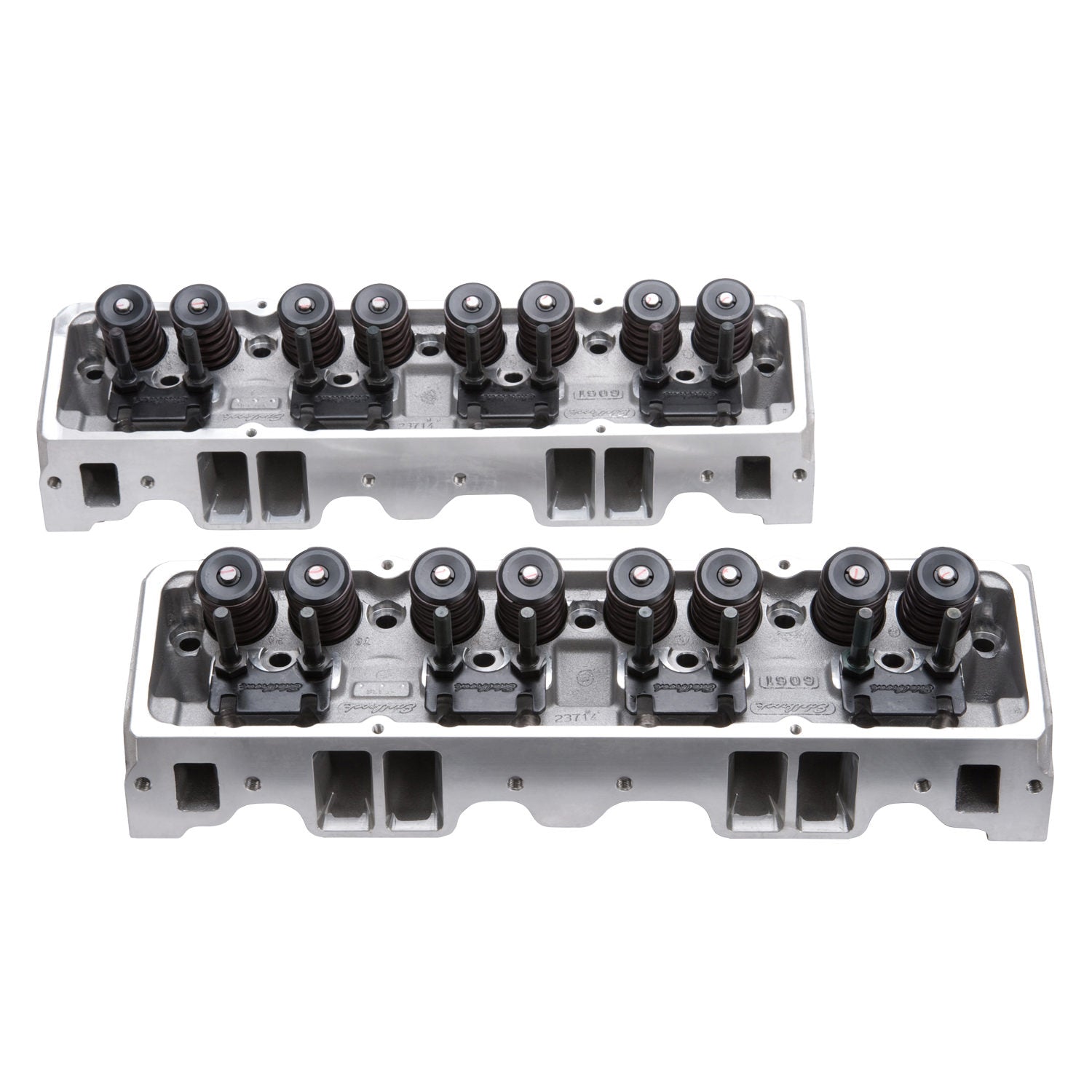

Edelbrock 5073 - Cylinder Head E-Street SB Chevrolet 70cc (Complete Pair)

Cylinder Head - E-Street - Assembled - 2.020 / 1.600 in Valves - 185 cc Intake - 70 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair

The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Material: Aluminum
Intake Runner Volume: 185
Head Casting Number: 6061P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 70
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Quantity: Set of 2
Camshaft Type: Flat Tappet
Deck Thickness: 0.5625
Series: E-Street
Retainer Included: Yes
Intake Valve Diameter: 2.02
Valve Angle: 23
CNC Ported: No
Construction Type: Complete
Family: E-Street
Rotor Center Bore Inside Diameter: Straight
Valve Spring Maximum Lift: 0.550
Valve Stem Diameter: 0.3438
Seat Material: Ductile Iron
Rocker Arm Stud Diameter: 0.375
Exhaust Runner Volume: 60
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Horsepower: 300-400
Push Rod Diameter: (Suggested) 0.3125
Exhaust Valve Diameter: 1.60
EGR Port: No
Guide Material: Manganese Bronze
Exhaust Port Location: Standard
Valve Spring Diameter: 1.46
Seat Angle: Exhaust 45 deg/Intake 45
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
