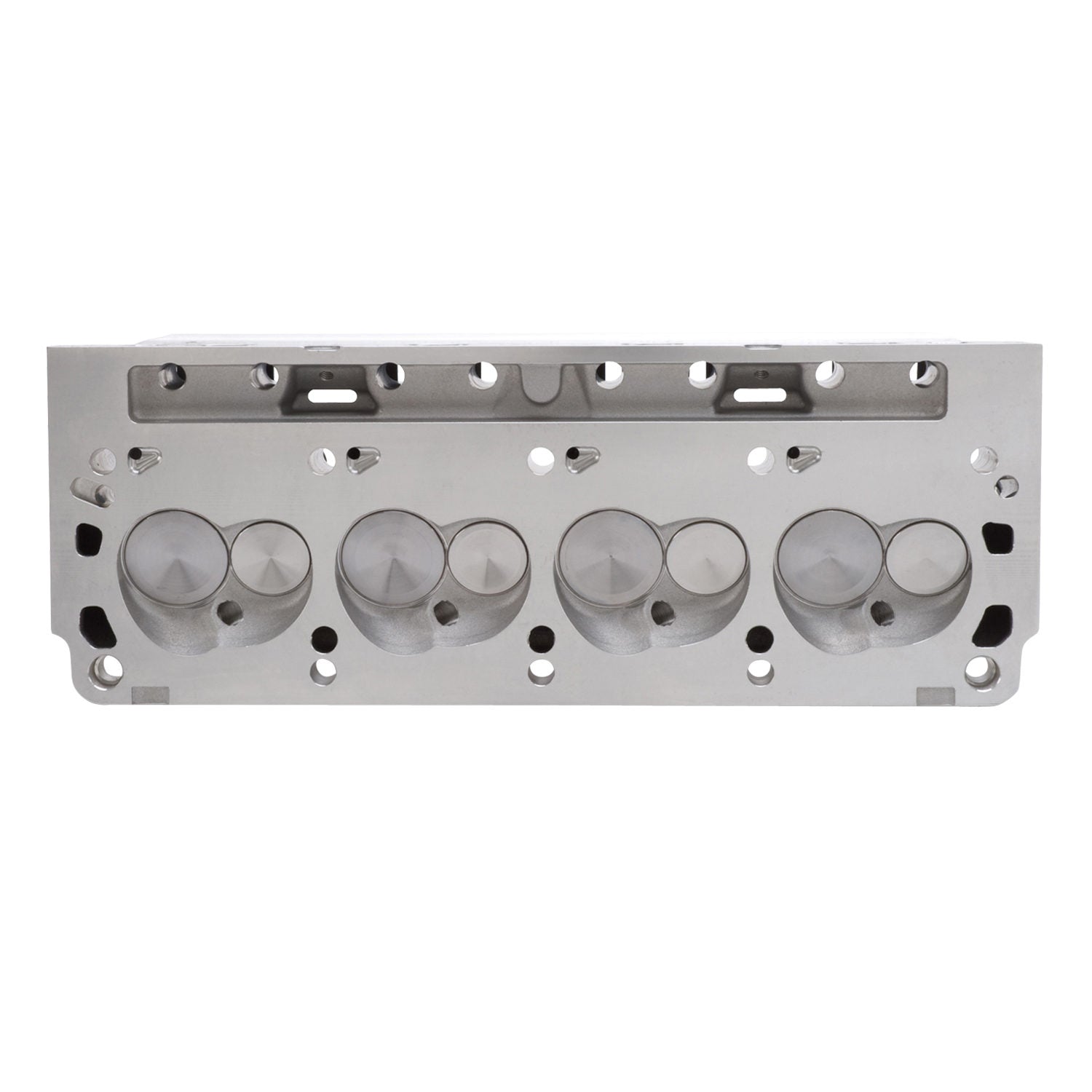

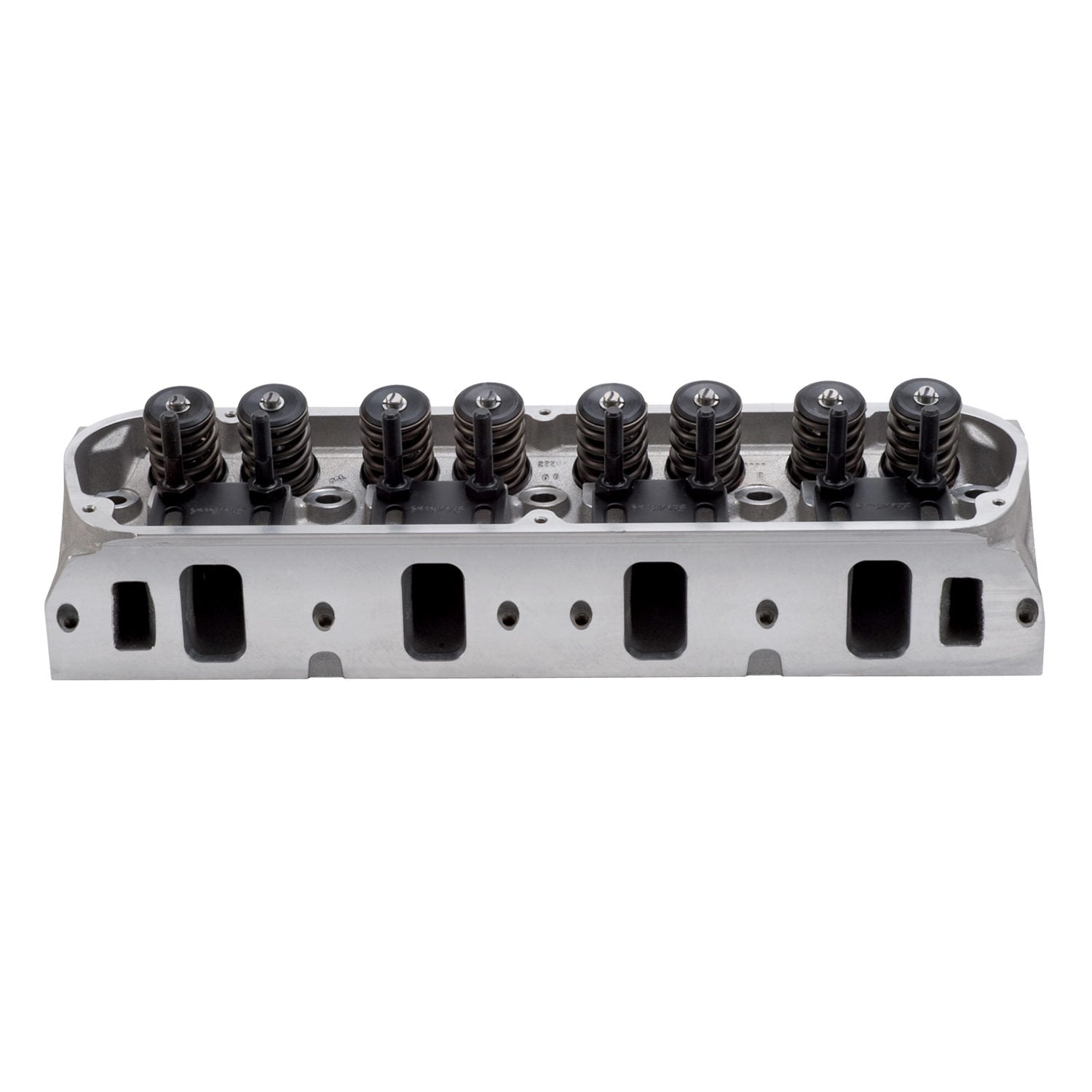

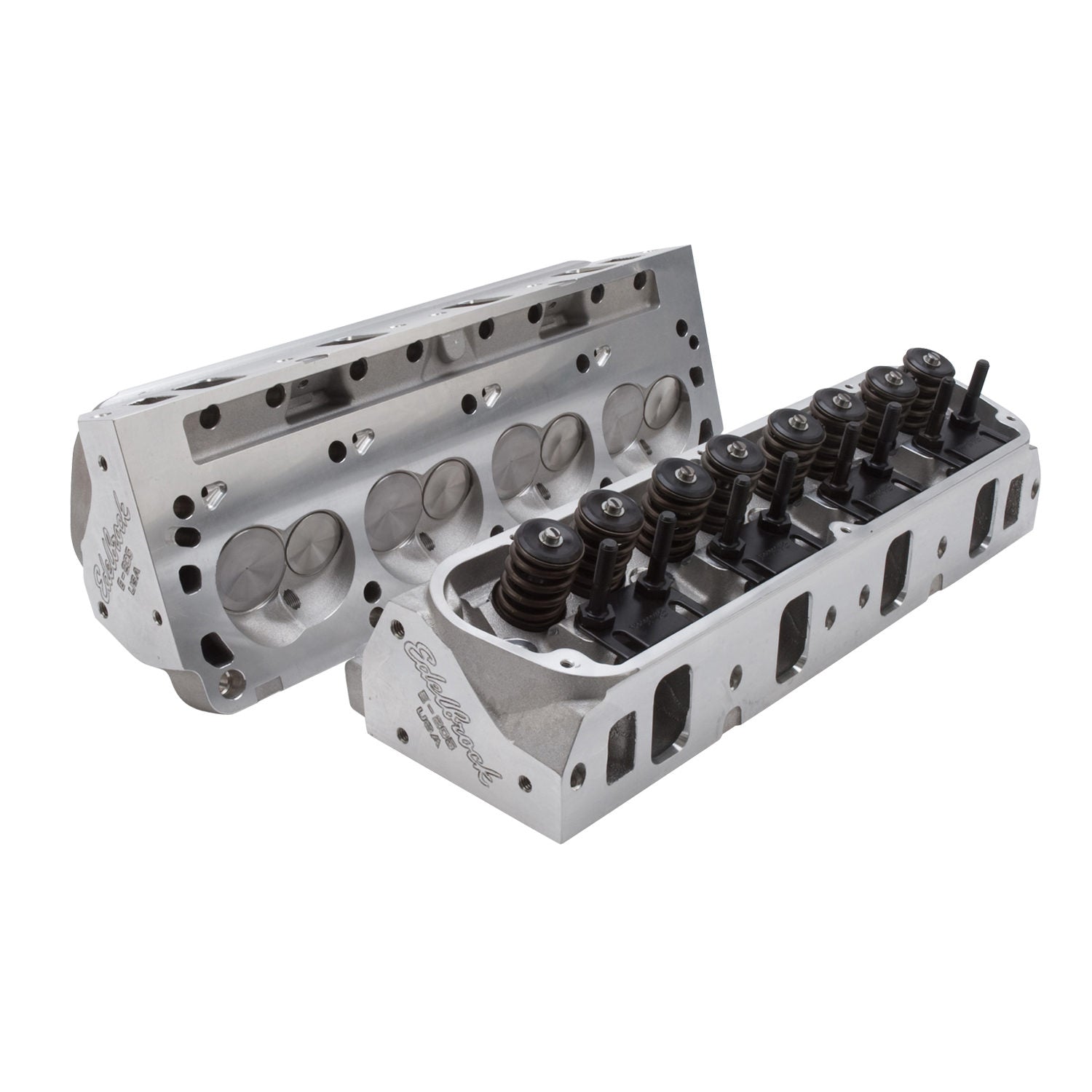

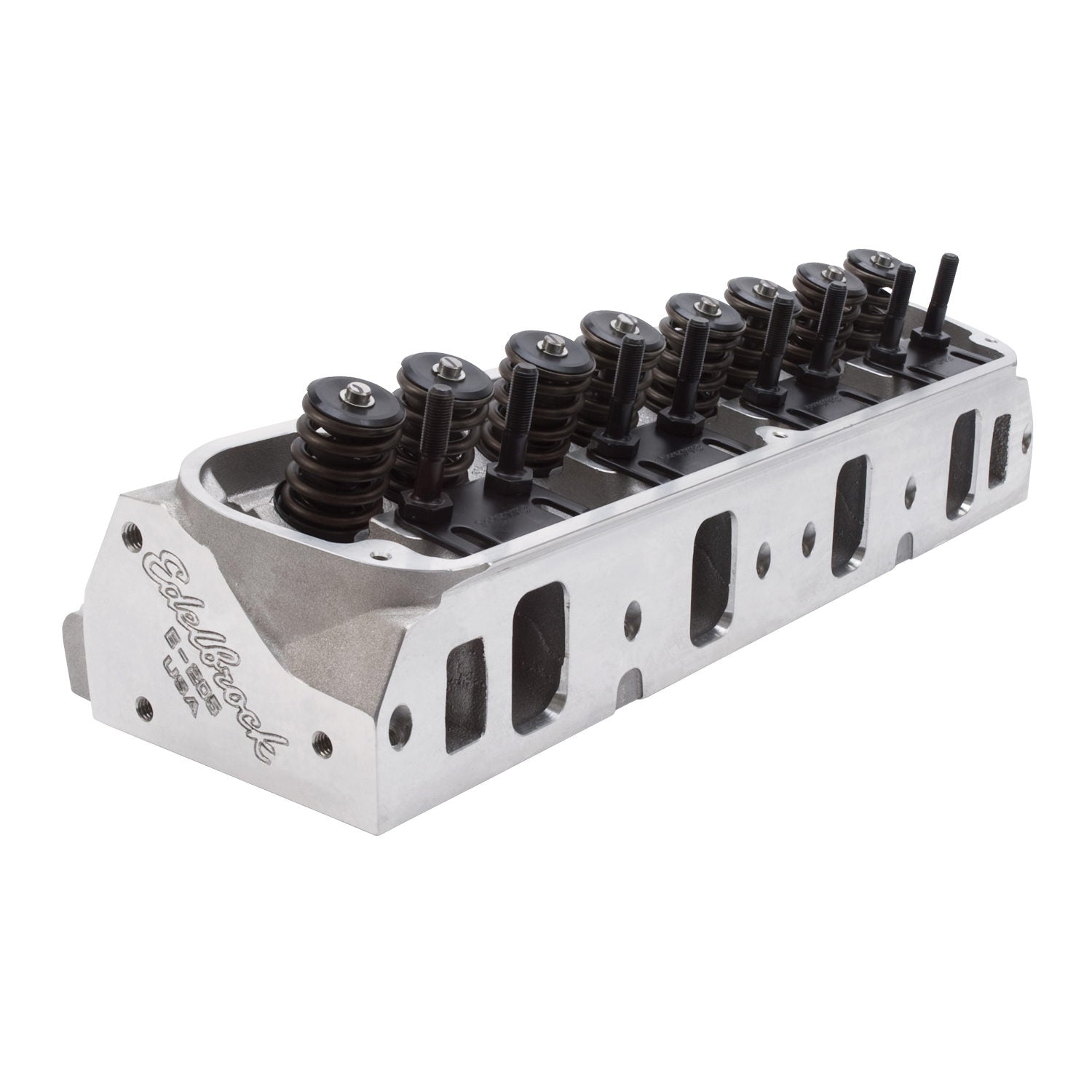

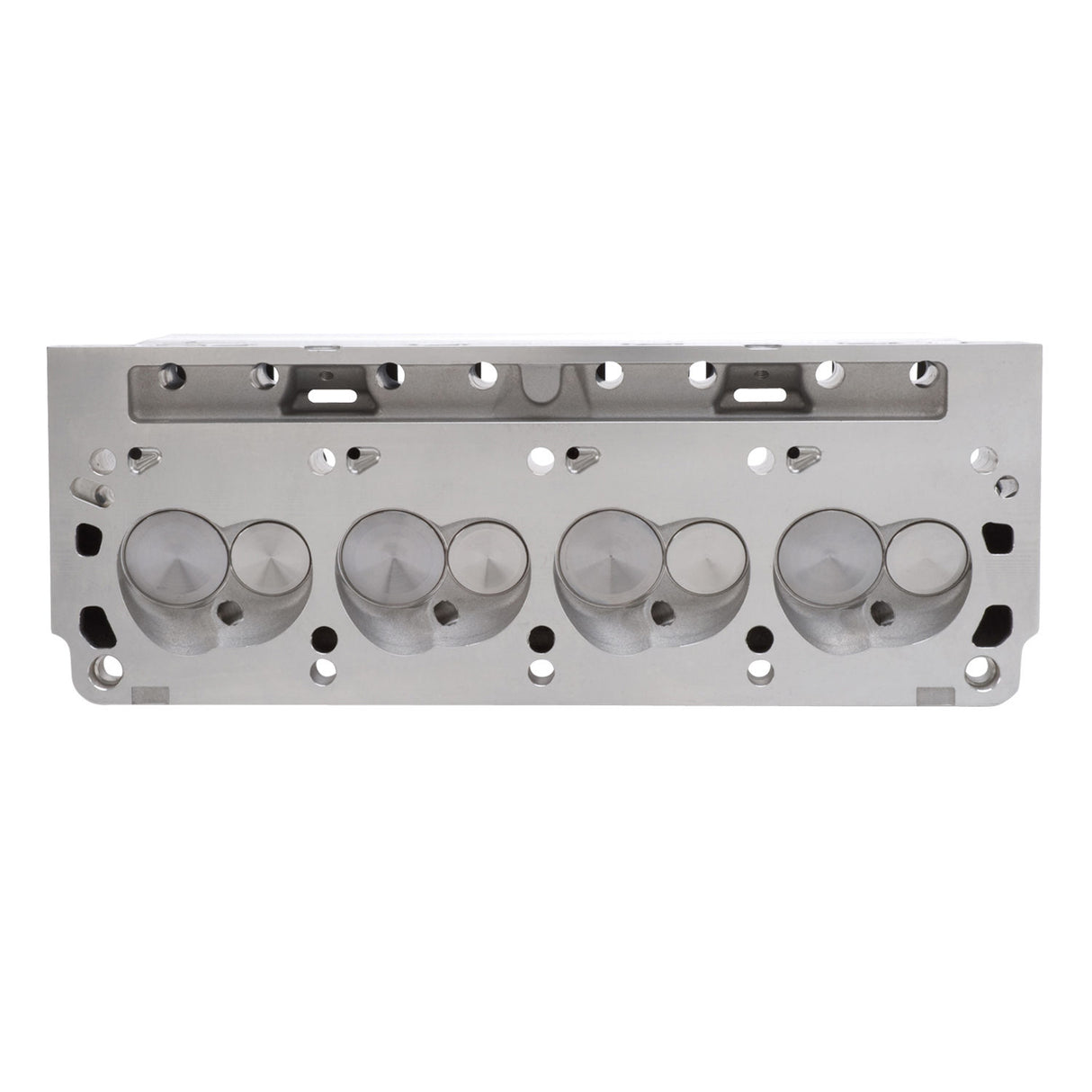

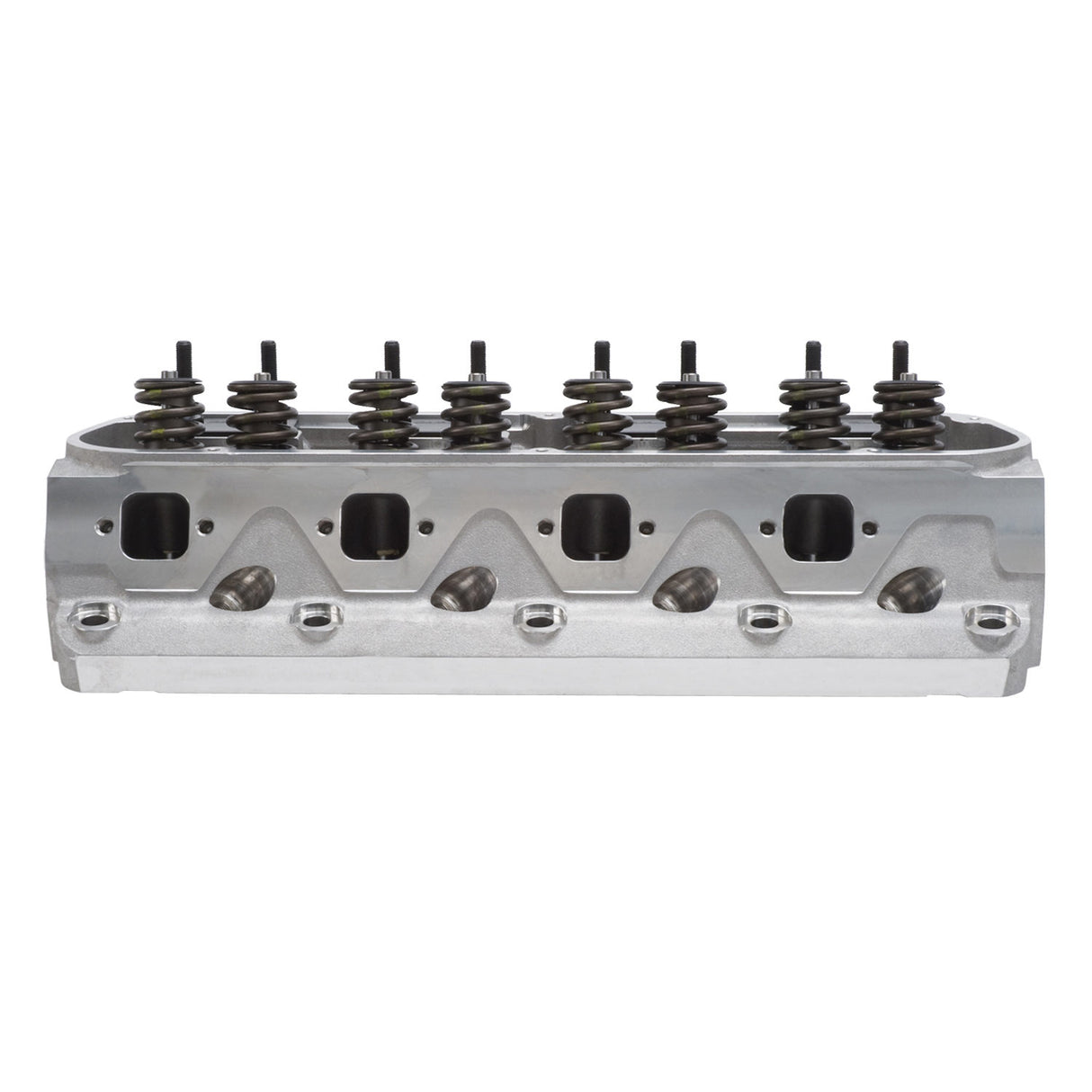

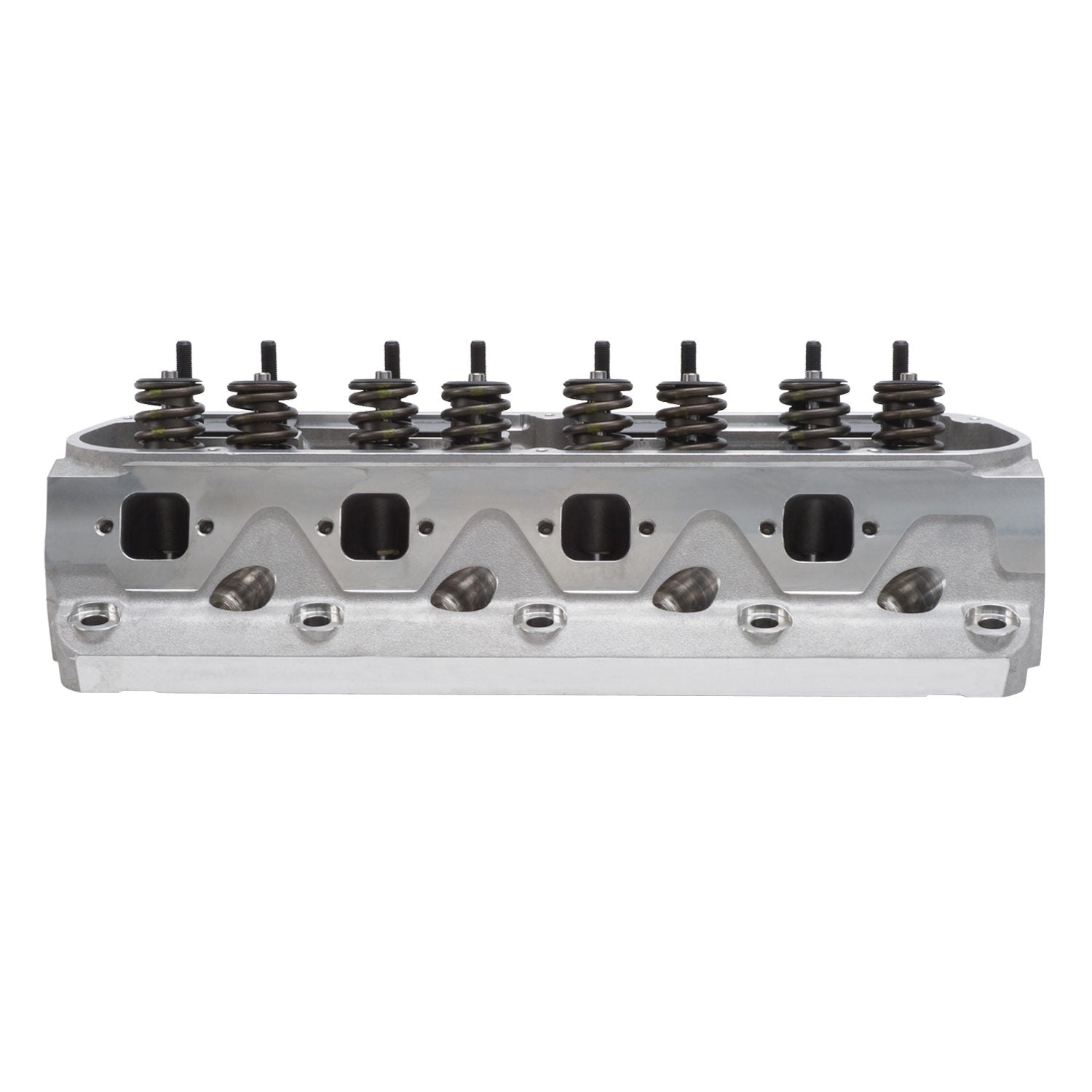

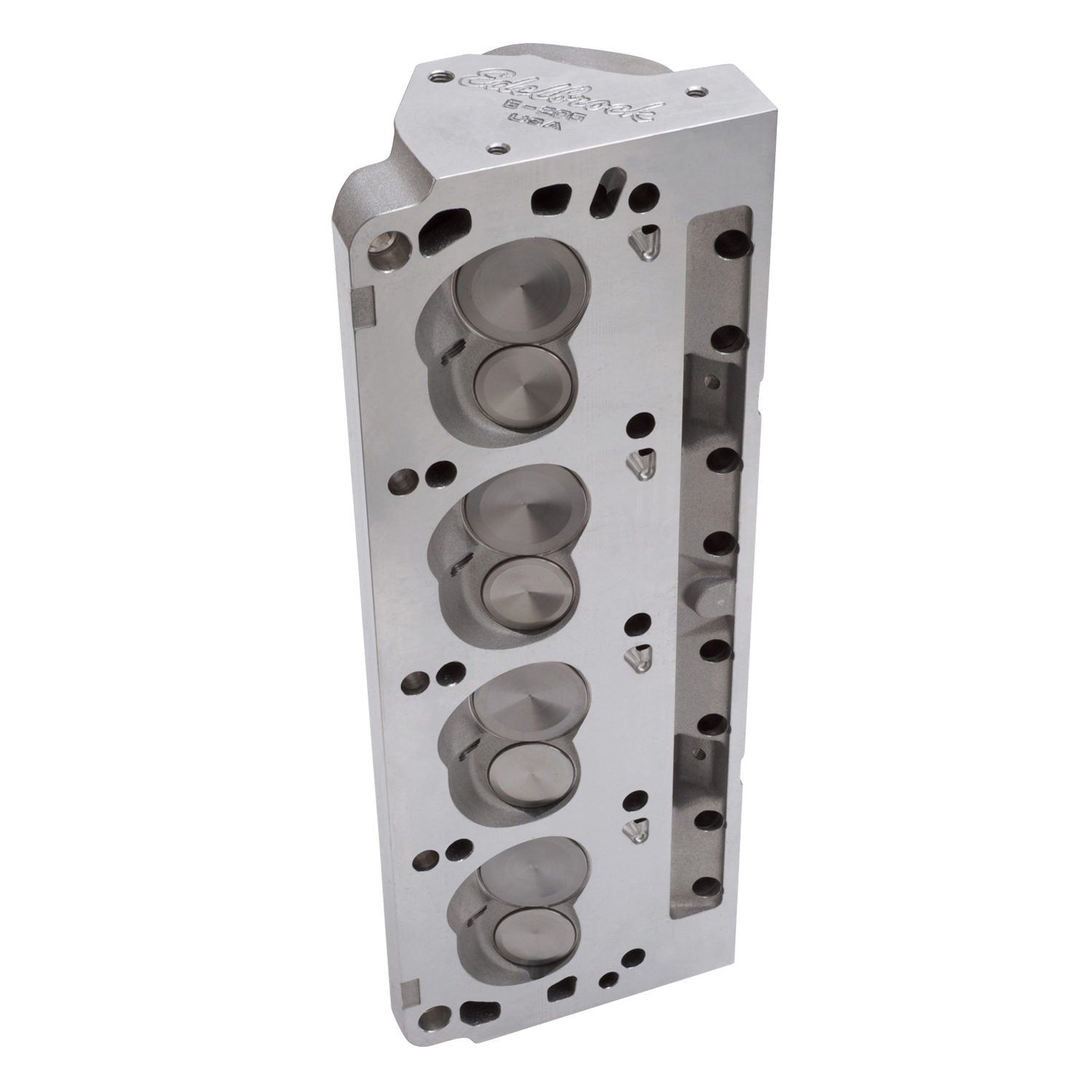

Edelbrock 5028 - 1Pr SBF Cyl Head E-205 2 08 Intake Complete Complete (Pair) Assembled w/ Springs

Edelbrock  |  SKU: EDEL-5028
$2,19999 $2,41999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 5028 - 1Pr SBF Cyl Head E-205 2 08 Intake Complete Complete (Pair) Assembled w/ Springs

Cylinder Head - E-Street - Assembled - 2.080 / 1.600 in Valve - 205 cc Intake - 60 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Ford - Pair

The Edelbrock #5028 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Quantity: Set of 2
Horsepower: 400-525
Push Rod Diameter: (Suggested) 0.3125
Seat Angle: Exhaust 45 deg/Intake 45
Deck Thickness: 0.625
CNC Ported: No
Camshaft Type: Flat Tappet
Retainer Included: Yes
Valve Spring Diameter: 1.46
Intake Valve Diameter: 2.08
Exhaust Port Location: Standard
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
EGR Port: No
Seat Material: Ductile Iron
Construction Type: Complete
Guide Material: Manganese Bronze
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 205
Head Casting Number: 5027P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.5
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 60
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Series: E-Series
Valve Stem Diameter: 0.3438
Valve Spring Maximum Lift: 0.575
Valve Angle: 20
Rocker Arm Stud Diameter: 0.375
Exhaust Runner Volume: 62
Family: E-Series
