Edelbrock 5027 - 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs

Edelbrock  |  SKU: EDEL-5027
Sale price $1,84899 Regular price $2,03389

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

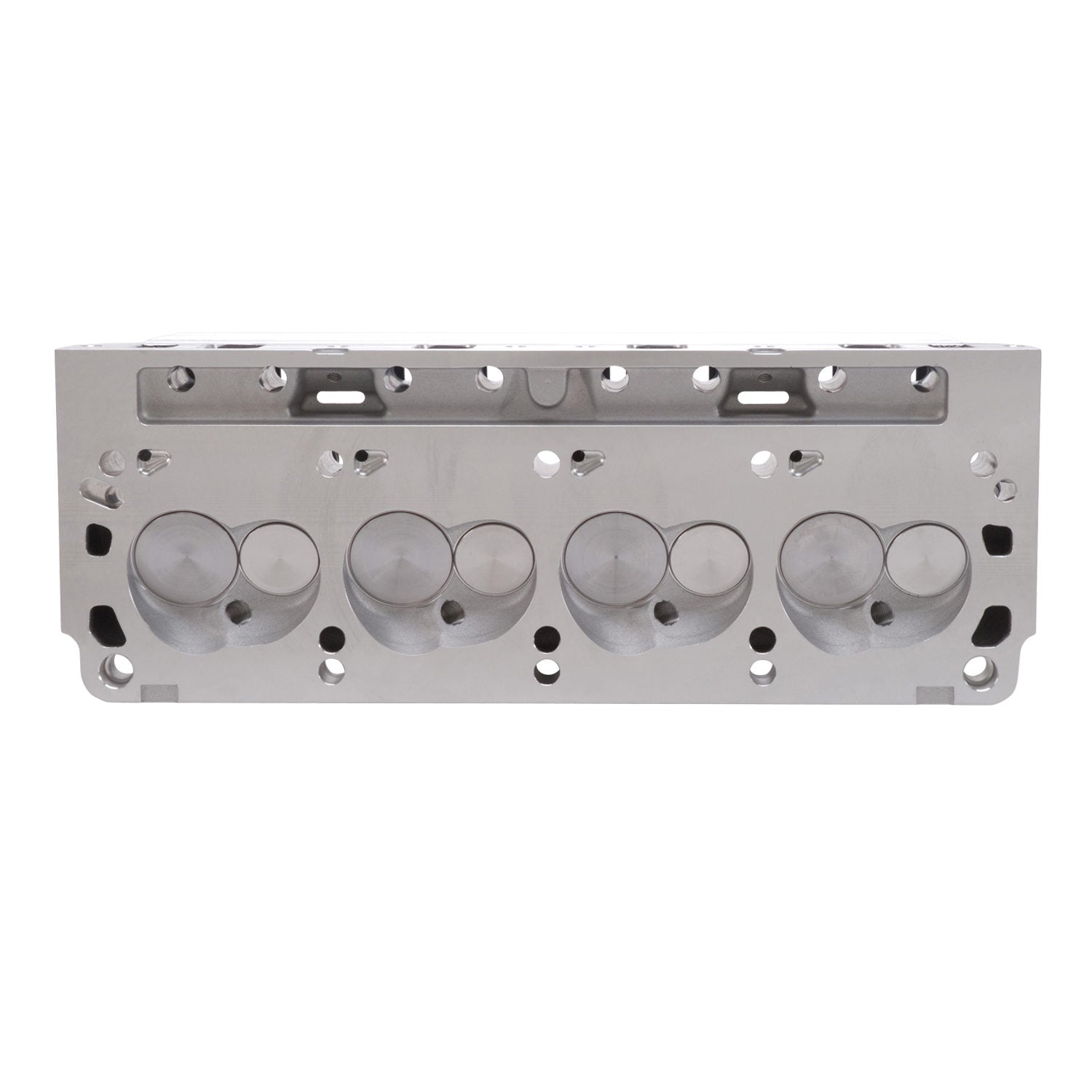

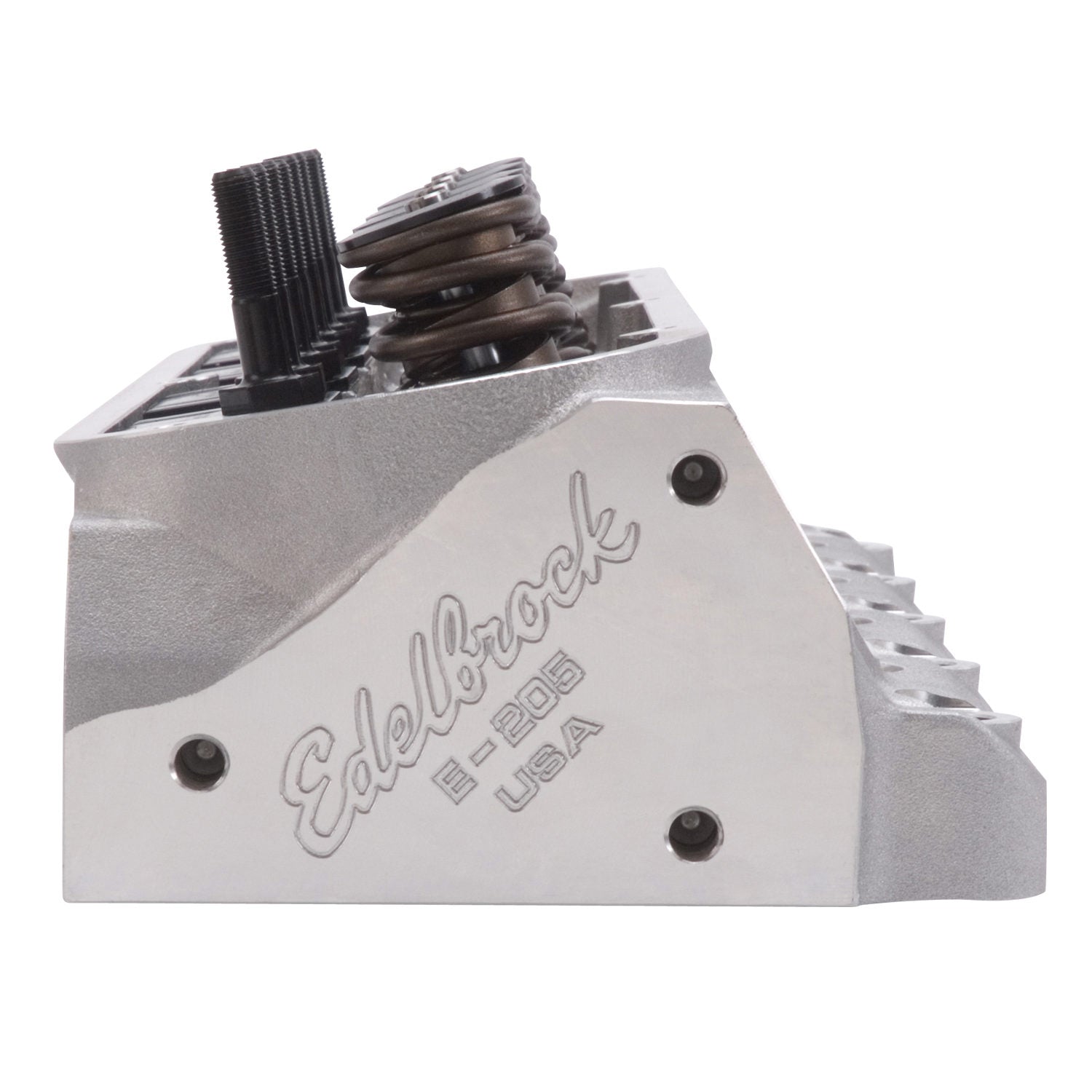

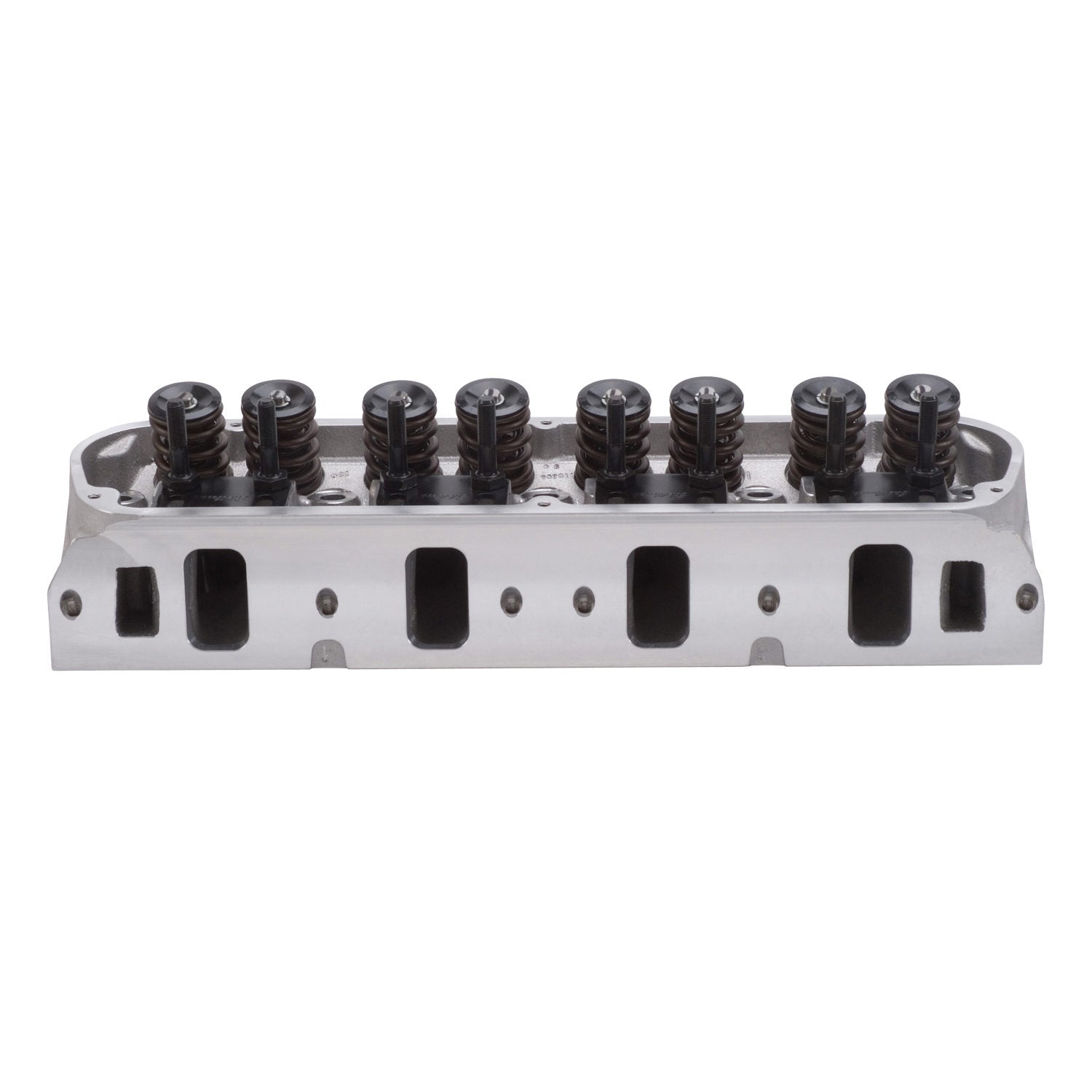

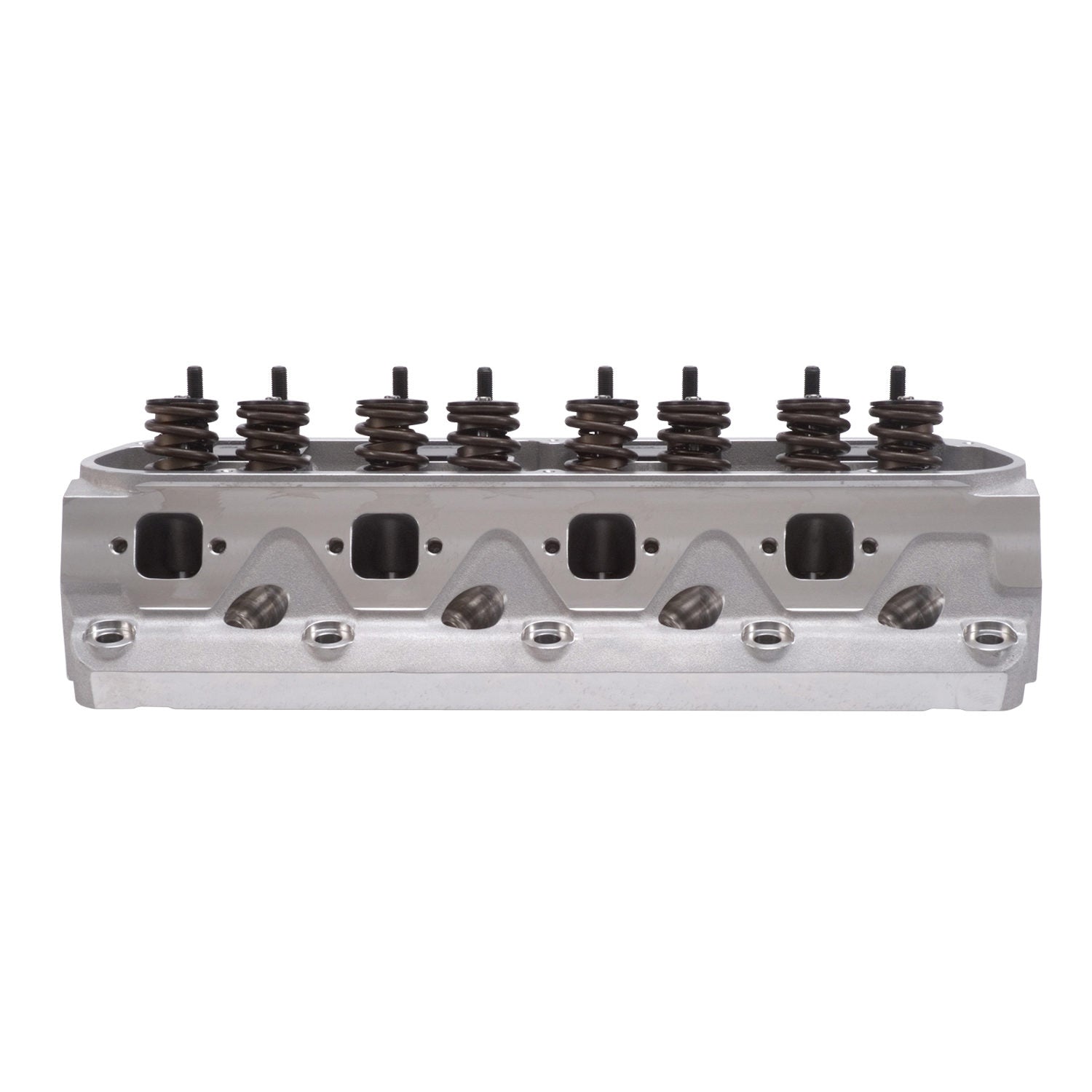

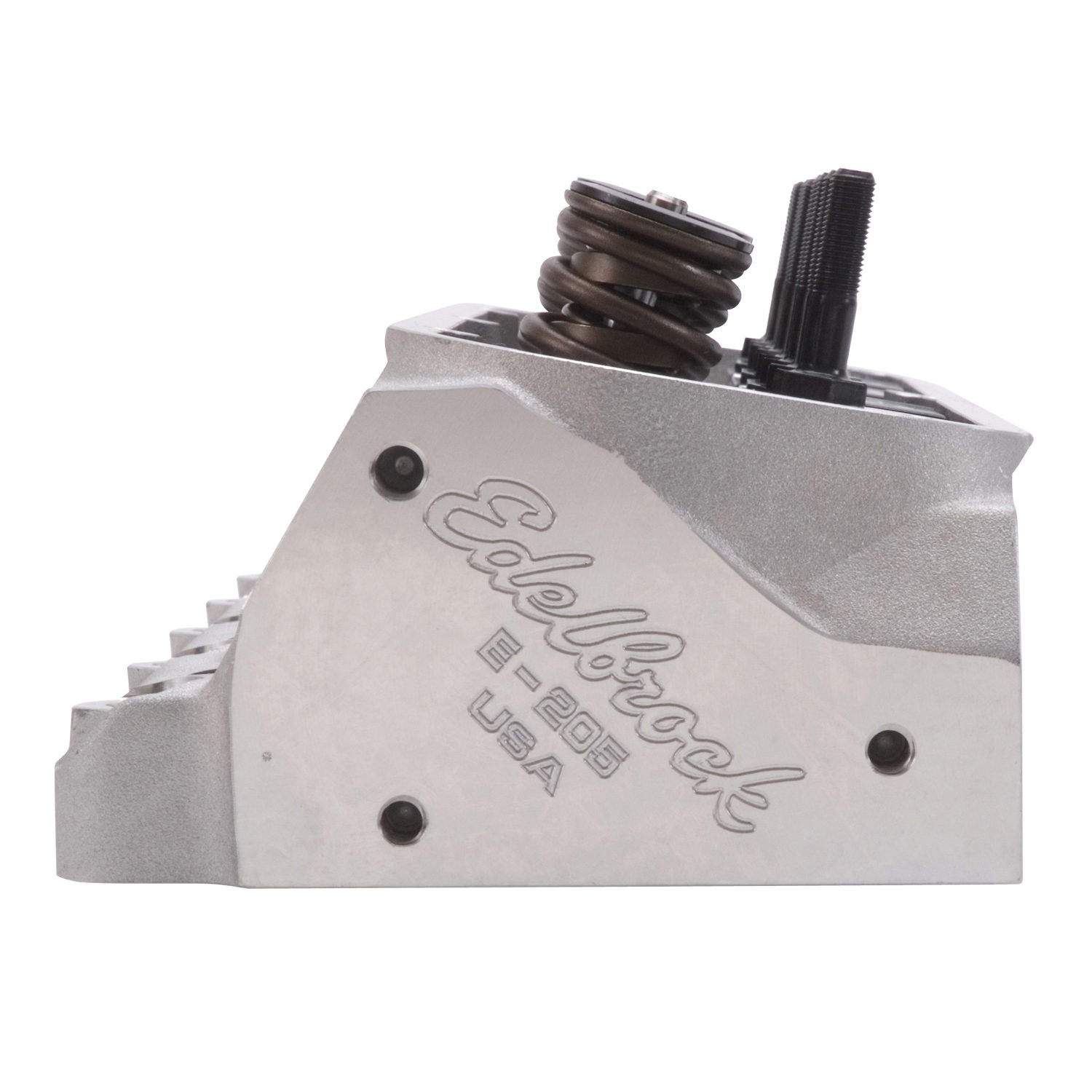

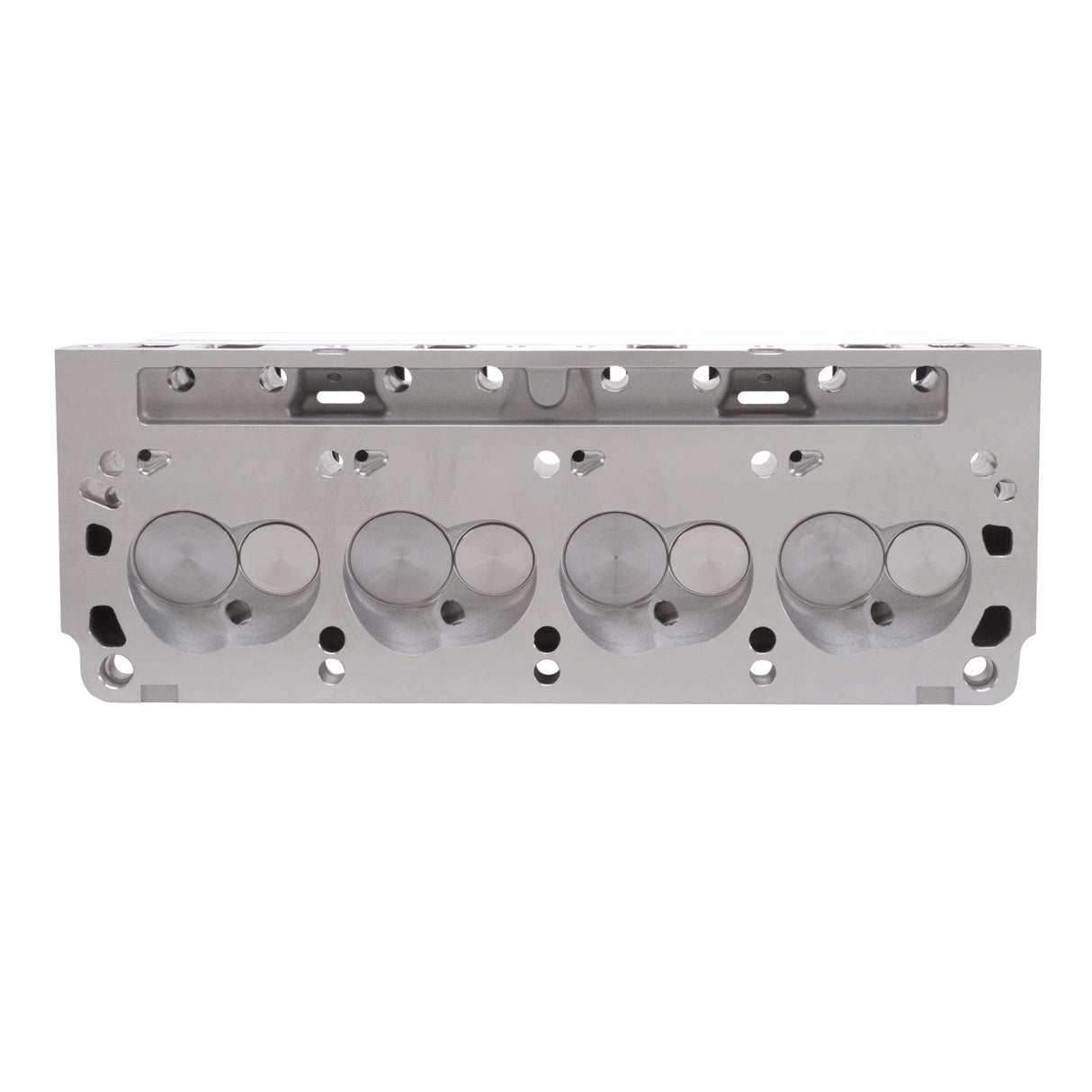

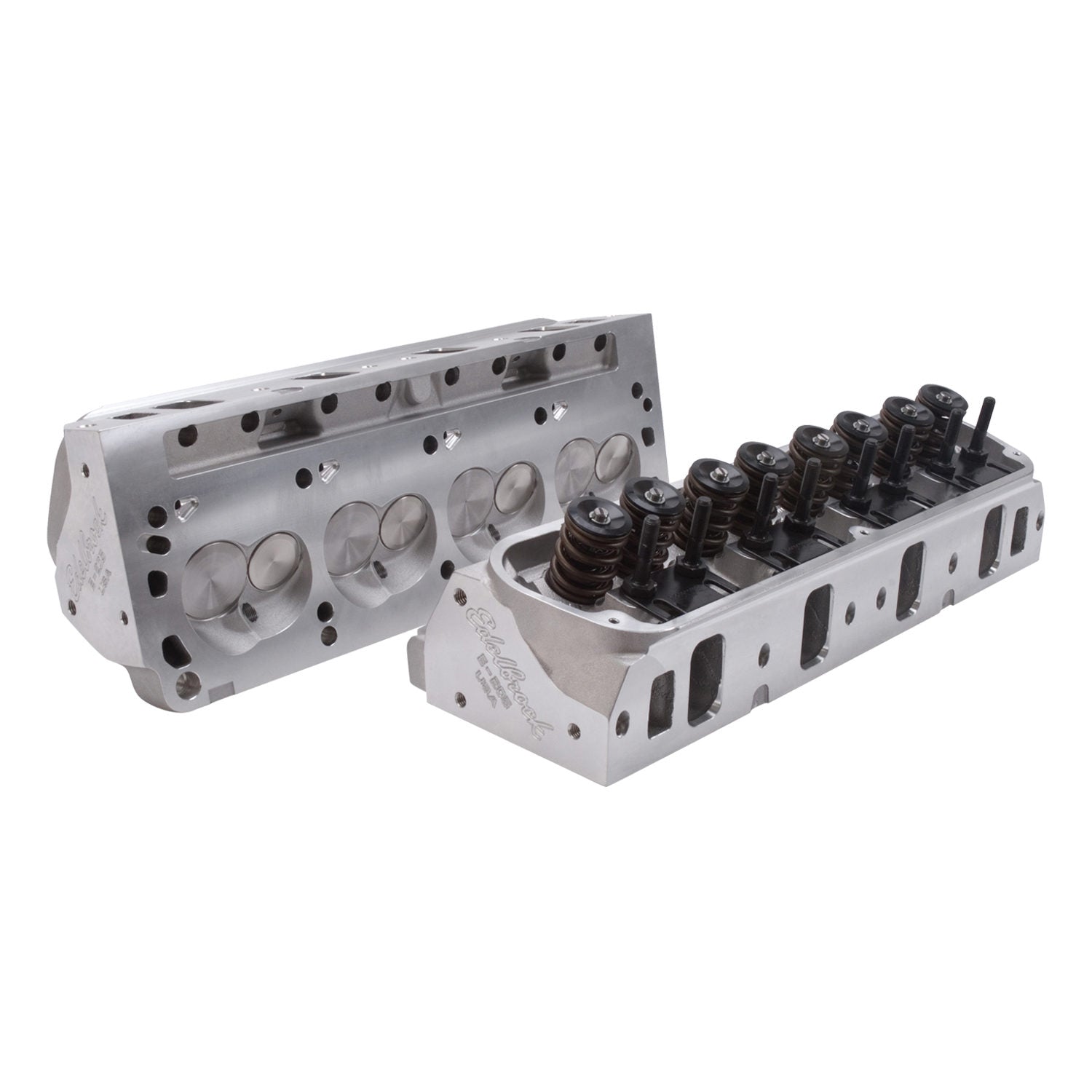

Edelbrock 5027 - 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs

Cylinder Head - E-Street - Assembled - 2.080 / 1.600 in Valves - 205 cc Intake - 60 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Small Block Ford - Pair

The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Seat Angle: Exhaust 45 deg/Intake 45
Valve Springs Included: Yes
Horsepower: 400-525
Seat Material: Ductile Iron
Construction Type: Complete
Combustion Chamber Volume: 60
Head Casting Number: N/A
Guide Material: Manganese Bronze
Exhaust Port Location: Standard
Series: E-Series
Retainer Included: Yes
Valve Included: Yes
Guide Plate Material: Hardened Steel
Exhaust Runner Volume: 62
Family: E-Series
Grade Type: Performance
Deck Thickness: 0.625
Valve Spring Maximum Lift: 0.650
CNC Ported: No
Material: Aluminum
Quantity: Set of 2
Camshaft Type: Hydraulic Roller
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Runner Volume: 205
Exhaust Valve Diameter: 1.60
Valve Stem Diameter: 0.3438
Valve Angle: 20
Rocker Arm Stud Diameter: 0.375
Guide Plates Included: Yes
Push Rod Diameter: (Suggested) 0.3125
Intake Valve Diameter: 2.08
Valve Spring Diameter: 1.55
