Edelbrock 50149 - Jeep 4.0L I6 Victor CNC Cylinder Head
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

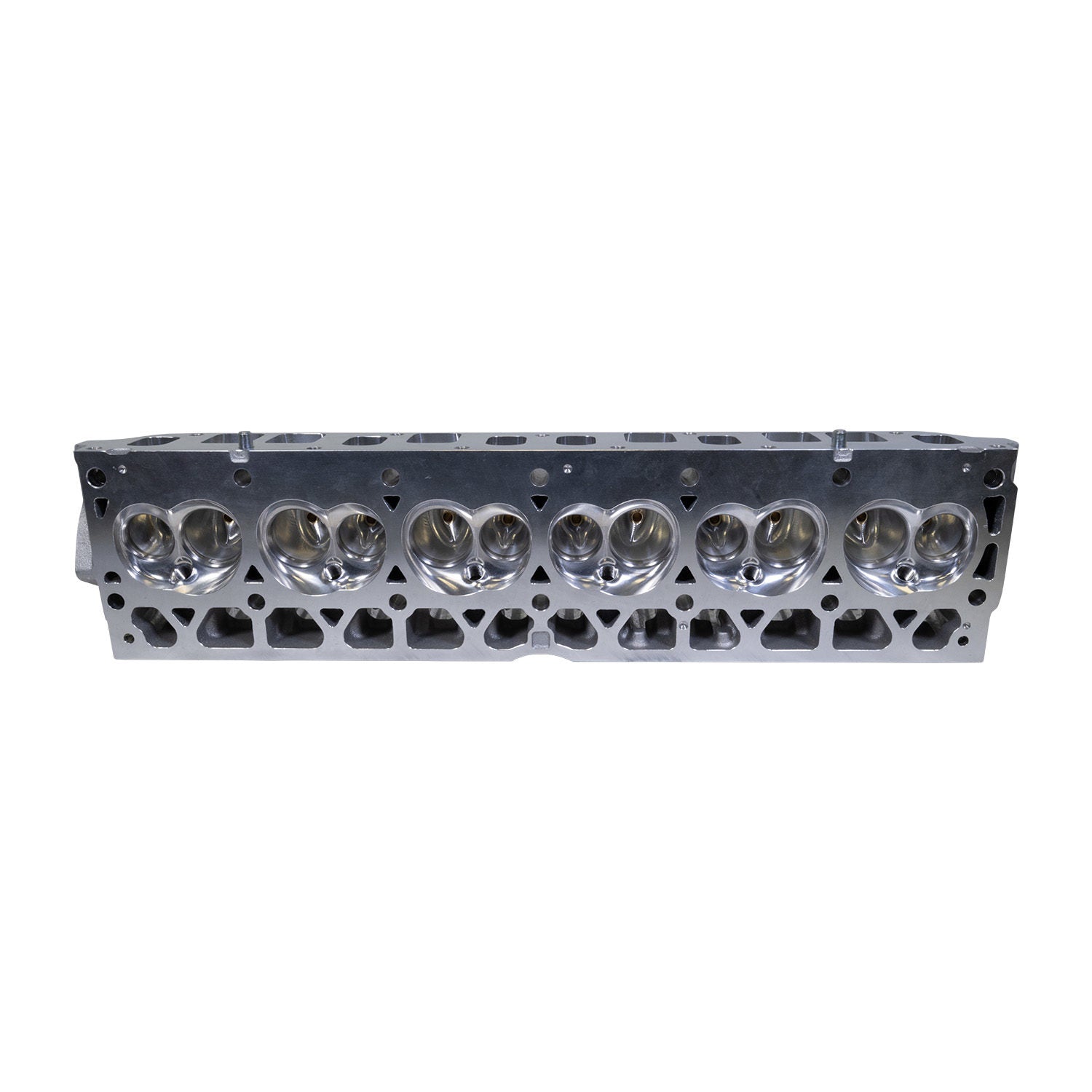

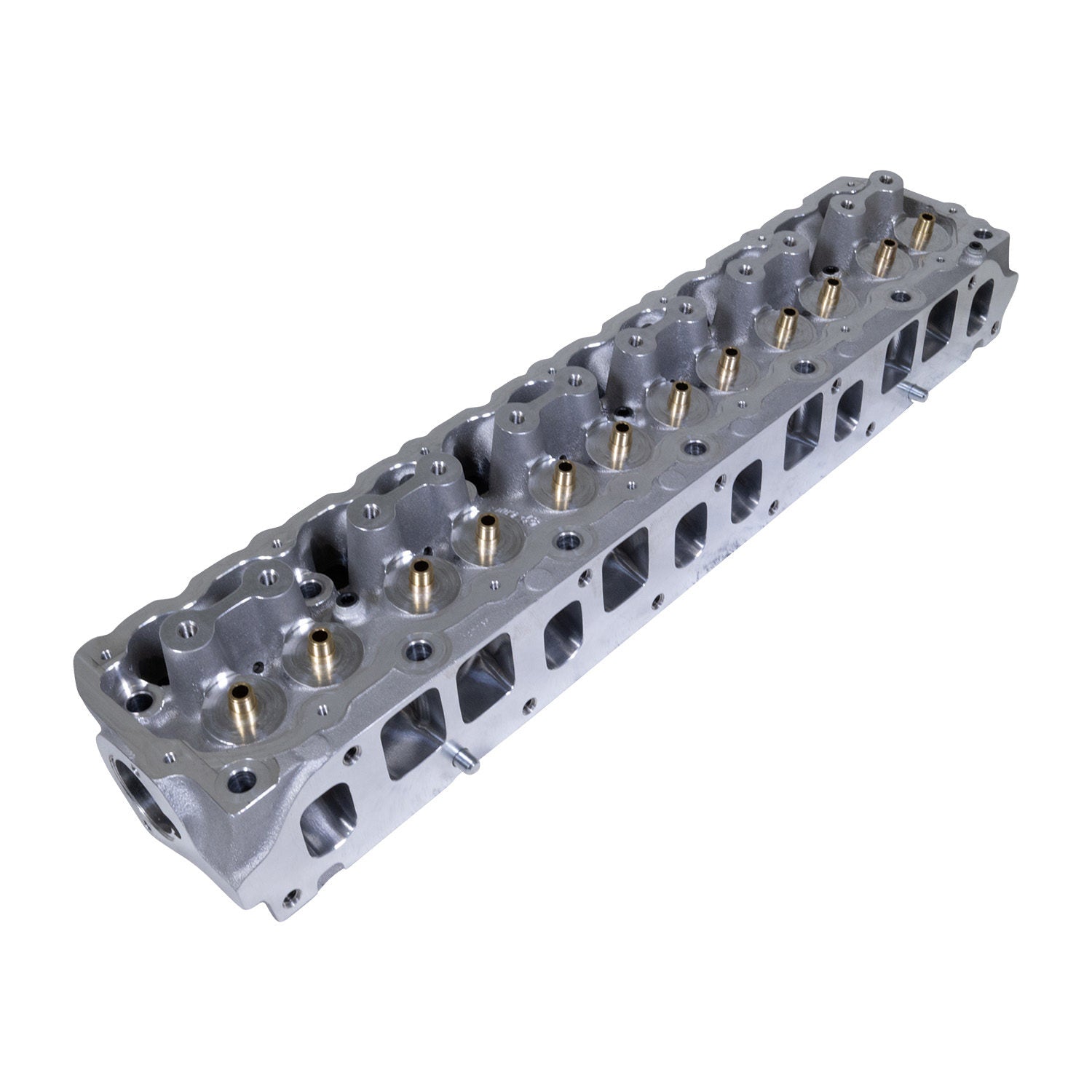

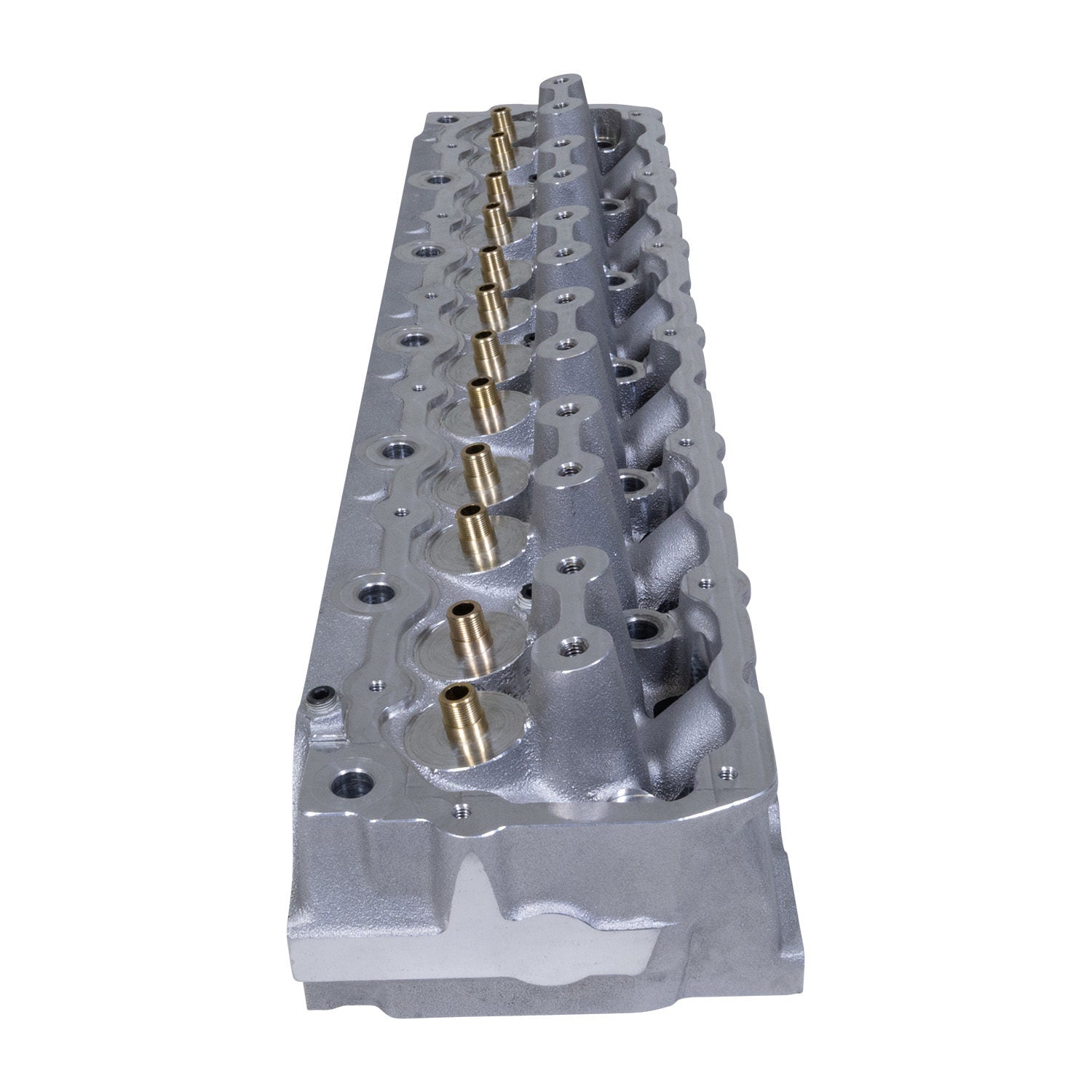

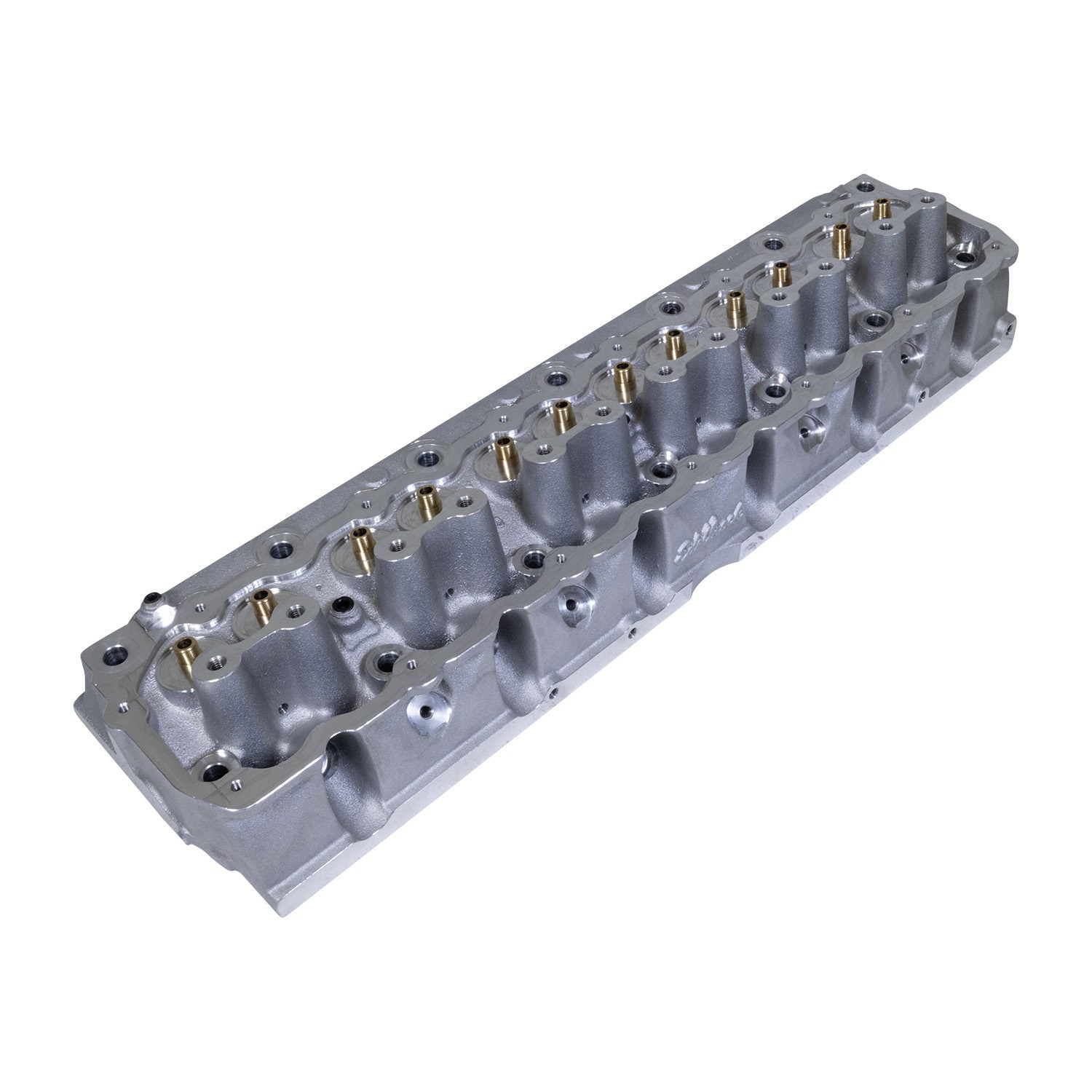

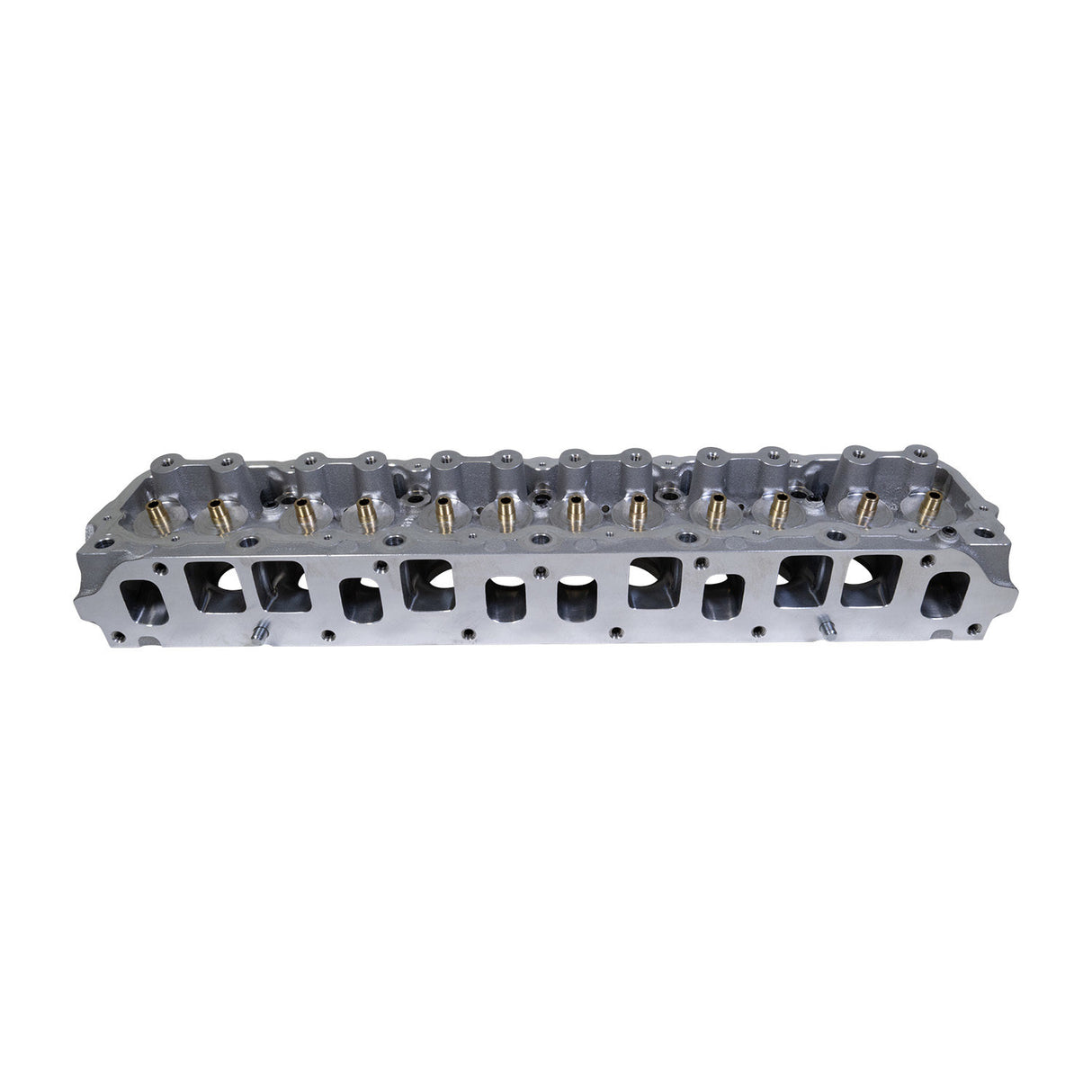

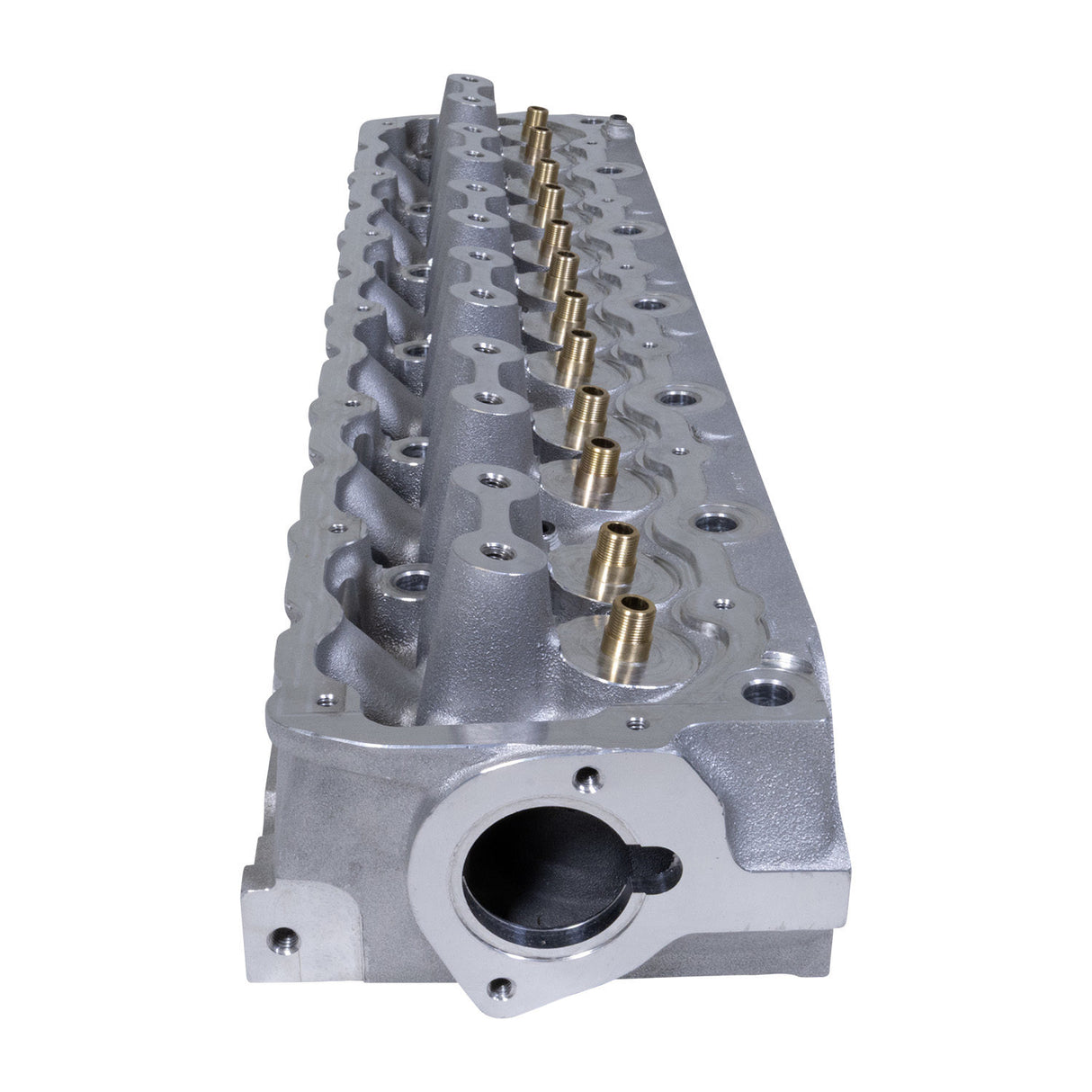

Edelbrock 50149 - Jeep 4.0L I6 Victor CNC Cylinder Head
Cylinder Head - Victor - Bare - 1.910 / 1.500 in Valves - 182 cc Intake - 55 cc Chamber - Aluminum - Jeep Inline-6 - Each
This Victor CNC cylinder head for Jeep 4.0L inline-six engines is a fully CNC-ported version of the popular 50169 Performer cylinder head Edelbrock has been producing for the past 19 years. The head features a 182 cc intake port, a 77 cc exhaust port, and a 55 cc combustion chambers. As an additional improvement the Victor CNC has a valve job to match up with the COMP Cams LS-style 8 mm valvetrain. Utilizing the LS-style valves opens a larger variety of valve spring combinations to fit any camshaft profile. These heads are manufactured with premium materials and machined to the industry’s tightest tolerances. Features include ductile-iron valve seats and fully CNC-machined ports for maximum airflow. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity to securely seal the valves, eliminate leak down, and increase cylinder pressures during engine operation.
- Threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability.
- CNC combustion chamber 59 ± 1cc (57 ± 1cc stock)
- 10 degree valve angle (stock)
- 3.875" bore (stock)
- Stock head bolt pattern
- 1991-1998 intake & exhaust manifold bolt pattern and port locations
- Stock pushrod length
- Stock valve-train geometry
- Larger diameter reinforced rocker bosses
- Stock valve cover location & bolt pattern
- Accepts distributor ignition or coil rail ignition
- .750" deck thickness
