Edelbrock 46760 - Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access

Edelbrock  |  SKU: EDEL-46760
$35,94599 $39,54059

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

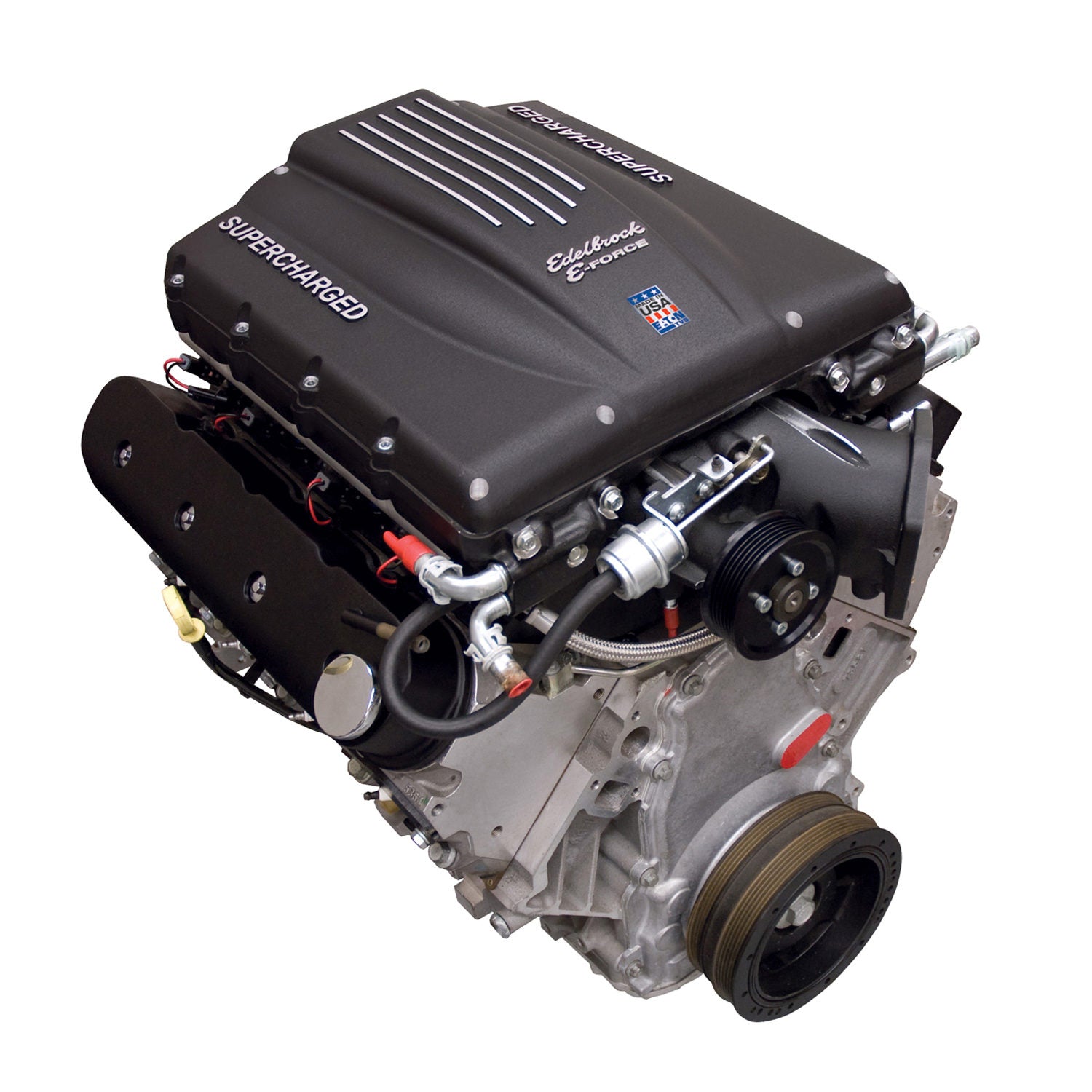

Edelbrock 46760 - Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access

Supercharged LS 416 Crate Engine and Electronics

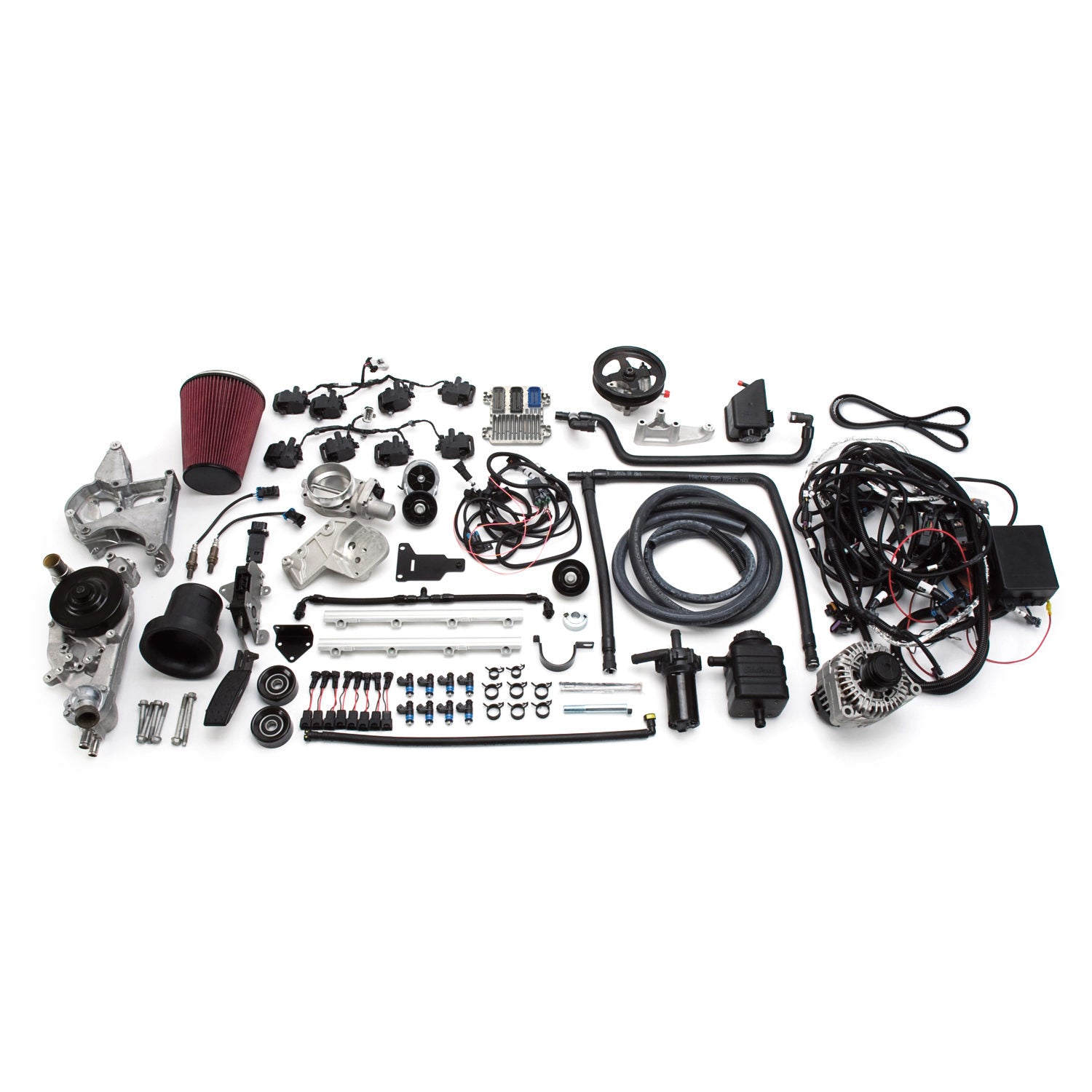

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage

  • 702 HP And 658 ft./lbs. Of Torque On 91-Octane
  • Forged Manley H-Beam Connecting Rods/Mahle Forged Alum. Pistons
  • Forged 4340 Crankshaft
  • Black Powder-Coat Finish
Camshaft Type: 215deg/247deg, .629/.656, 121 LSA
Calibration: Yes
Rear Main Seal Type: 1-Piece
Wire Harness Included: Yes
Distributor Included: No
Cylinder Head Type: GM LSA With Edelbrock Valve Springs #5768
Grade Type: Performance
Engine Block Material: Cast Iron
Induction Type: Supercharged
Power Steering Pump Included: Yes
Quantity: Sold Individually
Manifold Material: Aluminum
Horsepower: 720
Crankshaft Material: Forged Steel
Timing Cover Included: Yes
Water Pump Included: Yes, Standard
Carburetor Choke Type: N/A
Valve Cover Type: OEM, Black Powder Coated
Outside Pulley Diameter: Stock
Main Bearing Cap Bolt Quantity: 4-Bolt
Oil Filter Included: Yes
Cylinder Head Material: Aluminum
Valve Cover Included: Yes
Type: GM LS3 Gen V
Carburetor Type: Not Included
Rocker Arm Ratio: 1.7:1
Rocker Arm Type: LS3
Universal Or Specific Fit: Specific Fit
Construction Type: Assembled
Pulley Belt Width: Stock
Valve Cover Material: Cast Aluminum
Air Cleaner Type: Conical
Throttle Body Included: Yes
Torque: 695
Hardware Included: Yes
Alternator Included: Yes
Displacement: 416
ECU Included: Yes
Flywheel Included: No
Fuel Injectors Included: Yes
Intake Manifold Type: EFI
Rotor Type: Eaton TVS 2300, Black Powder Coated
Spark Plugs Included: No
Compression Ratio: 9.5:1
Oil Pan Included: Yes
Piston Type: Forged Aluminum
Plug Wire and Boot Included: Yes
Harmonic Balancer Included: Yes
Idler Pulley Included: Yes
