Edelbrock 46750 - Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration

Edelbrock  |  SKU: EDEL-46750
$32,23599 $35,45959

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

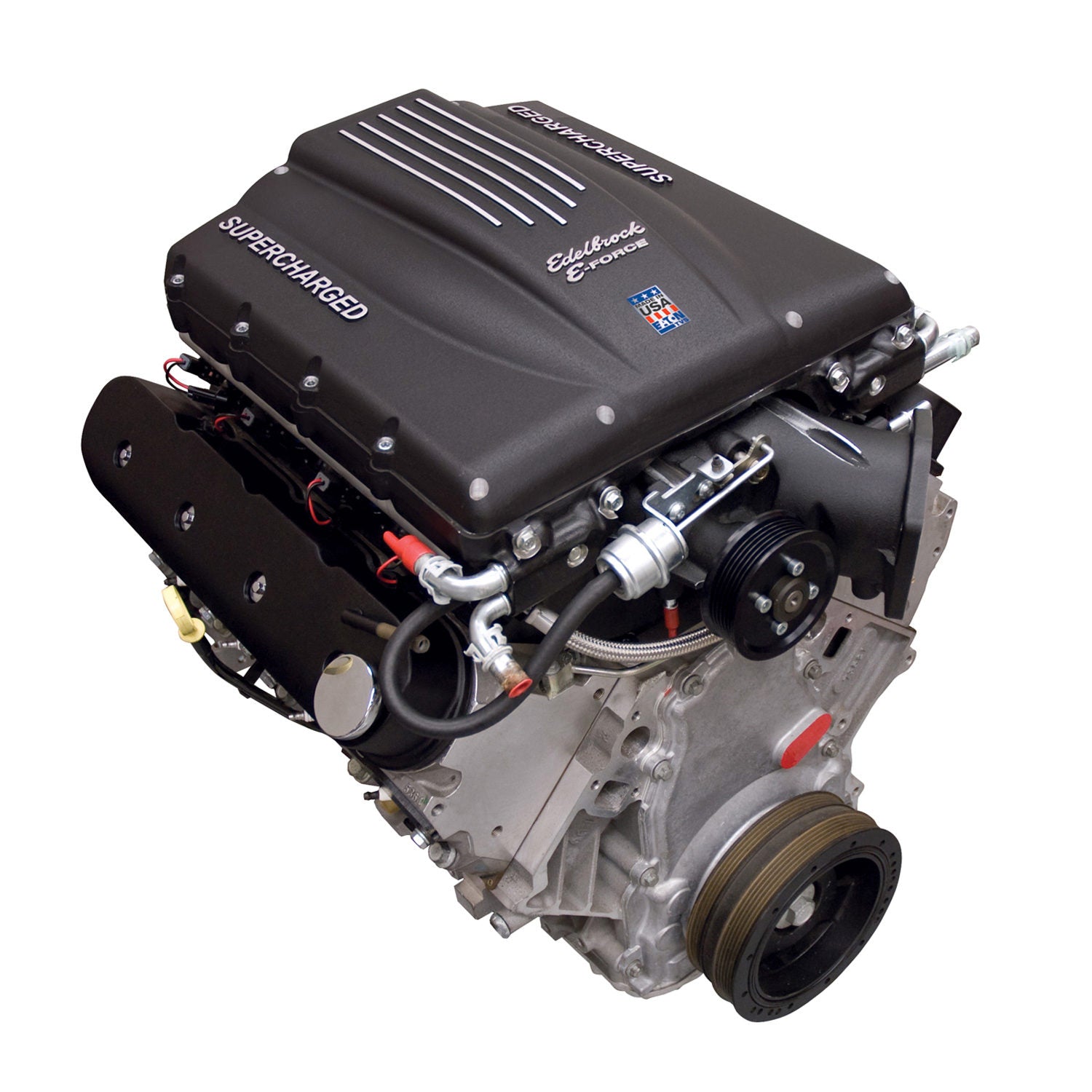

Edelbrock 46750 - Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration

Supercharged LS 416 Crate Engine and Electronics

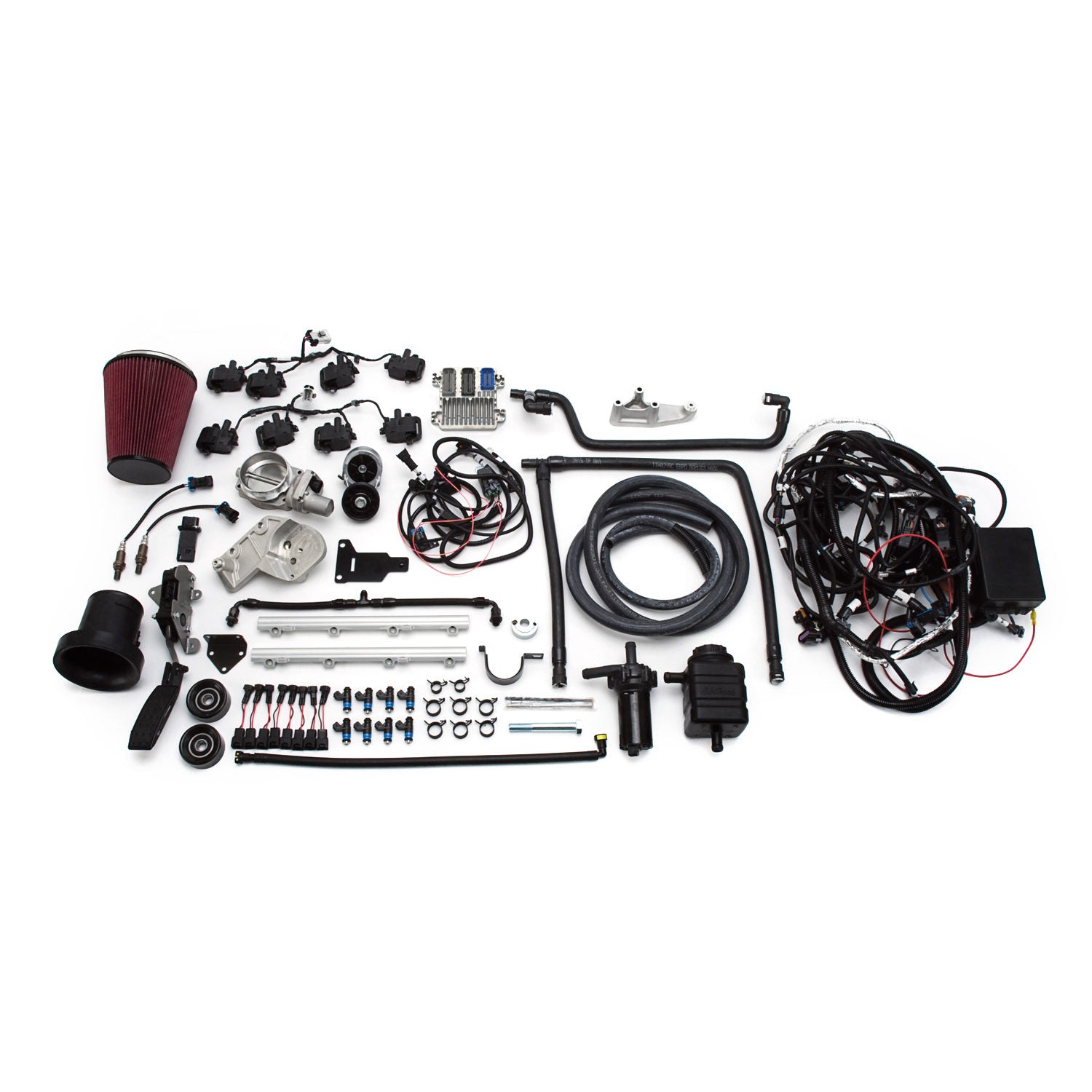

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage- Suggested Fuel: 91 octane pump gas.

  • 702 HP And 658 ft./lbs. Of Torque On 91-Octane
  • New LS3 Aluminum Block
  • Forged Manley H-Beam Connecting Rods/Mahle Forged Alum. Pistons
  • Forged 4340 Crankshaft
  • Black Powder-Coat Finish
Crankshaft Material: Forged Steel
Induction Type: Supercharged
Oil Pan Included: Yes
Piston Type: Forged Aluminum
Timing Cover Included: Yes
Outside Pulley Diameter: Stock
Main Bearing Cap Bolt Quantity: 4-Bolt
Idler Pulley Included: Yes
Type: GM LS3 Gen V
Carburetor Type: Not Included
Rocker Arm Ratio: 1.7:1
Camshaft Type: 215deg/247deg, .629/.656, 121 LSA
Cylinder Head Type: GM LSA With Edelbrock Valve Springs #5768
Grade Type: Performance
Construction Type: Assembled
Harmonic Balancer Included: Yes
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Calibration: Yes
Wire Harness Included: Yes
Displacement: 416
Engine Block Material: Cast Iron
Power Steering Pump Included: Yes
Fuel Injectors Included: Yes
Plug Wire and Boot Included: Yes
Horsepower: 720
Rear Main Seal Type: 1-Piece
Water Pump Included: Yes, Standard
Carburetor Choke Type: N/A
Valve Cover Type: OEM, Black Powder Coated
Universal Or Specific Fit: Specific Fit
Oil Filter Included: Yes
Compression Ratio: 9.5:1
Air Cleaner Type: Conical
Cylinder Head Material: Aluminum
Distributor Included: No
Valve Cover Included: Yes
Rocker Arm Type: LS3
Valve Cover Material: Cast Aluminum
Alternator Included: Yes
ECU Included: Yes
Flywheel Included: No
Quantity: Sold Individually
Manifold Material: Aluminum
Intake Manifold Type: EFI
Rotor Type: Eaton TVS 2300, Black Powder Coated
Spark Plugs Included: No
Throttle Body Included: Yes
Torque: 695
Pulley Belt Width: Stock
Hardware Included: Yes
