CRATE ENGINE BBC VICTOR 540-650 HP

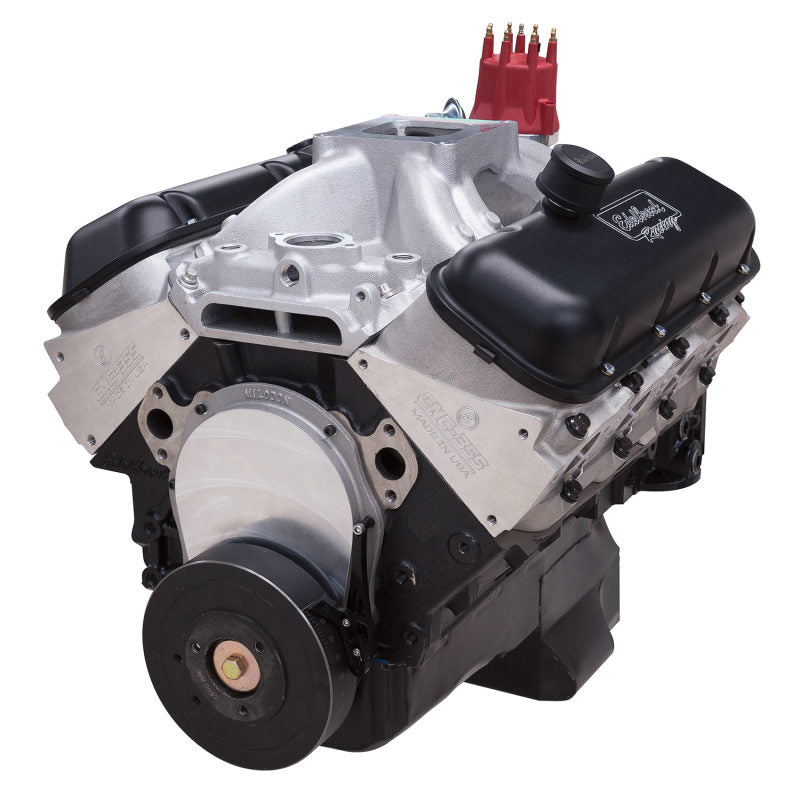

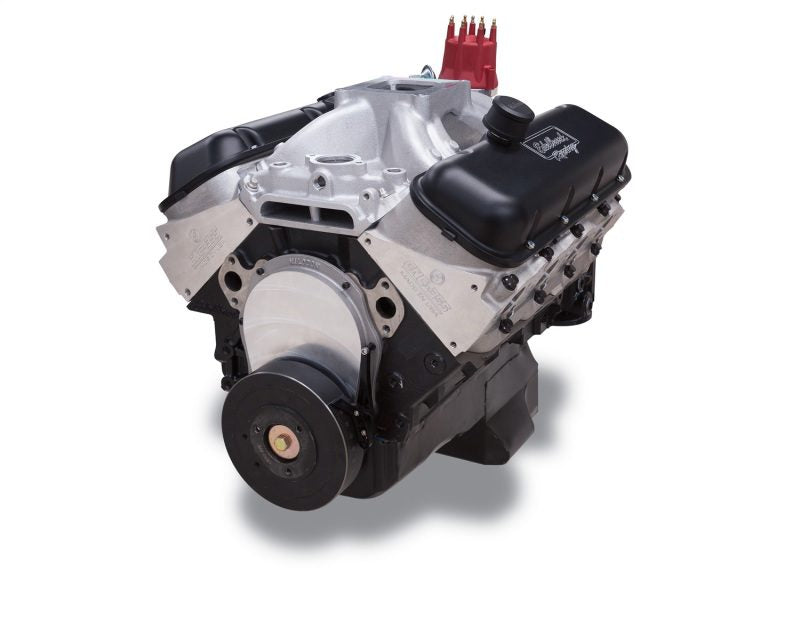

Edelbrock part #46230 is a Victor level 540cid BBC Crate Engine. This engine has a 4.500" bore, 4.250" stroke and standard 9.80" BBC deck height producing 540 CID

Edelbrock part #46230 540 c.i.d. crate engine is a great powerplant for any high performance build that delivers over 650 horsepower and 640 ft-lbs. of torque on pump gas. It features a top end package that includes a Victor Jr. intake manifold and E-CNC rectangular port cylinder heads that are 100% fully CNC ported for improved air flow. These heads also have stock exhaust port locations for use with off-the-shelf headers. This engine is sold without a carburetor, so you can select the best one for your performance goals. You can also special order this crate engine with an intake manifold with a 4500 series flange for even more power potential and any combination of valve covers to fit the look you want. Engine Specifications: - Displacement: 540 c.i.d. - Horsepower: 650+ hp - Torque: 640+ ft-lbs. - Compression: 10.0:1 - Block: Big-block 9.8" - Crankshaft: Forged Steel 4.250" - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2264 - Rocker Arms: 1.7:1 Roller #77790 - Manifold: Victor Jr. 454-R #2902 - Cylinder Heads: E-CNC #79555 - Carburetor: Not Included - Distributor: Included - Valve Covers: Cast Aluminum - Warranty: 2-year / Unlimited mileage - Your engine is supplied with Edelbrock Break-In Oil in the crate. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming.

• CNC Ported To Achieve Optimal Air Flow
• 2 Year/Unlimited Mileage Warranty
