Edelbrock 38691 - EFI Throttle Body Pro-Flo XT 90mm Polished

Edelbrock  |  SKU: EDEL-38691
$59399 $65339

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

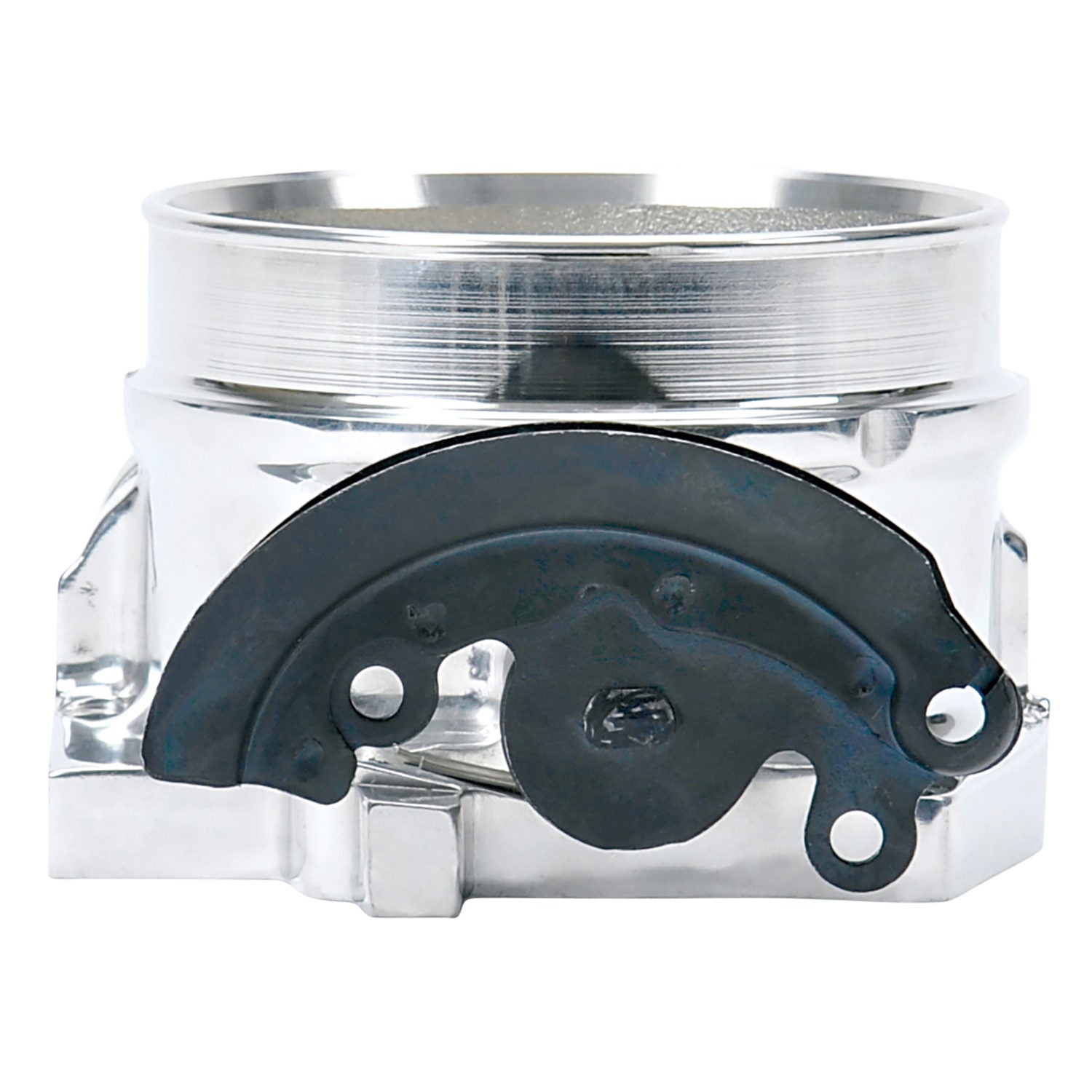

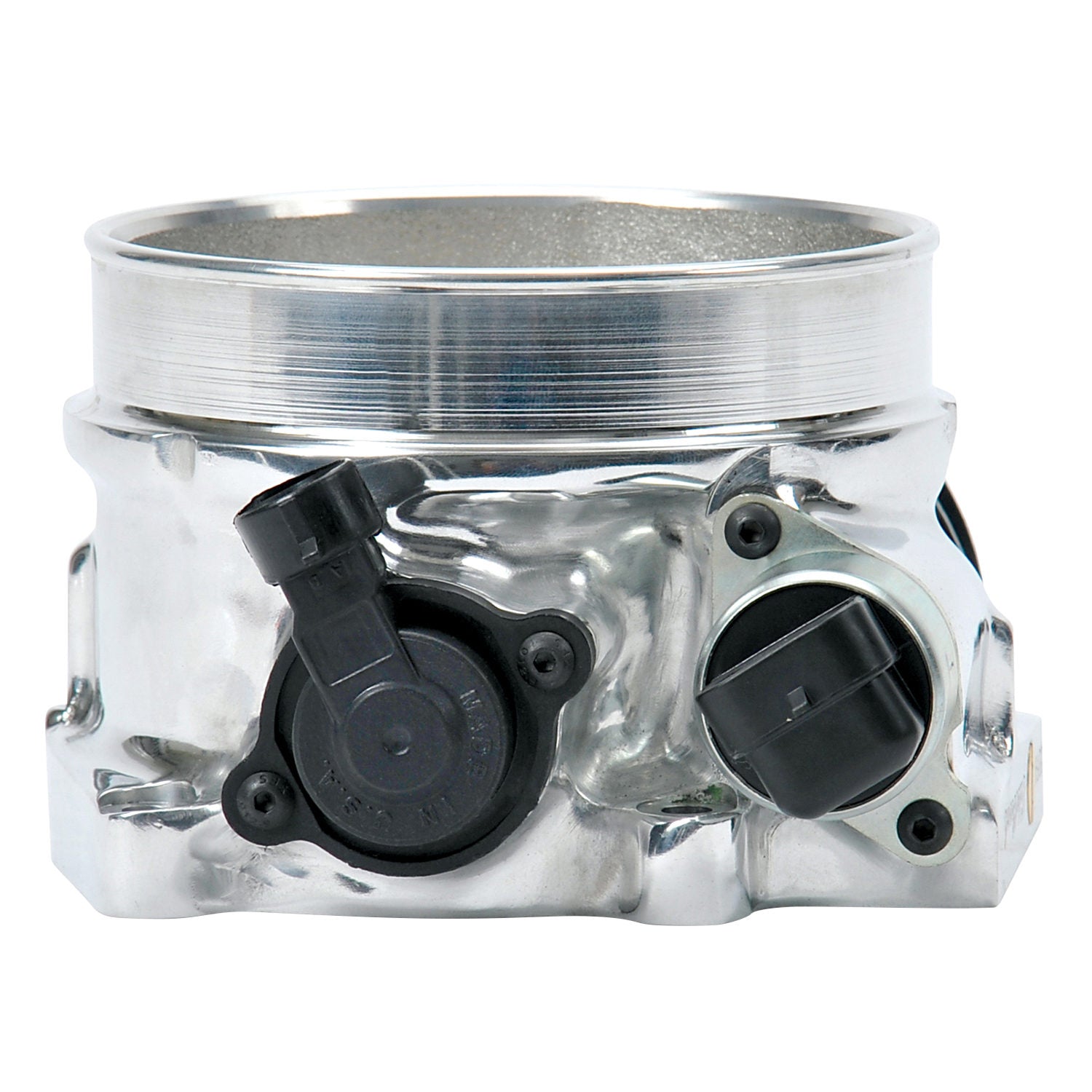

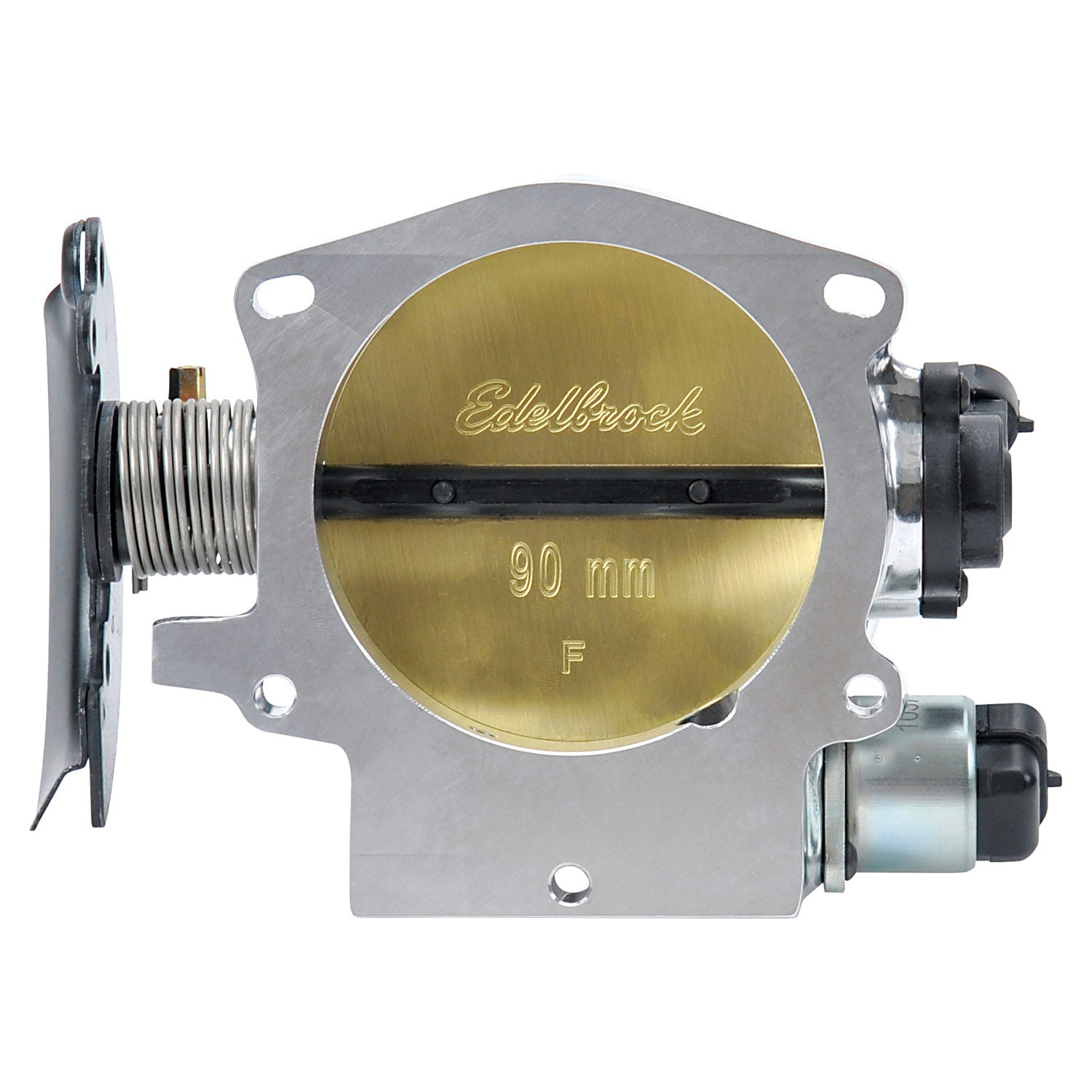

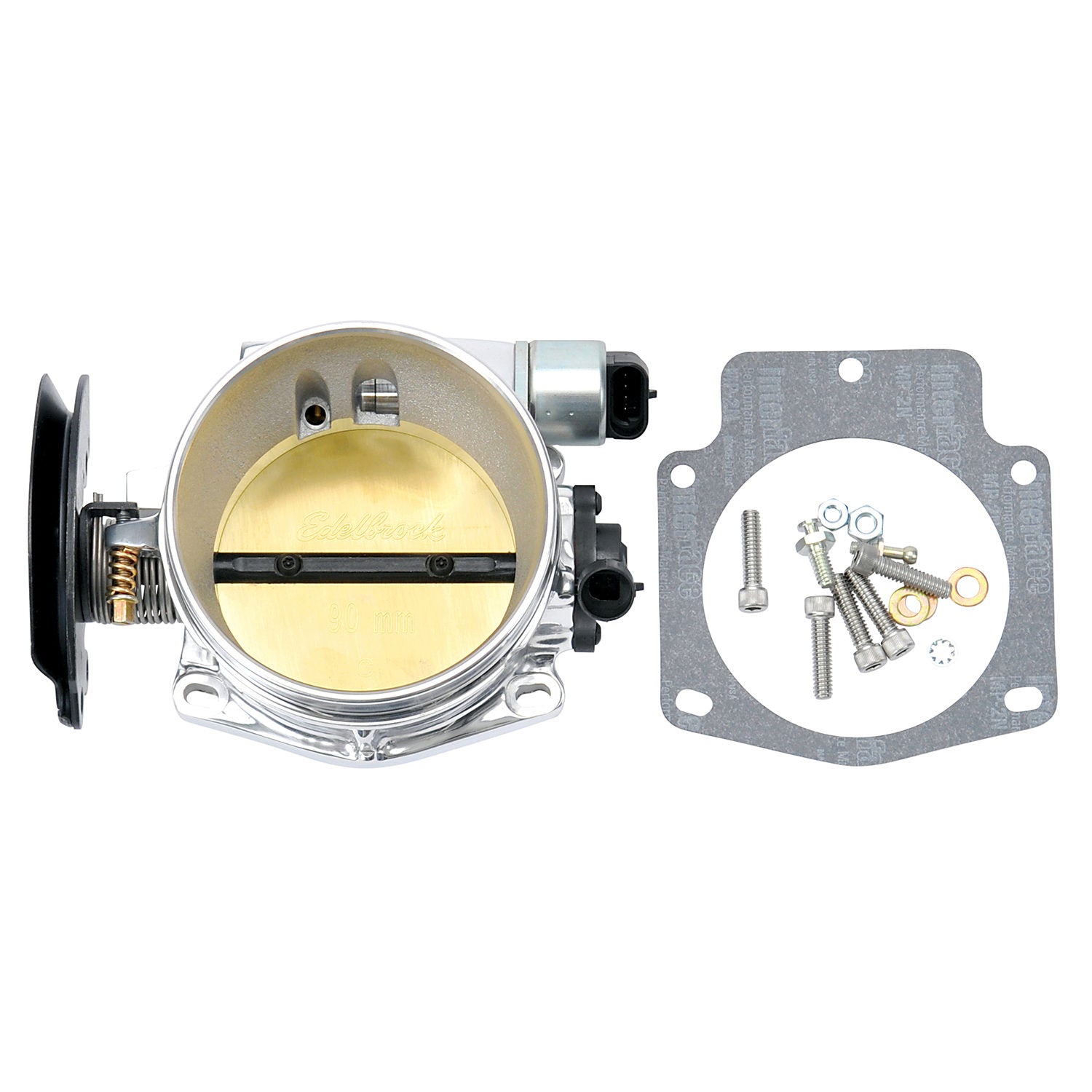

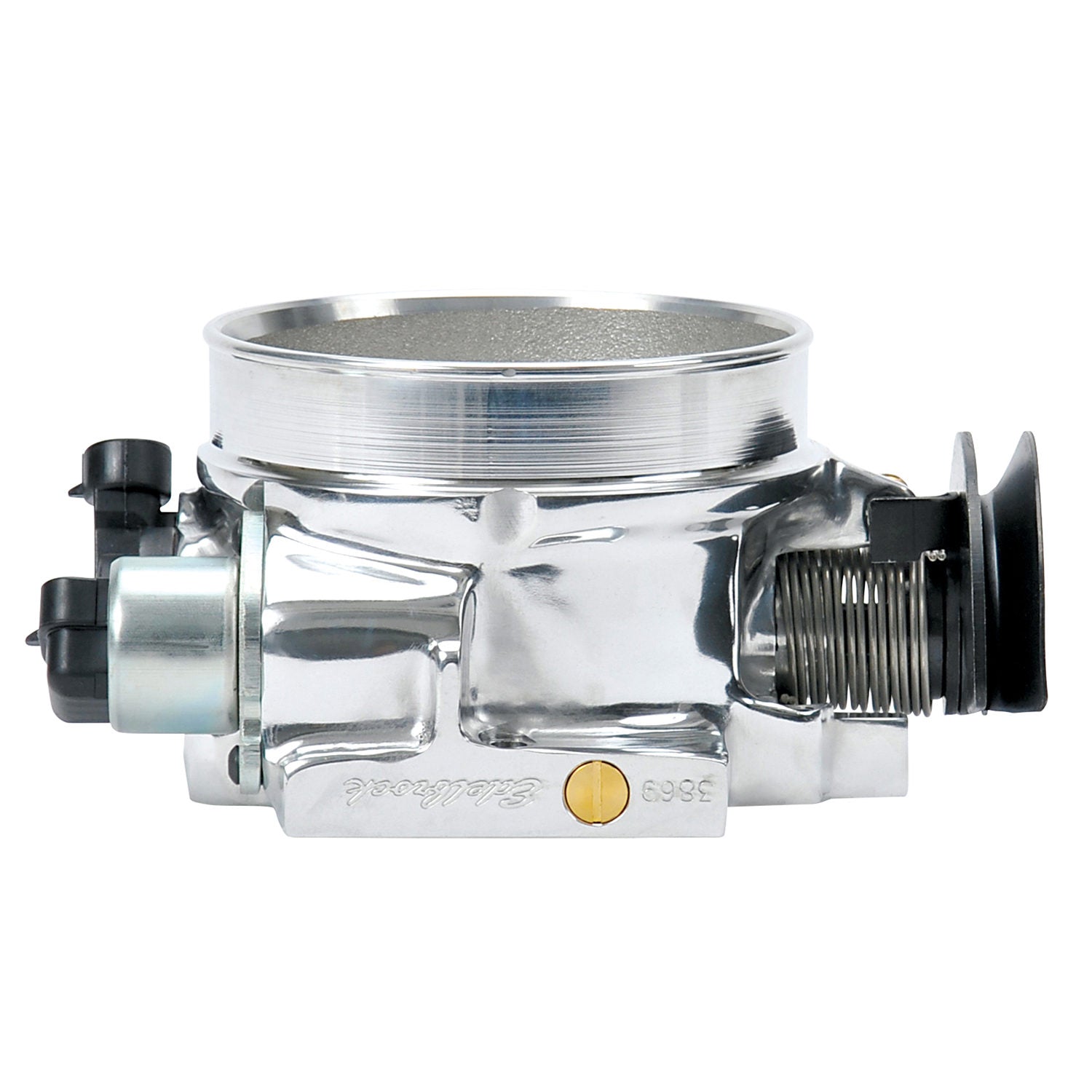

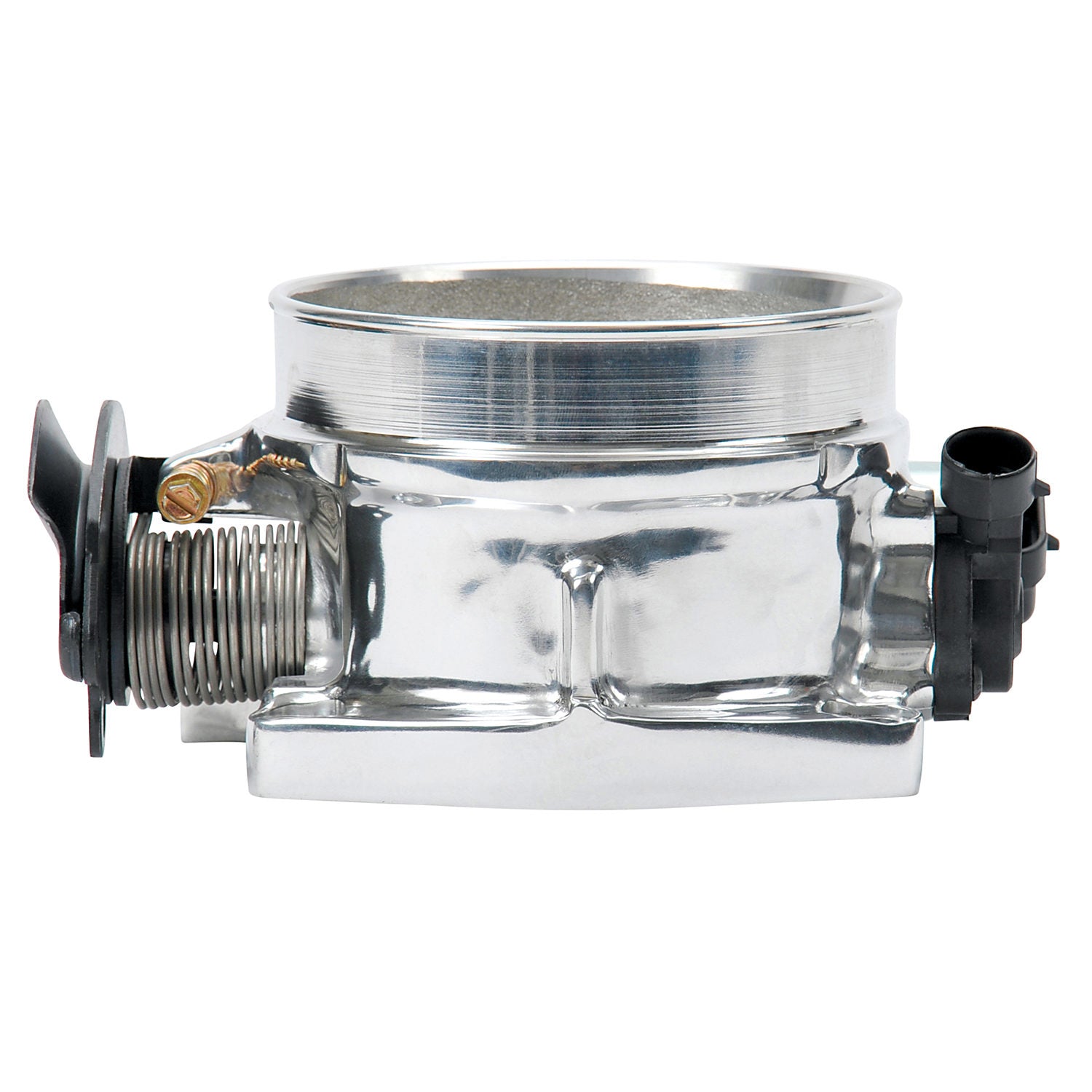

Edelbrock 38691 - EFI Throttle Body Pro-Flo XT 90mm Polished

Pro Flo XT Throttle Body

The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Polished Finish

  • Larger Diameter Increases Flow and Performance
  • Direct Bolt-On; No Modifications Necessary
  • Manufactured On Sophisticated Machinery
  • Butterflies Are Precision Machined
  • Includes New Machined Throttle Position Sensor
  • Bolts To Stock Or Aftermarket Manifold
  • All Stock Sensors And Lines Fit Like Stock
Series: Pro-Flo XT
Finish: Polished
Type: Single Blade
Quantity: Sold Individually
Gasket Or Seal Included: Yes
Cubic Feet Per Minute Rating: 1100
Material: Aluminum
Idle Air Control Motor Included: Yes
Throttle Position Sensor Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Bore Diameter: 90
