Edelbrock 3869 - Throttle Body Victor Series 90mm for Competition EFI As-Cast Finish

Edelbrock  |  SKU: EDEL-3869
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 3869 - Throttle Body Victor Series 90mm for Competition EFI As-Cast Finish

Throttle body; Victor Series 90mm for competition EFI; as-cast finish

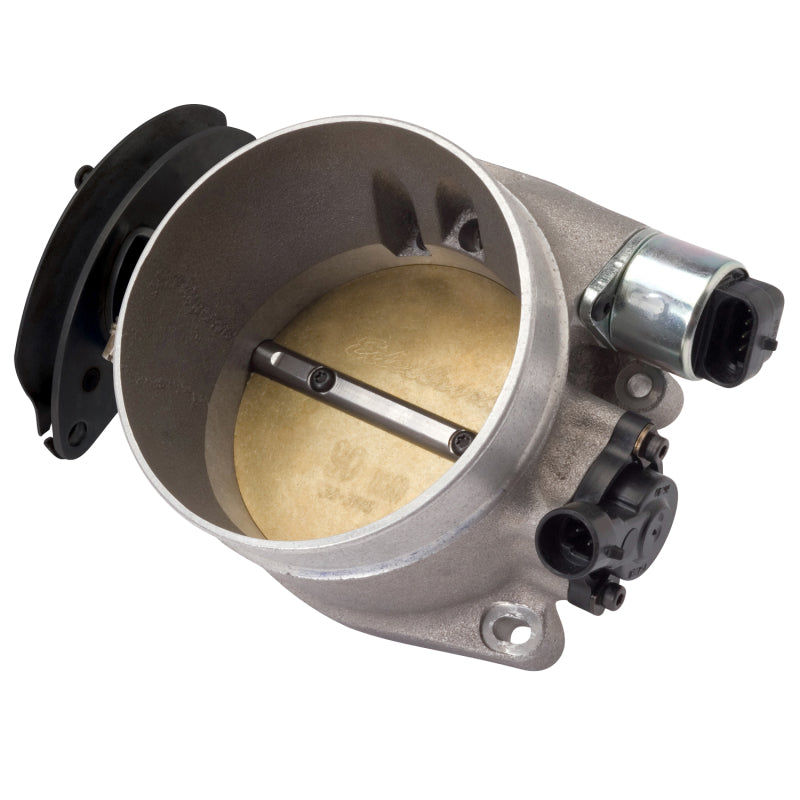

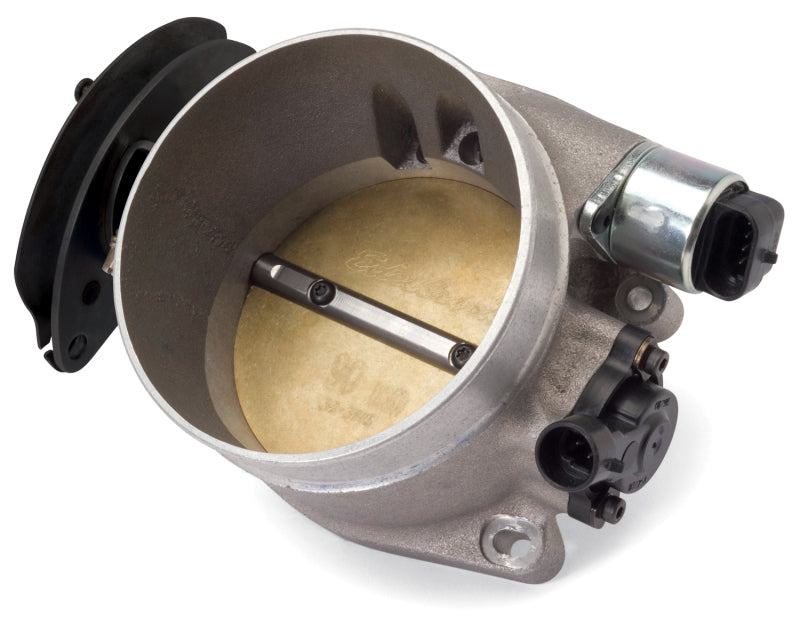

The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Features a 4.5" Inlet. Satin Finish

  • Provisions For LS1 Or LS2 Mounting
  • Uses LS1 Style TPS And 4 Wire Stepper IAC
  • Idle Bleed Screw For Better Idle Control
Material: Aluminum
Gasket Or Seal Included: Yes
Quantity: Sold Individually
Finish: Satin
Idle Air Control Motor Included: Yes
Cubic Feet Per Minute Rating: 1100
Series: Pro-Flo XT
Bore Diameter: 90
Throttle Position Sensor Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Type: Single Blade
