Edelbrock 35721 - Pro-Flo 4 Standalone ECU and Harness Kit, No Distributor

Name: Edelbrock 35721 - Pro-Flo 4 Standalone ECU and Harness Kit, No Distributor
Brand: Edelbrock
SKU: EDEL-35721
Price: 1126.95 USD
Availability: Backorder

Edelbrock | SKU: EDEL-35721

$1,126⁹⁵ $1,239⁶⁴

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 35721 - Pro-Flo 4 Standalone ECU and Harness Kit, No Distributor

Pro-Flo 4 Standalone ECU and Harness Kit, No Distributor

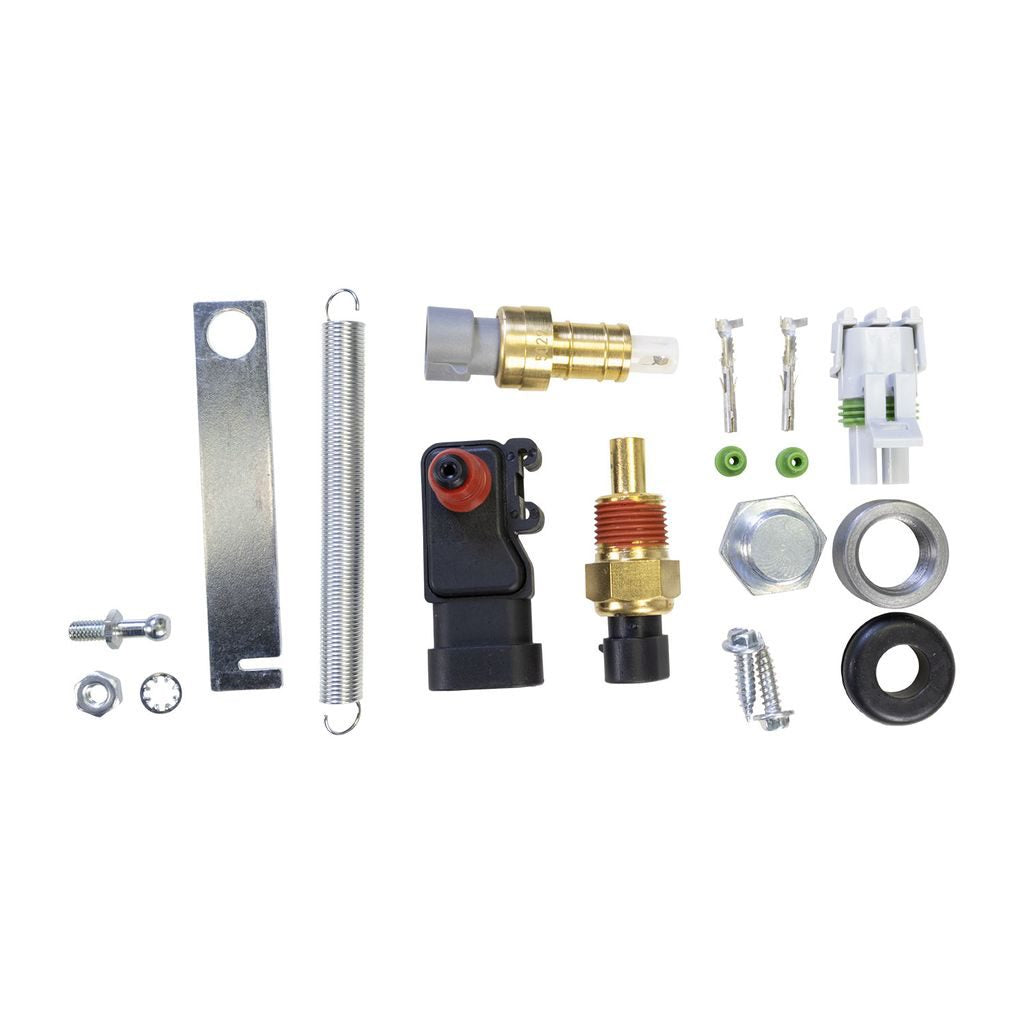

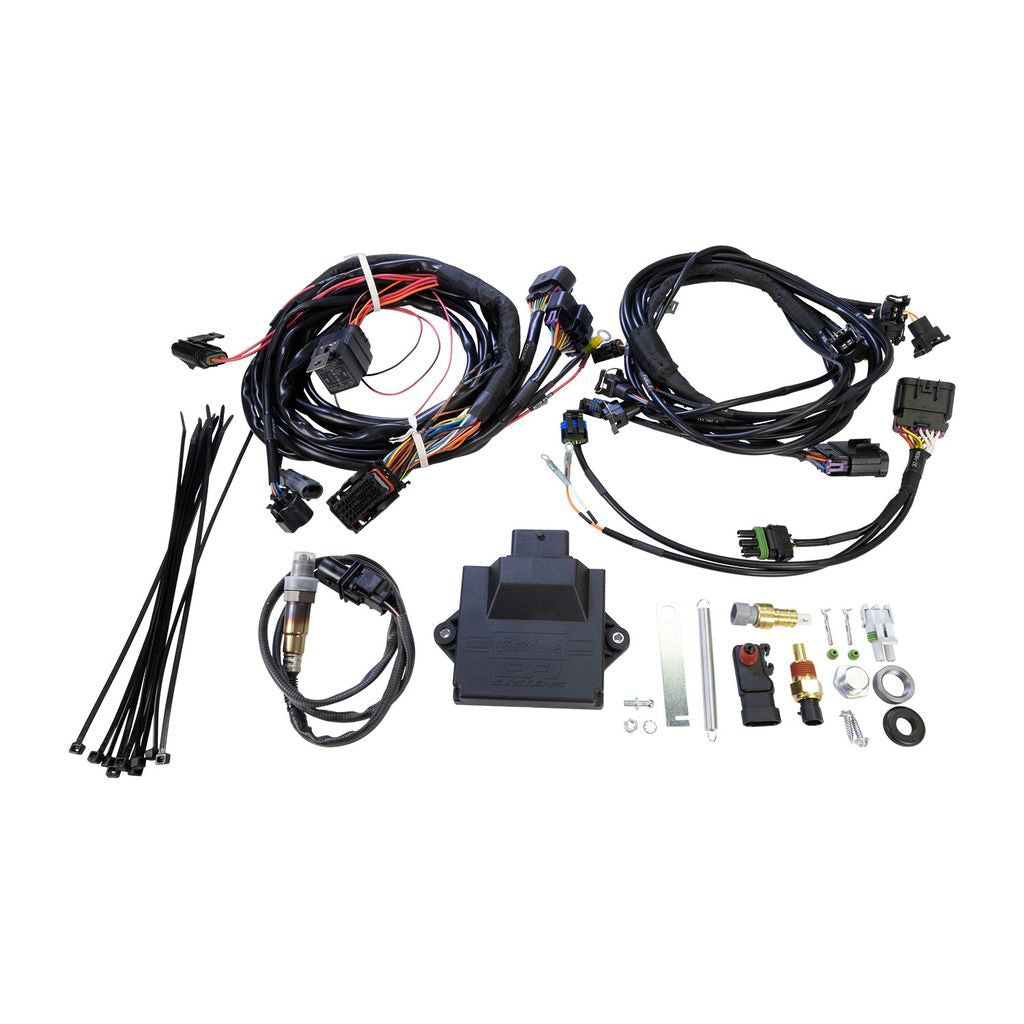

The Pro-Flo 4 Standalone ECU and Harness Kit (PN 35721) provides an economical EFI system solution ideal for legacy Pro-Flo EFI system users or those with an existing yet poor-performing competitor EFI system looking to convert to PF4 EFI. This kit can be used with any application for which Edelbrock offers a Pro-Flo 4 Distributor. The Standalone EFI kit comprises the ECU, supporting sensors, a wide-band O2 sensor, and the wiring harness. The ECU controls both fuel and spark and includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must purchase a Pro-Flo distributor (specific to the application) and provide the induction system, EFI manifold, throttle body, 1-bar MAP sensor, fuel rails, injectors, pump, regulator, and lines. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors and a 2-bar MAP sensor.

Economical EFI System solution for users with existing EFI system and components.
Simplified installation, providing all existing features of Pro Flo 4 EFI

Quantity: Sold as a Kit

Notes: Tuning supported by E Tuner 4 App

Maximum Horsepower with Gas: 900

Power Adder Compatible: Yes

Self Tuning: Yes

User Tunable: Yes

Transmission Controller Included: No

ECU Included: Yes

Wiring harness included: Yes

Fuel Injectors included: No

Drive-By-Wire Capable: No

Throttle Body Included: No

Injection Style: Sequential Port Injection

Timing Control Compatible: Yes

Fuel Pump Included: No

EGR: No

Metering Style: Speed Density

Intake Manifold Included: No

Fuel Rails Included: No

Fuel Pressure Regulator Included: No

MAP Sensor Included: Yes

IAT Sensor Included: Yes

TPS Sensor Included: No

IAC Motor Included: Yes

Oxygen Sensor Included: Yes

Display Included: No

Handheld Controller Included: No

Data Logger: Yes

Required Products: Fuel Injection Intake assembly including Fuel Rails and Injectors

Related Products: All Edelbrock and FAST EFI Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket

Cross sell / Upsell Products: All Pro Flo 4 EFi kits All Pro Flo 4+ EFI Kits All EFi Intake Manifolds

Air Metering Style: Speed Density

CAN-BUS Support: Yes

Coil Per Cylinder Ignition Support: No

Datalogging Support: Yes

Distributor Included: No

Injector Connector Type: Minitimer / EV1

Number of Connectors Supported: 8

High or Low Impedence: High
