Edelbrock 35716 - Pro Flo 4 EFI ECU and Electronics Kit for Small Block/Big Block Chevrolet

Name: Edelbrock 35716 - Pro Flo 4 EFI ECU and Electronics Kit for Small Block/Big Block Chevrolet
Brand: Edelbrock
SKU: EDEL-35716
Price: 1364.95 USD
Availability: Backorder

Edelbrock | SKU: EDEL-35716

$1,364⁹⁵ $1,501⁴⁴

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Edelbrock 35716 - Pro Flo 4 EFI ECU and Electronics Kit for Small Block/Big Block Chevrolet

Pro Flo 4 EFI ECU and Electronics Kit for Small Block/Big Block Chevrolet

The Pro-Flo 4 ECU & Electronics Kit for Chevy SB and BB allows customers with existing EFI induction systems to upgrade to the PF4 EFI. Includes sensors, ECU, harness, and other components to be controlled with iOS/Android E-Tuner software.

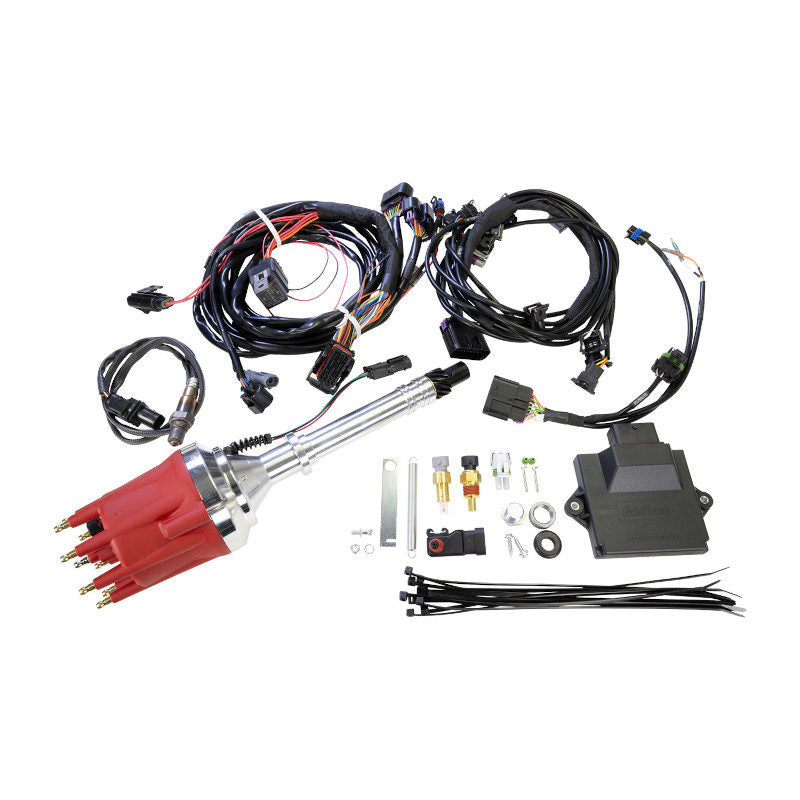

These new Pro-Flo 4 ECU and Electronics Kits for small or big-block Chevrolet engines offer an economical, plug-and-play solution for enthusiasts who want to keep their existing EFI Induction system (intake manifold, fuel rails, and accessories) but want the performance advantages of the Pro-Flo 4 EFI system. Previously, the only option was to buy an entire Pro Flo 4 EFI system, leaving unneeded or duplicate parts. Pro Flo 4 EFI ECU and Electronics kits include supporting sensors, a distributor, an ECU, a wide-band O2 sensor, a wiring harness, and components for Chevrolet SB and BB applications. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrockï¿½s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system including a manifold, throttle body, fuel rails, and injectors. Also, a fuel pump, regulator, or fuel lines are not included. Users must refer to the Calibration Matrix in the instructions for the required injector size depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

Economical EFI System solution for Chevrolet SB and BB Engines with existing EFI Manifold Assembly
Simplified installation, providing all existing features of Pro Flo 4 EFI
Alternative for complete Pro Flo 4 EFI System

Self-Tuning: Yes

User-Tuneable: Yes

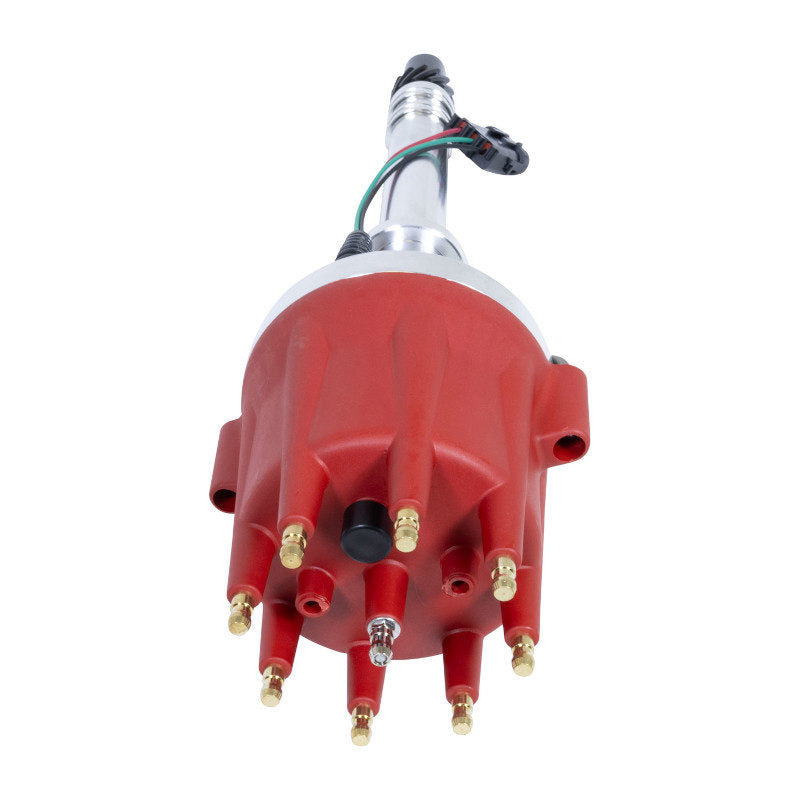

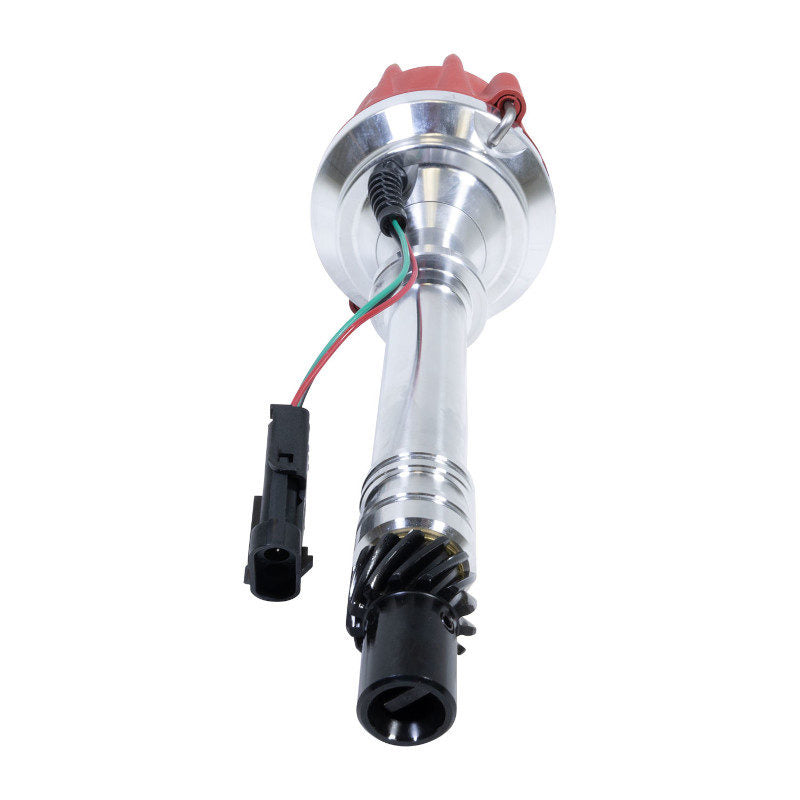

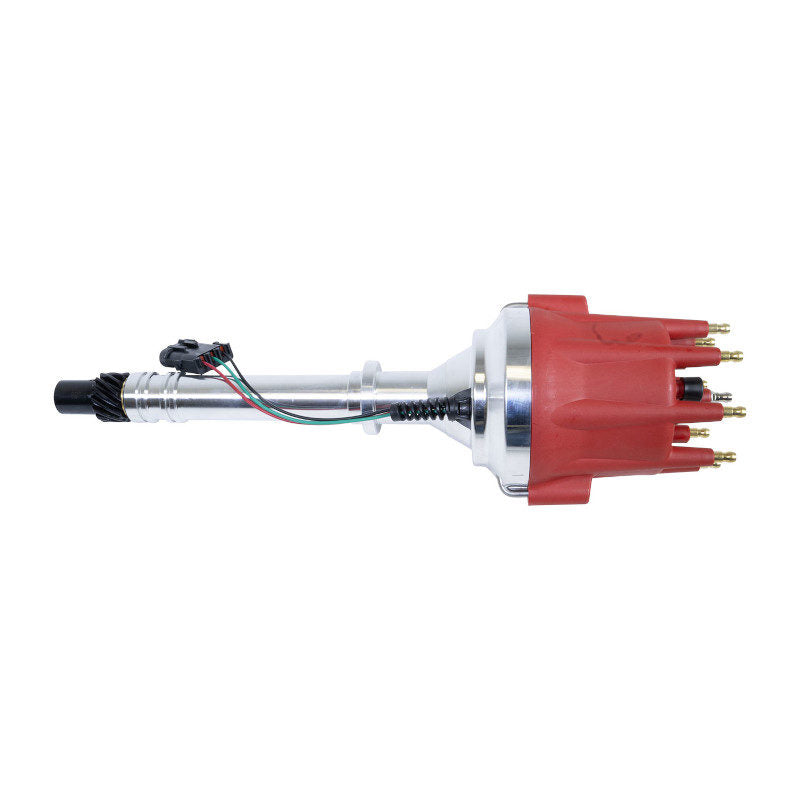

Distributor Included: Yes

Fuel Injectors Included: No

Fuel Pump Included: No

Intake Manifold Included: No

Fuel Pressure Regulator Included: No

Datalogging Support: Yes

Notes: System tuning supported by E Tuner 4 App

Maximum Horsepower w/ Gas: 900

Power Adapter Compatible: Yes

Self Tuning: Yes

User Tunable: Yes

Transmission Controller Included: No

ECU Included: Yes

Wiring harness included: Yes

Drive By Wire Capable: No

Throttle Body Included: No

Injection Style: Sequential Port

Timing Control Compatible: Yes

Fuel Pump Included: No

EGR: No

Metering Style: Speed Density

Intake Manifold Included: No

Fuel Rails Included: No

Fuel Pressure Regulator Included: No

MAP Sensor Included: No

IAT Sensor Included: No

TPS Sensor Included: No

IAC Motor Included: No

Oxygen Sensor Included: Yes

Display Included: No

Handheld Controller Included: no

Data Logger: Yes

Quantity: Sold as a Kit

Related Products: All Edelbrock and FAST EFI Chevrolet Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket

Required Products: EFI Intake Manifold assembly including Fuel Rails and Injectors. Injector part numbers: 29LbHr #37-3511 35LbHr #37-3635 42LbHr #51-4463 60LbHr #51-4106 EFI Hi Pressure Fuel System Ignition Coil Sopark Plug Wires

Cross sell / Upsell Part Numbers: 35760 35820 35823 35810 35813 35790 35793 35870 35873 35860 29785 71383 7136 71363 7138 71383 29045 7137 71373

Injector Connector Type: Minitimer / EV1

Number of Connectors Supported: 8

High or Low Impedence: High
