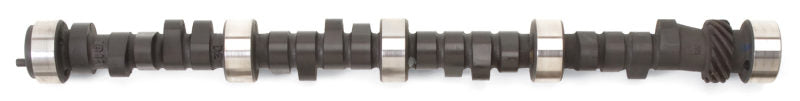

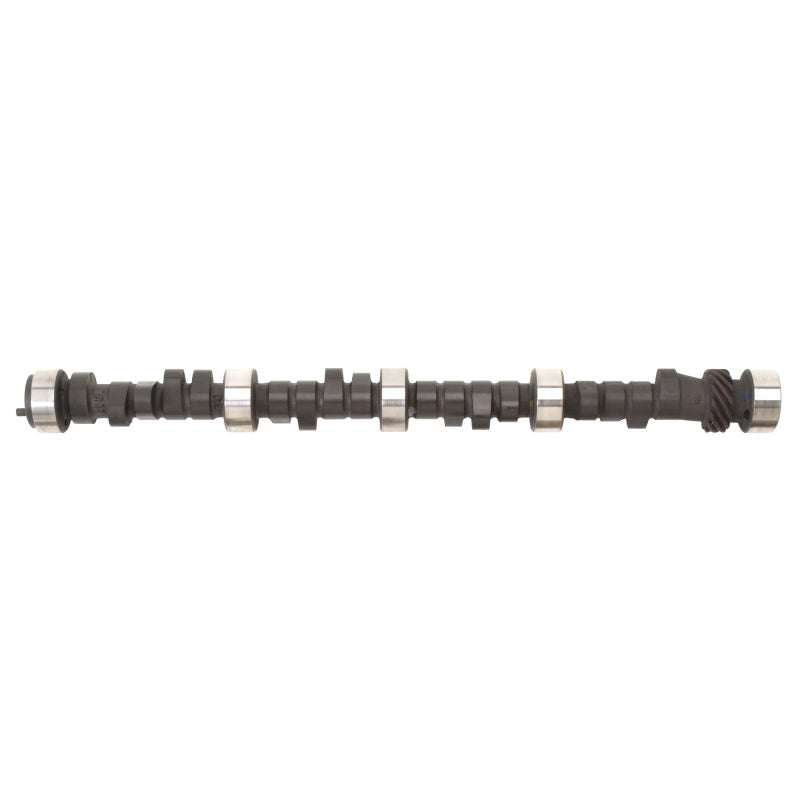

Edelbrock 2204 - RPM Hydraulic Roller Cam Only 283-400 Chev 87-99

Edelbrock 2204 - RPM Hydraulic Roller Cam Only 283-400 Chev 87-99

Camshaft - Rollin Thunder - Hydraulic Roller - Lift 0.539 / 0.548 in - Duration 296 / 300 - 112 LSA - 1500 / 6500 RPM - Small Block Chevy - Each

Edelbrock Rollin' Thunder Camshaft #2204 is designed for 283-400 Chevy V8 engines from 1987-Later (Non LT1/Gen III) and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 435HP and 435 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60795. Use with high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 234 Degrees - Exhaust duration: 238 Degrees - Intake lift: .539" - Exhaust lift: .548" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 12"

• Designed for 1500 to 6500 RPM Performance
• Maximum Power in High-RPM with Good Low-End Torque
• Matched to Edelbrock Performer RPM Intakes
• 10 To 12 in. Of Manifold Vacuum At Idle
• More Lift And Duration Than Most Street Camshafts
• Dyno-Matched/Street-Proven Performance
• Take the Guesswork Out of Camshaft Selection!
• Use Only Stock Ratio Rocker Arms
