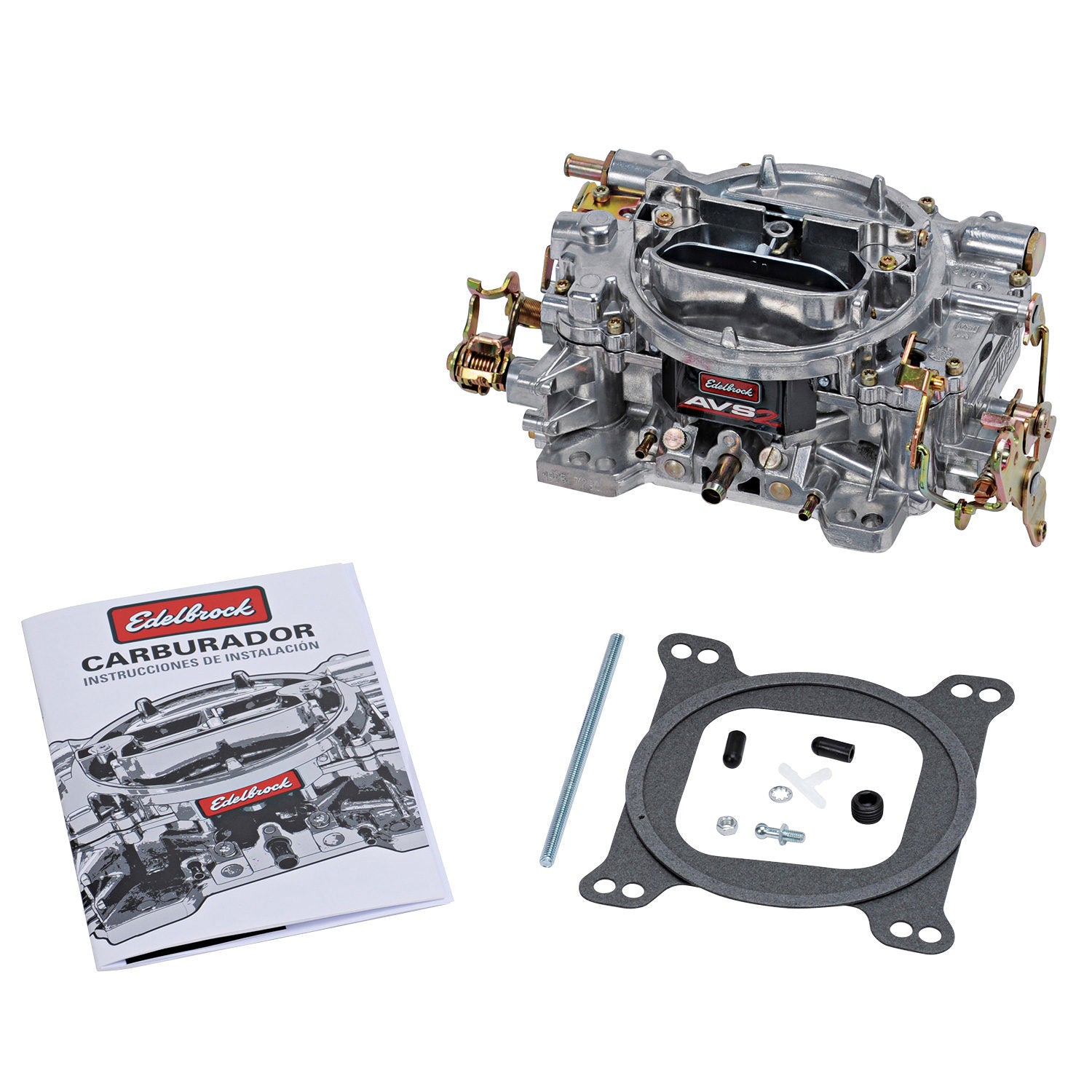

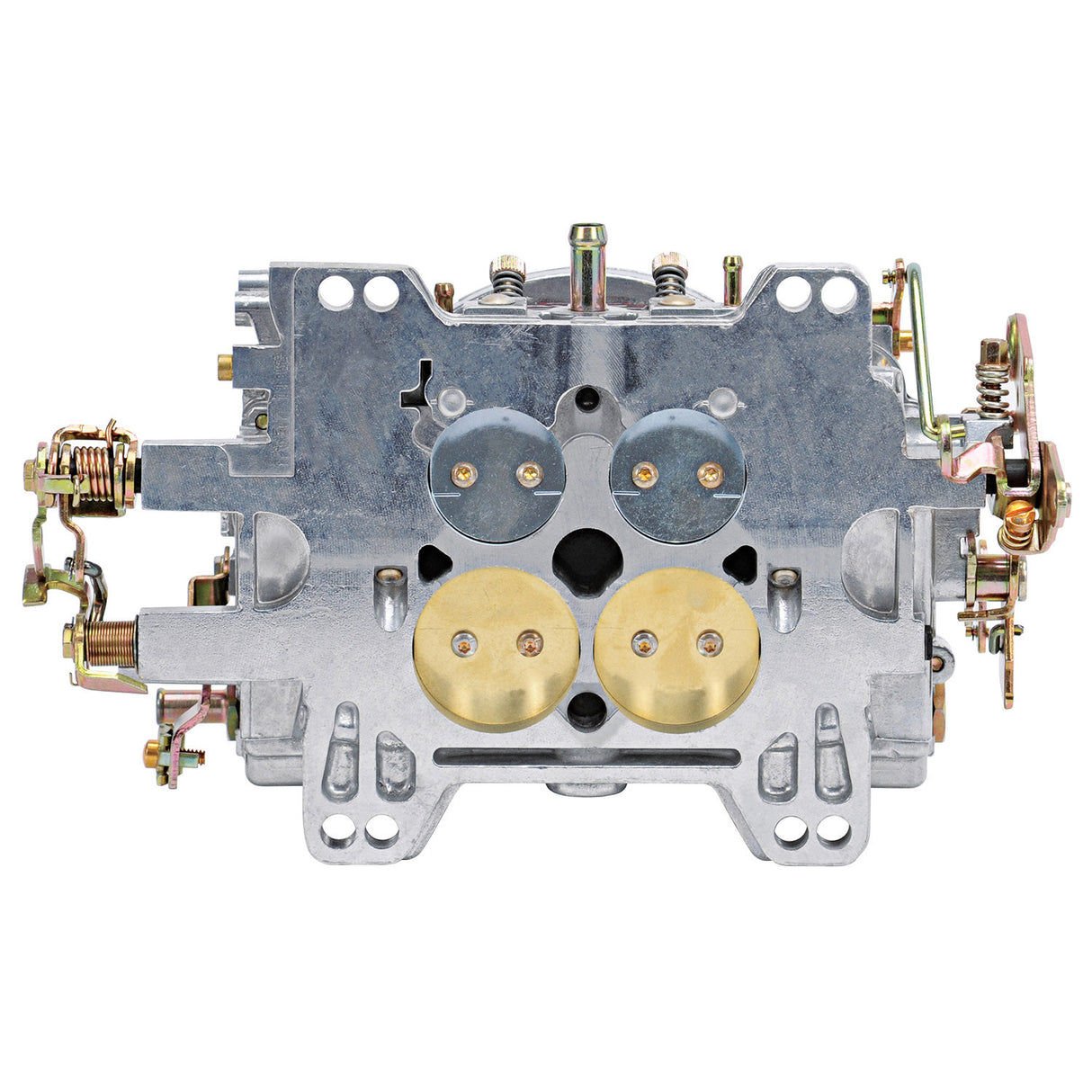

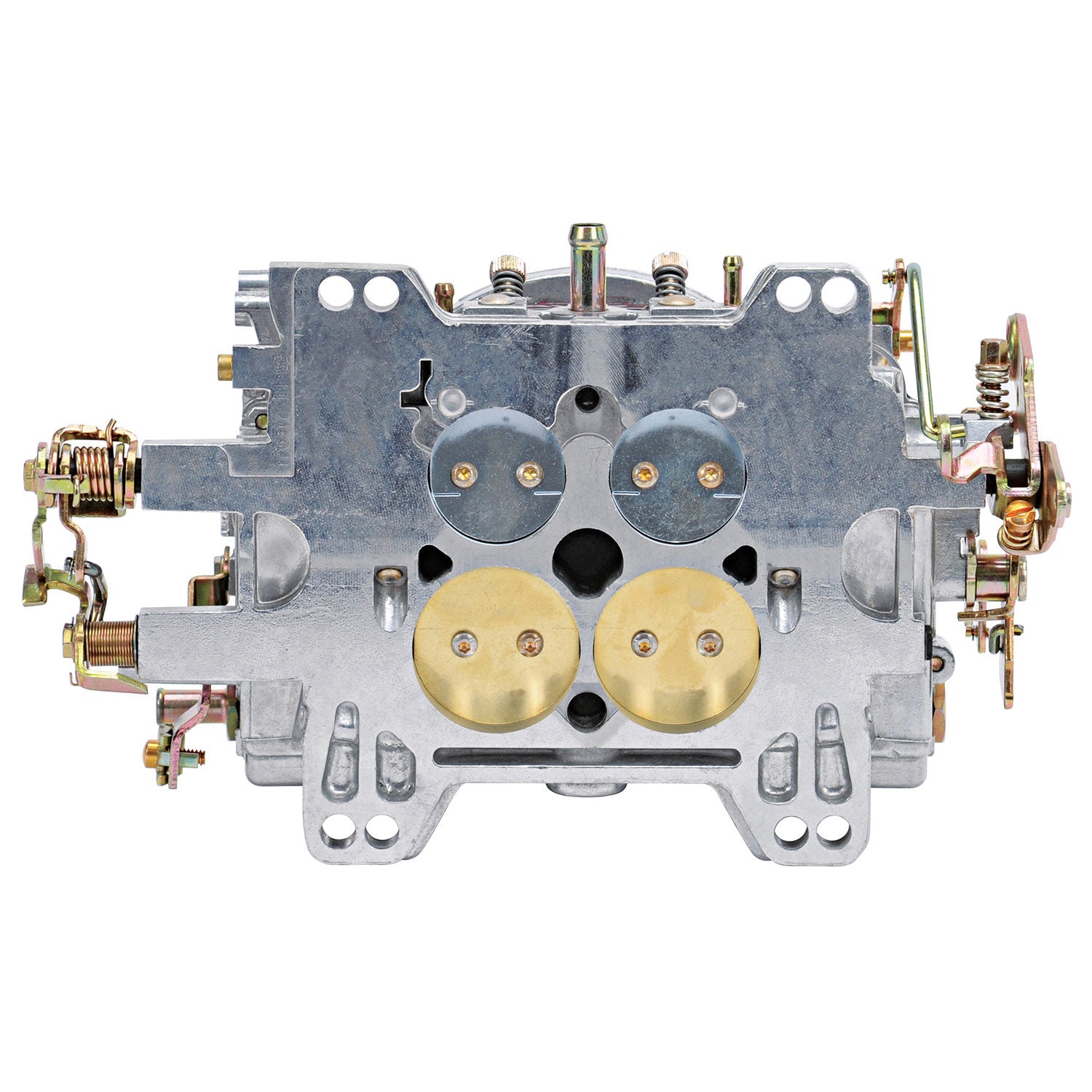

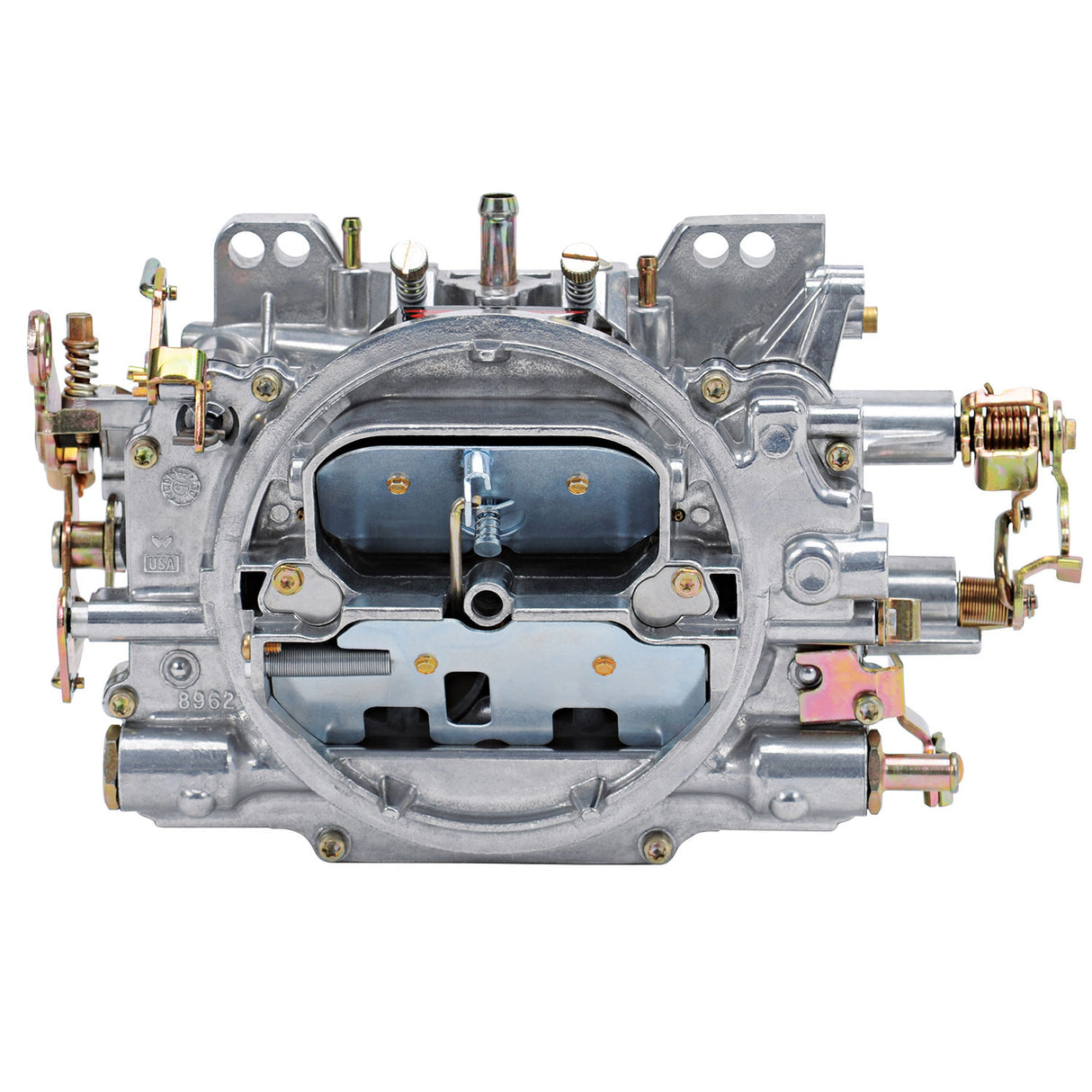

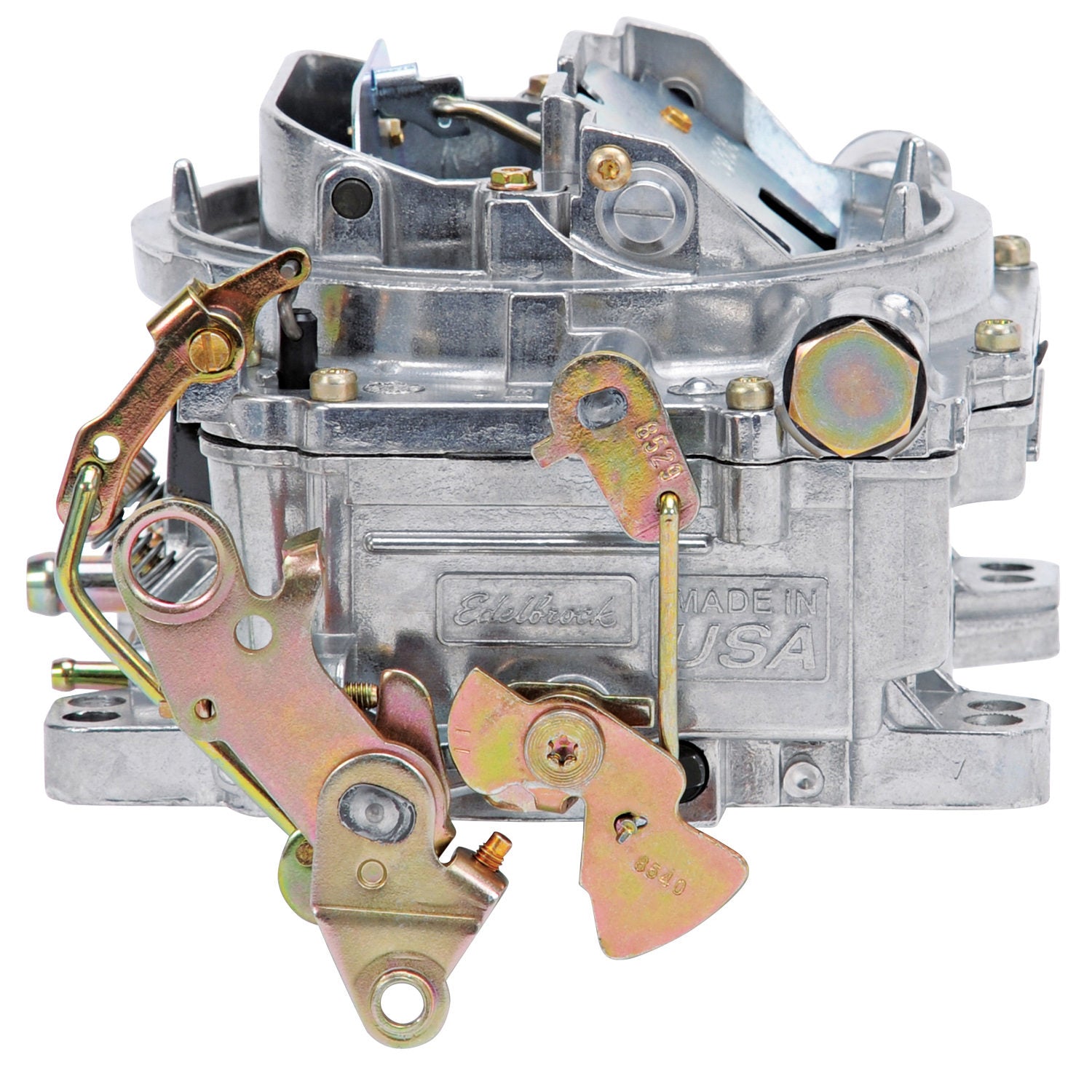

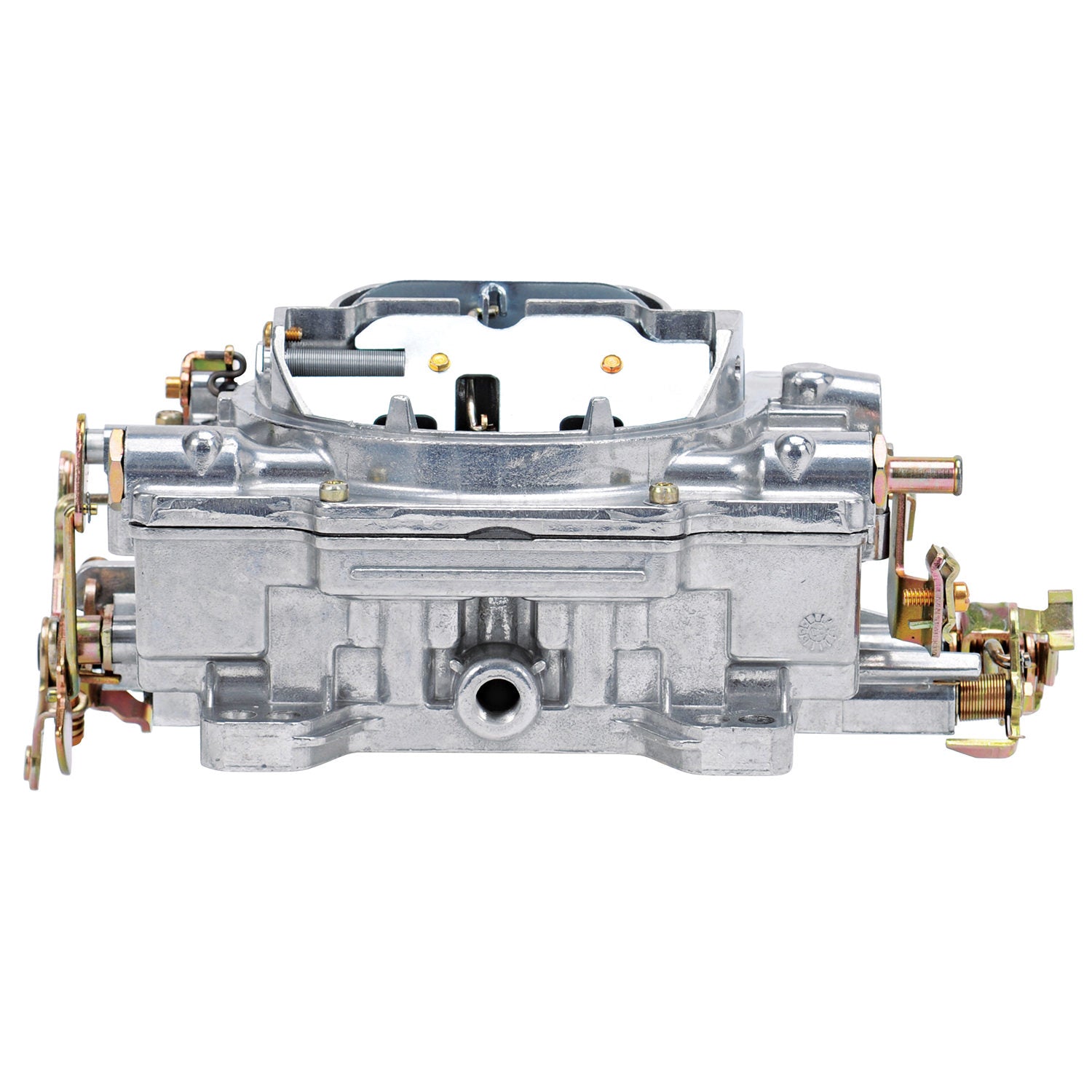

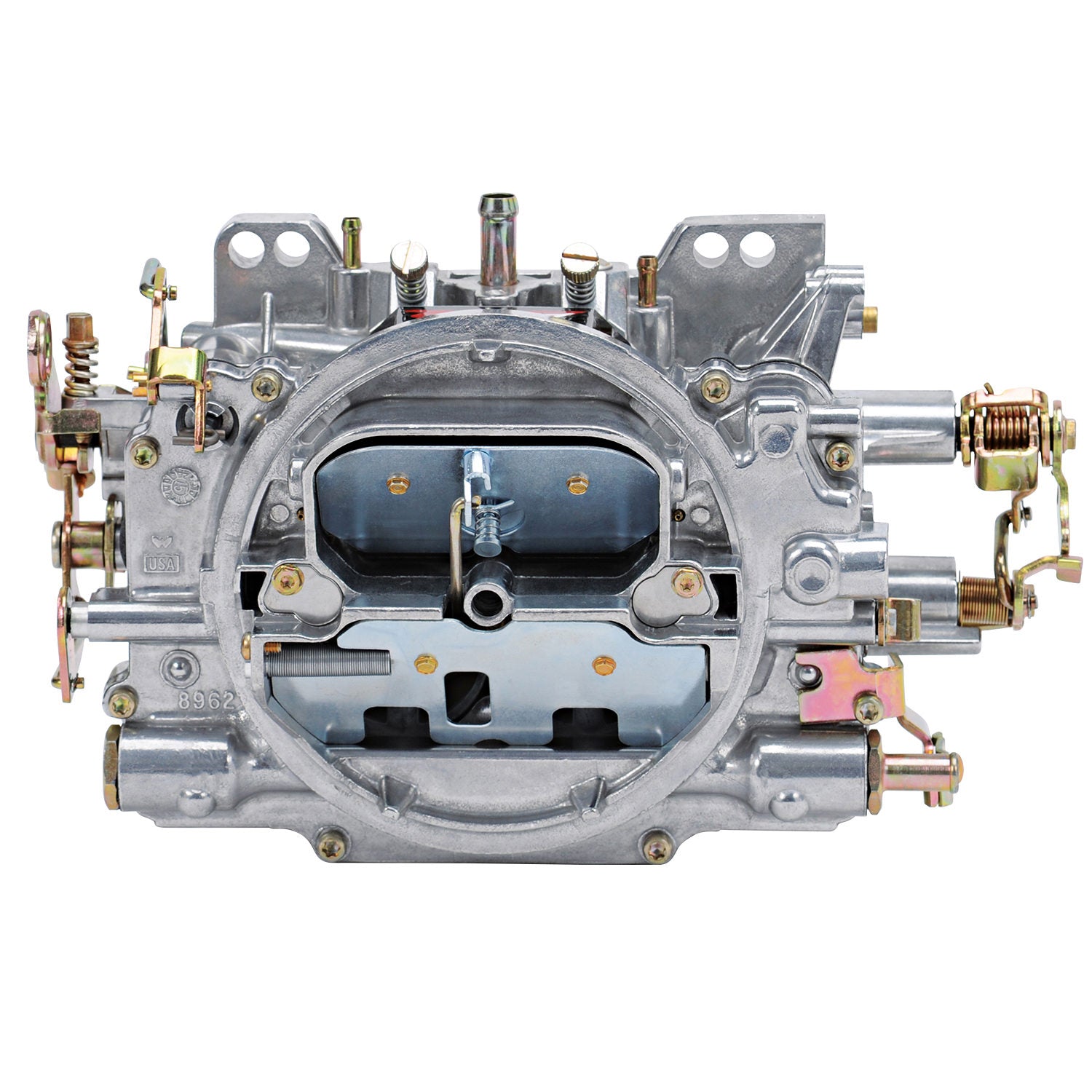

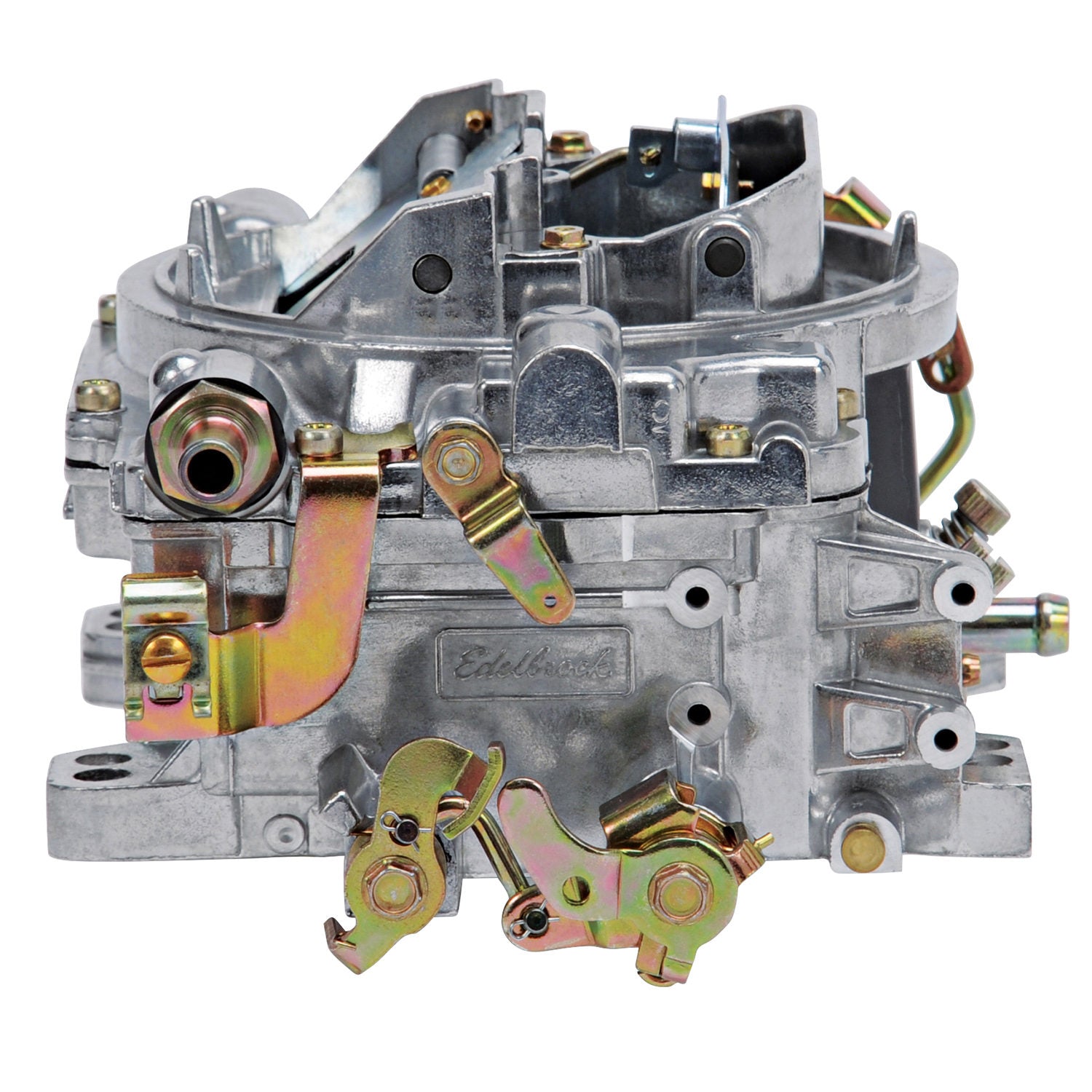

Edelbrock 1902 - AVS2 500 CFM Carburetor w/Manual Choke Satin Finish (Non-EGR)

Edelbrock 1902 - AVS2 500 CFM Carburetor w/Manual Choke Satin Finish (Non-EGR)

Carburetor - AVS2 - 4-Barrel - 500 CFM - Square Bore - Manual Choke - Mechanical Secondary - Single Inlet - Aluminum - Tumble Polished - Each

The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

• The Next Generation in Edelbrock Carburetors.
• Annular Flow Primary Boosters
• Delivers Improved Fuel Atomization To Eliminate Flat Spots
• Improved Flow Metering Make It Ideal For Small/Big Block Engines
• For Single Or Dual Plane Intake Manifolds
• Includes Both Timed and Full Vacuum Ports For Ignition Advance
