Edelbrock 174022 - Fuel Pressure Regulator EFI 180 GPH 35-90 PSI -10In/Out -6 Return Blue/Clear

Edelbrock  |  SKU: EDEL-174022
$22199 $24419

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

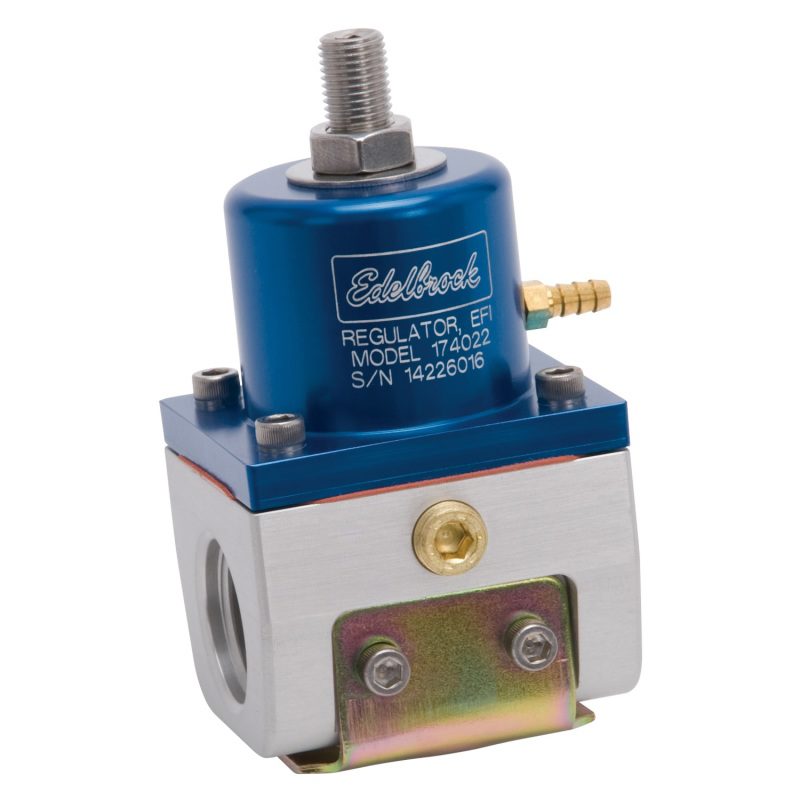

Edelbrock 174022 - Fuel Pressure Regulator EFI 180 GPH 35-90 PSI -10In/Out -6 Return Blue/Clear

EFI Fuel Pressure Regulator

Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.

  • Manufactured By Essex Industries
  • Machined From Aircraft-Quality Aluminum
  • Have Fluorosilicone Diaphragm Material
  • Mounting Bracket/Fittings/Hardware Included
Mounting Type: Bracket
Inlet Port Diameter: -10.0
Outlet Type: Port
Adjustable: Yes
Maximum Pressure Reading: 90
Gauge Port: Yes
Inlet Quantity: 1
Outlet Quantity: 1
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Port Quantity: 4
Outlet Port Diameter: -10.0
Inlet Type: Port
