Edelbrock 15460 - Supercharger Universal GM Gen IIi Block LS1/LS2 Cathedral Port Heads Corvette Belt Offset

Edelbrock 15460 - Supercharger Universal GM Gen IIi Block LS1/LS2 Cathedral Port Heads Corvette Belt Offset

Supercharger; Universal; GM; Gen III block; LS1/LS2 Cathedral Port Heads; Corvet

The Edelbrock Universal Supercharger System part #15460 is designed for street rods and muscle cars with Chevy LS Cathedral Port Gen III Corvette engines. The Edelbrock system is designed to provide instant and reliable horsepower with low boost for minimum stress on the engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. This system requires the use of a universal heat exchanger (sold separately). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.

• Great Drivability

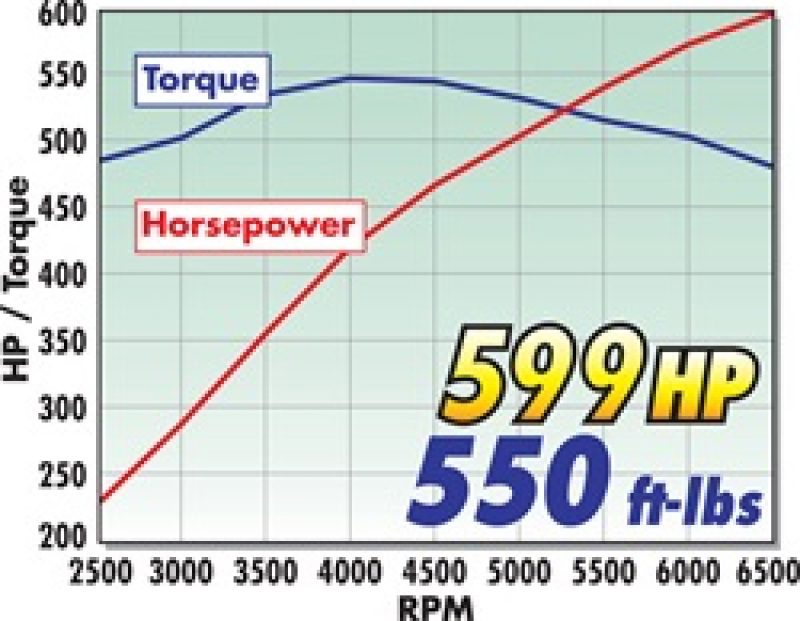

• Incredible Horsepower And Torque Gains
• Provide Instant And Reliable Horsepower w/Low Boost
