Edelbrock 15406 - Heat Exchanger Single Pass Dual Row 22 000 Btu/Hr 26 5In W X 5In H X 2 62In D Black

Edelbrock  |  SKU: EDEL-15406
$70195 $77214

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

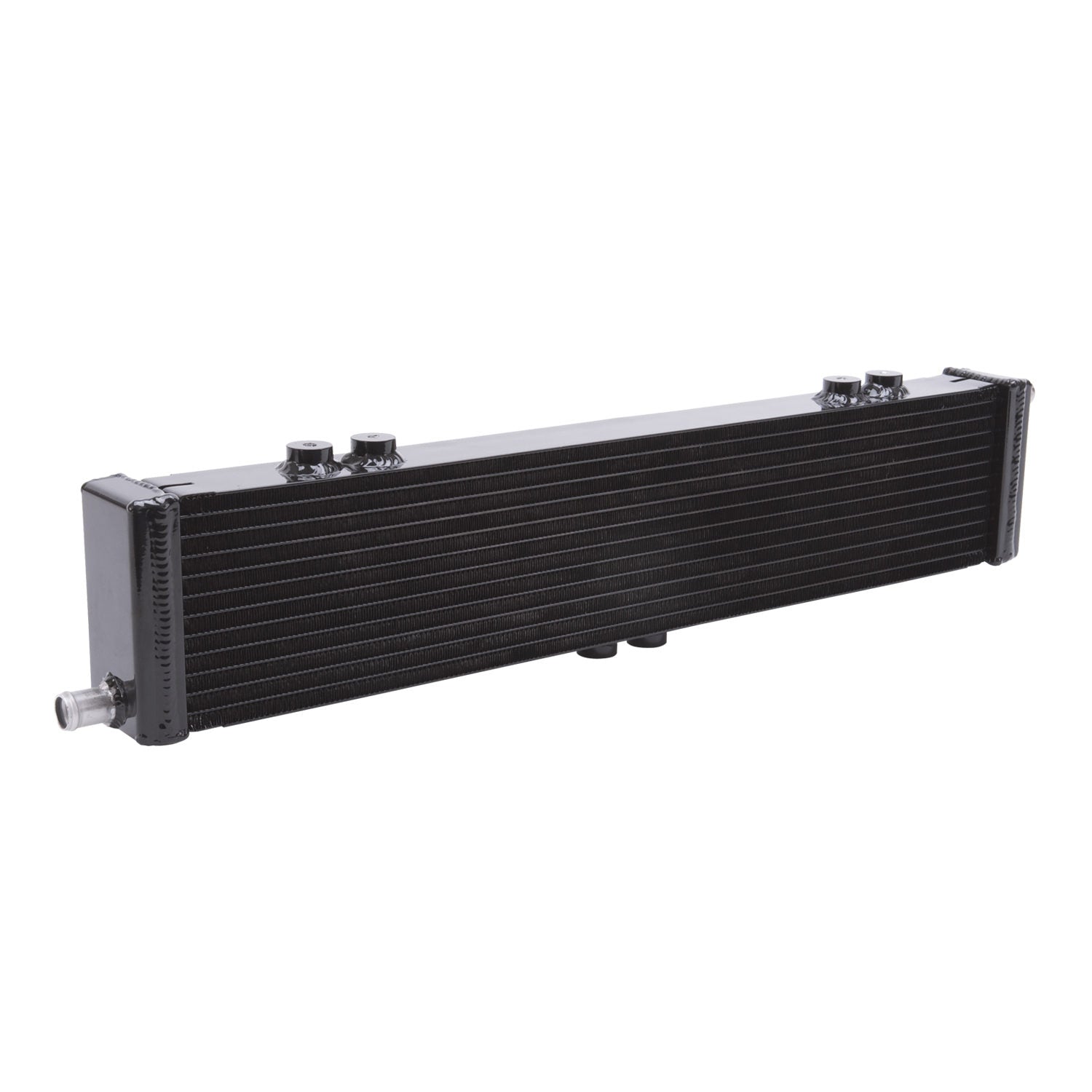

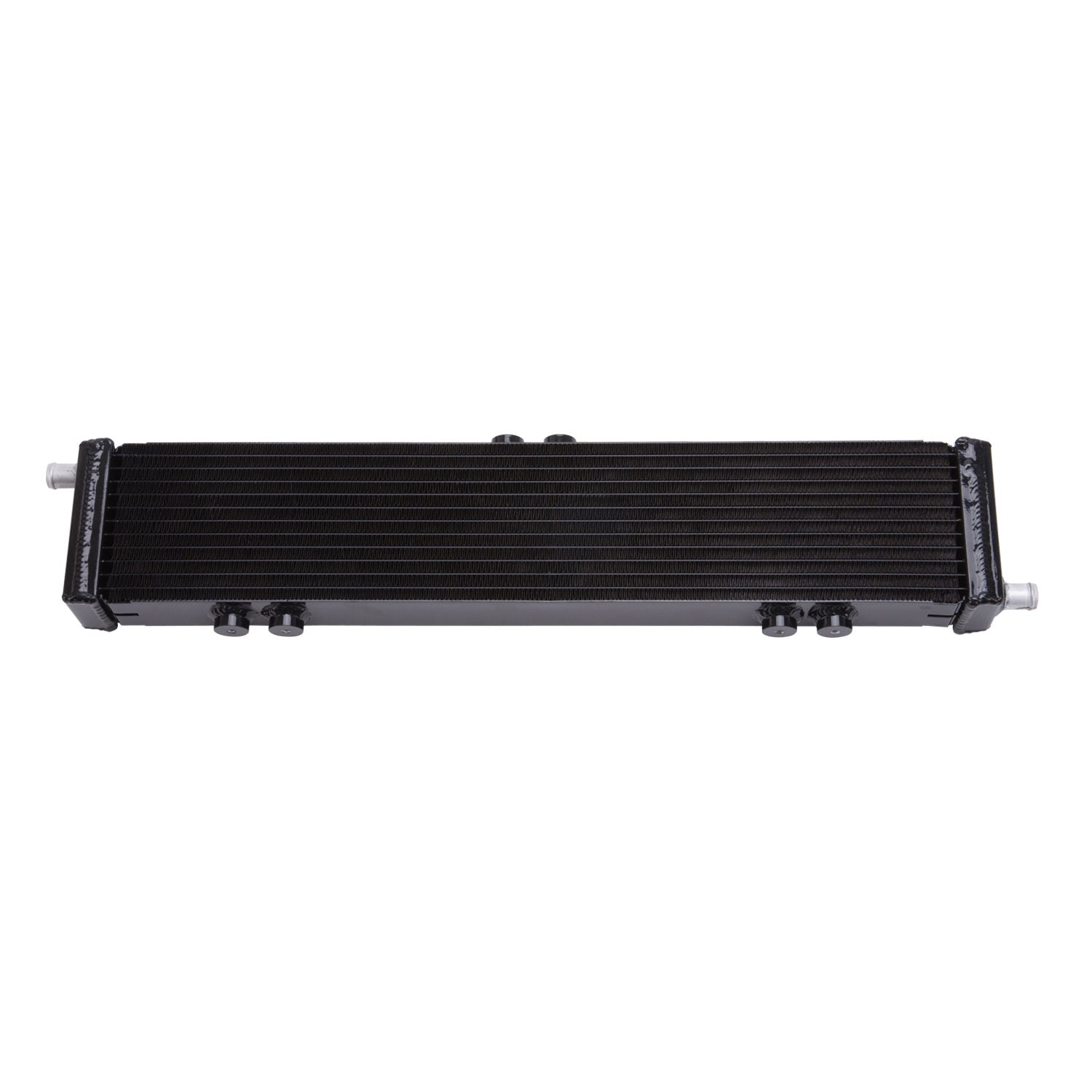

Edelbrock 15406 - Heat Exchanger Single Pass Dual Row 22 000 Btu/Hr 26 5In W X 5In H X 2 62In D Black

Single Pass/Two Row Universal Heat Exchanger (26.5"W/5"H/2.62"D) 22,000 BTU

Edelbrock part #15406 is a Edelbrock heat exchangers for universal or enforcer supercharger applications , delivers 22,000 btu/ hr. with a double row

Edelbrock heat exchanger part #15406 is a single pass/two row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

  • Single Row Design
  • Eight M6x1.0 Threaded Bungs
  • 3/4 Inch Barbed Inlet And Outlet
Quantity: Sold Individually
Inlet Port Outside Diameter: 0.75
Mounting Hardware Included: No
Thickness: 2.62
Row Quantity: Two
Mounting Hole Quantity: 6
BTU Rating: 22000 btu/hr
Material: Aluminum
Inlet Port Quantity: 1
Outlet Port Quantity: 1
Mounting Hole Diameter: M6 x 1.0
Outlet Port Outside Diameter: 0.75
Construction: Single Pass
Grade Type: Performance
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Width: 5.2
Finish: Gloss Black Powder Coated
Length: 26.58
