Edelbrock 1126 - Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)

Edelbrock  |  SKU: EDEL-1126
$1,05099 $1,15609

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

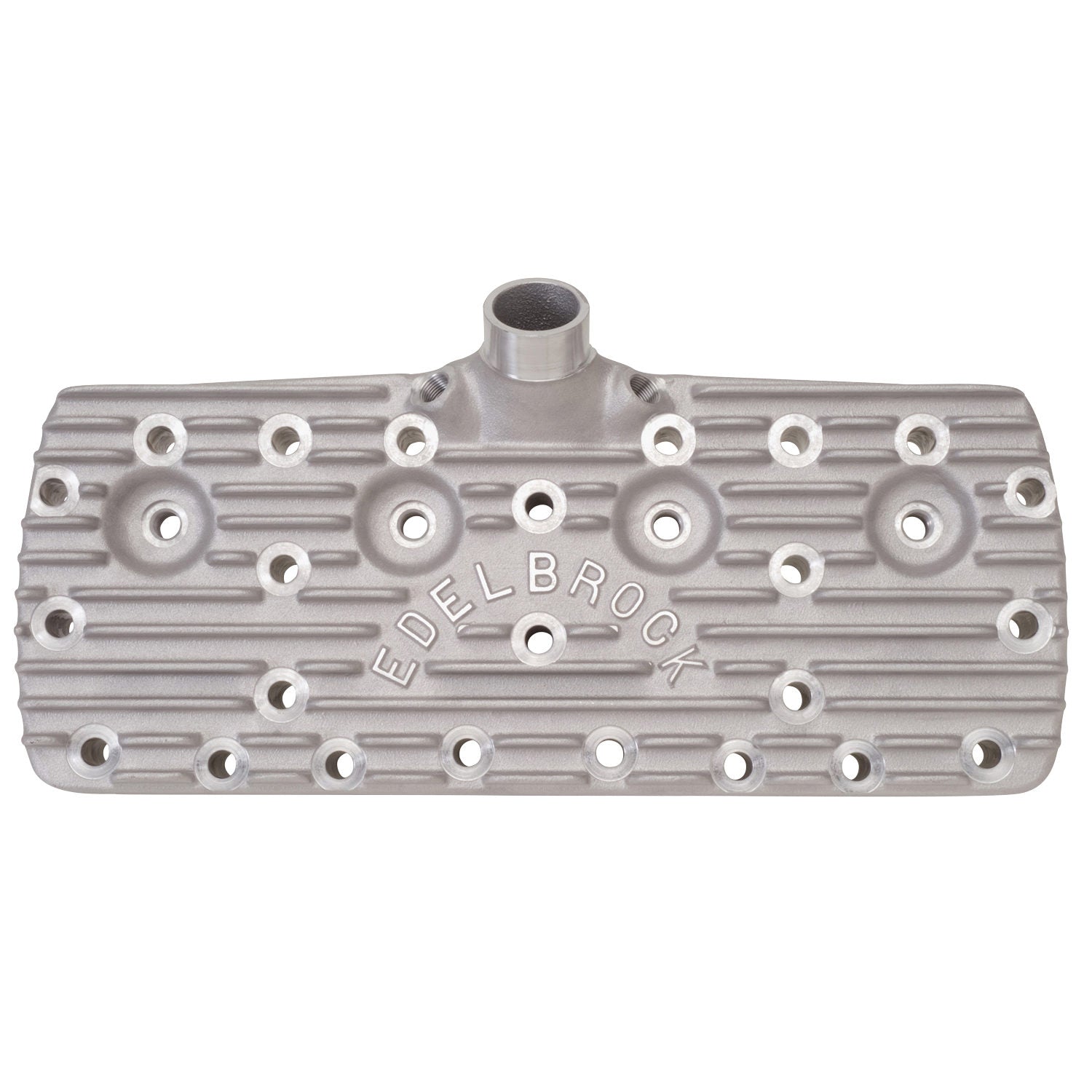

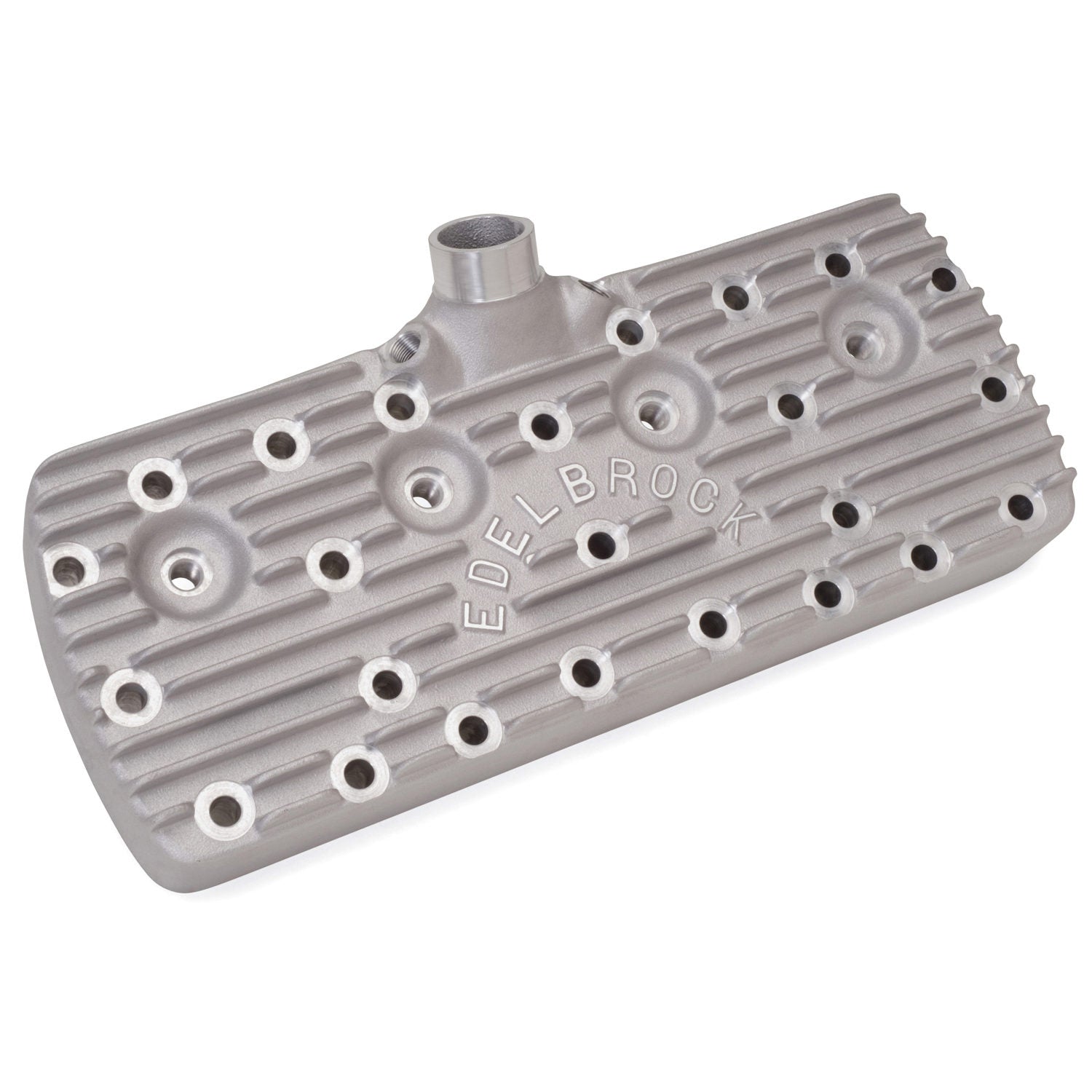

Edelbrock 1126 - Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)

Edelbrock Cylinder Head

The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

  • Casted At The Edelbrock Foundry In The USA
  • T-6 Tempered A356 Aluminum
  • Large Water Capacity
  • Excellent Breathing Characteristics
  • High Lift Heads Have Increased Valve Clearance
  • Increased Flow Capacity
Retainer Included: No
Valve Included: No
CNC Ported: No
Valve Springs Included: No
Series: Flathead
Material: Aluminum
Finish: Satin
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Valve Chamber Depth Machined: 0.415
Family: Flathead
Deck Thickness: 0.375
EGR Port: No
Grade Type: Performance
Combustion Chamber Volume: 65
Guide Plates Included: No
Quantity: Set of 2
Construction Type: Flathead
