Edelbrock 1115 - Cylinder Heads 49-53 Ford/Merc (Pair)

Edelbrock  |  SKU: EDEL-1115
$1,15295 $1,26824

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

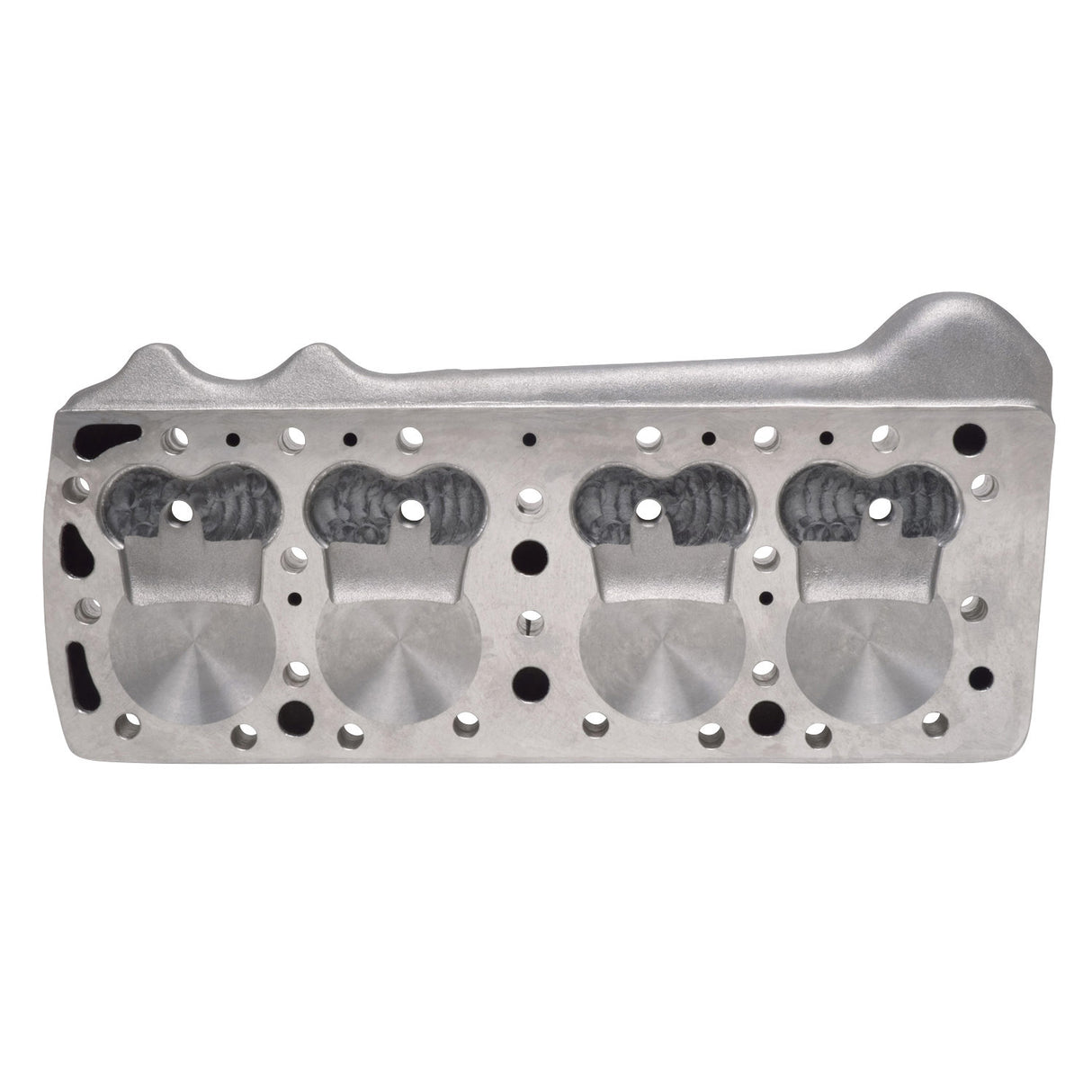

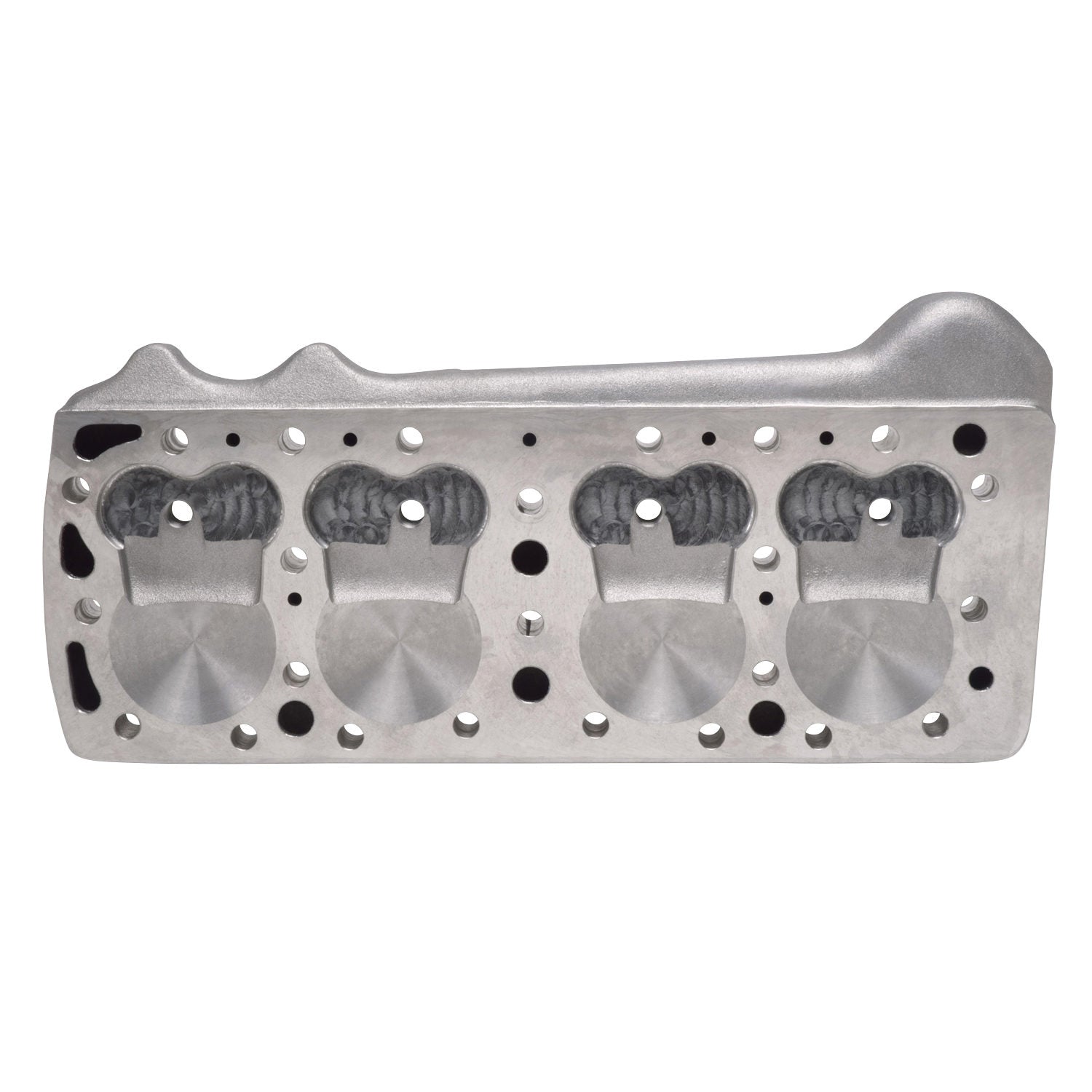

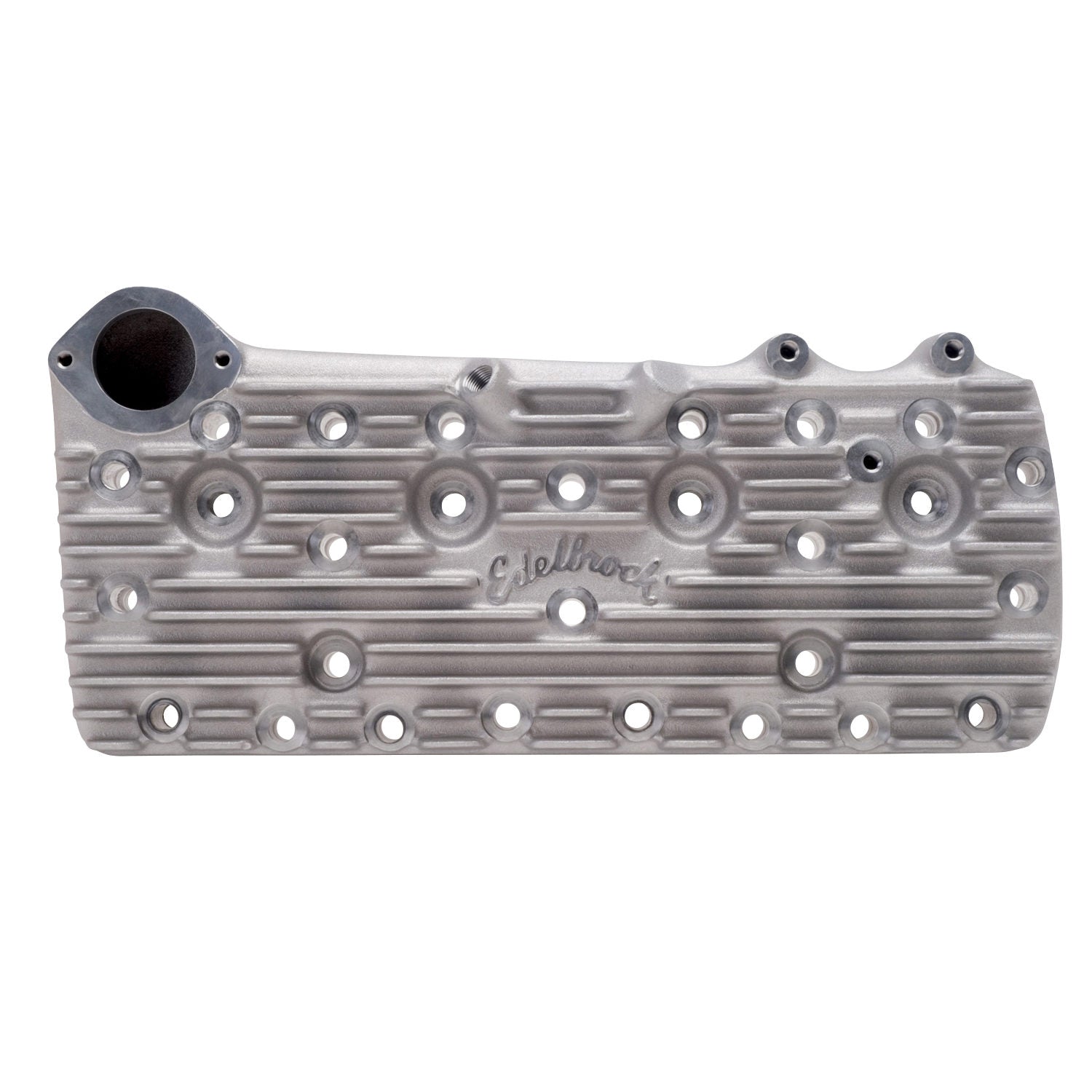

Edelbrock 1115 - Cylinder Heads 49-53 Ford/Merc (Pair)

Cylinder Head - Ford Flathead V8 - 65 cc Chamber - Script Letter Edelbrock Logo - Straight Plug - Aluminum - Satin - 24 Stud - Ford Flathead - Pair

The Edelbrock #1115 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

  • Casted At The Edelbrock Foundry In The USA
  • T-6 Tempered A356 Aluminum
  • Large Water Capacity
  • Excellent Breathing Characteristics
  • High Lift Heads Have Increased Valve Clearance
  • Increased Flow Capacity
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Deck Thickness: 0.375
EGR Port: No
Series: Flathead
Finish: Satin
Quantity: Set of 2
Retainer Included: No
Construction Type: Flathead
CNC Ported: No
Valve Chamber Depth Machined: 0.415
Family: Flathead
Valve Springs Included: No
Valve Spring Retainers Included: Yes
Rocker Arm Studs/Bolts Included: No
Valve Seals Included: No
Valve Locks Included: No
Valve Cover Gasket Included: No
Rocker Arms Included: No
Cylinder Head Gasket Included: No
Mounting Hardware Included: No
Material: Aluminum
Head Casting Number: 1115F
Guide Plates Included: No
Grade Type: Performance
Combustion Chamber Volume: 65
Assembled: Yes
Valves Included: No
