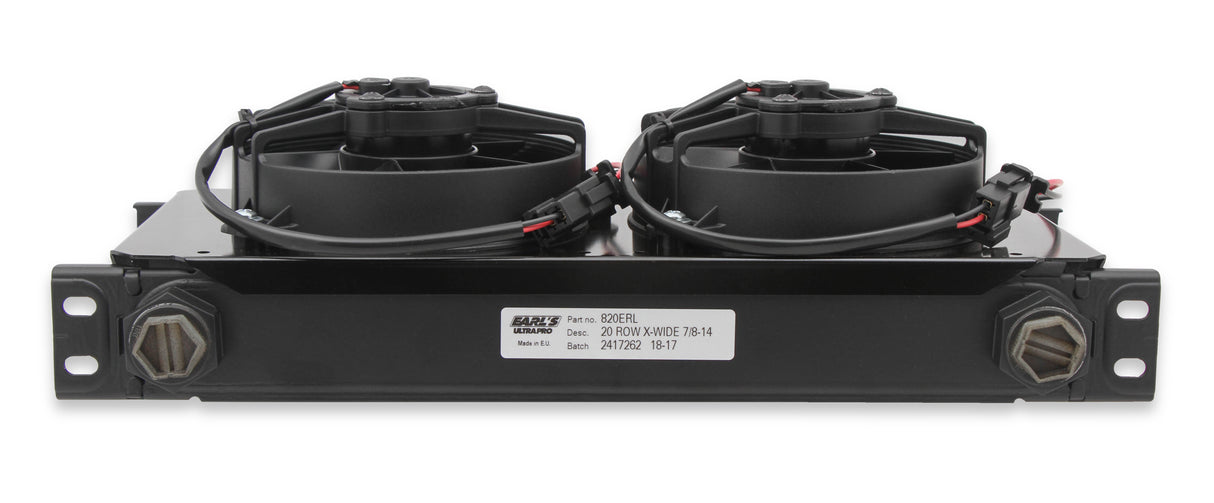

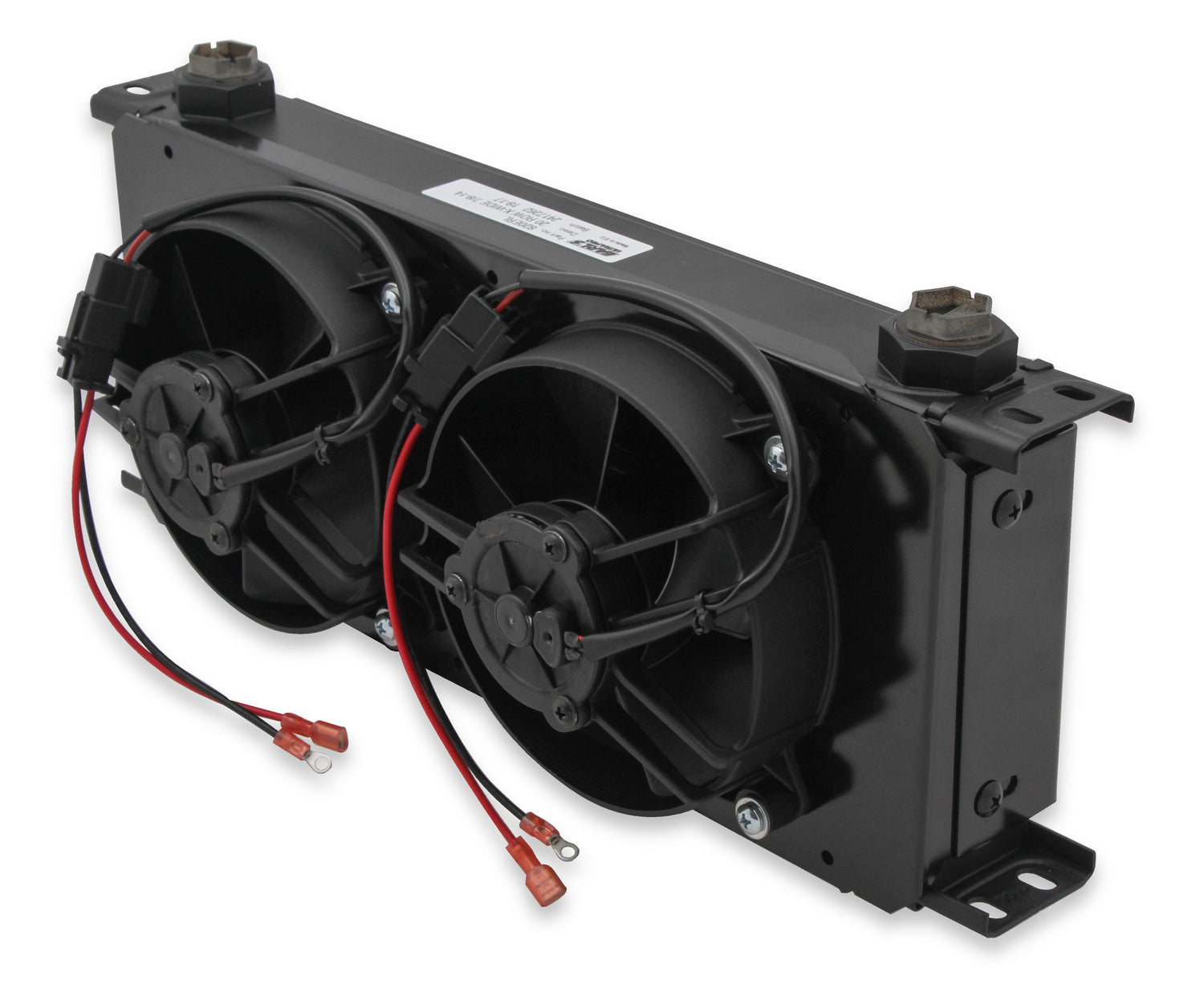

Earl's Performance FP820ERL - Earl's UltraPro Oil Cooler w/ Dual Fan Pack - 20 Rows - Extra-Wide Cooler

Earl's Performance  |  SKU: EARLFP820ERL
Sale price $74995 Regular price $84395

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

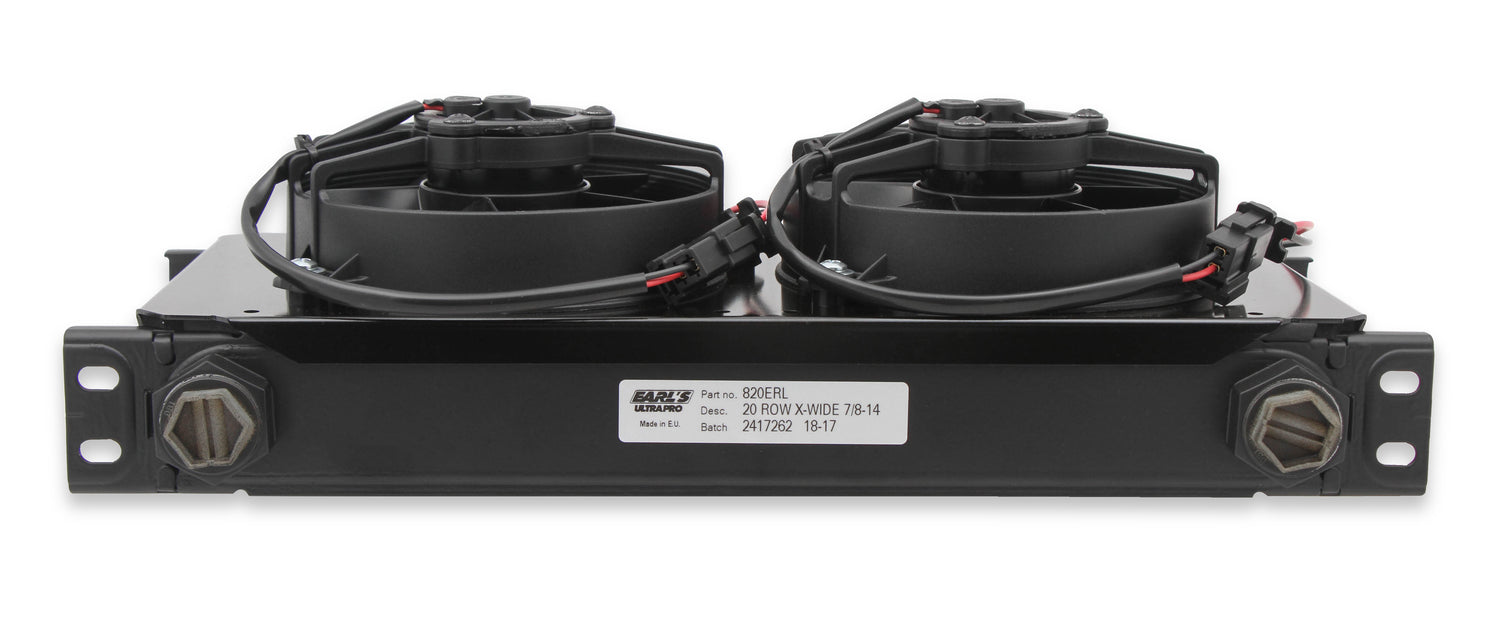

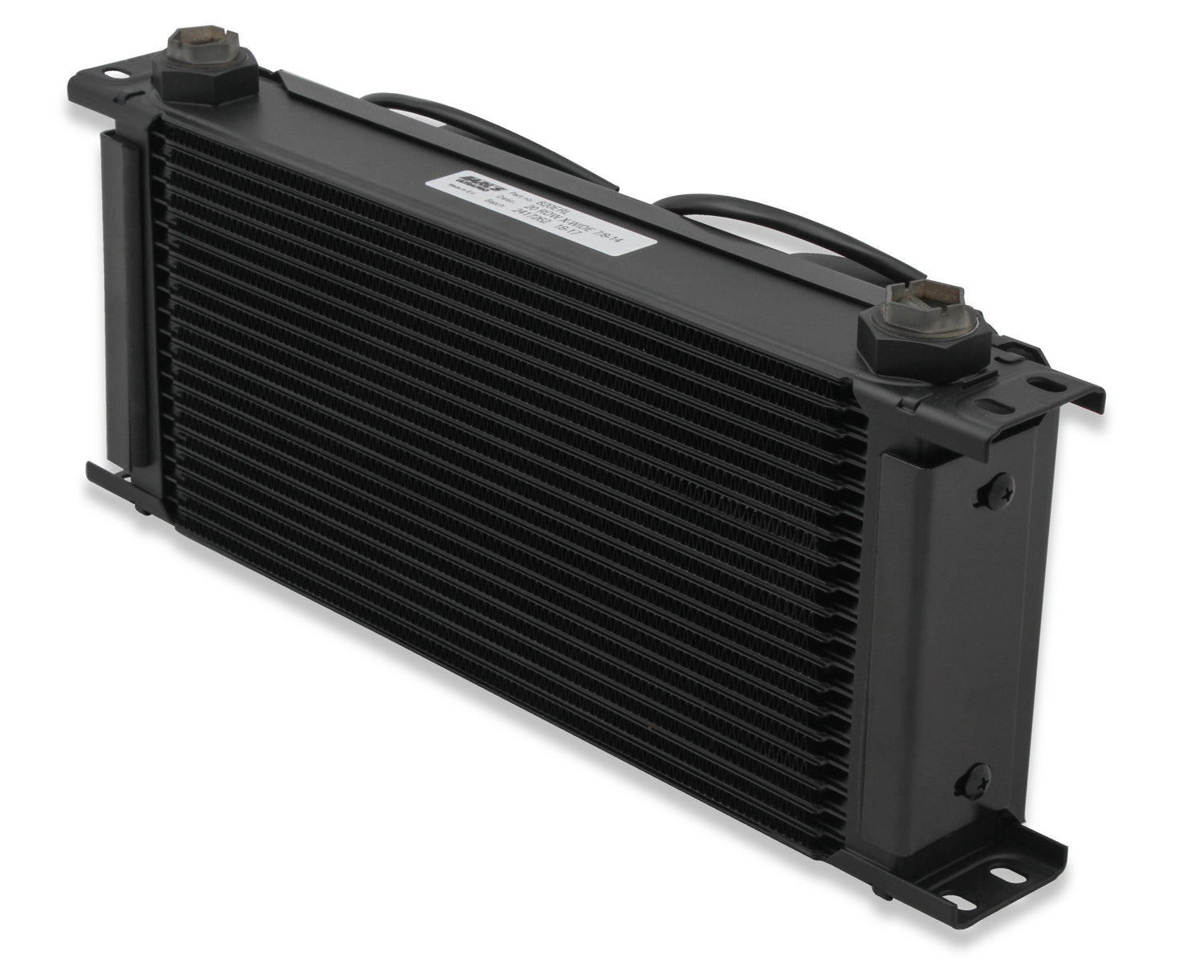

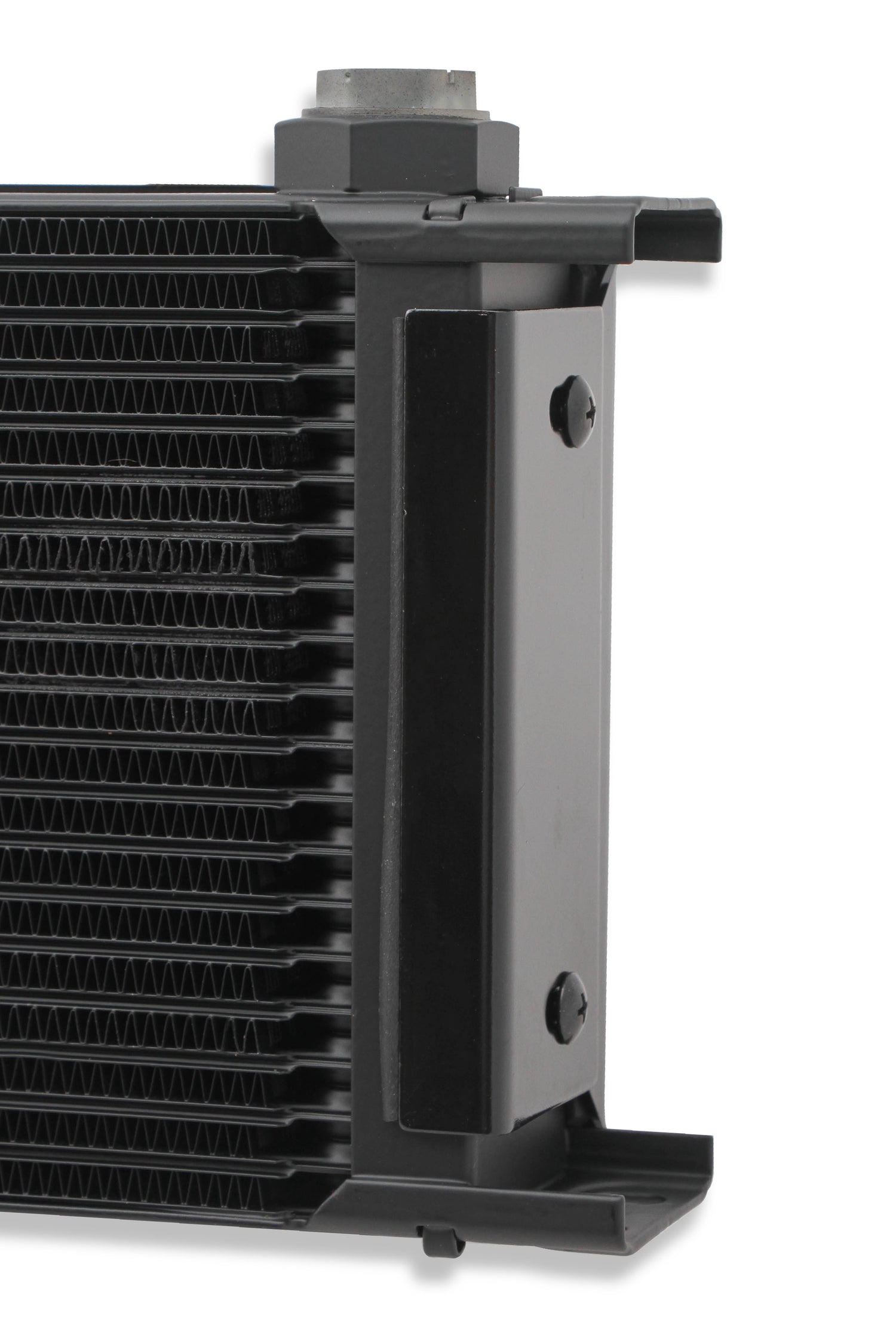

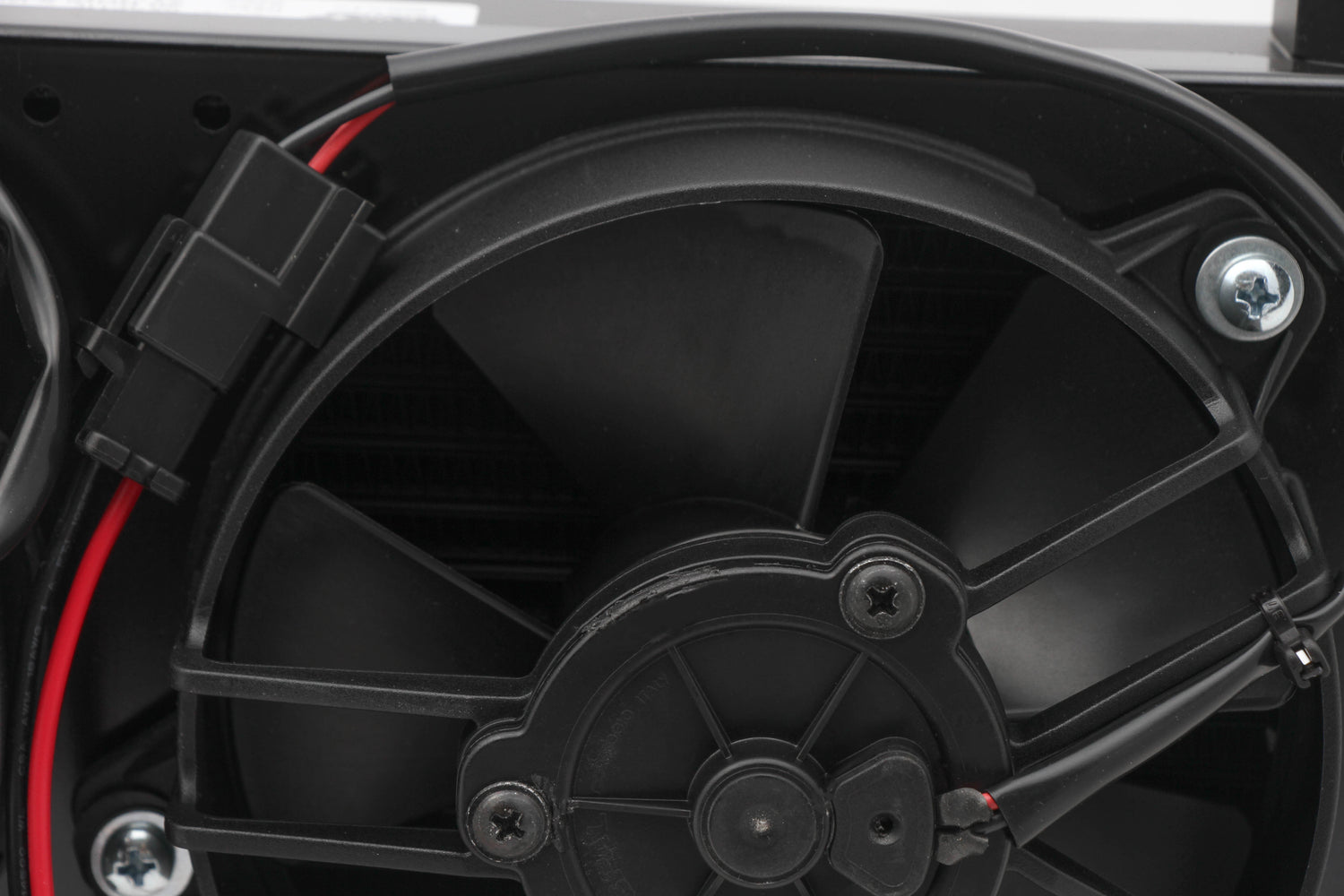

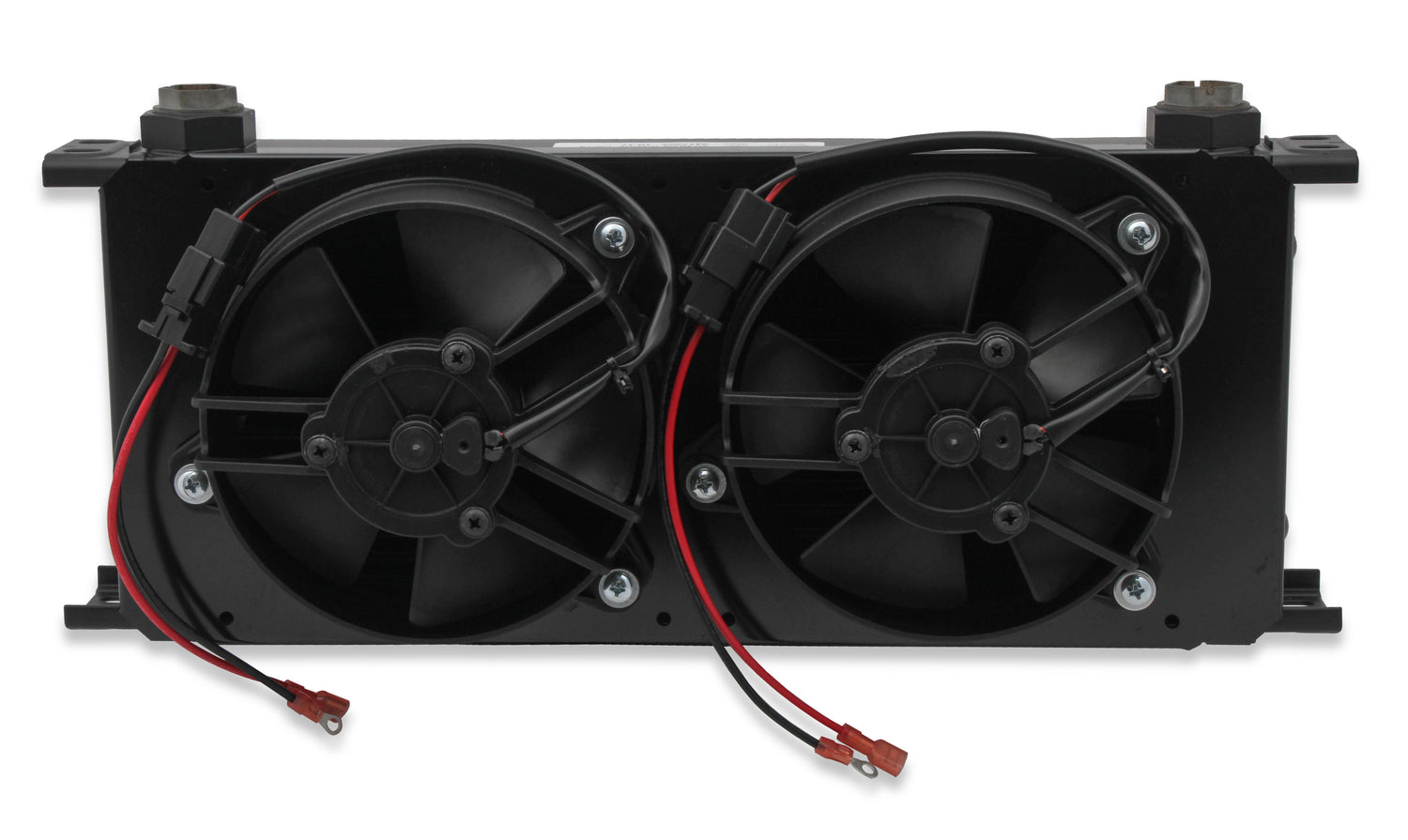

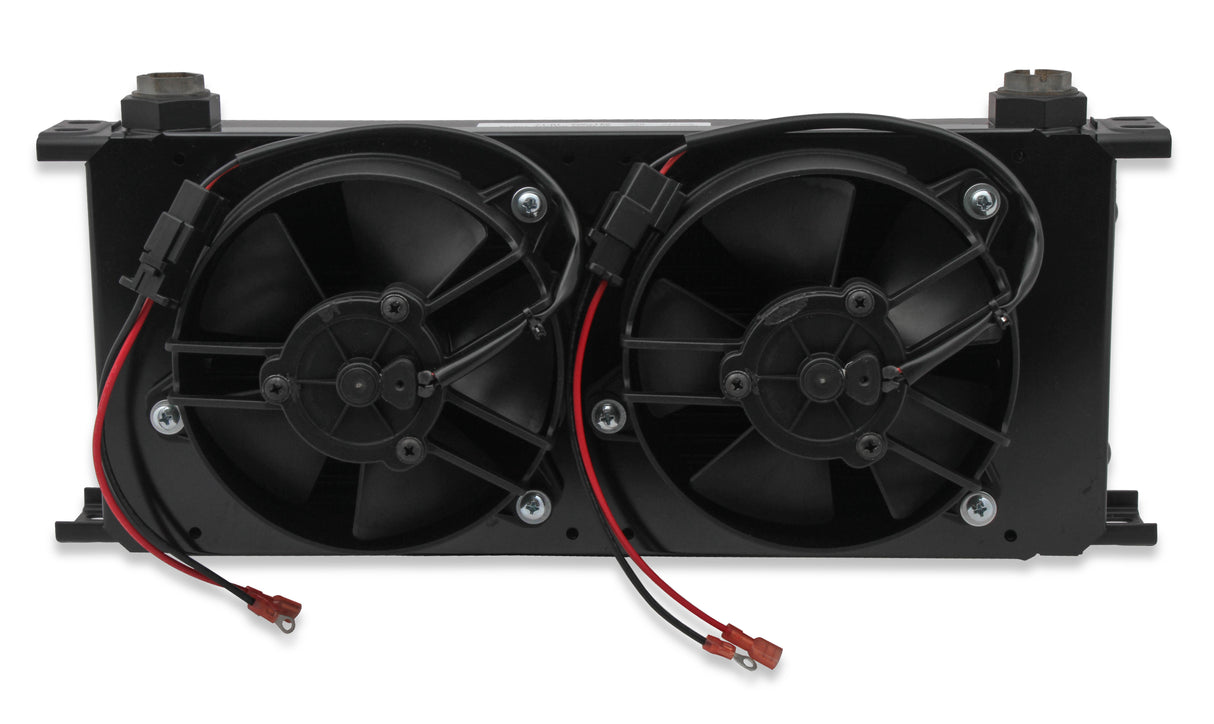

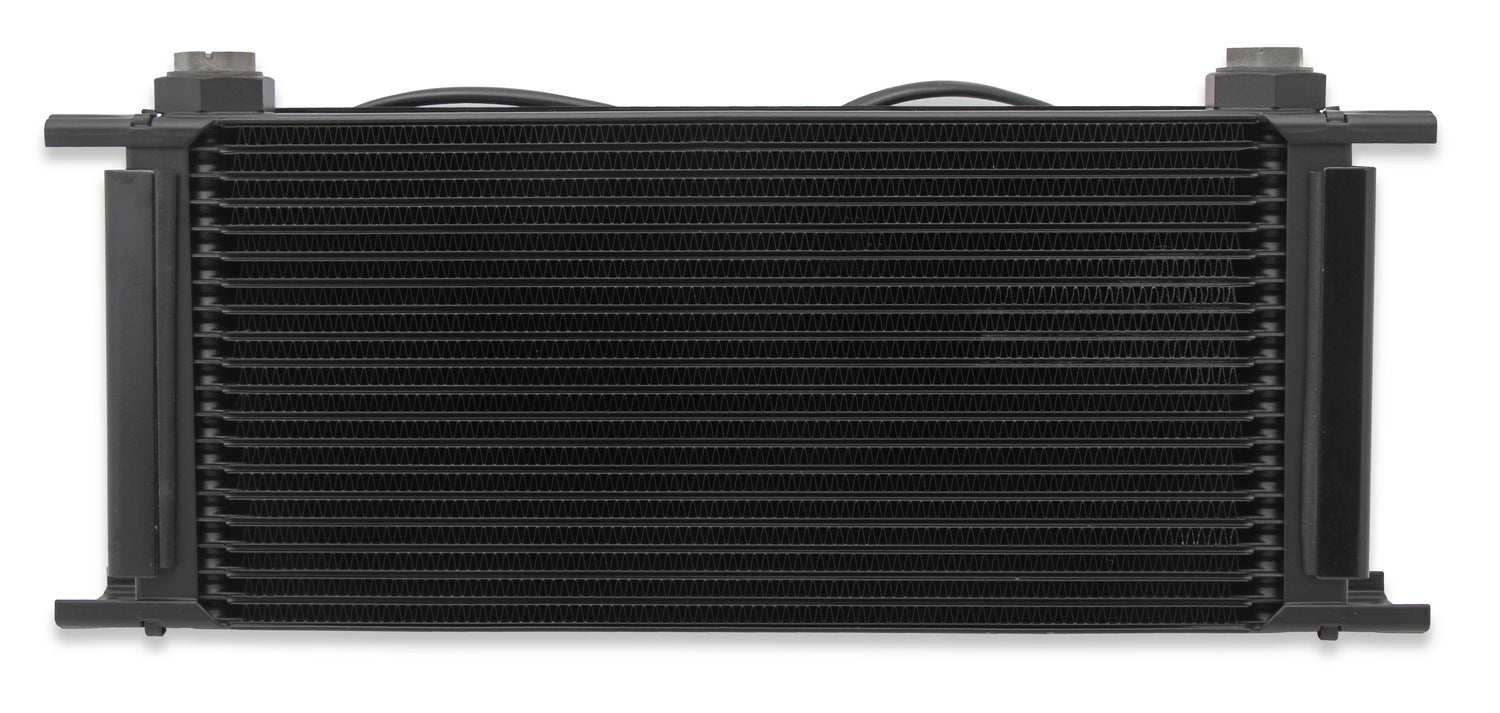

Earl's Performance FP820ERL - Earl's UltraPro Oil Cooler w/ Dual Fan Pack - 20 Rows - Extra-Wide Cooler

Earl's UltraPro Oil Cooler w/ Dual Fan Pack - 20 Rows - Extra-Wide Cooler

UltraPro Oil Cooler; Black; w/Dual Fan Pack; 20 Row; -10AN Female; Extra-Wide;

Earl's new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e..engine oil cooler, transmission cooler, power steering cooler,valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN,-10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.

  • High Quality
  • State Of The Art Brazing Technology
  • Highly Efficient
  • Extremely Durable
AMP DRAW: 4.8
Application: Transmission Cooler
Application: Engine Oil Cooler
Application: Differential Cooler
Blade Style: Paddle
Body Width (Overall): 16.000"
Brackets Included: No
Brand: Earl's
Category: Belts and Cooling
Construction: Stacked Plate - Brazed
Cooler Fittings: AT585110ERL
Cooler Fittings: AT585108ERL
Cooler Fittings: 585110ERL
Cooler Fittings: AT585106ERL
Cooler Fittings: 585106ERL
Cooler Fittings: AT585112ERL
Cooler Fittings: 585108ERL
Cooler Fittings: 585112ERL
Cooler Fittings Included: No
Emission Code: 5
Engine HP Range: 300-400 HP
Engine Oil BTU Range: 35,000-50,000

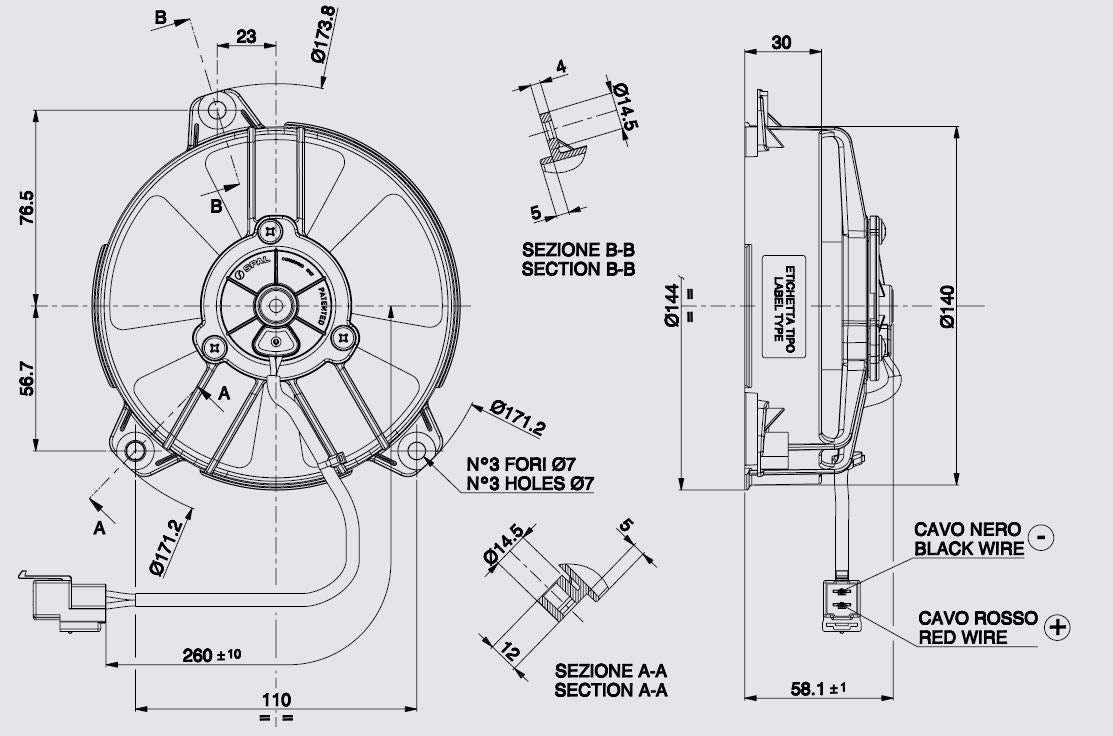

Fan Diameter: 4.800
Fan Style: Puller
Fan Type: Electric
Finish: Black
Fitting Centers: 12.480"
Height: 6.060"
Material: Aluminum
Max Fan CFM: 342
Mounting Bracket Width: 15.160"
Mounting Brackets: 800ERL
Number Of Blades: 5
part type: Engine Oil Cooler
Port Size: 7/8-14 Female (-10 O-Ring Boss)
Product Line: UltraPro w/ Fan Pack
Product Type: Oil Cooler
ROWS: 20 Rows
Shroud Material: Aluminum
Sub Category: Radiators, Coolers and Related Components
Temperature Range: -40° F to 302° F
Thickness: 5.500"
Transmission Fluid BTU Range: 16,500-29,500
Voltage: 12V
Volume: .55 Quarts
Warning: California Proposition 65
Weight: 7.20 Lbs
Width: Extra-Wide Cooler
Width (Less Mounting Ears): 14.125"
