Earl's Performance 680612ERL - UltraPro Polyester Braid Hose

Earl's Performance  |  SKU: EARL680612ERL
Sale price $19299 Regular price $21095

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Earl's Performance 680612ERL - UltraPro Polyester Braid Hose

Earl's UltraPro Series Hose - Size 12 - 6 Ft

UltraPro Polyester Braid Hose; Hose Size: -12AN; Hose I.D.: 0.646 in.; Hose O.D.: 0.905 in.; Max PSI: 250; Max Vacuum: 20 in. HG; Length: 6 ft.;

Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!

  • PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications
  • Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures
  • Double-helix ribbed inner hose liner offers extreme‚exibility and full flow making tough plumbing jobs a snap with less hard connections!
  • Liner is reinforced with an outside glass fiber wrap for additional strength and integrity!
  • PTFE inner liner is carbon infused for static dissipation
  • PTFE inner liner has ultra low coefïcient of friction to promote maximum flow

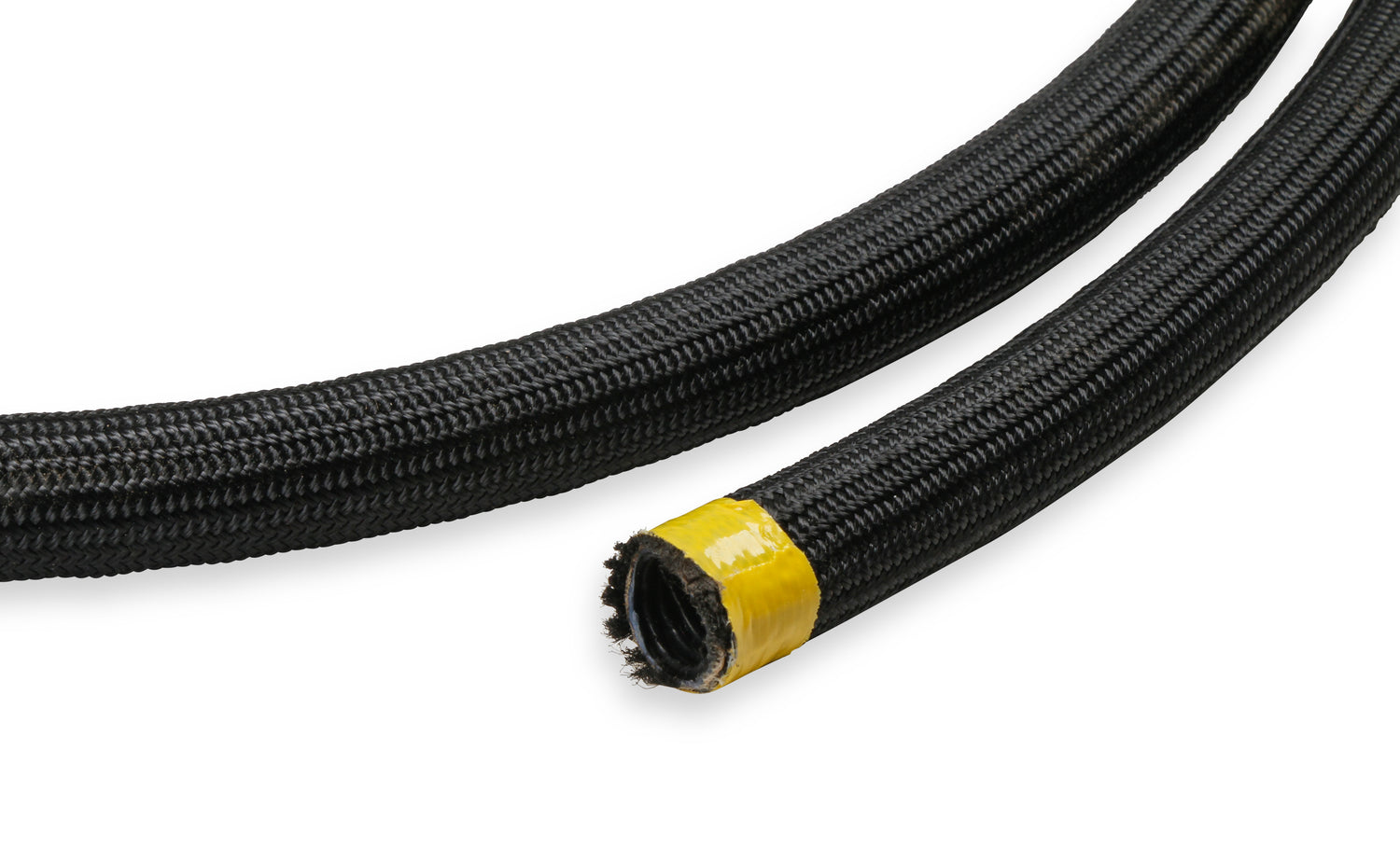

  • Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends
  • Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid
  • UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid
  • UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid
Brand: Earl's
Carbon Lined: Yes
Category: Air and Fuel Delivery
Compatible Hose Ends: UltraPro - Twist On
Compatible Hose Ends: UltraPro - Crimp On
Crimping Die: 22MM - D10022BERL
Emission Code: 5
Final Crimp O.D. Range: .982"-.986"
Fluid Type: Diesel
Fluid Type: Coolant
Fluid Type: Methanol/Alcohol
Fluid Type: E85
Fluid Type: Oil
Fluid Type: Race Gas
Fluid Type: Automatic Transmission Fluid
Fluid Type: Bio-Fuels
Fluid Type: Pump Gas
Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating
Fluid Type Rating - Coolant: 5 out of 5 Rating
Fluid Type Rating - Diesel: 5 out of 5 Rating
Fluid Type Rating - E85: 5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating
Fluid Type Rating - Oil: 5 out of 5 Rating
Fluid Type Rating - Pump Gas: 5 out of 5 Rating
Fluid Type Rating - Race Gas: 5 out of 5 Rating
Hose Family: UltraPro
Hose Length: 6 Feet
Hose Outer Material: Black Polyester
Hose Size: 12 AN
Inside Diameter: .646"
Max Vacuum: 20 in Hg
Max Working PSI: 250 PSI
Min. Bend Radius: 2.5"
Outside Diameter: .905"
part type: Fuel Hose
Product Type: UltraPro Black Polyester Braided
Sub Category: Fuel Storage
Submersible in Fuel: No
Temperature Range: -67° F to 257° F
Warning: California Proposition 65
