Eagle CRS6560H3D2000 - Chevy LS Forged 4340 Steel H-Beam 1.889in Rod Bore 6.560in Length Crankshaft

Eagle  |  SKU: CFQW-CRS6560H3D2000
$63699 $72899

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Eagle CRS6560H3D2000 - Chevy LS Forged 4340 Steel H-Beam 1.889in Rod Bore 6.560in Length Crankshaft

4340 Rod LS H-BEAM Rod HONDA Rod JOURNAL

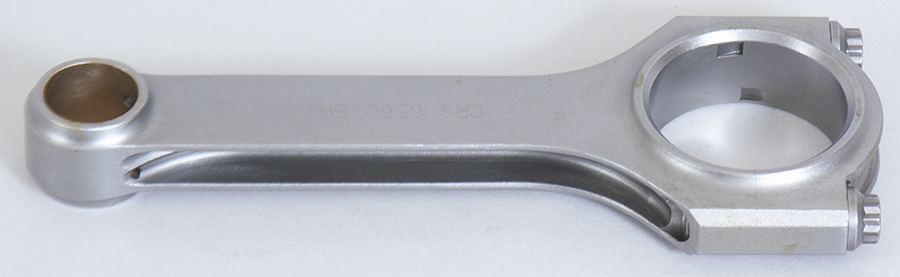

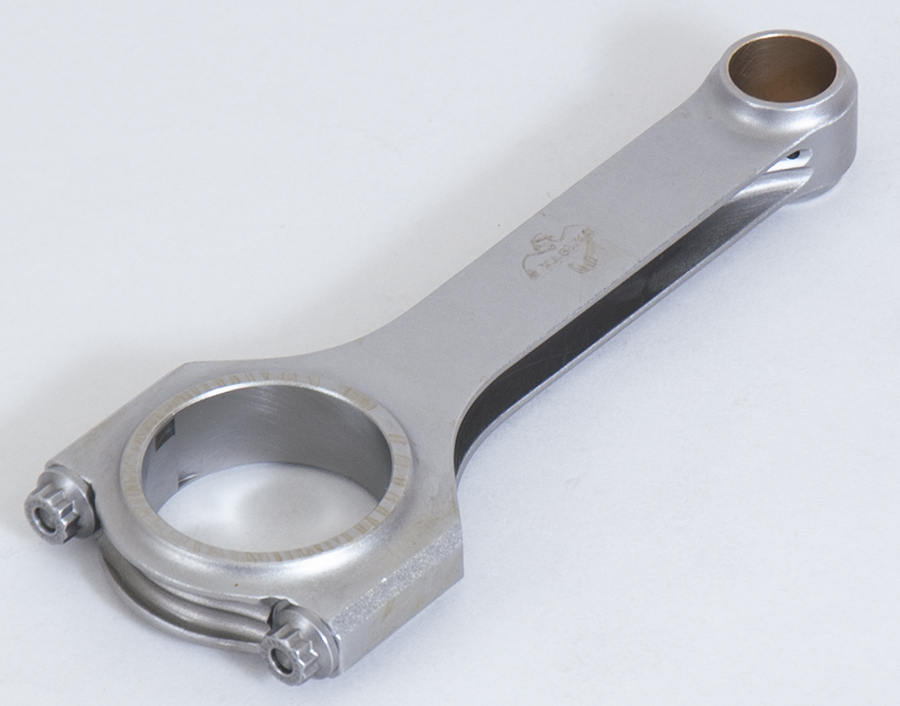

Forged 4340 Steel H-Beam Rods - CHEVROLET LS, 6.560" LENGTH, 1.889" ROD JOURNAL, ARP 2000 BOLTS.

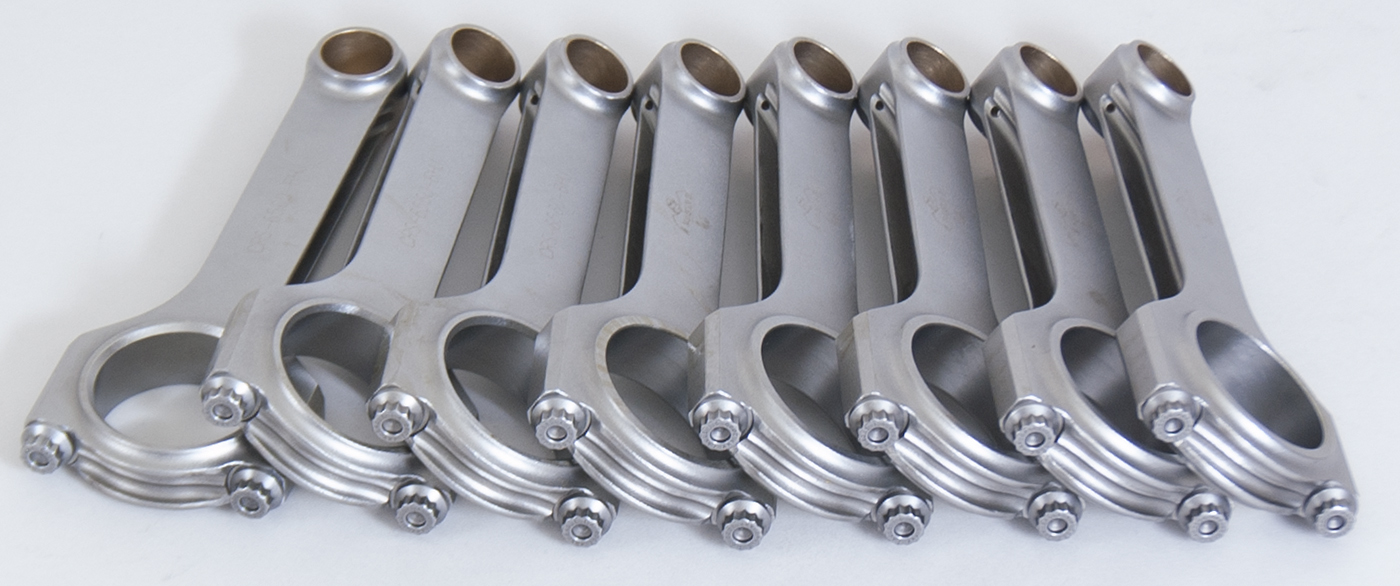

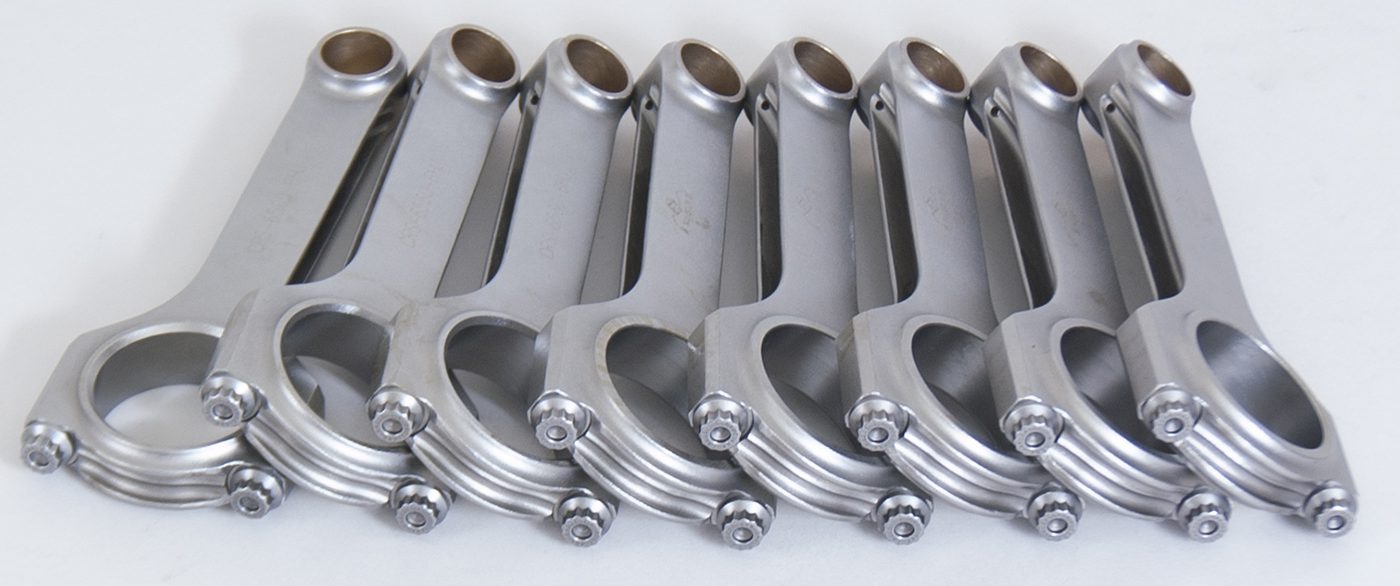

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Big End Width: 0.94 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.56 in
Housing Bore: 2.008 in
Length Center Bore To Center Bore: 6.56
Material: Forged 4340 Steel
Pin End Width: 0 in
Pin Size: 0.927 in
Rod Journal: 1.889 in
