Eagle CRS6243C3D-1 - Chrysler 5.7L / 6.1L Hemi H-Beam Connecting Rods (Single Rod)
Eagle | SKU:
CFQW-CRS6243C3D-1
Sale price
$12599
Regular price
$13099
Unit price
/
Unavailable
$5.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

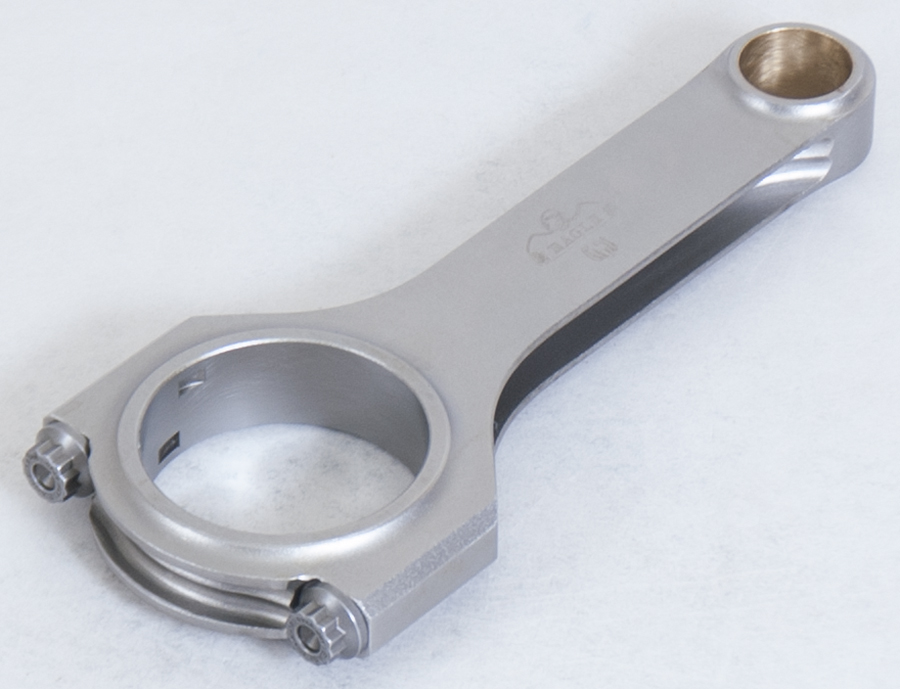

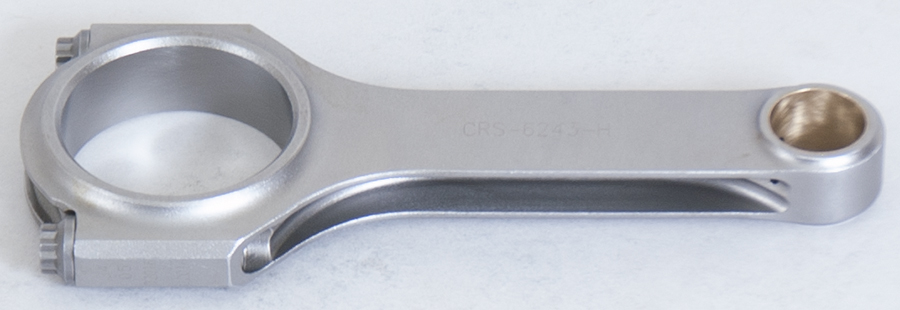

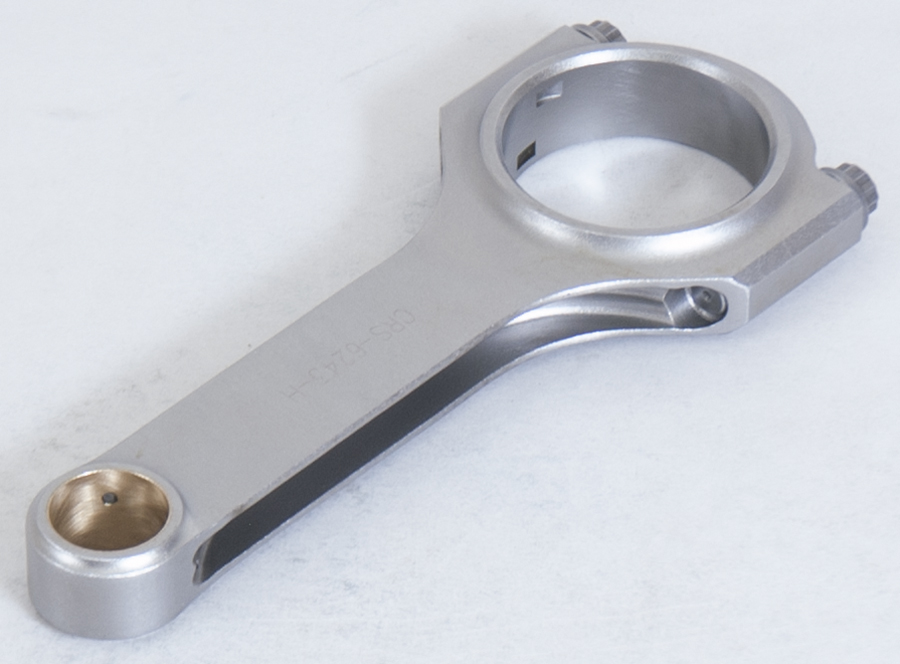

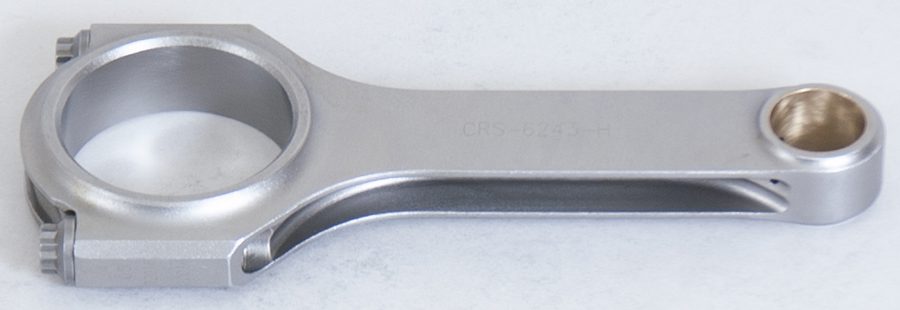

Eagle CRS6243C3D-1 - Chrysler 5.7L / 6.1L Hemi H-Beam Connecting Rods (Single Rod)
4340 H-BEAM CHRY 5.7/6.1 HEMI .945 PIN
Forged 4340 Steel H-Beam Rod - CHRYSLER 6.4L HEMI, .945" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.932 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.243 in
Housing Bore: 2.242 in
Length Center Bore To Center Bore: 6.243
Material: Forged 4340 Steel
Pin End Width: 0.932 in
Pin Size: 0.945 in
Rod Journal: 2.126 in
