Eagle CRS6200B3DL19-1 - ESP 4340 ROD 6.200 in 2.100 ROD ARP L19 BOLT
Eagle | SKU:
CFQW-CRS6200B3DL19-1
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

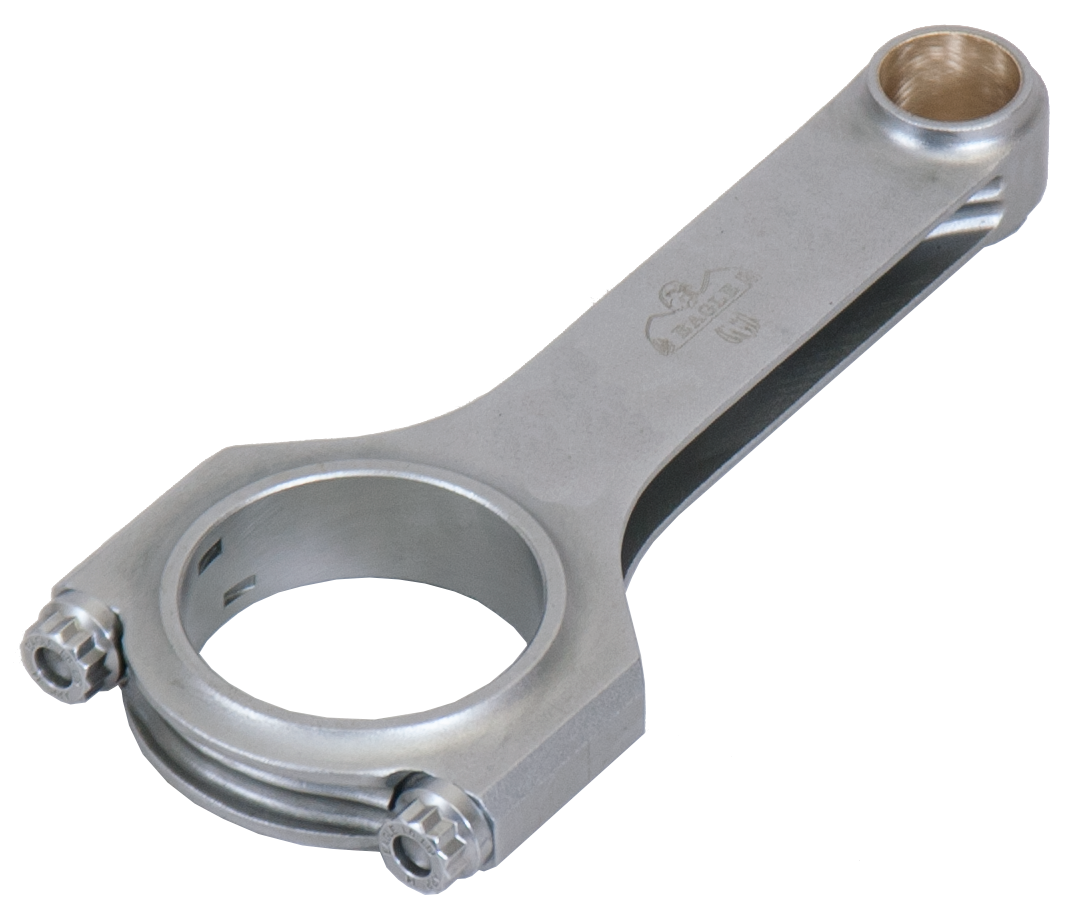

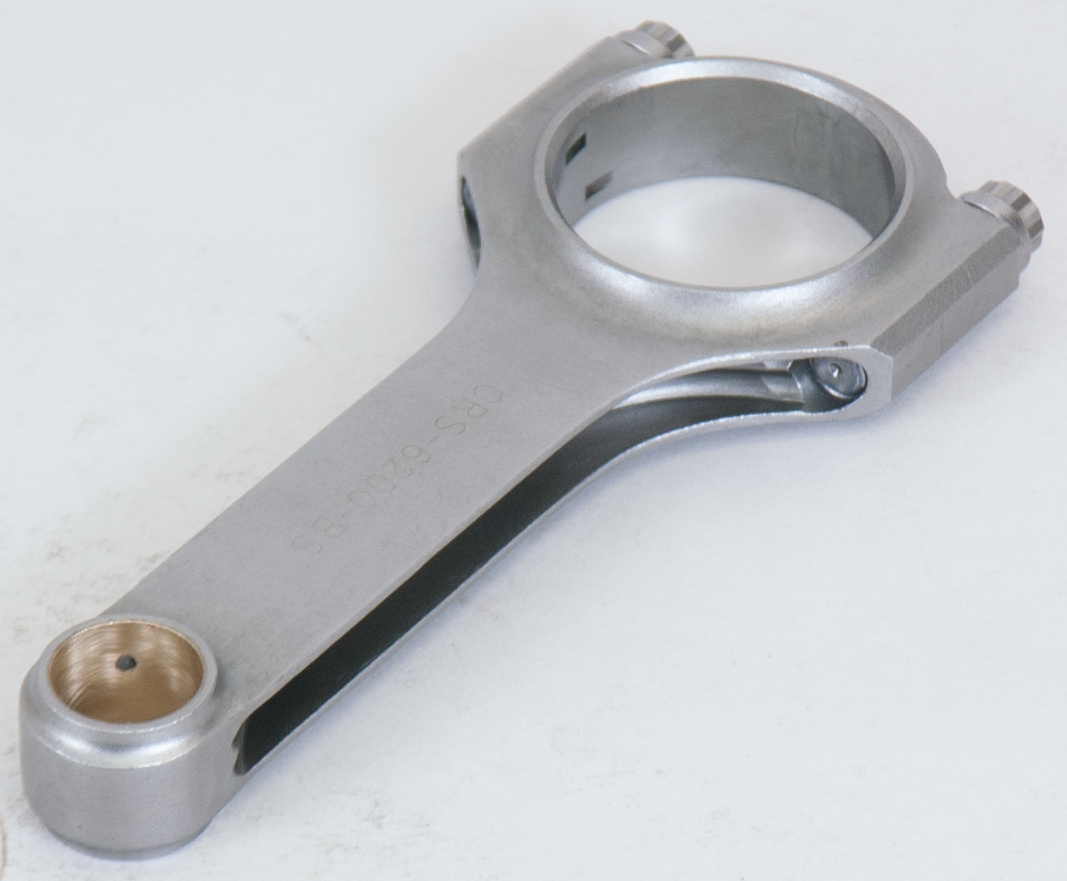

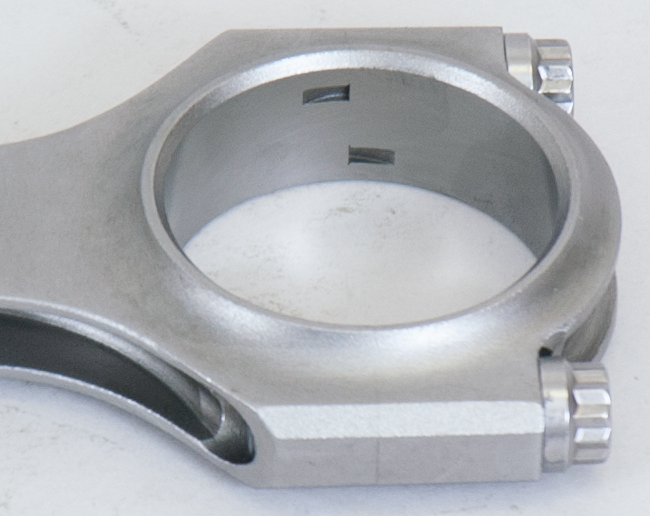

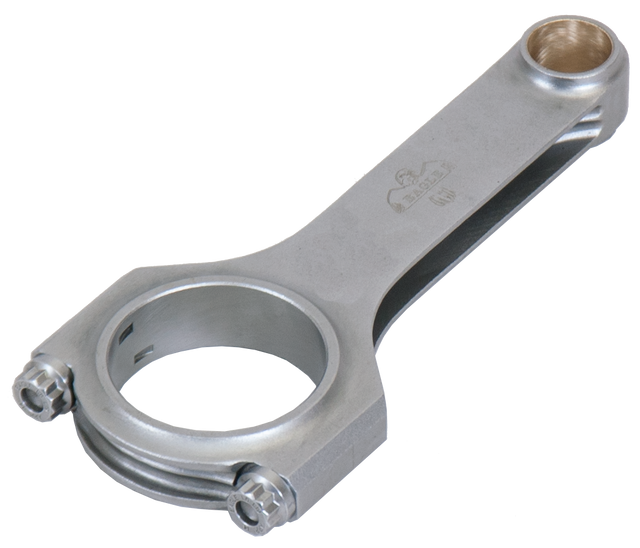

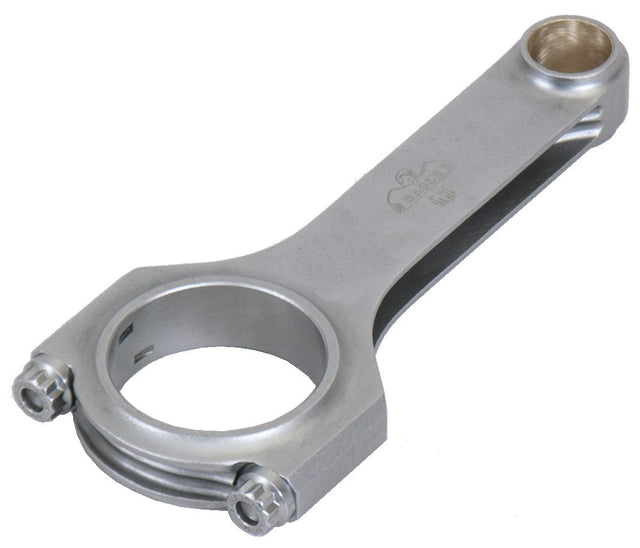

Eagle CRS6200B3DL19-1 - ESP 4340 ROD 6.200 in 2.100 ROD ARP L19 BOLT
4340 Rod 6.200" 2.100 Rod ARP L19 BOLT
Forged 4340 Steel H-Beam Rod - CHEVROLET SMALL BLOCK, 6.200" LENGTH, ARP L19 BOLTS.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP L19
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.2 in.
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 6.2
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
