Eagle CRS6100L3D-1 - Chevrolet LS / Pontiac LS H-Beam Connecting Rod (Single Rod)
Eagle | SKU:
CFQW-CRS6100L3D-1
Sale price
$12599
Regular price
$13099
Unit price
/
Unavailable
$5.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

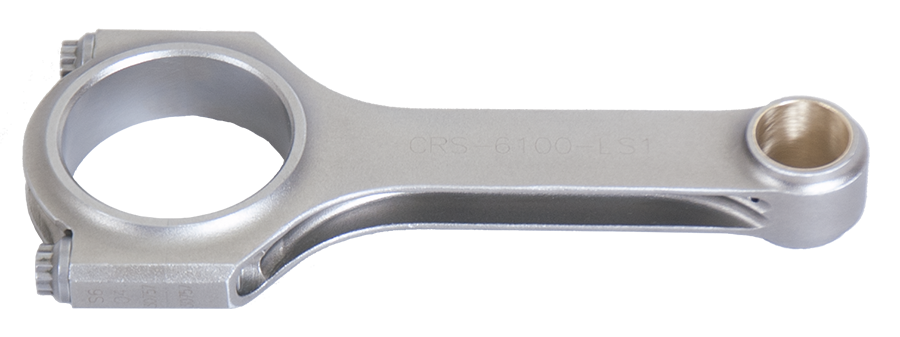

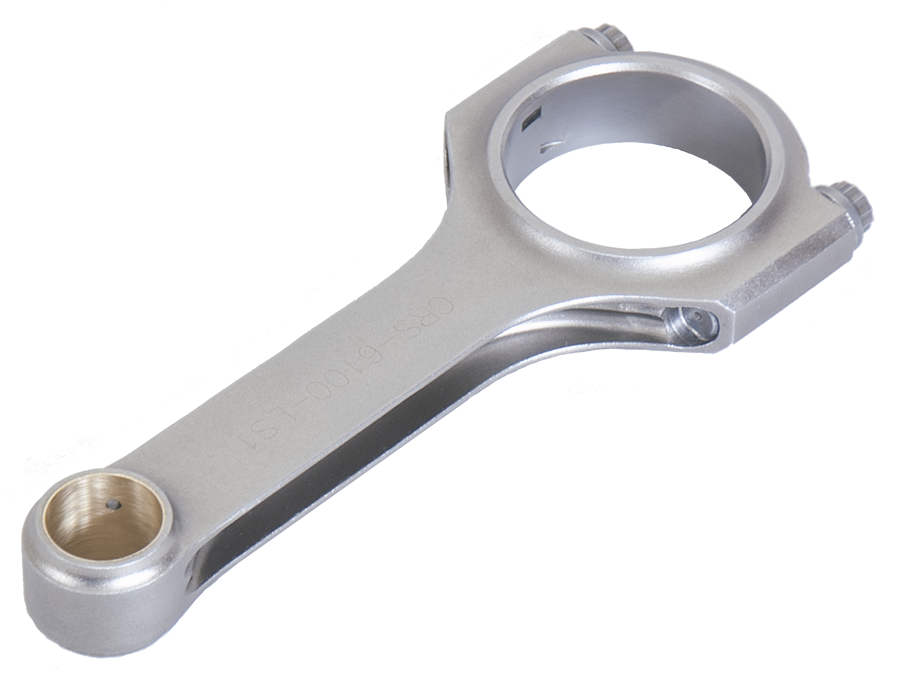

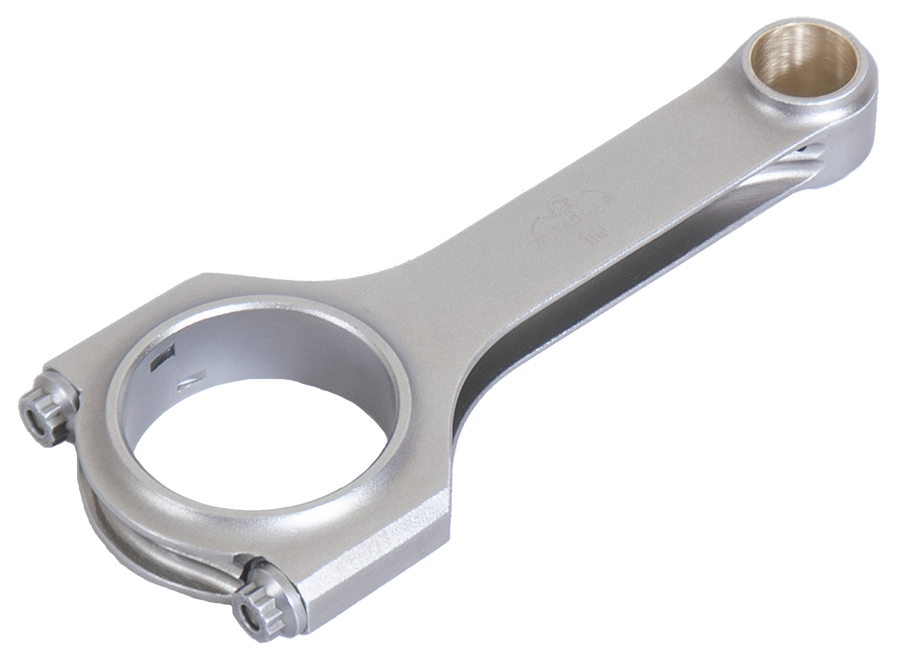

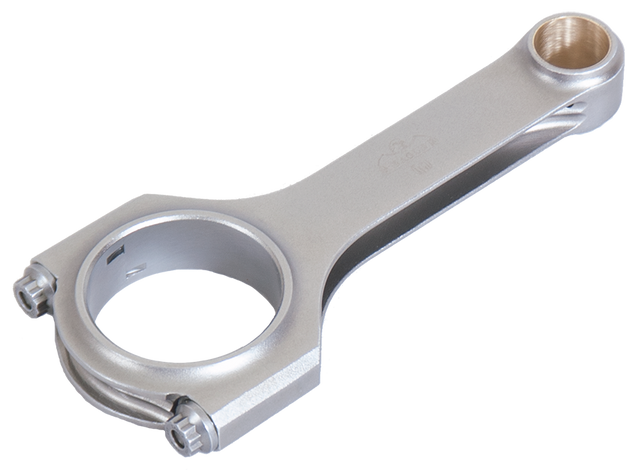

Eagle CRS6100L3D-1 - Chevrolet LS / Pontiac LS H-Beam Connecting Rod (Single Rod)
4340 Rod 6.100" LS1 Rod
Forged 4340 Steel H-Beam Rod - CHEVROLET LS, .927" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.1 in.
Housing Bore: 2.225 in
Length Center Bore To Center Bore: 6.1
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
