Eagle CRS5950F8740-1 - Ford 4.6L Modular Stroker 5.950in Length ARP 8740 Bolts 4340 H-Beam Connecting Rods - Single

Eagle  |  SKU: CFQW-CRS5950F8740-1
$12799 $13199

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

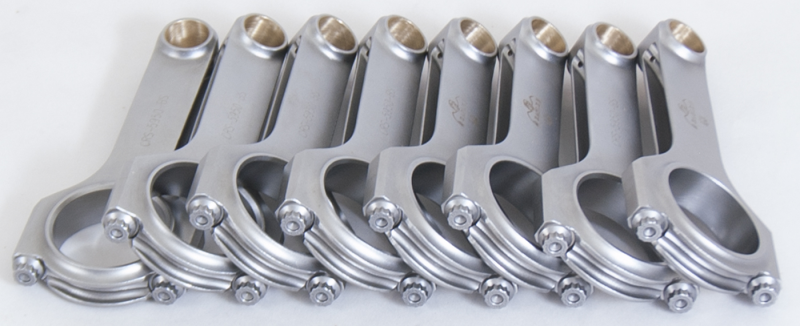

Eagle CRS5950F8740-1 - Ford 4.6L Modular Stroker 5.950in Length ARP 8740 Bolts 4340 H-Beam Connecting Rods - Single

4340 Rod 5.950 Ford Stroker Rod

Forged 4340 Steel H-Beam Rod - Ford 4.6L MODULAR V8 STROKER, 5.950" LENGTH, 1.889" ROD JOURNAL, ARP 8740 BOLTS.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.

Pin End Width: 1.03 in
Pin Size: 0.866 in
Rod Journal: 1.889 in
Big End Width: 0.935 in
Bolts: 3/8 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.95 in
Housing Bore: 2.008 in
Length Center Bore To Center Bore: 5.95
Material: Forged 4340 Steel
